Original: $882.31
-70%$882.31
$264.69The Story
- 4x Microphone Preamps
- Global 48V Phantom Power
- Built-In Compression
- Studio Quality Headphone Output
- KOSMOS Bass and Treble Enhancement
- Master Mic Mute
- Dual Selectable Control Room Outputs
- Convenient Tablet Cradle
- Slim Low Profile Design
- LED Meter Bridge

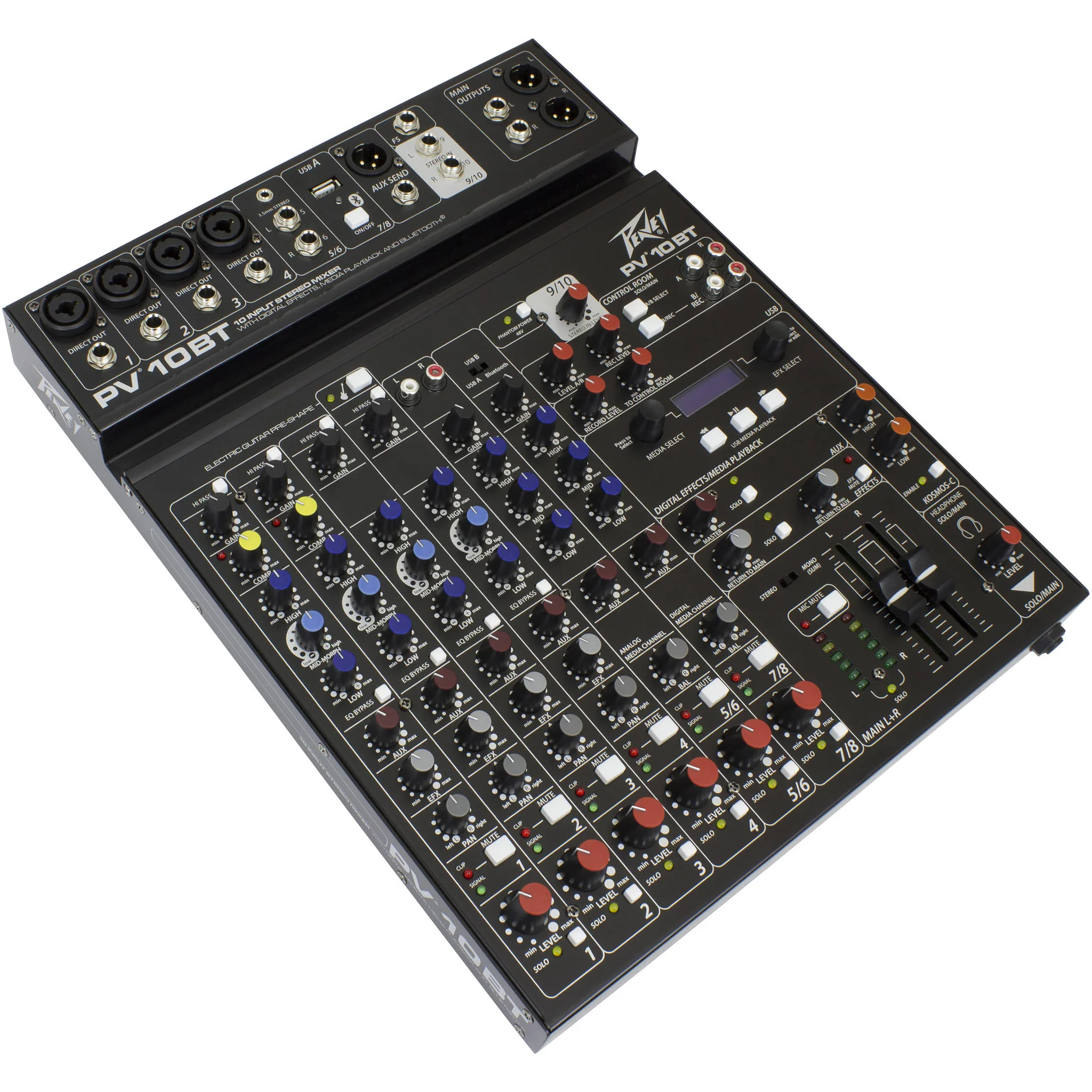

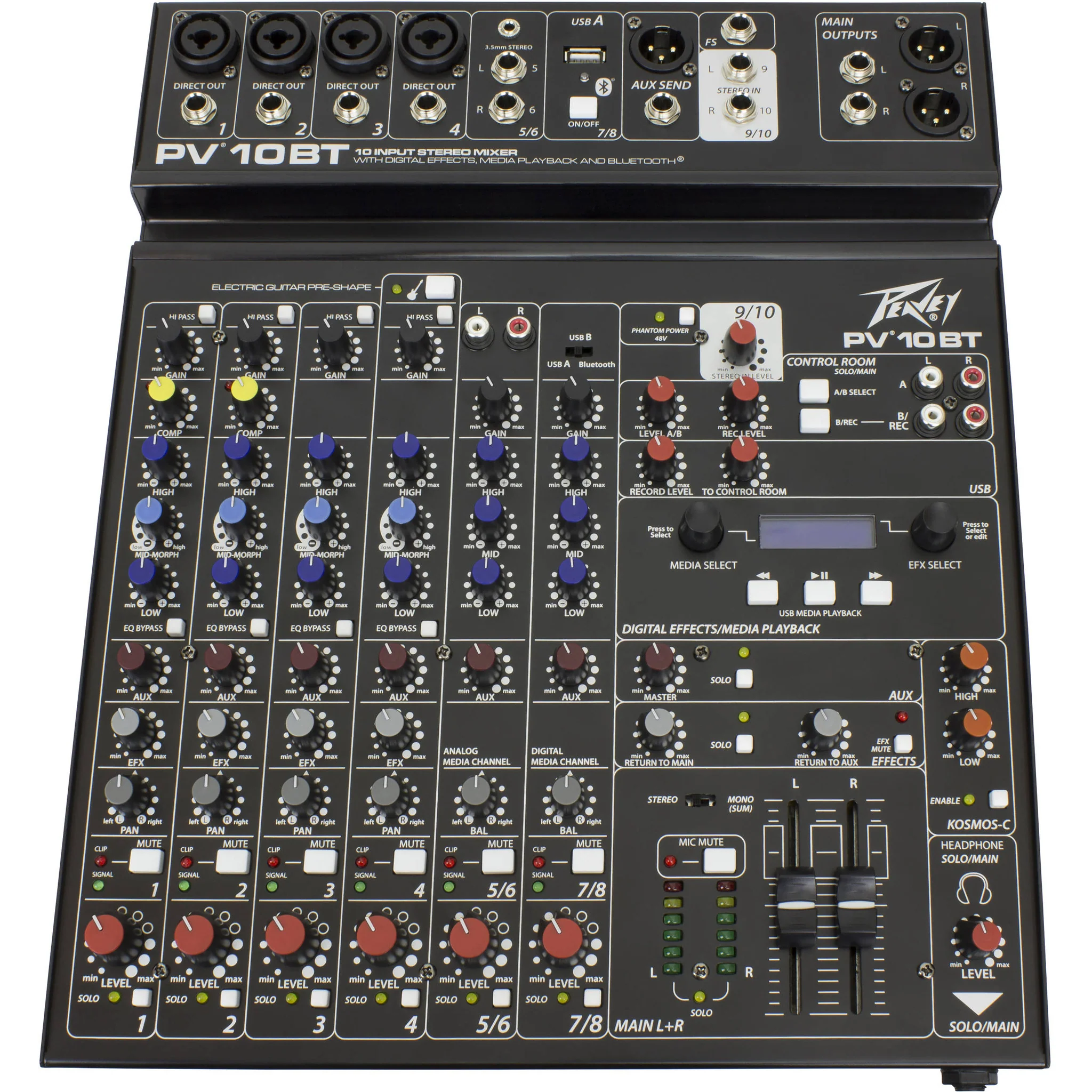

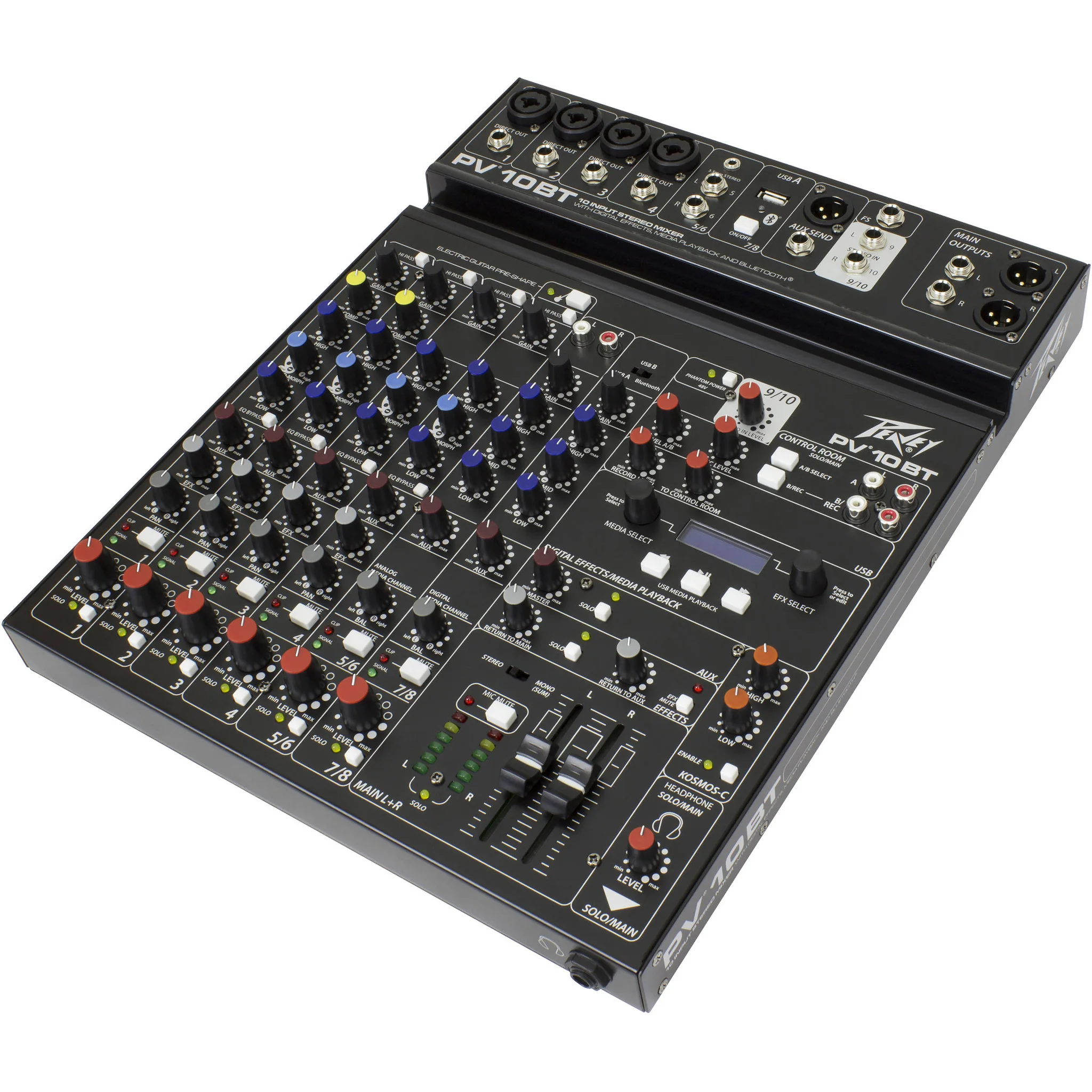

The PV 10 BT Mixing Console from Peavey is a professional non-powered mixer for studio and live applications. The console features reference-quality microphone pre-amps with a .0007% THD, a pair of direct outputs for recording, a stereo input channel, a dedicated media channel, and an effects send jack with level control.
Additional features include global 48V phantom power, dual selectable control room outputs, built-in stereo compression, an on-board selectable high impedance preamplifier equalized for guitar, 3-band EQ per channel with bypass, signal/clip indicators, and a stereo LED meter bridge. Direct outs on the mic channels allow for connection to most DAW interfaces for recording. Music may also be streamed directly to and from a PC via USB. Direct monitoring can be enabled using the USB to Control Room switch for use with programs such as the included REAPER software. A tablet cradle allows you to a hold a smart device for display and convenient operation.
The included Bluetooth receiver allows seamless connection to almost any "smart" device as well as can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and play back music. The PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs, and the EQ bypass allows the user to hear and compare the EQ'd signal to the original signal with the push of a button.
-
- 4 combination XLR/1/4" low noise mic preamps
- Rugged console design
- EQ bypass per channel
- 2 channels of built-in compression
- Individual channel mutes
- LED clip and signal present indication
- On-board USB-A MP3 playback
- 4 channels of Peavey's exclusive MidMorph®
- 4 Channels of direct out
- 3-band EQ on all channels
- KOSMOS® bass and treble enhancement
- Channel 9/10 stereo return/input
- Dual selectable control room outputs
- Individual Listen/Solo function
- Precision 60 mm faders on master
- Stereo USB-B streaming audio in and out
- One pre-fader AUX send
- High quality master LED meter bridge
- On-board studio quality digital effects with individual channel control Effects and playback LCD display
- Master mic mute
- Stereo pan control per channel
- Studio quality headphone output
- Stereo 1/4", RCA or 3.5mm input channel
- Peavey's exclusive on-board Hi Z guitar input
- Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
- New slim, low-profile design
- Global 48V phantom power
- Convenient tablet cradle
- Bluetooth® wireless connectivity
| Connectors | 4 x 1/4" / XLR, microphone input 1 x 1/4" phone jack, stereo input 2 x RCA, stereo input 1 x 3.5 mm phone jack, stereo input 2 x 1/4" XLR, main stereo output USB type B, input/output streaming 4 x Direct output |
| LED Indicators | Clip Signal present Stereo master meter bridge |
| Controls | Channel mute buttons Dual selectable control room outputs Stereo pan control |
| Frequency Response | Max Input Gain: 14 to 25,000 Hz +0 dB/-1 dB Input Gain at 12:00: 9.5 to 29,000 Hz +0 dB/-0.8 dB |
| EIN | -128 dBu (input terminated with 150 ohms, bandwidth 20 kHz) |
| Dimensions | 12.75 x 15.1 x 2.1875" (32.39 x 38.35 x 5.56 cm) |
| Weight | 8.22 lb (3.73 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.85 lb |
| Box Dimensions (LxWxH) | 16.6 x 16.2 x 3.6" |
- Limited 2-Year Warranty (additional 3-Year after registration)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- 4x Microphone Preamps
- Global 48V Phantom Power
- Built-In Compression
- Studio Quality Headphone Output
- KOSMOS Bass and Treble Enhancement
- Master Mic Mute
- Dual Selectable Control Room Outputs
- Convenient Tablet Cradle
- Slim Low Profile Design
- LED Meter Bridge
The PV 10 BT Mixing Console from Peavey is a professional non-powered mixer for studio and live applications. The console features reference-quality microphone pre-amps with a .0007% THD, a pair of direct outputs for recording, a stereo input channel, a dedicated media channel, and an effects send jack with level control.
Additional features include global 48V phantom power, dual selectable control room outputs, built-in stereo compression, an on-board selectable high impedance preamplifier equalized for guitar, 3-band EQ per channel with bypass, signal/clip indicators, and a stereo LED meter bridge. Direct outs on the mic channels allow for connection to most DAW interfaces for recording. Music may also be streamed directly to and from a PC via USB. Direct monitoring can be enabled using the USB to Control Room switch for use with programs such as the included REAPER software. A tablet cradle allows you to a hold a smart device for display and convenient operation.
The included Bluetooth receiver allows seamless connection to almost any "smart" device as well as can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and play back music. The PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs, and the EQ bypass allows the user to hear and compare the EQ'd signal to the original signal with the push of a button.
-
- 4 combination XLR/1/4" low noise mic preamps
- Rugged console design
- EQ bypass per channel
- 2 channels of built-in compression
- Individual channel mutes
- LED clip and signal present indication
- On-board USB-A MP3 playback
- 4 channels of Peavey's exclusive MidMorph®
- 4 Channels of direct out
- 3-band EQ on all channels
- KOSMOS® bass and treble enhancement
- Channel 9/10 stereo return/input
- Dual selectable control room outputs
- Individual Listen/Solo function
- Precision 60 mm faders on master
- Stereo USB-B streaming audio in and out
- One pre-fader AUX send
- High quality master LED meter bridge
- On-board studio quality digital effects with individual channel control Effects and playback LCD display
- Master mic mute
- Stereo pan control per channel
- Studio quality headphone output
- Stereo 1/4", RCA or 3.5mm input channel
- Peavey's exclusive on-board Hi Z guitar input
- Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
- New slim, low-profile design
- Global 48V phantom power
- Convenient tablet cradle
- Bluetooth® wireless connectivity
| Connectors | 4 x 1/4" / XLR, microphone input 1 x 1/4" phone jack, stereo input 2 x RCA, stereo input 1 x 3.5 mm phone jack, stereo input 2 x 1/4" XLR, main stereo output USB type B, input/output streaming 4 x Direct output |
| LED Indicators | Clip Signal present Stereo master meter bridge |
| Controls | Channel mute buttons Dual selectable control room outputs Stereo pan control |
| Frequency Response | Max Input Gain: 14 to 25,000 Hz +0 dB/-1 dB Input Gain at 12:00: 9.5 to 29,000 Hz +0 dB/-0.8 dB |
| EIN | -128 dBu (input terminated with 150 ohms, bandwidth 20 kHz) |
| Dimensions | 12.75 x 15.1 x 2.1875" (32.39 x 38.35 x 5.56 cm) |
| Weight | 8.22 lb (3.73 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.85 lb |
| Box Dimensions (LxWxH) | 16.6 x 16.2 x 3.6" |
- Limited 2-Year Warranty (additional 3-Year after registration)
