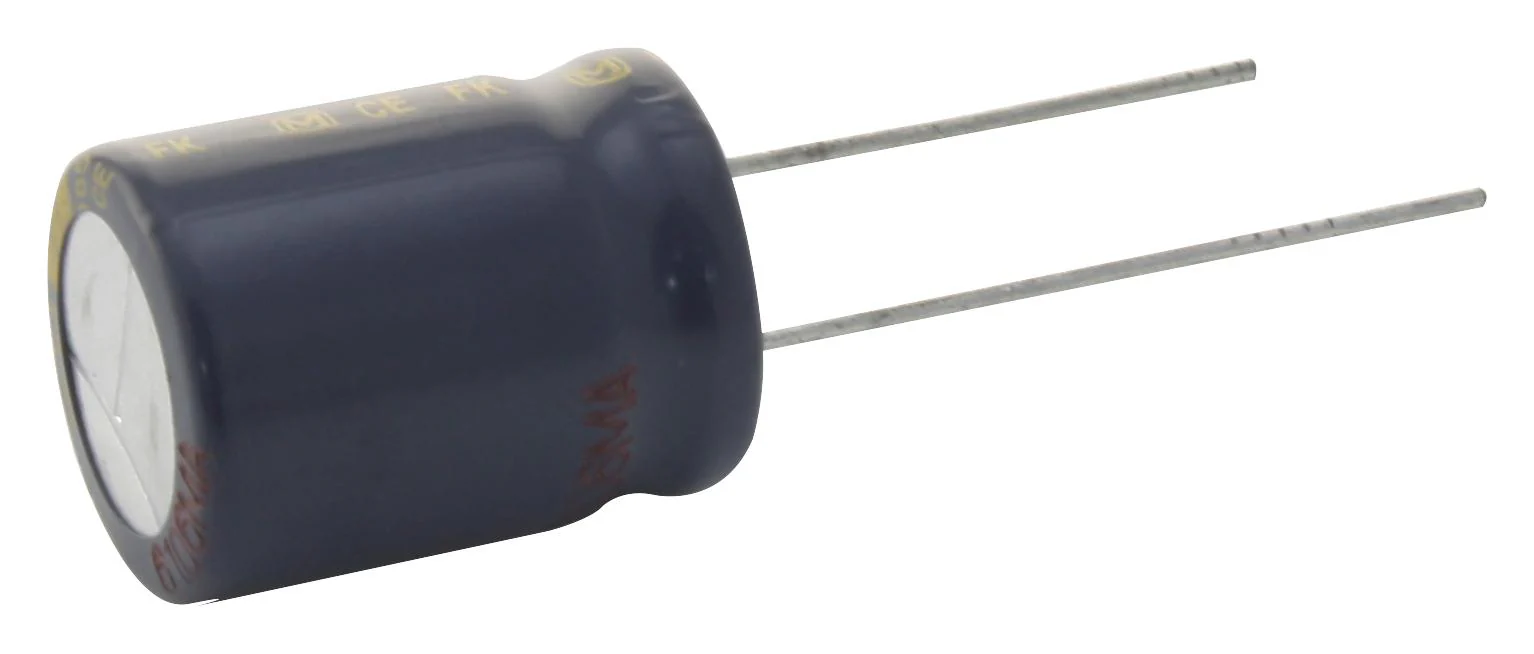

Panasonic EEUFK1V102S Electrolytic Capacitor 1000 µF 35 V ± 20% Radial Leaded 5000 Hours @ 105°C Polar

The EEUFK1V102S is an aluminium Electrolytic Capacitor with radial leaded terminals and features high reliability, long life, low impedance and high ripple current. The FK-A series electrolytic capacitor is suitable for high reliability application such as an industrial instrument.

• PET sleeve sheathing (metal case) appearance
• 1800mA RMS at 100kHz/105°C Ripple current
• 0.038R at 100kHz/+20°C Impedance

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	PANASONIC
Part Number	EEUFK1V102S
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
