$4.29

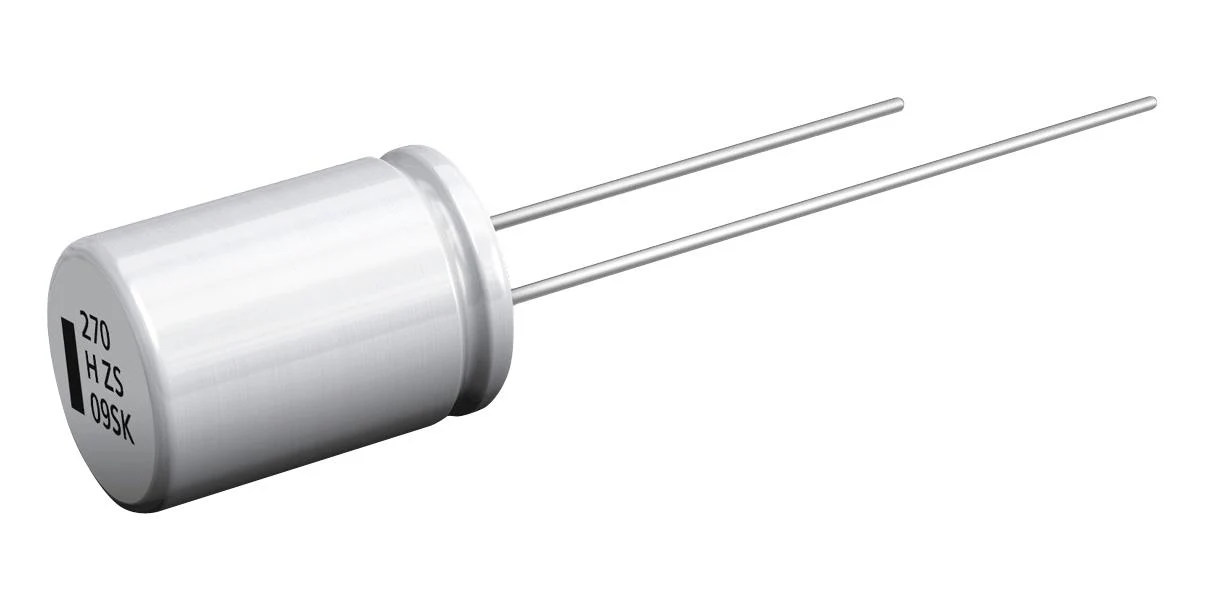

PANASONIC EEHAZSH271UB Hybrid Aluminium Electrolytic Capacitor, 270 µF, ± 20%, 50 V, Radial Leaded, 0.013 ohm—
$4.29
The Story
- ZSU-A series conductive polymer hybrid aluminium electrolytic capacitors
- Radial lead type
- Endurance of 4000h at 125°C
- Large capacitance compared with ZS series
- AEC-Q200 compliant
Product details
| Capacitance: 270µF |
| Capacitance Tolerance: ± 20% |
| Voltage(DC): 50V |
| Capacitor Case / Package: Radial Leaded |
| ESR: 0.013ohm |
| Lifetime @ Temperature: 4000 hours @ 125°C |
| Product Diameter: 10mm |
| Product Length: - |
| Product Width: - |
| Product Height: 15.7mm |
| Operating Temperature Min: -55°C |
| Operating Temperature Max: 125°C |
| Product Range: ZSU-A |
| Qualification: AEC-Q200 |
Other details
| Brand | PANASONIC |
| Part Number | EEHAZSH271UB |
| Quantity | |
| Technical Data Sheet EN |  |
