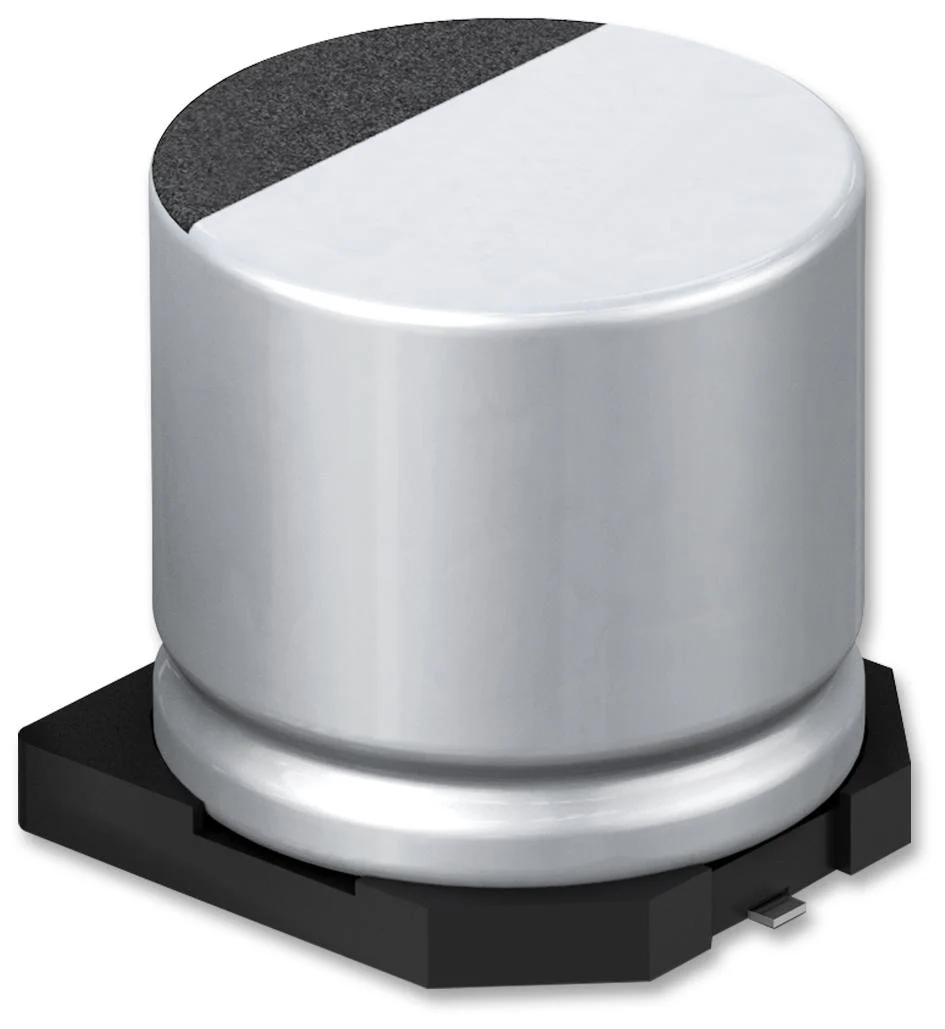

-70%PANASONIC EEEFT1H221GP SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 220 µF, 50 V, 0.18 ohm—
$1.98
$0.59The Story
The EEEFT series from Panasonic are automotive grade type V, surface mount aluminium electrolytic capacitors.
- Capacitance value ranges from 10µF to 2200µF
- Rated voltage range is 6.3VDC to 50VDC
- Tolerance of ±20% (120 Hz/+20°C)
- Endurance of 2000h to 5000h at 105°C
- Category temperature range from -55°C to +105°C
- Miniaturized, low ESR
- High temperature lead-free reflow
- Automotive grade AEC-Q200 compliant
Product details
| Capacitor Case / Package: Radial Can - SMD |
| Capacitance: 220µF |
| Voltage(DC): 50V |
| ESR: 0.18ohm |
| Lifetime @ Temperature: 5000 hours @ 105°C |
| Polarity: Polar |
| Product Range: FT |
| Capacitance Tolerance: ± 20% |
| Capacitor Terminals: Solder |
| Product Diameter: 8mm |
| Product Length: - |
| Product Width: - |
| Product Height: 10.2mm |
| Ripple Current: 670mA |
| Operating Temperature Min: -55°C |
| Operating Temperature Max: 105°C |
| Qualification: AEC-Q200 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | PANASONIC |
| Part Number | EEEFT1H221GP |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
