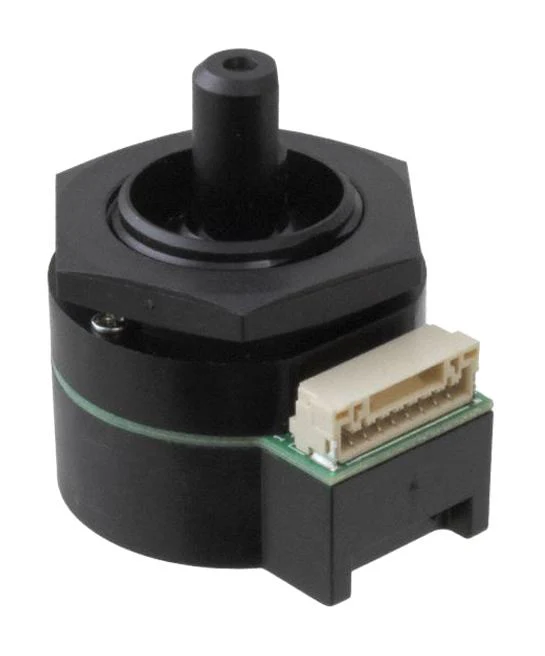

-70%NIDEC COMPONENTS CJ25-82010 Rotary Encoder, Optical, Incremental, 5 PPR, 20 Detents, Vertical, With Push Switch—
$139.12
$41.74The Story
Product Overview
CJ25-82010 is a joystick encoder. Applications include operation panels for medical device, broadcast equipment, surveillance camera etc.
- Suitable size for panels, smooth operational feel
- Long life, joystick 500K cycles, encoder and switch 1M cycles
- 8 directions joystick
- 20 positions (5P/R) encoder
- With push switch function, connector interface
- 5VDC ±5% input voltage, 20mA maximum at 5V input current
- Incremental signal (square wave) output waveform
- 10Hz maximum frequencies response
- 6mA maximum output sink current, 10 ohm maximum contact resistance
- 0°C to + 50°C operating temperature range
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | CJ25-82010 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
