$37.09
Original: $123.64

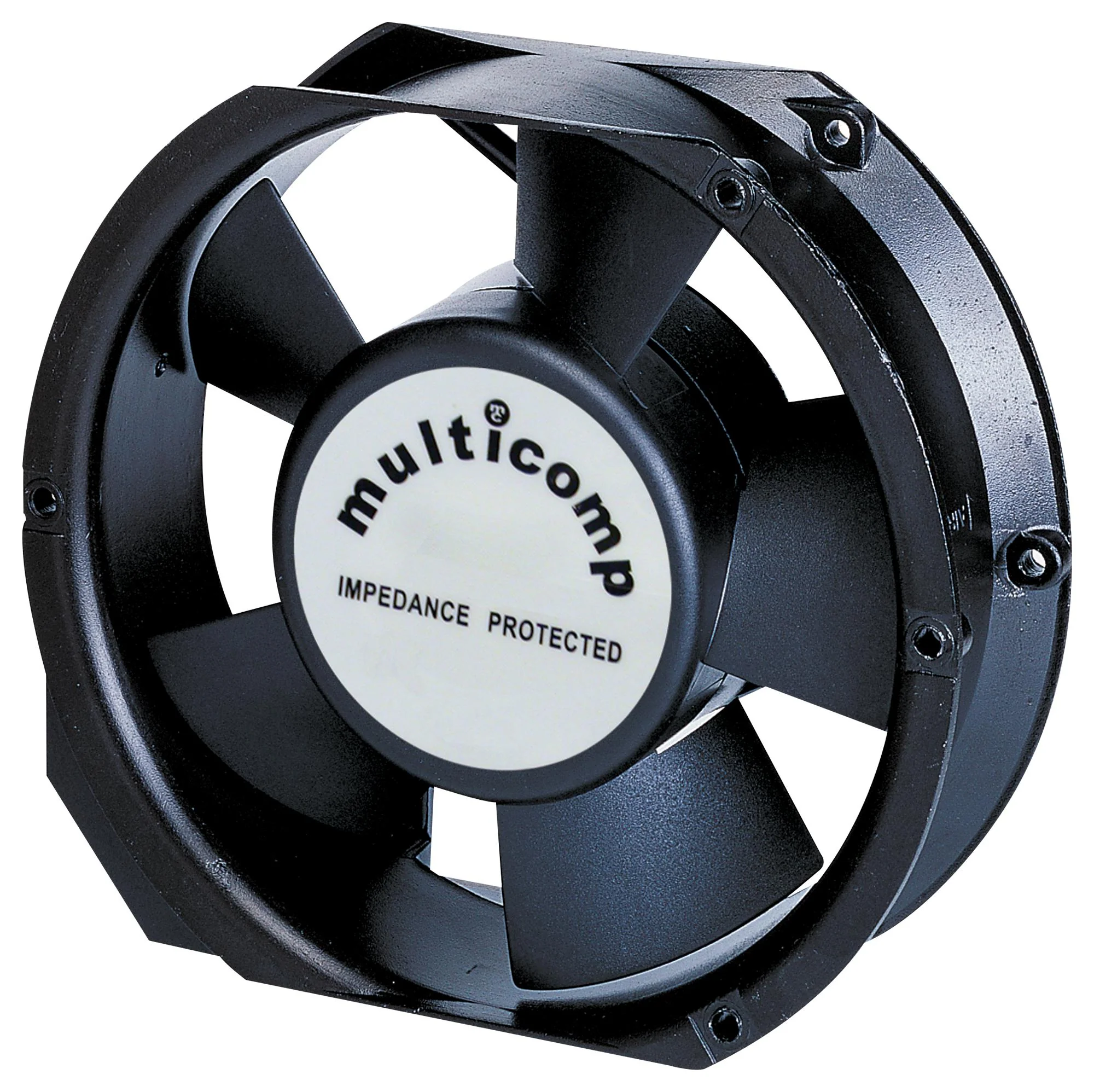

-70%Multicomp MC21673 MC21673 AC Axial Fan 220V to 240V Rectangular With Rounded Ends 171.5 mm 51—
$123.64
$37.09The Story
The MC21673 is a 230VAC Axial Fan with ball bearing and terminal power connection. Die-cast aluminum frame and thermoplastic PBT impeller. Clockwise direction of rotation viewed from front of fan blade and reliable Alveolate motor construction.
- UL94V-0 Flammability rating
- 2800/3200RPM ±10% Speed rating
- -10 to 70°C Operating temperature range
- 25/26W Rated power
- 0.62/0.69"-H2O Static pressure
- Thermal protected
- Class-B motor protection
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Nominal Rated Voltage AC | 220V to 240V |
| Fan Frame Type | Rectangular with Rounded Ends |
| Fan Frame Size | 171.5mm |
| External Depth | 51mm |
| Bearing Type | Precision Ball Bearing |
| Air Flow - CFM | 239CFM |
| Noise Rating | 58dBA |
| Power Rating | 26W |
| Rated Speed | 2800rpm |
| Power Connection Type | Terminals |
| Current Rating | 110mA |
| IP Rating | - |
| Air Flow - m3/min | 6.77m³/min |
| Product Range | - |
Other details
| Brand | MULTICOMP |
| Part Number | MC21673 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The MC21673 is a 230VAC Axial Fan with ball bearing and terminal power connection. Die-cast aluminum frame and thermoplastic PBT impeller. Clockwise direction of rotation viewed from front of fan blade and reliable Alveolate motor construction.
- UL94V-0 Flammability rating
- 2800/3200RPM ±10% Speed rating
- -10 to 70°C Operating temperature range
- 25/26W Rated power
- 0.62/0.69"-H2O Static pressure
- Thermal protected
- Class-B motor protection
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Nominal Rated Voltage AC | 220V to 240V |
| Fan Frame Type | Rectangular with Rounded Ends |
| Fan Frame Size | 171.5mm |
| External Depth | 51mm |
| Bearing Type | Precision Ball Bearing |
| Air Flow - CFM | 239CFM |
| Noise Rating | 58dBA |
| Power Rating | 26W |
| Rated Speed | 2800rpm |
| Power Connection Type | Terminals |
| Current Rating | 110mA |
| IP Rating | - |
| Air Flow - m3/min | 6.77m³/min |
| Product Range | - |
Other details
| Brand | MULTICOMP |
| Part Number | MC21673 |
| Quantity | Each |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
