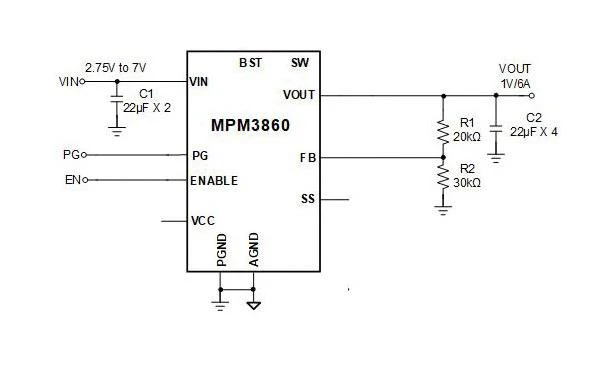

Monolithic Power Systems (MPS) MPM3860GQW-P DC-DC Switching Synchronous Step-Down Regulator Adjustable 2.75-7V in 0.6-7V/6A out QFN-24

Fully integrated, high-frequency, synchronous, rectified, step-down power module with internal inductor. It offers a very compact solution to achieve 6A of continuous output current over a wide input range with excellent load and line regulation. The MPM3860 has synchronous mode operation for higher efficiency over the output current load range. Constant-on-time (COT) control operation provides very fast transient response and easy loop design, as well as very tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP) and thermal shutdown. The MPM3860 requires a minimal number of readily available, standard external components and is available in a space-saving QFN-24 (4mmx6mm) package. Typical applications include FPGA power systems, optical modules, telecom, networking and industrial equipment.

• Wide 2.75V to 7V operating input range
• Internal power MOSFETs
• Output adjustable from 0.6V
• High efficiency synchronous mode operation
• Pre-biased start-up
• Forced CCM mode for Low VOUT ripple, fixed 1200KHz switching frequency
• External programmable soft-start time
• EN and power good for power sequencing

Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MONOLITHIC POWER SYSTEMS (MPS)
Part Number	MPM3860GQW-P
Quantity
Technical Data Sheet EN
Technical Notes & Articles EN
