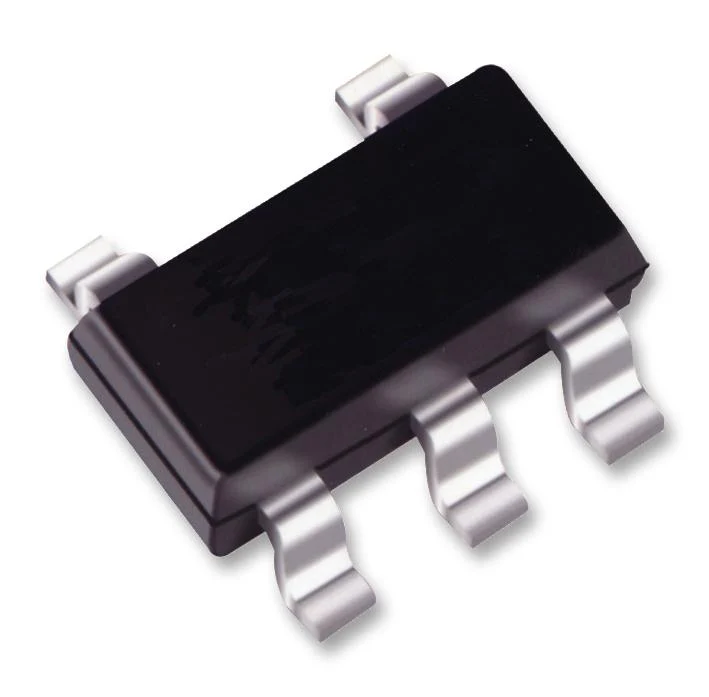

Microchip MIC5233-3.3YM5-TR MIC5233-3.3YM5-TR Fixed LDO Voltage Regulator 2.3V to 36V 270mV Dropout 3.3Vout 100mAout SOT-23-5

The MIC5233-3.3YM5 TR is a high input voltage low IQ µCap LDO Regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes the regulator ideal for multi-cell Li-Ion battery systems. A µCap LDO design, the regulator is stable with either ceramic or tantalum output capacitors. It only requires a 2.2µF capacitor for stability. It features an enable input, thermal shutdown, current limit, reverse battery protection and reverse leakage protection.

• High output accuracy of ±2.0% over-temperature
• µCap - Stable with ceramic or tantalum capacitors
• Excellent line and load regulation specifications
• Zero off-mode current
• Reverse battery protection
• Reverse leakage protection
• Thermal shutdown and current limit protection

Applications

Consumer Electronics, Computers & Computer Peripherals, Power Management, Automotive

Other details

Brand	MICROCHIP
Part Number	MIC5233-3.3YM5-TR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
