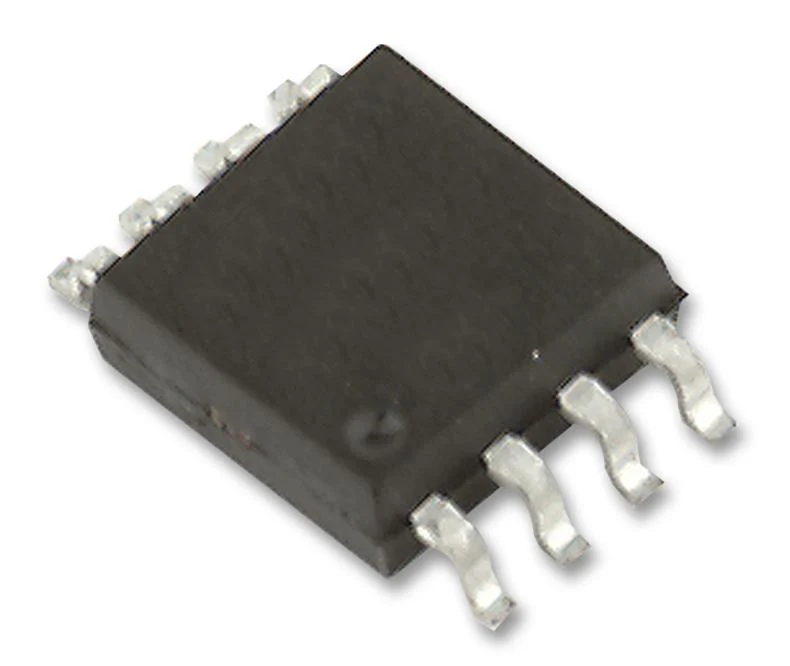

MICROCHIP MCP6032-E/MS Operational Amplifier, Dual, 10 kHz, 0.004 V/µs, 1.8V to 5.5V, MSOP, 8 Pins

The MCP6032-E/MS is an Operational Amplifier operates with a single supply voltage as low as 1.8V, while drawing ultra low quiescent current per amplifier (0.9μA, typical). This family also has low input offset voltage (±150μV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6032 family is unity gain stable and has a gain bandwidth product of 10kHz (typical). These specs make these op amps appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. The MCP6032 family is offered in dual (MCP6032) configurations. The MCP6032 family is designed with Microchipâ��s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8 to 5.5V.

• No phase reversal

Applications

Sensing & Instrumentation, Power Management
