Luminys R54-32PA 32-Channel 8K NVR (No HDD)
HomeStore

Luminys R54-32PA 32-Channel 8K NVR (No HDD)

Luminys R54-32PA 32-Channel 8K NVR (No HDD)

$487.33

Original: $1,624.42

-70%
Luminys R54-32PA 32-Channel 8K NVR (No HDD)—

$1,624.42

$487.33

The Story

Luminys R54-32PA Overview

Record from and manage up to 32 cameras with the R54-32PA 32-Channel 8K NVR (No HDD) from Luminys. This NVR supports IP cameras up to 32MP. It is equipped with four SATA ports that each support an HDD up to 16TB for a maximum capacity of 64TB (HDDs available separately). H.265+/H.264+, H.265/H.264, and MJPEG video compressions keep file sizes manageable while maintaining the best quality possible. LumiPower technology extends PoE power and data transmission by up to 3000' (ports 1 to 8).

This NVR supports two-way audio. Dual HDMI and VGA ports enable video output to external monitors.

Supported Analytics
  • Intelligent motion detection for (16 channels for camera, 8 channels for NVR)
  • Video content analytics (16 channels for camera, 4 channels for NVR, 10 rules per channel)
    • Face capture and recognition for 2 channels
  • Face picture comparison alarm from camera for 16 channels
  • Up to 20 face picture libraries (maximum 20,000 pictures total)
  • LumiSearch+ for 16 channels (must be supported by camera)
  • LumiSearch+ enables users to find, track, and identify targets in security footage using a reference image
  • Video metadata for 8 channels (analytics by camera)
  • License plate recognition for 8 channels (LPR camera required)
  • LPR features include two block list, two allow list, and a database of up to 20,000 plate numbers
Additional Details
  • LumiPower technology allows for long-distance PoE transmission that extend power and data delivery by up to 3000' (ports 1 to 8)
  • Dual HDMI video output resolution up to UHD 4K each
  • Dual VGA video output resolution up to 1080p each
  • Live view window division for up to 36 views
  • Auxiliary port window division for up to 16 views
  • Synchronous playback for up to 16 views
  • LumiViewer for desktop and mobile devices enable monitoring and remote management
  • Can be mounted on a desk or in a rack
UPC: 810161160143

Items Included

  • Luminys R54-32PA 32-Channel 8K NVR (No HDD)
  • Limited 7-Year Manufacturer Warranty

Not Included

Additional Resources

No additional resources available

Luminys R54-32PA Specs

Key Specs
Number of Channels
32
Playback Resolution
 1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
Recording Resolution
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
PTZ Support
Yes
Throughput
400 Mb/s (Incoming)
400 Mb/s (Outgoing)
A/V I/O
1x RCA Audio Input
2x RCA Audio Output
2x HDMI Output
2x VGA Output
Communication I/O
24x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet
1x USB-A 2.0 (Front)
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear)
1x RS-232
Wi-Fi
No
Bluetooth
No
Installed Drive
No
PoE Power Budget
210 W
General
Number of Channels
32
Playback Resolution
 1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
Recording Resolution
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
PTZ Support
Yes
Throughput
400 Mb/s (Incoming)
400 Mb/s (Outgoing)
IP Camera Support
32
Decoding Resolution
1 Channel:
32 MP at 30 fps
2 Channels:
32 MP at 30 fps
2 Channels:
16 MP at 30 fps
4 Channels:
16 MP at 30 fps
4 Channels:
8 MP at 30 fps
8 Channels:
8 MP at 30 fps
12 Channels:
4 MP at 30 fps
16 Channels:
4 MP at 30 fps
24 Channels:
1080p at 30 fps
32 Channels:
1080p at 30 fps
2-Way Audio
Yes
Connectivity
A/V I/O
1x RCA Audio Input
2x RCA Audio Output
2x HDMI Output
2x VGA Output
Communication I/O
24x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet
1x USB-A 2.0 (Front)
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear)
1x RS-232
Audio I/O
1x Input
2x Output
System Connection
4x SATA
1x eSATA
Wi-Fi
No
Bluetooth
No
Network Protocols
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
Compatibility
Supported Video Codecs
H.264, H.264+, H.265, H.265+, MJPEG
Supported IEEE Standards
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
System
Installed Drive
No
Max Capacity Supported
16 TB (Each Drive)
64 TB (Total)
Number of Bays
4
Software System Requirements
OS Compatibility
Android/iOS
Notifications
Alarm I/O
16x Input
6x Output
Event Trigger
Analytics
System Functions
Fisheye Dewarping
No
Electrical
Power Consumption
13 W (Without HDD)
Power Supply Type
External
PoE Power Budget
210 W
PoE per Port
25.5 W
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Built-In Display
No
Operating Conditions
14 to 131?F / -10 to 55?C at 10 to 93% Humidity
Certifications
FCC, NDAA
LED Indicators
Yes
Rack Form Factor
1.5 U
Dimensions (W x D x H)
17.4 x 16.3 x 2.7" / 442.0 x 414.1 x 68.0 mm
Weight
10.4 lb / 4.7 kg (Without HDD)

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

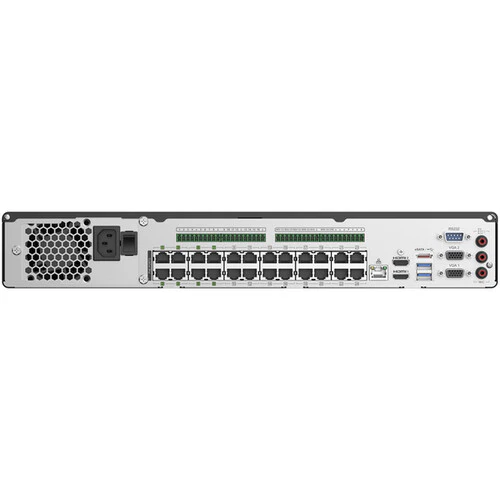

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

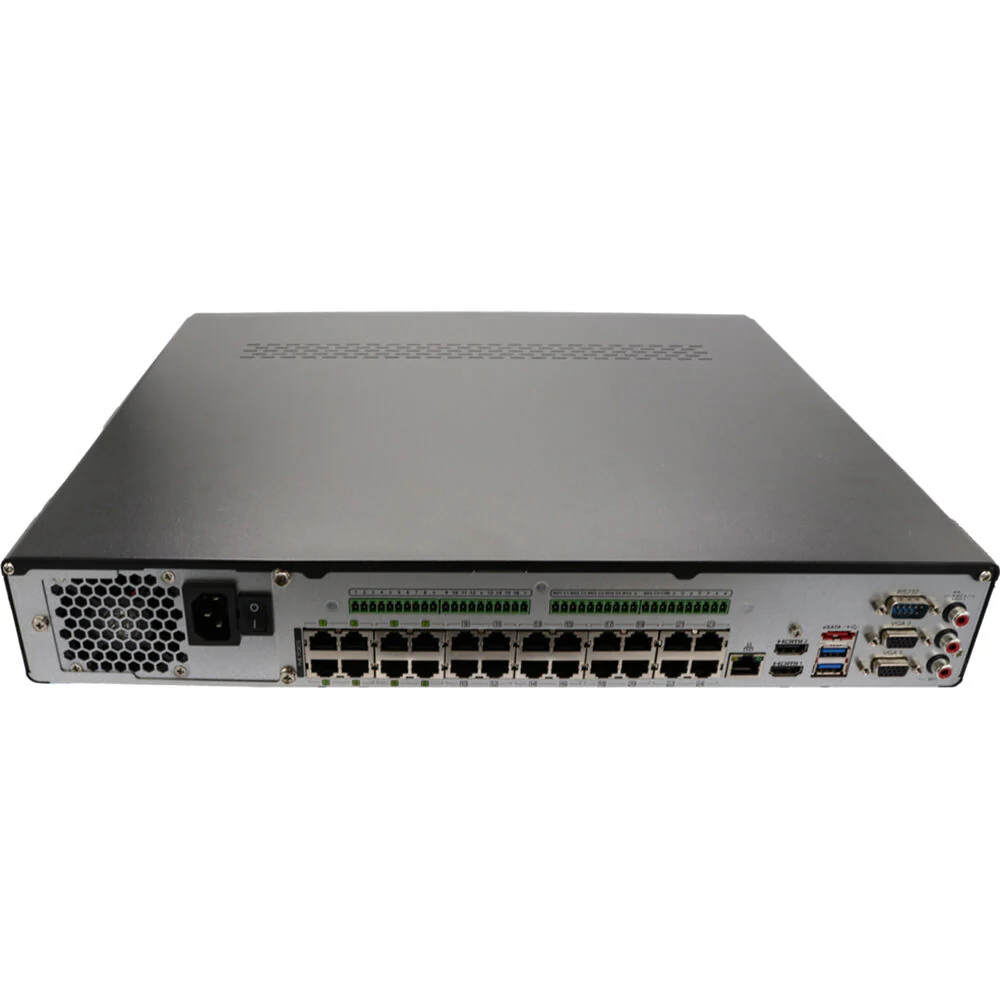

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

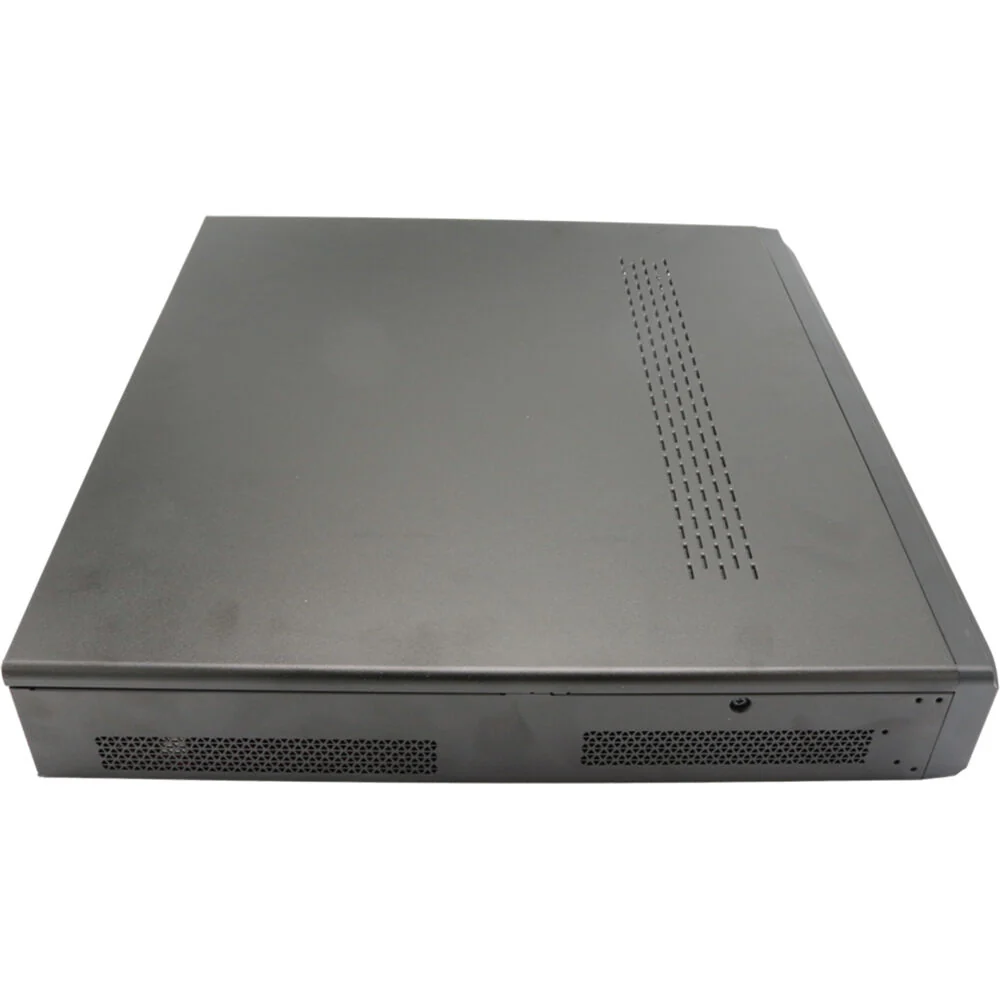

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

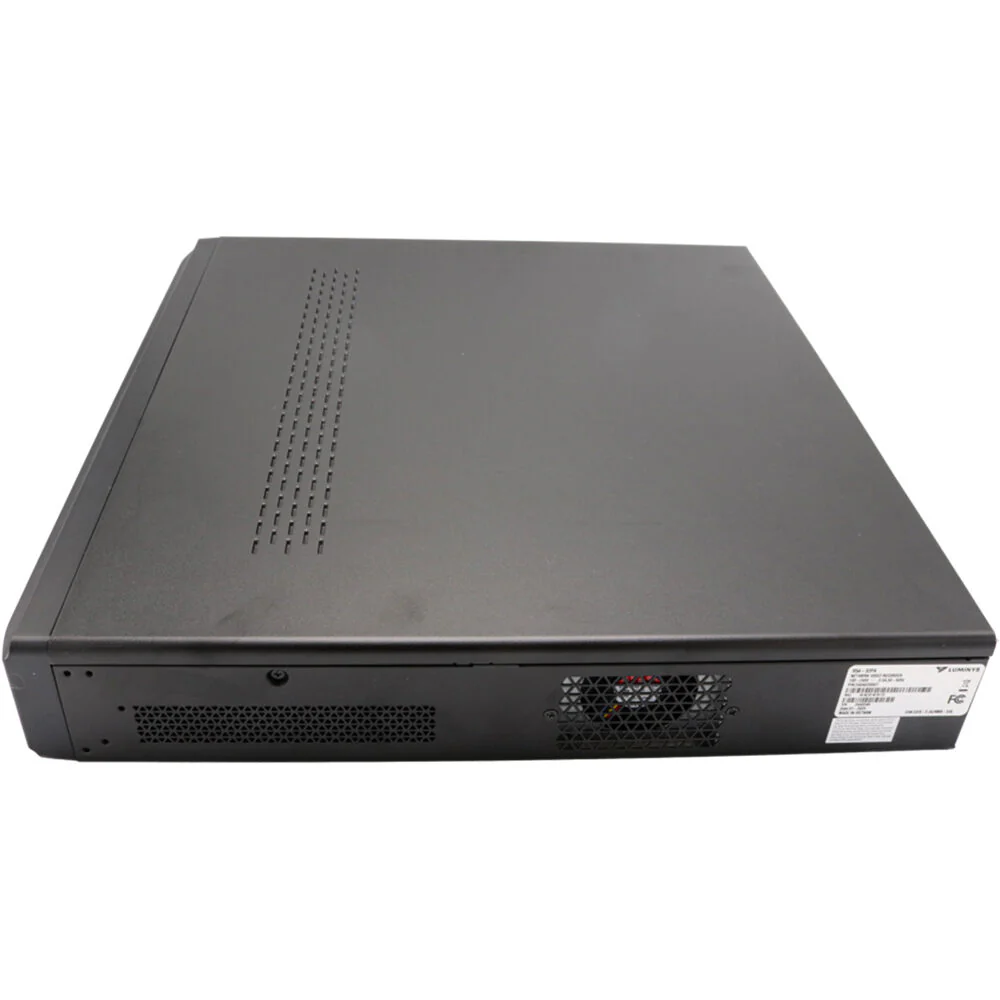

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

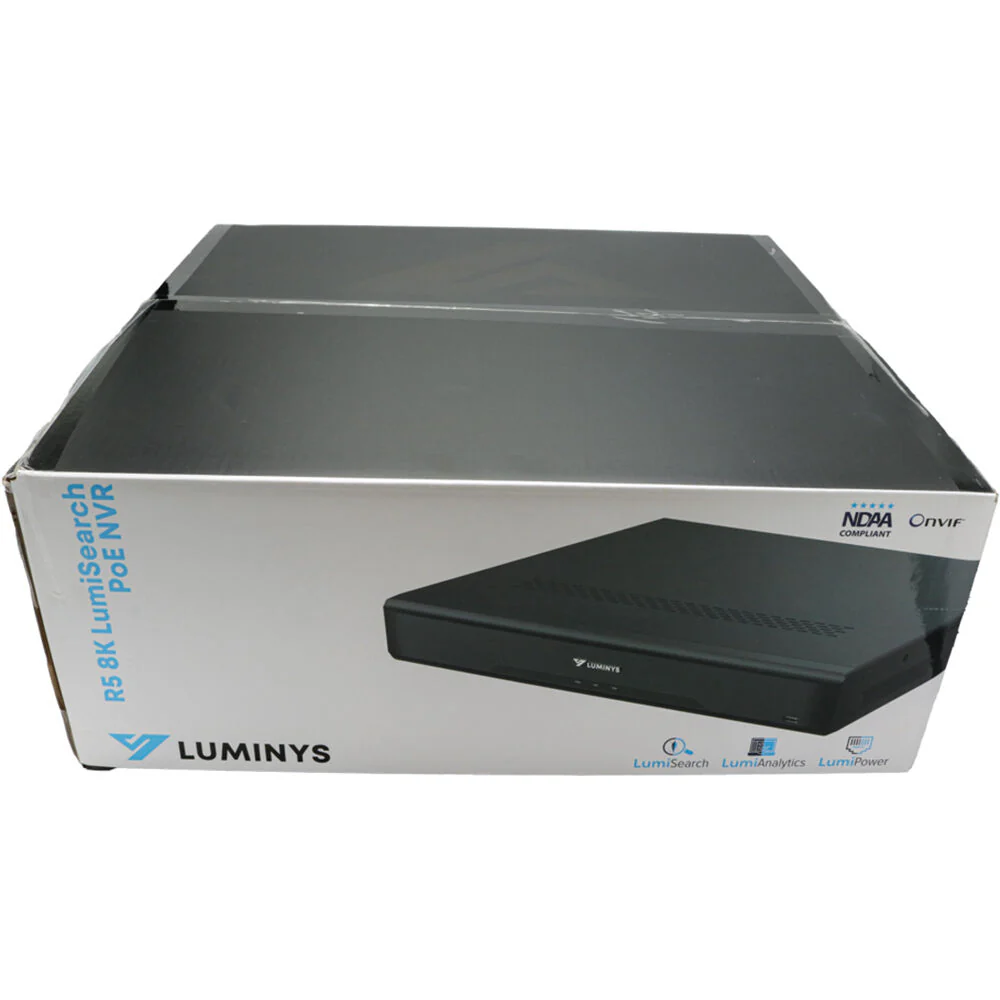

Luminys R54-32PA 32-Channel 8K NVR (No HDD) - Image 7
