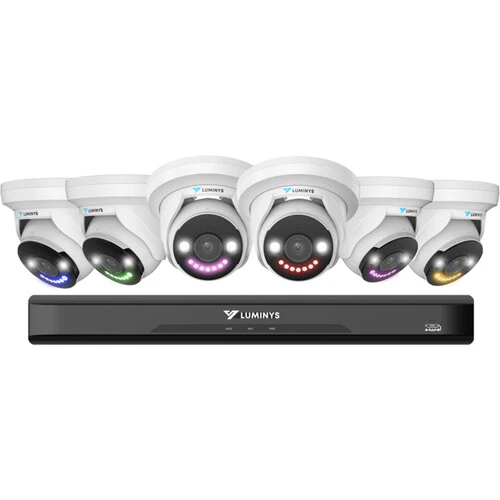

Luminys K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit
HomeStore

Luminys K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit

Luminys K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit

$597.65

Original: $1,992.17

-70%
Luminys K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit—

$1,992.17

$597.65

The Story

Luminys K86-8B2A4 Overview

Monitor your property with the NDAA-compliant K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit from Luminys. The 8-channel NVR can manage and record from up to 8 cameras. It is equipped with two HDD slots, each supporting up to 10TB of storage, for a maximum capacity of 20TB of storage (4TB preinstalled). The H.265/H.264 encoding and MJPEG video compression ensure high-quality recording and playback. Remote management is possible via the LumiViewer app for iOS and Android.

The included turret cameras capture 8MP resolution video from 2.8mm fixed lenses that have a 111? horizontal angle of view. The cameras have a night vision range up to 98', along with a white light illumination range of 98' and a built-in microphone to pick up audio. They are rated IP67 for safe outdoor use.

Additional Details for NVR
  • Supports intelligent motion detection
  • Smart search via target classification, pictures by channel, time, and event type
  • RCA audio input and output
  • ONVIF compliant
  • 802.3af/at PoE standard
Additional Details for Turret Cameras
  • LumiLightBand technology enables the camera to capture video day and night via IR and white LEDs with three low-light modes
  • Low-night modes include covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination
  • Built-in microphone
  • IR cut filter for day and night switching
  • CBR and VBR
  • 4.9' close focus range
  • Line crossing, intrusion, and intelligent motion detection supported with alarms for vehicles and humans
  • Additional features include 120 dB WDR, 3D-DNR, rotation (0 to 270?), mirroring, region of interest for up to 4 zones, and privacy masking for up to 4 zones
  • Supported browsers include Chrome, Firefox, and Edge
  • LumiViewer for desktop and Android/iOS
UPC: 810161160839

Items Included

  • Luminys K86-8B2A4 8-Channel UHD 4K NVR with 4TB HDD & 6 x 8MP LumiLightBand Turret Cameras Kit
  • R32-8PA4 8-Channel NVR
  • 6 x Luminys N3T-8BA2 LumiLightBand 8MP Outdoor Network Turret Camera with Night Vision
  • Mounting Hardware for Cameras
  • Limited 7-Year Manufacturer Warranty

Additional Resources

    Luminys K86-8B2A4 Specs

    NVR
    Video Inputs
    8
    Recording Resolutions
    8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
    Output Resolutions
    HDMI: UHD 4K (3840 x 2160), 1920 x 1080, 1280 x 1024, 1280 x 720

    VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
    Live View / Playback
    8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
    Video Codecs
    H.265, H.264, MJPEG
    Decoding Capability
    Two-Channel: 8 MP at 30 fps
    Eight-Channel: 1080p at 30 fps
    Synchronous Playback
    1, 4, 8 Views
    Analytics
    Supported Analytics by Camera
    Intelligent Motion Detection and Video Content Analytics (VCA) for 8 Channels
    Face Detection and License Plate Recognition for 4 Channels
    Smart Search by Target Classification, Pictures by Channel, Time, and Event Type
    Number of SATA Ports
    2
    Installed HDD
    4 TB
    HDD Capacity
    20 TB (10 TB per HDD)
    Network
    1 x Self-Adaptive RJ45 Port (1000M)
    PoE Ports
    8 x Self-Adaptive RJ45 Port (100M)
    USB
    Front Panel: 1 x USB 2.0
    Rear Panel: 1 x USB 2.0
    Alarm I/O
    Inputs: 4
    Outputs: 2
    Audio
    Input: 1 x RCA Channel
    Output: 1 x RCA Channel
    Network Bandwidth
    Incoming/Recording: 160 Mb/s
    Outgoing: 60 Mb/s
    Network Protocols
    HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
    Interoperability
    ONVIF, RTSP
    PoE Standard
    802.3af/at
    Client
    LumiViewer, LumiViewer Mobile App, LumiCloud (Cloud Subscription Available Separately)
    Certifications
    FCC, NDAA
    Power Supply
    100-240 VAC, 47-63 Hz, 3.5 A
    Power Consumption
    <10 W (without HDD)
    PoE: 115 W (Maximum Output for Single Port: 25.5 W)
    Operating Conditions
    10 to 131?F / -10 to 55?C at 10 to 93% Humidity
    Dimensions (W x L x H)
    14.7 x 12.8 x 1.7" / 372 x 325.8 x 43.7 mm
    Weight
    5.5 lb / 2.5 kg (Without HDD)
    Camera
    Series
    N3 Series (Entry Level)
    Image Sensor
    1/2.8" 8 MP Progressive Scan CMOS
    Maximum Resolution
    3840 x 2160
    Minimum Illumination
    Color: 0.008 Lux at f/1.6 (30 IRE)
    B&W: 0.0008 Lux at f/1.6 (30 IRE)
    B&W: 0 Lux with IR Light On
    Illuminator
    2 x White Light LEDs, 1 x IR LED, Supports LumiLightBand
    Illumination Distance
    IR: 98.4' / 30 m
    Warm Light: 98.4' / 30 m
    Electronic Shutter Speed
    Auto/Manual
    1/100,000 to 1/3
    Angle Adjustment
    Horizontal: 0 to 360?
    Vertical: 0 to 78?
    Rotation: 0 to 360?
    S/N Ratio
    >50 dB
    Iris Type
    Fixed
    Lens Type
    Fixed
    Focal Length
    2.8mm
    Maximum Aperture
    f/1.6
    Angle of View
    Horizontal: 111?
    Vertical: 58?
    Diagonal: 132?
    Close Focus Distance
    4.9' / 1.5 m
    DORI Distance
    Detect: 190.9' / 58.2 m
    Observe: 76.4' / 23.3 m
    Recognize: 38.1' / 11.6 m
    Identify: 19' / 5.8 m
    Video Codecs
    Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
    Streams
    2
    Resolution
    3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, D1 (704 x 576, 704 x 480), VGA (640 x 480), CIF (352 x 288, 352 x 240)
    Maximum Frame Rate
    Main Stream: 3840 x 2160 at 20 fps
    Sub Stream: D1 at 20 fps
    Video Bit Rate
    H.265: 32 to 8192 kb/s
    H.264: 12 to 8192 kb/s
    Bit Rate Control
    CBR/VBR
    Day/Night
    Automatic (ICR), Color, Black and White
    WDR
    Wide Dynamic Range (120 dB)
    Noise Reduction
    3D-DNR
    Image Rotation
    0/90/180/270? (Supports 90/270? with 4MP Resolution and Lower)
    Mirror
    Mirroring Supported
    Privacy Masking
    4 Zones
    Region of Interest
    4 Zones
    VCA
    Line Crossing, Intrusion
    Intelligent Motion Detection
    Supported with Alarms for Vehicles and Humans
    Audio Codec
    PCM, G.711a, G.711Mu
    Audio Interface
    Input: Built-In Microphone
    Alarm Event Detection
    No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD
    Network Interface
    RJ45 100M
    Network Protocols
    IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTMP, FTP, SFTP, NAS, DHCP, DNS DDNS, QoS, UPnP, NTP , NFS, PPPoE, SMTP, 802.1x
    Interoperability
    ONVIF Profile G, S, and T, CGI, SDK
    Supported Browsers
    Chrome, Firefox, Edge
    Client
    LumiViewer, LumiViewer Mobile App
    Storage
    FTP, SFTP, NAS, microSD Card (Maximum 256 GB)
    Power Supply
    12 VDC, PoE (802.3af)
    Power Consumption
    12 VDC: 3.2 W (Normal), 8.5 W (Max)
    PoE: 4.3 W (Normal), 9.8 W (Max
    Operating Temperature
    -40 to 140?F / -40 to 60?C
    Operating Humidity
    <95% RH (Non-Condensing)
    Storage Temperature
    -40 to 140?F / -40 to 60?C
    IP Rating
    IP67
    Housing Material
    Metal
    Certifications
    FCC, IC, NDAA
    Dimensions (Diameter x Height)
    4.8 x 4.1" / 122 x 104.7 mm
    Weight
    1.1 lb / 0.5 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
