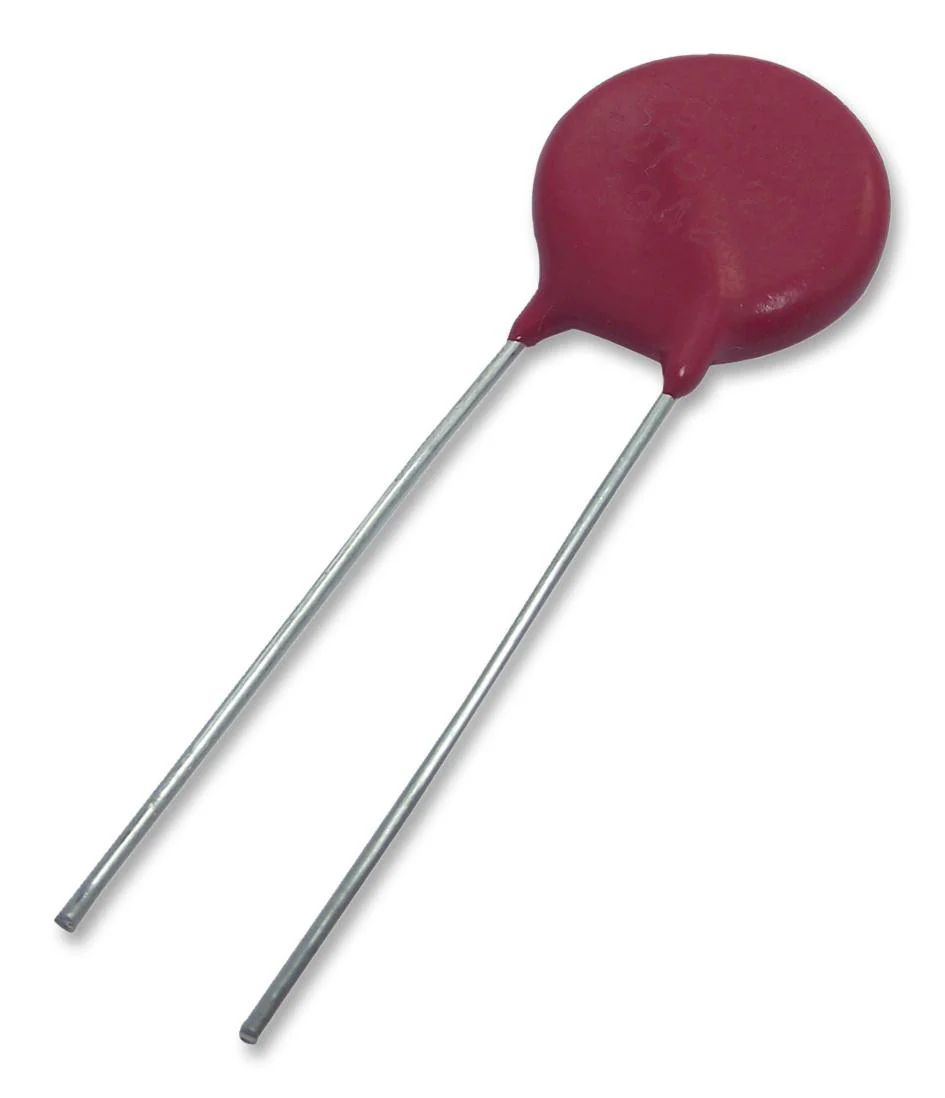

-70%LITTELFUSE V275LA20AP TVS Varistor, MOV, 275 V, 369 V, LA Series, 710 V, Disc 14mm, Metal Oxide Varistor (MOV)—
$0.97
$0.29The Story
This is a TVS Varistor, MOV, 275 V, 369 V, LA Series, 710 V, Disc 14mm, Metal Oxide Varistor (MOV) product from LITTELFUSE with the model number V275LA20AP
Product details
| Voltage Rating V AC | 275V |
| Voltage Rating V DC | 369V |
| Product Range | LA Series |
| Clamping Voltage Vc Max | 710V |
| Varistor Case Style | Disc 14mm |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Peak Surge Current @ 8/20µs | 4.5kA |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 85°C |
| Peak Energy (10/1000uS) | 75J |
| Automotive Qualification Standard | - |
Other details
| Brand | LITTELFUSE |
| Part Number | V275LA20AP |
| Quantity | Each |
| Technical Data Sheet EN |  |
