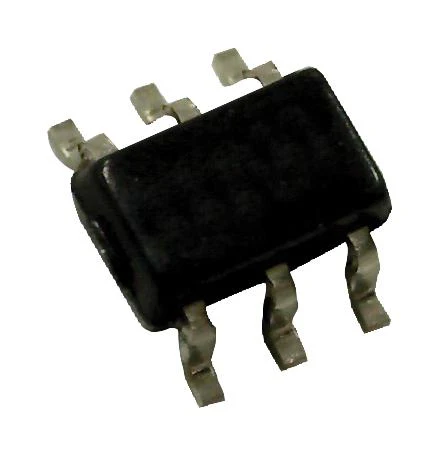

-70%Littelfuse SRV05-4HTG-D ESD Protection Device 15 V SOT-23 6 Pins 150 W SPA Series—
$1.93
$0.58The Story
6V 10A TVS diode array integrates low capacitance rail-to-rail diodes with an additional Zener diode to protect each I/O pin against ESD and high surge events. It is suitable for use in LCD/PDP TVs, monitors, notebooks, 10/100/1000 Ethernet, firewire, set top boxes, flat panel displays and portable medical applications.
- ESD, IEC 61000-4-2, ±30KV contact, ±30KV air
- EFT, IEC61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5 2nd Edition, 10A (8/20µs)
- Lightning, IEC 61000-4-5 2nd Edition, 10A (8/20µs)
- Low leakage current of 0.5µA (max) at 5V
Other details
| Brand | LITTELFUSE |
| Part Number | SRV05-4HTG-D |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
6V 10A TVS diode array integrates low capacitance rail-to-rail diodes with an additional Zener diode to protect each I/O pin against ESD and high surge events. It is suitable for use in LCD/PDP TVs, monitors, notebooks, 10/100/1000 Ethernet, firewire, set top boxes, flat panel displays and portable medical applications.
- ESD, IEC 61000-4-2, ±30KV contact, ±30KV air
- EFT, IEC61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5 2nd Edition, 10A (8/20µs)
- Lightning, IEC 61000-4-5 2nd Edition, 10A (8/20µs)
- Low leakage current of 0.5µA (max) at 5V
Other details
| Brand | LITTELFUSE |
| Part Number | SRV05-4HTG-D |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
