$3.44
Original: $11.46

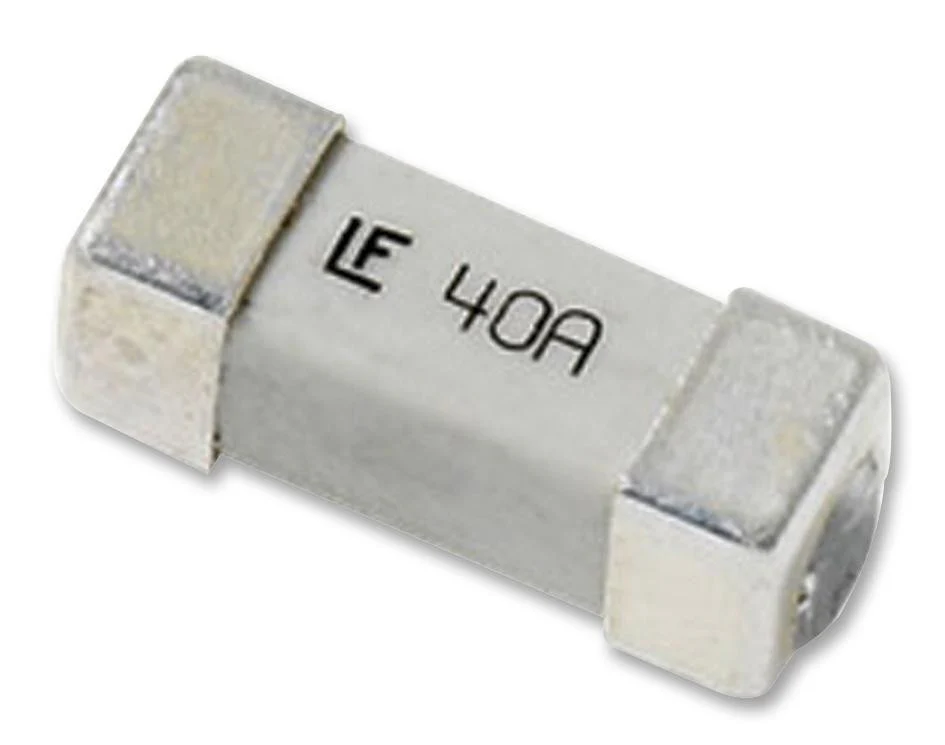

-70%LITTELFUSE 0456040.DR FUSE, SMD, 40A, V FAST ACTING—
$11.46
$3.44The Story
The 0456040.DR is a 40A/72V very Fast Acting Fuse with ceramic body and silver-plated brass cap. This 456-series square surface mount halogen-free fuse is designed to support higher current requirements of various applications. Compatible with lead-free solder alloys and higher temperature profiles associated with lead free assembly.
- 55mV Nominal voltage drop
- 0.00105R Nominal cold resistance
- -55 to 125°C Operating temperature range
Applications
Safety, Computers & Computer Peripherals, Power Management, HVAC, Automotive
Product details
| Breaking Capacity Current DC | 600A |
| Fuse Case Style | SMD |
| Voltage Rating V DC | 60VDC |
| Breaking Capacity Current AC | - |
| Blow Characteristic | Very Fast Acting |
| Product Range | NANO2 456 Series |
| Fuse Current | 40A |
| Voltage Rating V AC | - |
Other details
| Brand | LITTELFUSE |
| Part Number | 0456040.DR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
