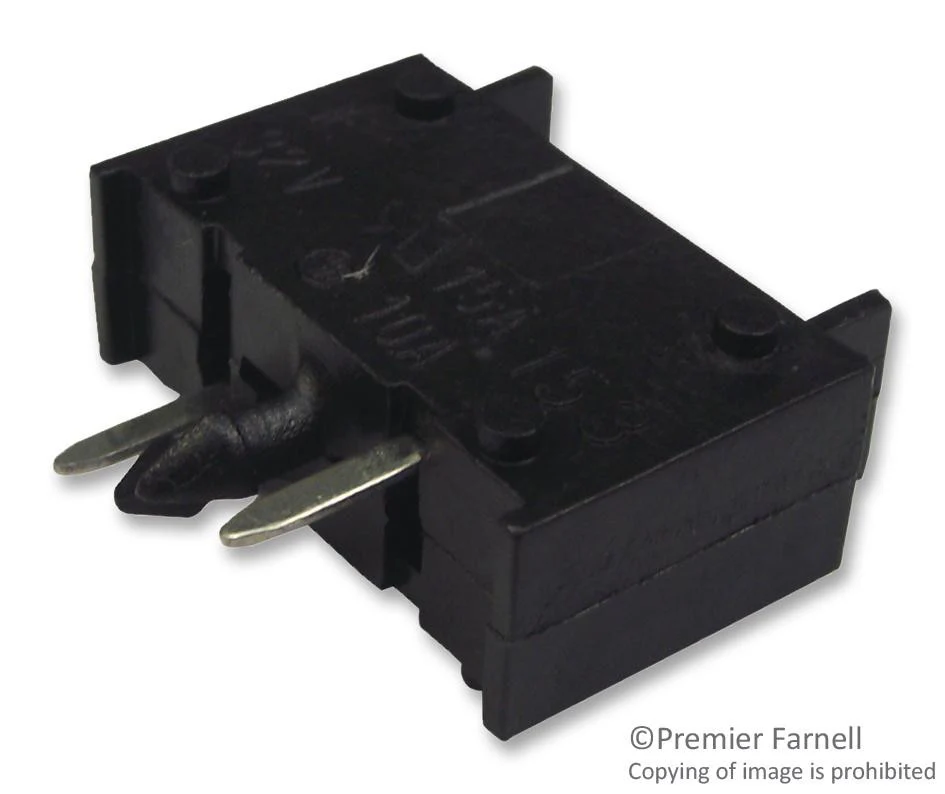

-70%LITTELFUSE 01530008Z FUSEHOLDER, MINI, PIN—
$7.22
$2.17The Story
The 01530008Z from Littelfuse is a PCB vertical mount fuse holder for MINI style blade fuse. This fuse holder offers reliability and availability of plug-in 32V MINI fuse to circuit board. It has standoffs to accommodate board washing and incorporates a unique "board lock" anchor to maintain firm mechanical bond to PCB.
- Rated current is 15A
- Rated voltage is 32VAC/VDC
- UL and CSA approved
Product details
| Fuse Holder Type | Automotive Blade Fuse Holder |
| Voltage Rating V AC | 32V |
| Fuse Current | 15A |
| No. of Fuses | 1Fuses |
| Product Range | MINI 153 Series |
| Holder Terminals | Pin |
| Voltage Rating V DC | 32V |
| Fuse Size Held | Mini Blade, APM, ATM |
Other details
| Brand | LITTELFUSE |
| Part Number | 01530008Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The 01530008Z from Littelfuse is a PCB vertical mount fuse holder for MINI style blade fuse. This fuse holder offers reliability and availability of plug-in 32V MINI fuse to circuit board. It has standoffs to accommodate board washing and incorporates a unique "board lock" anchor to maintain firm mechanical bond to PCB.
- Rated current is 15A
- Rated voltage is 32VAC/VDC
- UL and CSA approved
Product details
| Fuse Holder Type | Automotive Blade Fuse Holder |
| Voltage Rating V AC | 32V |
| Fuse Current | 15A |
| No. of Fuses | 1Fuses |
| Product Range | MINI 153 Series |
| Holder Terminals | Pin |
| Voltage Rating V DC | 32V |
| Fuse Size Held | Mini Blade, APM, ATM |
Other details
| Brand | LITTELFUSE |
| Part Number | 01530008Z |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
