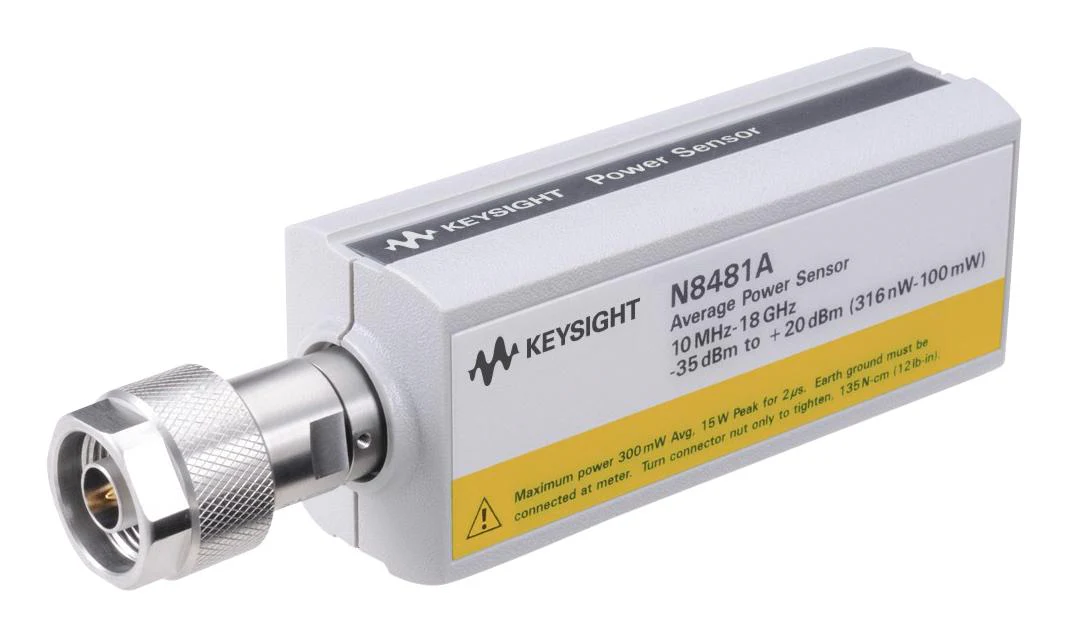

KEYSIGHT TECHNOLOGIES N8481A RF Power Sensor, 10MHz to 18GHz, -35dBm to +20dBm, N Type Plug, N8480 Series

N8481A is a thermocouple power sensor with EEPROM feature. This device is a high accuracy thermocouple power sensor that allows direct measurement of RF or microwave power through the heating effect it has on a terminating load. All calibration data for the power sensor is stored in EEPROM and is downloaded to the power meter when the sensor is connected.

• EEPROM to store cal factors eliminates manual entry
• Wide frequency range from 10MHz to 18GHz
• Wide dynamic range from -35dBm to +20dBm
• Best-in-class power linearity of less than 1%
• Excellent SWR of mismatch uncertainty & highly accurate power repeatability
• Accurate calibration and traceability to US national institute of standards and technology
• SCPI codes compatible with 8480 series (option CFT)
• Dimension is 38mm W x 30mm H x 130mm L

Contents

Standard power sensor, Certificate of calibration.
