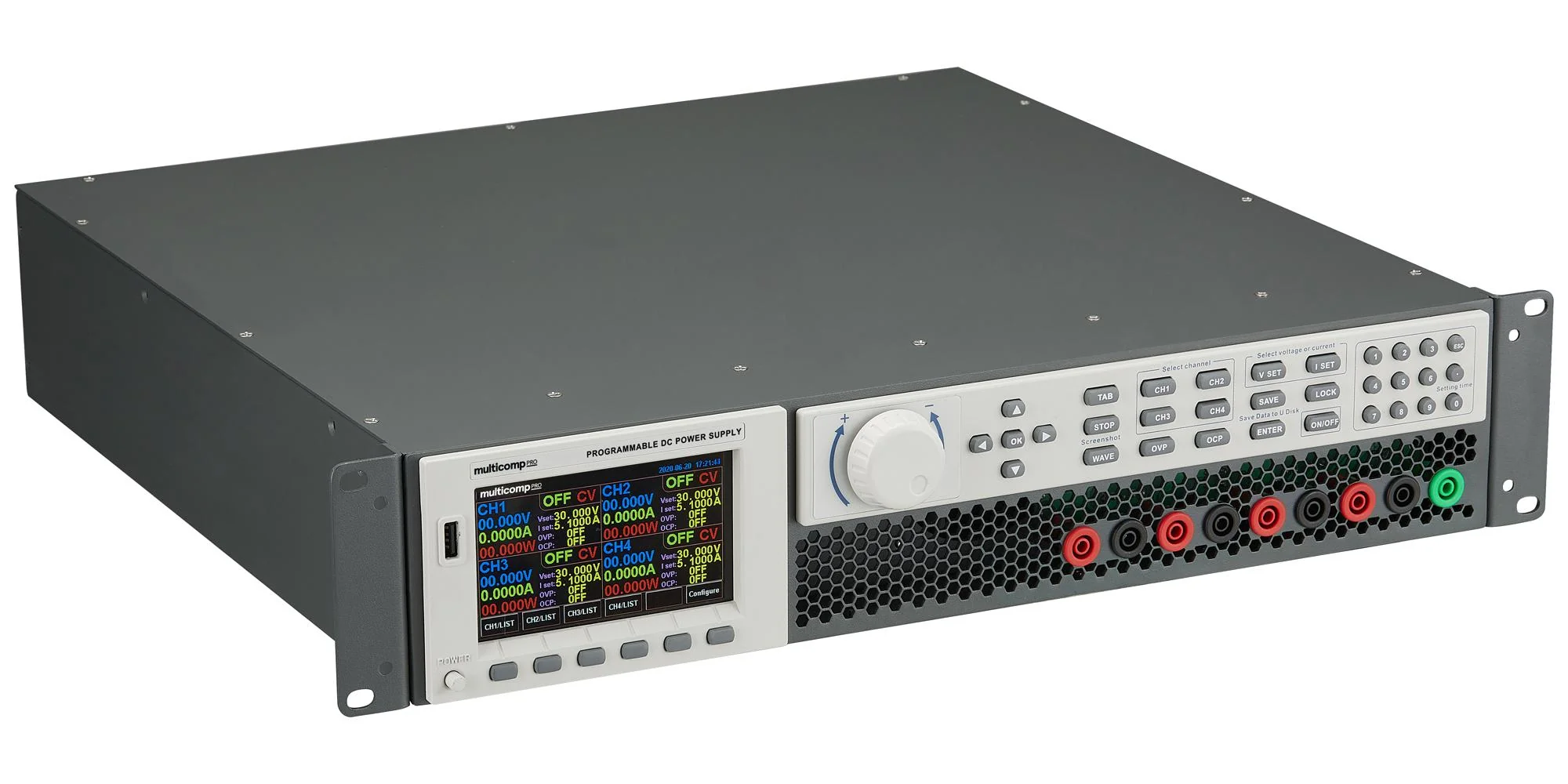

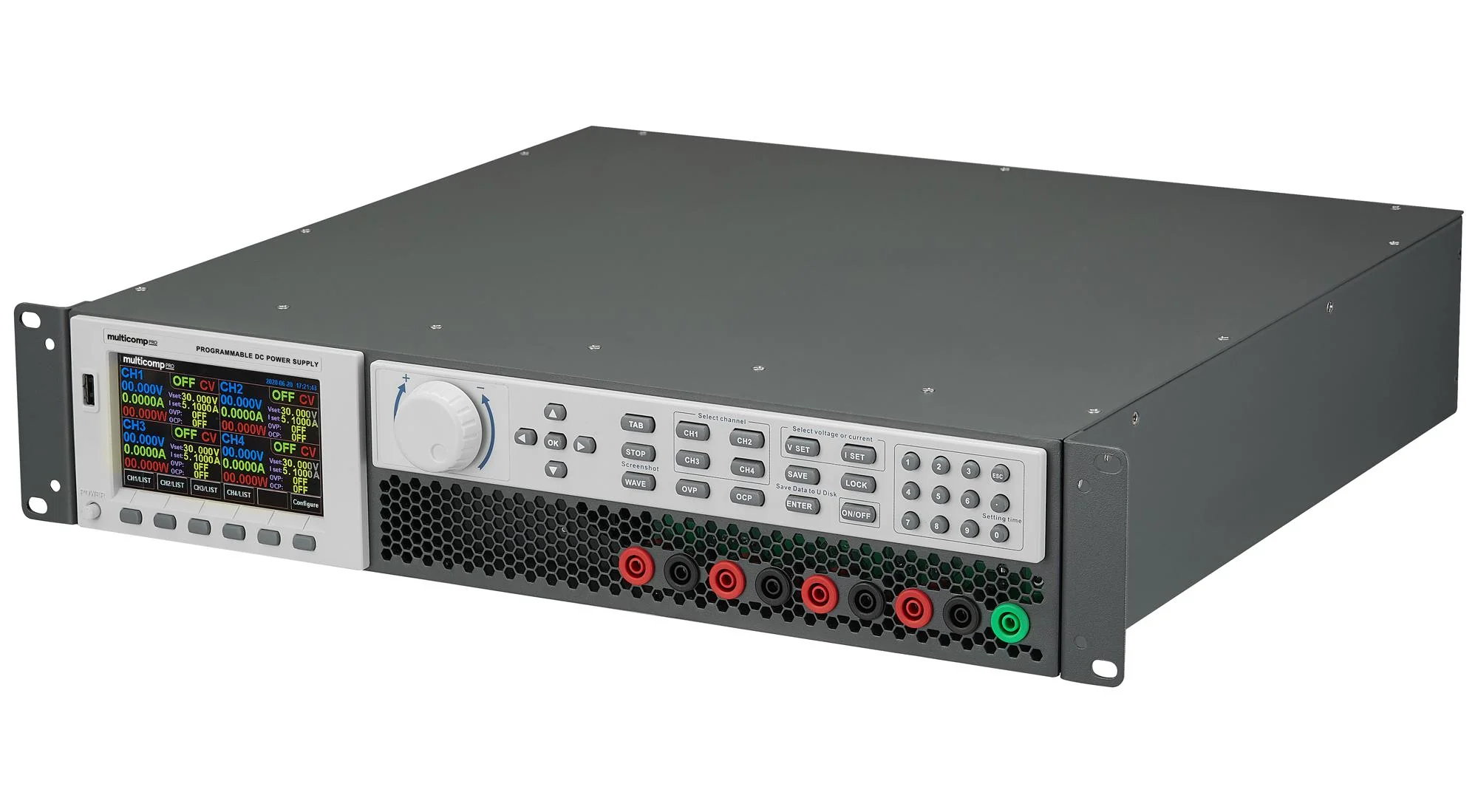

Multicomp PRO MP710508 MP710508 Bench Power Supply Programmable 4 Output 0 V 30 A 5

The MP710508 from Multicomp Pro is a 4-channel DC power supply with built-in oscilloscope function. The device can provide pure linear output of 4 isolated channels with features such as stability, free interference, low ripple and low noise.

• 4 channel independent output
• High speed coordinated o/p and each channel can be controlled with 4-ch o/p delays as microseconds
• LIST programmable output sequence, 100 consecutive different settings
• LIST mode and normal mode can be switched automatically with one key
• Oscilloscope function for simultaneous display of four channels voltage and current
• Oscilloscope screen capture via USB access to U disk
• U disk import and export output table data, editable within Excel
• Low chopping and low noise
• High resolution and precision
• Remote measurement function

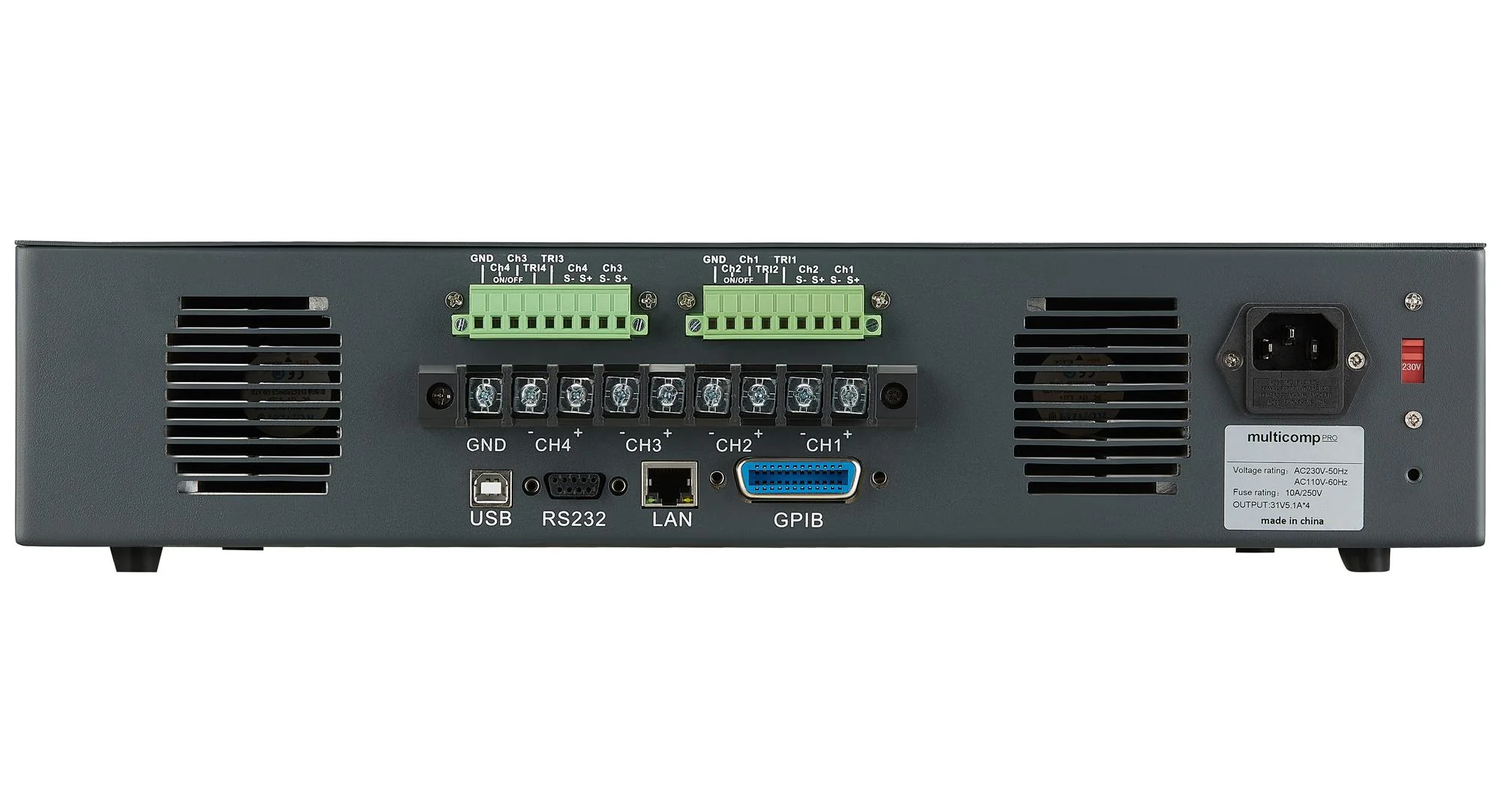

• Built-in USB/RS-232/GPIB/LAN communication interfaces
• Device weight - 16.5kg
• Device dimension is 430mm x 88mm x 440mm (W x H x D)

Contents

Power supply, User manual, EU/UK mains leads.

Footnotes Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.

Product details

Power Supply Output Type	Programmable
No. of Outputs	4 Output
Output Voltage Min	0V
Output Voltage Max	30V
Output Current Min	0A
Output Current Max	5A
Power Rating	150W
Supply Voltage Min	-
Supply Voltage Max	230V
Manufacturer Warranty	1 Year
Product Range	-
Plug Type	EU, UK

Other details

Brand	MULTICOMP PRO
Part Number	MP710508
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
