KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output
HomeStore

KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output

KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output

$77.99

Original: $259.98

-70%
KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output—

$259.98

$77.99

The Story

KanexPro AUD-DEBED-8K Overview

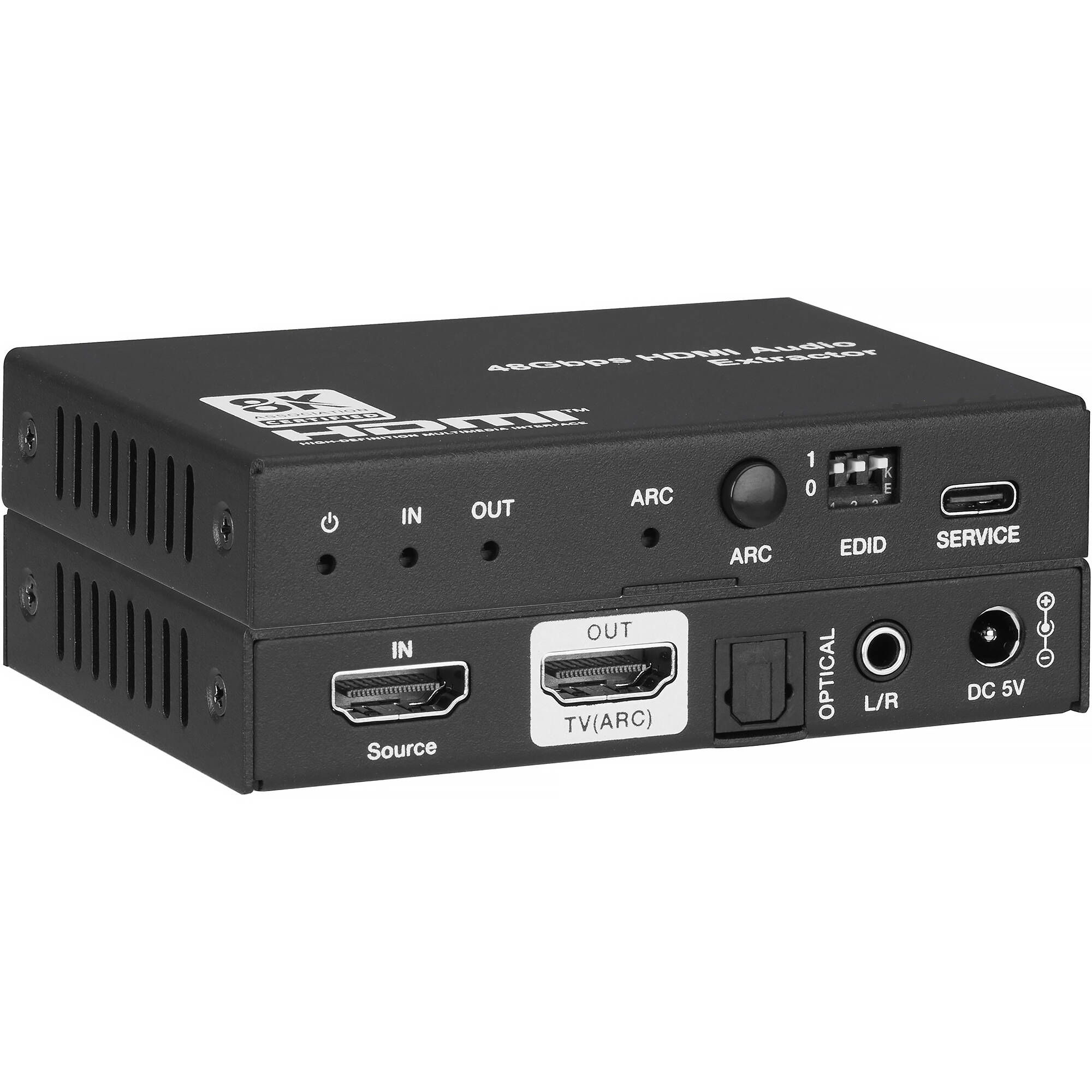

The HDMI UHD 8K Audio De-Embedder with ARC Output from KanexPro lets you extract audio from an HDMI source or TV with ARC for output to your stereo or surround sound system. This adapter supports multiple audio formats, 8K60 video, HDMI 2.1, HDCP 2.3, EDID management, and CEC control.

Multiple Audio Formats
This adapter supports multiple audio formats for HDMI input and HDMI, ARC, and amplifier output:

  • LPCM 7.1, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos
  • Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res
  • DTS-HD Master Audio
UPC: 813982023550

Items Included

  • KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output
  • 5 VDC, 1A International Power Supply
  • Limited 3-Year Manufacturer Warranty

Additional Resources

    KanexPro AUD-DEBED-8K Specs

    General
    Video Resolution
    Up to:
    UHD 8K60 12-Bit, 4:2:0
    UHD 4K120 12-Bit, 4:4:4
    Dynamic Range
    Dolby Vision
    HDR10, HDR10+
    HLG
    Compliance
    HDCP 2.3
    Audio Format
    Dolby Atmos, Digital/EX/Plus, Dolby TrueHD
    DTS, DTS-EX, DTS-96/24, DTS-HD High Resolution
    DTS-HD Master Audio, DSD
    LPCM 7.1
    Inputs/Outputs
    Connector 1
    1x HDMI 2.1 Input Female
    1x USB-C Update Input Female
    Connector 2
    1x TV ARC HDMI 2.1 Output Female
    1x Optical S/PDIF Output Female
    2x 3.5mm Stereo TRS Output Female
    Audio Outputs
    Optical Out: PCM 2.0 Ch, Dolby, DTS 5.1 Ch
    Left/Right Out: PCM 2.0 Ch
    Cable Length
    UHD 8K60: Ultra HDMI Cable: 2.1 6.6 to 9.8' / 2 to 3 m
    UHD 4K60: HDMI 2.0 Cable: 33' / 10 m
    1080p: HDMI Cable: 49' / 15 m
    Maximum Power Consumption
    4 W
    Physical
    Color
    Black
    Material of Construction
    Metal
    Certifications
    CE, FCC, UL
    Dimensions
    3.7 x 2.7 x 0.7" / 95 x 68 x 18 mm
    Weight
    6.3 oz / 178 g
    Packaging Info
    Package Weight
    0.925 lb
    Box Dimensions (LxWxH)
    6.7 x 4.4 x 2.6"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
