$160.28
Original: $534.28
-70%KanexPro 2x1 8K60 HDMI KVM Switcher—
$534.28
$160.28The Story

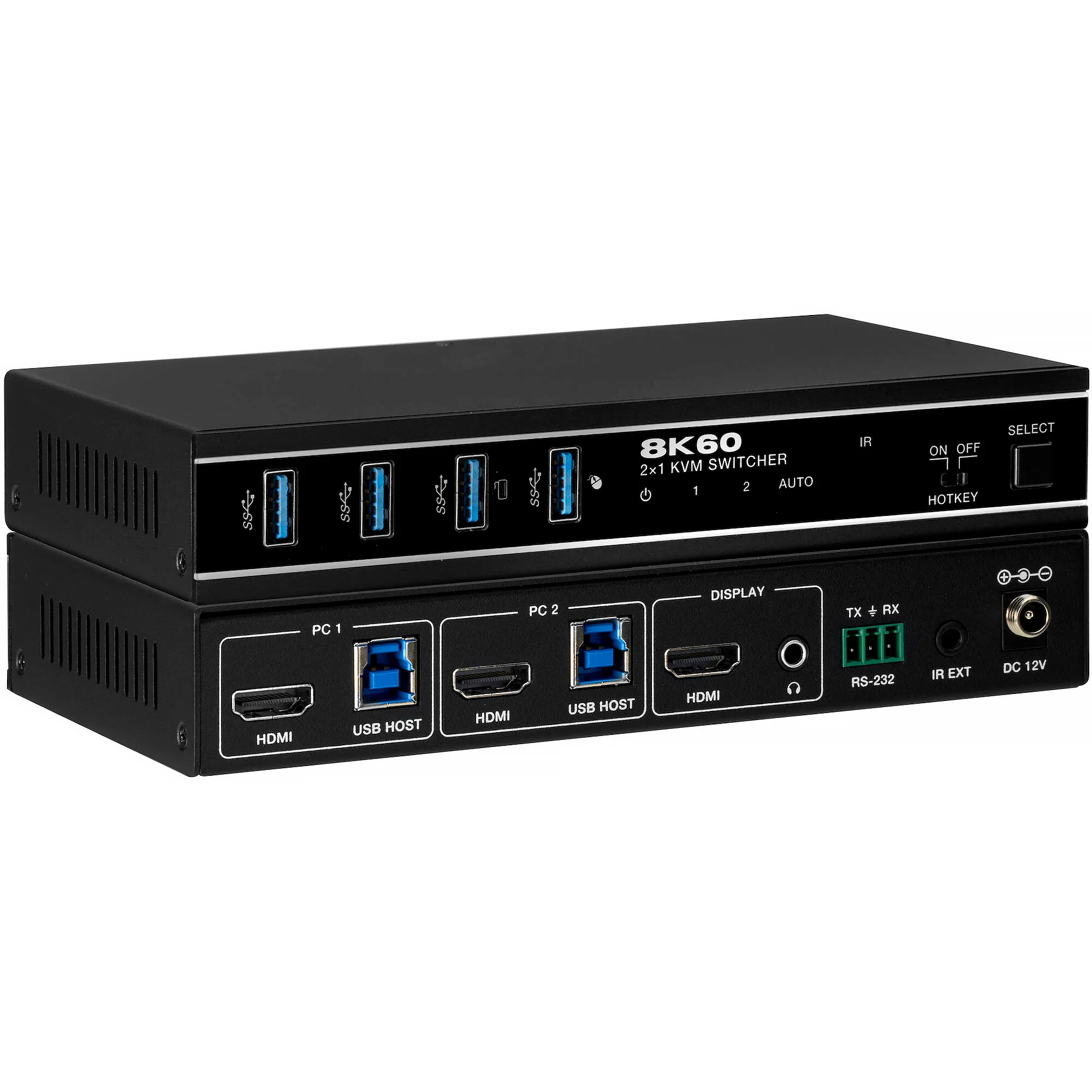

KanexPro KVM-2X1HDMI8K Overview
The compact 2x1 8K60 HDMI KVM Switcher from KanexPro offers dual-channel and hot-key switching, support for up to UHD 8K60 video, and USB 3.0 for KVM functions. It enables you to control two computers using a single keyboard, mouse, and monitor set, and is Windows, Mac, and Linux compatible.
Multiple Video Formats
This switcher supports video formats and resolutions up to UHK 8K 4:4:4 8-bit, including 4K120 and 1080p240 and ultrawide-screen.
HDR Support
The switcher offers High Dynamic Range (HDR) signal pass through, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), enabling enhanced color and contrast reproduction on compatible displays.
Dolby/DTS Audio Support
This component supports high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio, providing immersive sound experiences.
Button Control and Auto Switching
The device features automatic switching, waking up a connected PC in standby mode, and front panel, IR remote, and hot key control.
Compatible Operating Systems
This flexible switcher is compatible with Windows, macOS, and Linux and offers driver-free, plug-and-play setup.
UPC: 813982023581
Items Included
- KanexPro 2x1 8K60 HDMI KVM Switcher
- IR Remote
- 3-Pin 3.81mm Euroblock Connector (Male)
- Fixed Frequency 38 kHz IR Receiver Cable (4.9')
- 2 x USB-A to USB-B Cable (5.9')
- 2 x HDMI Cable (4.9')
- 2 x Mounting Ear
- 4 x Machine Screw (KM 3x4)
- 12V, 1A Multinational Locking Power Supply
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro KVM-2X1HDMI8K Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
Input
| Video Inputs |
2x HDMI (2.1) Female
|
| Input Video Format |
HDMI (8-Bit 4:4:4 RGB, YCC)
8K up to 60 fps HDMI (8/10/12-Bit 4:4:4/4:2:0 RGB, YCC) UHD 4K up to 120 fps 1080p up to 240 fps |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
1x HDMI (2.1) Female
|
| Output Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:0 RGB, YUV, YCC)
8K up to 60 fps UHD 4K up to 120 fps 1080p up to 240 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Female
1x TOSLINK Stereo Female |
| Output Audio Format |
PCM 2.0
S/PDIF |
| Embedded Audio Output |
HDMI: 2-Channel
|
Connectivity
| Other I/O |
1x Block 3-Pin Control, RS-232
1x 1/8" / 3.5 mm Control, IR 2x USB-B Input 4x USB-A |
| Digital Audio Decoding |
DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital EX, Dolby Digital / AC3, Dolby Atmos, DTS, DTS:X, DTS-HD High Resolution, PCM, DTS Express, Dolby TrueHD, DTS 96/24
|
| HDCP Support |
Yes: Version 2.3
|
| HDR Support |
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
Hardware
| OS Compatibility |
macOS / Linux / Windows
|
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC (5.18 W)
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
6.9 x 3.9 x 1.2" / 175 x 100 x 30Â mm
|
| Weight |
1.1Â lb / 506Â g
|
Packaging Info
| Package Weight |
2.955 lb
|
| Box Dimensions (LxWxH) |
11 x 7.9 x 3.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
