IOGEAR 2-Port Dual View Dual-Link DVI Secure KVM Switch (TAA)
HomeStore

IOGEAR 2-Port Dual View Dual-Link DVI Secure KVM Switch (TAA)

IOGEAR 2-Port Dual View Dual-Link DVI Secure KVM Switch (TAA)

$88.55

Original: $295.17

-70%
IOGEAR 2-Port Dual View Dual-Link DVI Secure KVM Switch (TAA)—

$295.17

$88.55

The Story

IOGEAR GCS1222 Overview

The 2-Port Dual View Dual-Link DVI Secure KVM Switch from IOGEAR is NIAP certified and validated to comply with Protection Profile 3.0, which meets security requirements set by the US Department of Defense for peripheral sharing switches. This switch can be used to control two computers and two displays and features two CPU inputs, each of which has two Dual-Link DVI-I ports, one 3.5mm audio jack, and dual USB-B ports. Within each CPU group, one of the USB-B ports supports authorized CAC readers and biometrics readers. Available console connections include two Dual-Link DVI-I port, two PS/2 ports, one 3.5mm audio jack, and three USB-A ports, one of which supports CAC. Resolutions are supported up to 3840 x 2160 at 30 Hz and security is further enhanced using tamper-evident seals, active chassis intrusion detection, and tamperproof hardware.

With the combination of physical and software security, this KVM switch consolidates multiple workstations with varying security classification levels using one keyboard, monitor, and mouse (KVM) console. It is compatible with Windows, Mac, Linux, and UNIX. Included is a power cord and protection is provided by a limited 4-year warranty.

General Features
NIAP-certified PP3.0 validated to comply with Protection Profile v3.0 for peripheral sharing switches
CAC & biometrics support dedicated peripheral port for authorized CAC readers only and supported biometrics readers
2-Port Dual View Dual-Link DVI Secure KVM Switch�one USB console controls 8 secure computers on two displays
Dual-link resolution of 2560 x 1600, 4K UHD resolution of 3840 x 2160 @ 30 Hz
Port selection via push button for enhanced security
Keyboard restrictions�OSD & hotkey methods are not allowed
Isolated Channel per Port�unidirectional data flow restricts data leakage between connected computers
Active Chassis Intrusion Detection�compromising the unit's cover renders the switch inoperable

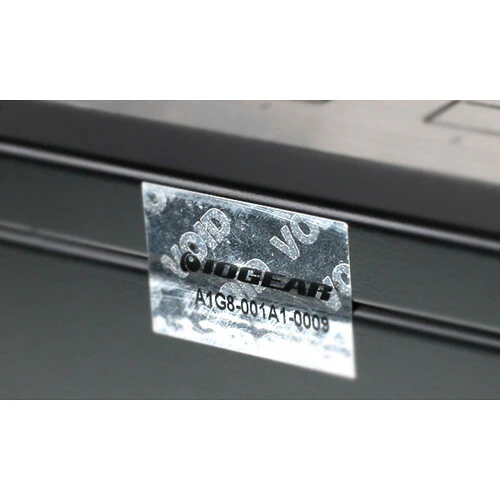

Tamper-Evident Seals�visually detect attempts to gain access to switch's internal components
Tamperproof Hardware�integrated circuits are soldered directly onto the circuit board to hinder component sabotage
Non-Reprogrammable Firmware�prevents tampering and attempts to reprogram the switch's firmware
Clears Keyboard Buffer�data clears automatically after transmission to switch and resets
Analog Speaker Support
Secure audio data input does not convert digital audio to analog audio
Multiplatform Support�Windows 2000, Vista, 7, 8, 8.1, 10, Linux, macOS, and Sun
Rugged metal enclosure with a durable, full metal chassis
Built-in internal power supply
2-Port Dual Monitor Secure DVI KVM Computer Switch - Protection Profile 3.0
IOGEAR's 2-Port Dual View Dual-Link DVI Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements, satisfying the latest security requisites set by the US Department of Defense for peripheral sharing switches.

Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs�keyboards, mice, speakers, CAC readers, and Microsoft Biometric Readers�between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM, providing high-level security, protection, and data safekeeping.
Active Tamperproof System
The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamperproof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards, mice, and other devices while ignoring commands from non-HIDs when switching between ports. The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure.

With the combination of physical and software security, the IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard, monitor, and mouse (KVM) console.
Video Quality
The 2-Port Dual View Dual-Link DVI Secure KVM supports dual monitors and resolutions up to 3840 x 2160 @ 30 Hz.
Requirements
Console
  • DVI monitors capable of high-resolution display
  • Standard 104-key wired USB or PS/2 keyboard
  • Standard 2- or 3-button wired USB or PS/2 mouse
  • Speaker (optional)
  • USB Smart Card or CAC (Common Access Card) reader (optional)
Computers
  • 2 x DVI video output connectors
  • A USB-A port for a keyboard and mouse
  • A USB-A port for Smart Card or CAC reader (optional)
  • A 3.5mm audio port for speakers (optional)
Cables
  • Do not attach cables that have a microphone or line-in audio input
Operating Systems
  • Windows 2000, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
  • Linux: Kernel 2.6+, RedHat v6.0+, SuSE v8.2+, Mandriva (Mandrake) v9.0+
  • UNIX: AIX v4.3+, FreeBSD v3.51+, Sun Solaris v9+
  • Novell Netware v5.0+
  • macOS 9+
  • DOS v6.2+
UPC: 881317516329

In the Box

  • IOGEAR 2-Port Dual View Dual-Link DVI Secure KVM Switch (TAA)
  • Power Cord
  • Limited 4-Year Manufacturer Warranty

    IOGEAR GCS1222 Specs

    Key Specs
    # of Systems Supported
    2
    KVM I/O
    4x DVI-I DL Female
    2x USB-B (Keyboard/Mouse) Female
    2x USB-B (CAC) Female
    2x 1/8" / 3.5 mm Line-Out Female
    Console I/O
    2x DVI-I DL Female
    2x PS/2 (Keyboard/Mouse) Female
    2x USB-A (Keyboard/Mouse) Female
    1x USB-A (CAC) Female
    1x 1/8" / 3.5 mm Line-Out Female
    Supported Resolutions
    3840 x 2160 @ 30 Hz
    2560 x 1600
    2048 x 1536
    1920 x 1200
    General
    # of Systems Supported
    2
    KVM I/O
    4x DVI-I DL Female
    2x USB-B (Keyboard/Mouse) Female
    2x USB-B (CAC) Female
    2x 1/8" / 3.5 mm Line-Out Female
    Console I/O
    2x DVI-I DL Female
    2x PS/2 (Keyboard/Mouse) Female
    2x USB-A (Keyboard/Mouse) Female
    1x USB-A (CAC) Female
    1x 1/8" / 3.5 mm Line-Out Female
    Supported Resolutions
    3840 x 2160 @ 30 Hz
    2560 x 1600
    2048 x 1536
    1920 x 1200
    OS Compatibility
    Windows 10
    Windows 8.1
    Windows 8
    Windows 7
    Windows Vista
    macOS 9 or Later
    Linux
    UNIX
    FreeBSD 3.51 or Later
    Power
    Power Source
    AC Adapter
    AC Input Power
    100 to 240 VAC, 50 / 60 Hz
    Environmental
    Operating Temperature
    32 to 82°F / 0 to 50°C
    Operating Humidity
    0 to 80% ()
    Storage Temperature
    -4 to 140°F / -20 to 60°C
    Physical
    Housing Material
    Metal
    Dimensions
    13.19 x 2.58 x 6.42" / 33.5 x 6.55 x 16.31 cm
    Weight
    4.45 lb / 2.02 kg
    Packaging Info
    Package Weight
    6.27 lb
    Box Dimensions (LxWxH)
    21.4 x 9.3 x 5.4"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
