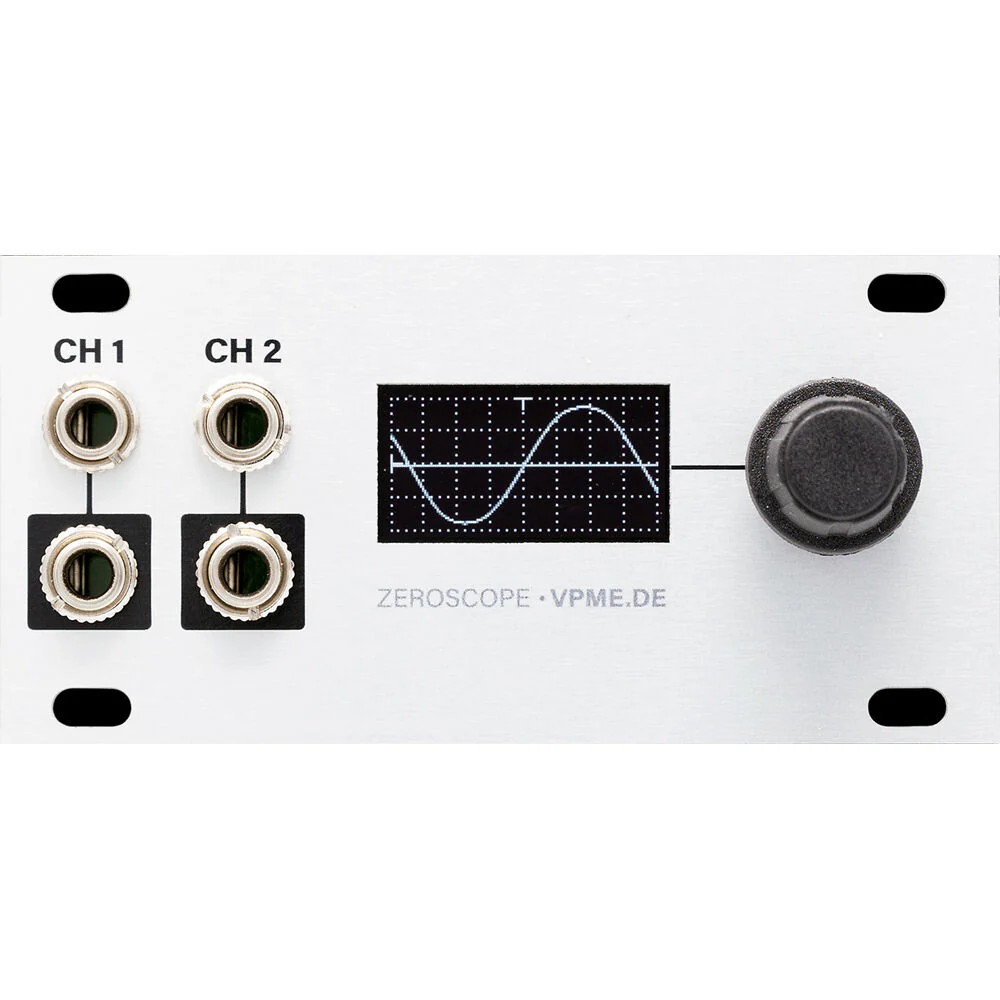

-70%intellijel Zeroscope 1U Oscilloscope, Meter, and Tuner Eurorack Module—
$241.44
$72.43The Story
intellijel ZEROSCOPE-1U Overview
Visualize your signals with the intellijel Zeroscope 1U, a dual-channel oscilloscope, frequency meter, and tuner. Use it to compare both control voltages and audio. The module includes a power ribbon cable.
Three Modes Packed Into 1U
- Scope: Standard graphical display with time displayed on the X-axis and voltage displayed on the Y-axis.
- X-Y: Alternate graphical display with Channel 1 driving the X-axis and Channel 2 driving the Y-axis.
- Tune: Alphanumerical tuning display, which you can configure to show either Hz values or note names.
The Scope displays have adjustable display offset for each channel and an adjustable trigger threshold, while the tuner has options for reference pitch and average update speed.
Inputs and Outputs
The inputs are DC coupled and accept signals between -10 and +10V. The Signal on the input is normalled to the output below; this allows you to monitor or tune a signal without a mult or repatching.
Eurorack Ready
- 16 HP Eurorack format module (1U)
- Maximum depth: 1" (26mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 8mA, -12V: 0
- Timebase 10 ?s to 10 s per division
- Voltage range 0.5 to 10V per division
In the Box
- intellijel Zeroscope 1U Oscilloscope, Meter, and Tuner Eurorack Module
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel ZEROSCOPE-1USpecs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
8 mA on +12 V Rail
0 mA on -12 V Rail |
| Horizontal Pitch |
16 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
8 mA on +12 V Rail
0 mA on -12 V Rail |
Physical
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
16 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.215 lb
|
| Box Dimensions (LxWxH) |
5.3 x 3.3 x 1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
