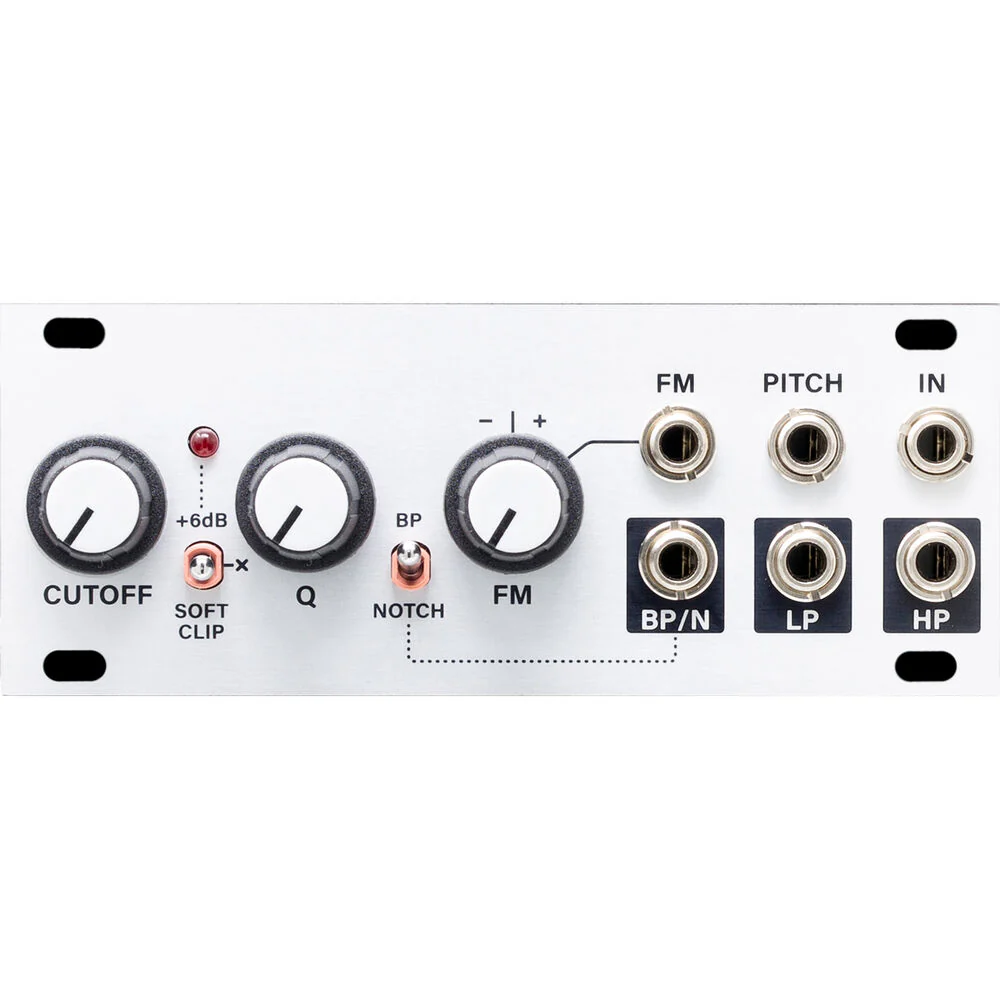

intellijel SVF 1U Multimode State Variable Filter (20 HP)
HomeStore

intellijel SVF 1U Multimode State Variable Filter (20 HP)

intellijel SVF 1U Multimode State Variable Filter (20 HP)

$72.43

Original: $241.44

-70%
intellijel SVF 1U Multimode State Variable Filter (20 HP)—

$241.44

$72.43

The Story

intellijel SVF-1U Overview

Sculpt your sound with the intellijel SVF 1U, a state-variable filter for sweet-sounding subtractive synthesis duties or to form the basis of more complex patches. The filter self oscillates and can be used as a sine-wave oscillator with a 4+ octave range.

The sound is punchy, clean, and precise. Explore new sounds through the dual modulation inputs and dedicated low-pass, high-pass, and band-pass / notch outputs. This filter responds beautifully to audio rate FM and you can self-patch to get even more interesting filter responses. The module includes a ribbon power cable.

At a Glance
  • Dedicated 2-pole low-pass filter (LP) and 2-pole high-pass filter (HP) outputs
  • Switchable bandpass filter (BP) and notch filter (N) output
  • Optional +6 dB input boost and asymmetric clipping circuit
  • PITCH input tracks 1V/oct accurately over 4+ octaves
  • FM CV input with attenuverter
  • Capable of generating very low distortion sine waves from 2 Hz to 20 kHz when driven to self-oscillation (Max Q)
Eurorack Ready
  • 20 HP Eurorack format module (1U)
  • Maximum depth: 1.4" (35mm)
  • Includes power ribbon cable with Eurorack power headers
  • Power: +12V: 27mA, -12V: 30mA

In the Box

  • intellijel SVF 1U Multimode State Variable Filter (20 HP)
  • Ribbon Power Cable
  • Limited 2-Year Manufacturer Warranty

Not in the Box

Additional Resources

    intellijel SVF-1USpecs

    Key Specs
    Sound Generation
    Analog
    Audio I/O
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
    3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm TS CV Input
    Patch Points
    3x 1/8" / 3.5 mm TS Input
    3x 1/8" / 3.5 mm TS Output
    Eurorack Current Consumption
    27 mA on +12 V Rail
    30 mA on -12 V Rail
    Horizontal Pitch
    20 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Expression Controls
    No
    Number of Pads
    No
    Built-In Speaker
    No
    Synthesis
    Filters
    Number of Filters: 1
    Characteristic: Analog SEM-Style
    Type: Low-Pass, Band-Pass, Notch, High-Pass
    Slope: 2-Pole/12 dB (LPF) / 2-Pole/12 dB (HPF) / 1-Pole/6 dB (BPF)
    Key Tracking: Yes
    Controls: Cutoff, Resonance, FM
    LFOs
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
    3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm TS CV Input
    Patch Points
    3x 1/8" / 3.5 mm TS Input
    3x 1/8" / 3.5 mm TS Output
    Sync I/O
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    27 mA on +12 V Rail
    30 mA on -12 V Rail
    Physical
    Rackmount Size
    1 RU
    Horizontal Pitch
    20 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.29 lb
    Box Dimensions (LxWxH)
    5.8 x 3.4 x 3.3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
