intellijel DIXIE2-PLUS-3U Overview

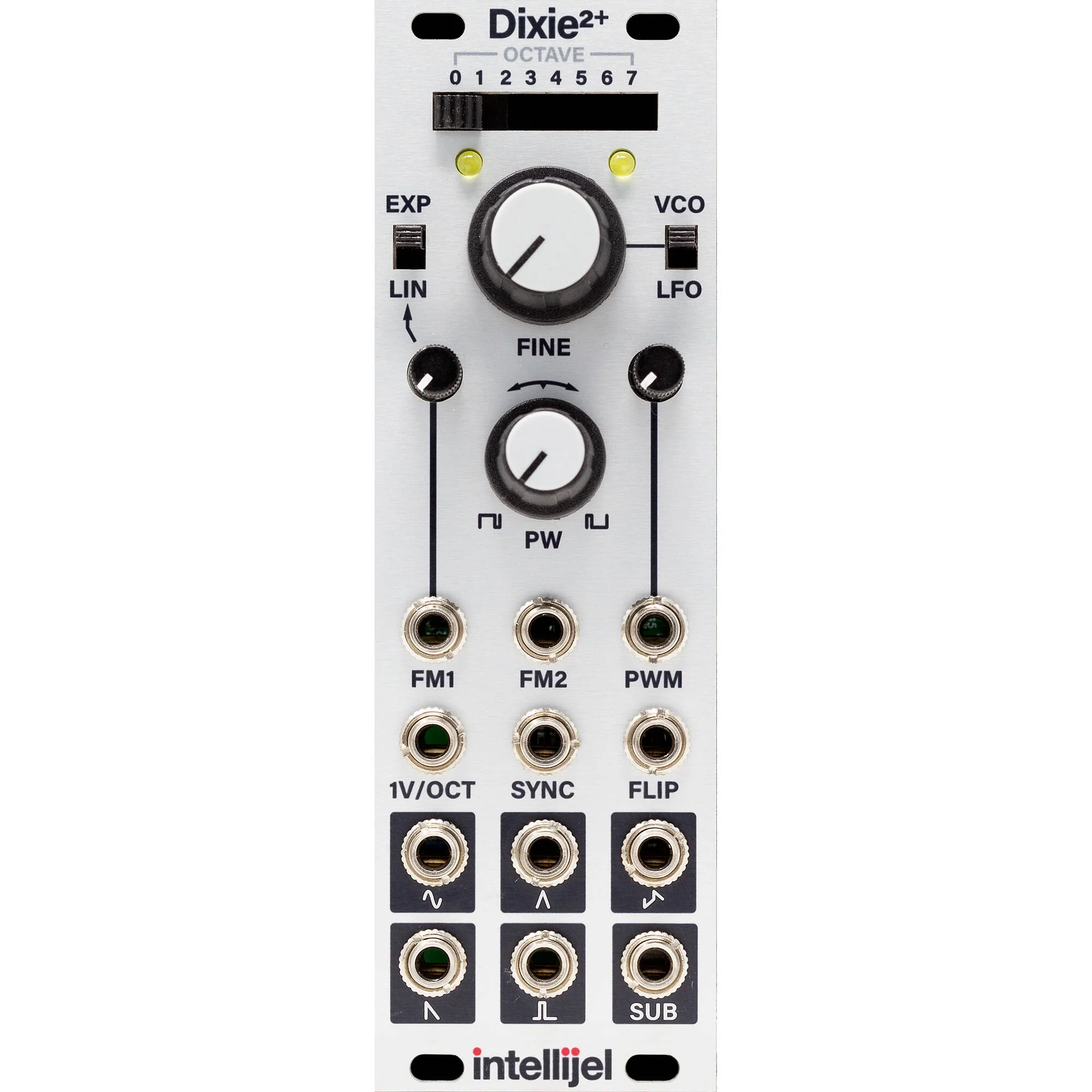

Generate a ton of waveforms for your modular voice patch with the intellijel Dixie 2+, a full-featured triangle-core voltage-controlled oscillator (VCO) / low-frequency oscillator (LFO) in Eurorack format. The Dixie 2+ features six waveforms (sine, triangle, zigzag, saw, pulse, and sub-octave. In VCO mode, you can easily dial in the perfect pitch using the 8-octave switch and fine-tuning knob. In LFO mode, the fine-tune knob converts into a coarse-tuning knob.
For even more flexibility, the Dixie 2+ features PWM, sync, flip, and two FM inputs (FM1 can be switched between Log/Lin modes). Unique to the Dixie2+ is PWM control, exponential FM, and an Octave switch for quick and precise musical tuning. The Dixie 2+ makes a perfect primary oscillator for a modular system, or a great companion for the Rubicon 2. The module includes a power ribbon cable.
- 8-position octave switch to quickly set coarse tuning.
- Fine-tuning knob that converts into a coarse knob when in LFO mode.
- Dual FM inputs, with FM1 attenuator and switch to select between exponential and linear mode.
- Pulse width control with attenuator.
- Reset to 0V hard-sync input, ideal for percussive sounds or modulation.
- Flip-sync circuit similar to but improved from the Dixie II.
- 6 waveform outputs: sine, triangle, zigzag, saw, pulse, and suboctave.
- 8 HP Eurorack format module
- Maximum depth: 1.5" (38mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 60mA, -12V: 70mA
In the Box
- intellijel Dixie2+ Full-Featured Triangle Core VCO/LFO Eurorack Module (8 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel DIXIE2-PLUS-3USpecs
| Sound Generation |
Analog
|
| Audio I/O |
6x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
6x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
6x 1/8" / 3.5 mm TS Input
6x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
60 mA on +12 V Rail
70 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
No
|
| Oscillators |
1x Fixed (FM, PWM, Sawtooth, Sine, Square, Triangle)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
6x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
6x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
6x 1/8" / 3.5 mm TS Input
6x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
60 mA on +12 V Rail
70 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
| Package Weight |
0.395 lb
|
| Box Dimensions (LxWxH) |
5.8 x 3.3 x 2.8"
|
