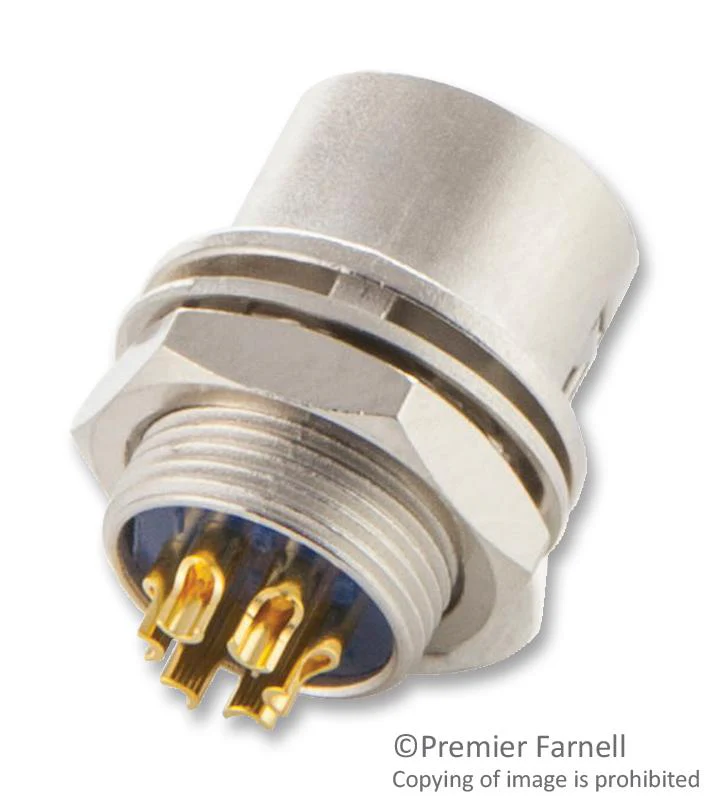

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket
HomeStore

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket

$24.21
HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket—
$24.21

The Story

The HR10-7R-6S(73) is a 6-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, gold plated copper alloy contacts. The HR10 series receptacle has through hole mounting style, straight connector orientation, soldering wire termination method and push-pull locking style. It is recommended for use with 26AWG wire. Although small in size, full featured with a well integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.
  • Simple, yet highly reliable design for compact, high density applications
  • Extremely easy mating/unmating operations
  • 2A Rated current
  • 100VAC, 140VDC Rated voltage
  • 10mR Maximum contact resistance
  • 1000MR Minimum insulation resistance
  • 300VAC Maximum withstanding voltage
  • 1000 Mating/unmating cycles
Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand HIROSE(HRS)
Part Number HR10-7R-6S(73)
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
Drawing EN Download technical document - datasheet - Tanotis India
CAD Multiple Formats EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

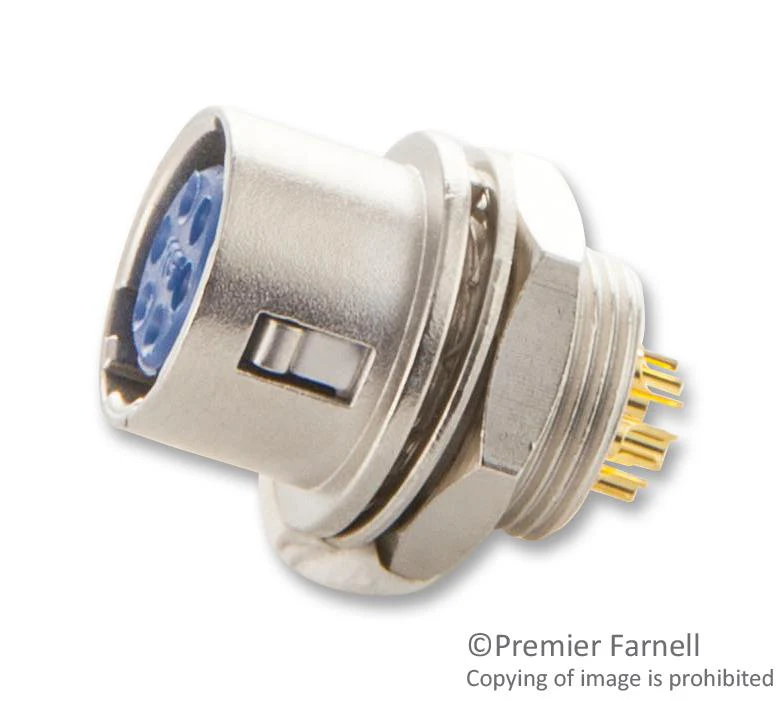

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

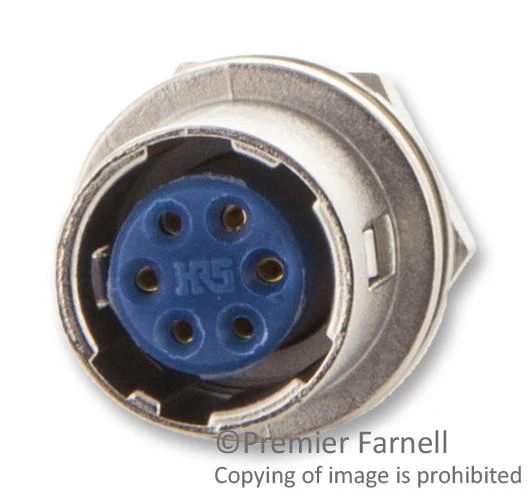

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

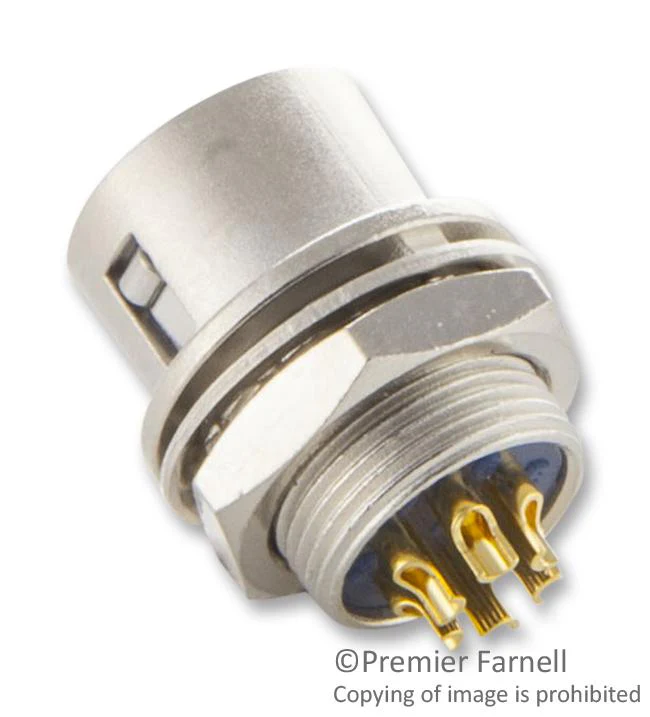

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

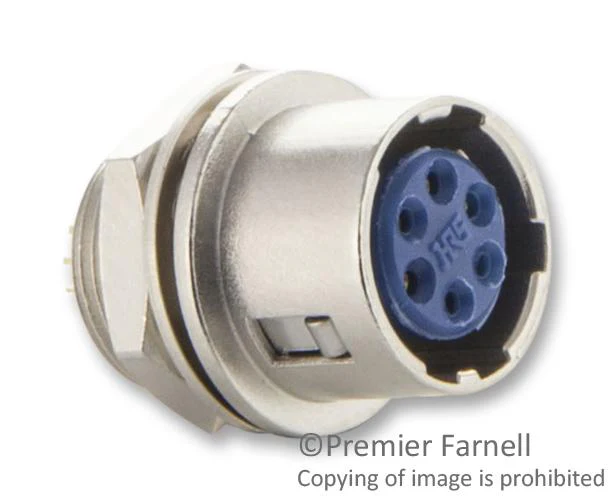

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The HR10-7R-6S(73) is a 6-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, gold plated copper alloy contacts. The HR10 series receptacle has through hole mounting style, straight connector orientation, soldering wire termination method and push-pull locking style. It is recommended for use with 26AWG wire. Although small in size, full featured with a well integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.
  • Simple, yet highly reliable design for compact, high density applications
  • Extremely easy mating/unmating operations
  • 2A Rated current
  • 100VAC, 140VDC Rated voltage
  • 10mR Maximum contact resistance
  • 1000MR Minimum insulation resistance
  • 300VAC Maximum withstanding voltage
  • 1000 Mating/unmating cycles
Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand HIROSE(HRS)
Part Number HR10-7R-6S(73)
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
Drawing EN Download technical document - datasheet - Tanotis India
CAD Multiple Formats EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
