Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz)
HomeStore

Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz)

Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz)

$138.07

Original: $460.24

-70%
Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz)—

$460.24

$138.07

The Story

Galaxy Audio AS-1200T Overview

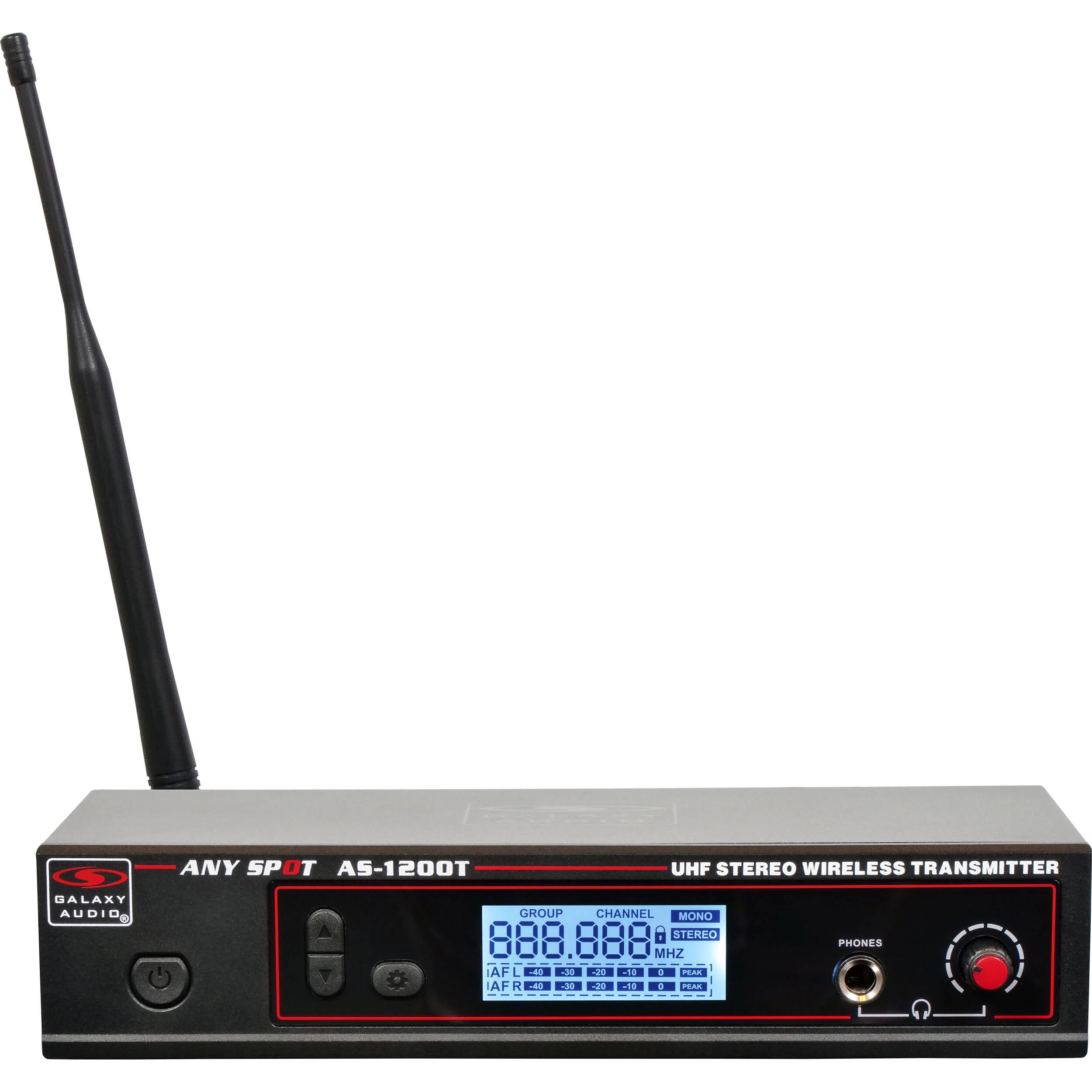

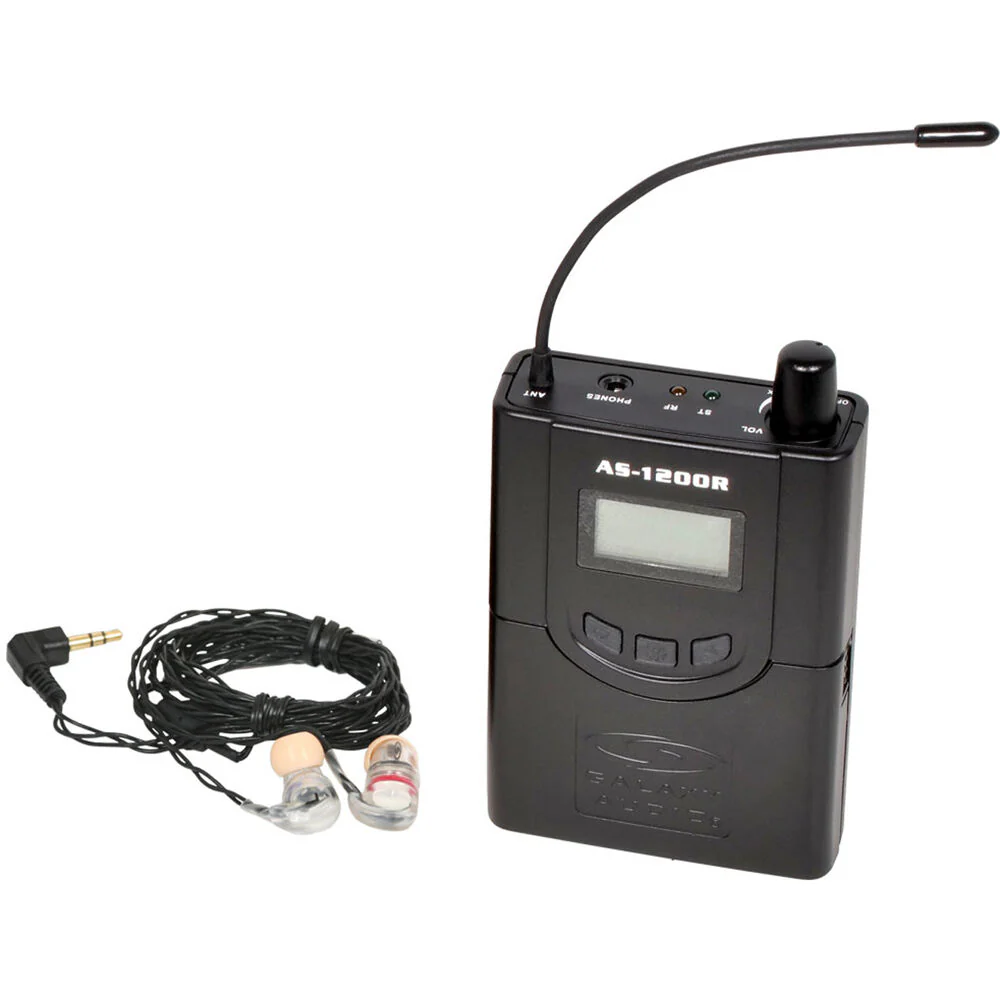

The Galaxy Audio AS-1200T is a tabletop transmitter (rack ears are provided for rackmounting) that sends wireless audio to AS-1200R bodypack receivers with earbuds (both available separately) at a maximum distance of 300'. The complete system offers musicians and performers the freedom of wireless onstage monitoring with easy-to-use components.

The AS-1200T provides 210 user-selectable UHF frequencies to choose from to create a clear, interference-free wireless-transmission channel. An easy-to-read backlit LCD and intuitive controls make it easy to adjust the left and right audio levels, channel, and frequency, and see the stereo/mono mode, and lock status.

Adding additional transmitters to an existing AS-1200 system allows you to send different mixes or blends tailored to different performers, with each transmitter capable of sending a single stereo or mono mix to an unlimited number of AS-1200R receivers.

Desktop Transmitter with Included Rackmount Kit
  • 210 selectable UHF frequencies
  • Send a single stereo or mono mix to an unlimited number of receivers (available separately) on stage
  • Trouble-free wireless connectivity
  • XLR-1/4" combo line-level input jacks with level control
  • Easy-to-read LCD screen with metering
  • 1/4" headphone output with volume control for easy monitoring
  • Removable antenna
  • Rackmount kit for single or double mounting included
  • Use multiple transmitters for multiple mixes tailored to band members or performers
UPC: 691281013591

In the Box

  • Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz)
  • Rackmount Kit
  • Detachable Antenna
  • Power Supply
  • Limited 3-Year Manufacturer Warranty

Guides & Manuals

    Galaxy Audio AS-1200T Specs

    System
    Band UHF
    Frequencies 210 User-Selectable Frequencies
    RF Output Level Transmitter: 10 mW
    Range 300' / 92 m (Under Ideal Conditions)
    Frequency Response ± 3dB 70 Hz to 13.5 kHz
    Total Harmonic Distortion <1% at 1 kHz
    Signal to Noise >80 dBA
    Maximum Deviation Range ±15 kHz
    Dynamic Range >88 dB (A-Weighted)
    Operating Temperature Range 14 to 122 F° / -10 to +50 C°
    Transmitter
    Modulation FM Stereo Modulation
    Max Audio Input Level +6 dBV
    Gain Adjustment Range 40 dB
    Input Impedance 100 Kilohms
    Controls Headphone Volume, Up/Down, Settings, Power Button
    Audio Input 2 x XLR-1/4" Combo Jack (Line Level)
    Audio Output 1/4" Headphone Out
    XLR Inputs Impedance Balanced
    Pin 1: Ground (Cable Shield)
    Pin 2: Audio +
    Pin 3: No Audio -
    Antenna Detachable 1/2 Wave BNC Antenna
    Power Requirements 2 to 18 VDC at 300 mA Supplied by External Power Supply
    Dimensions (H x W x D) 1.5 x 8.3 x 3.78" / 3.8 x 21.2 x 9.6 cm
    Weight 22 oz / 635 g

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

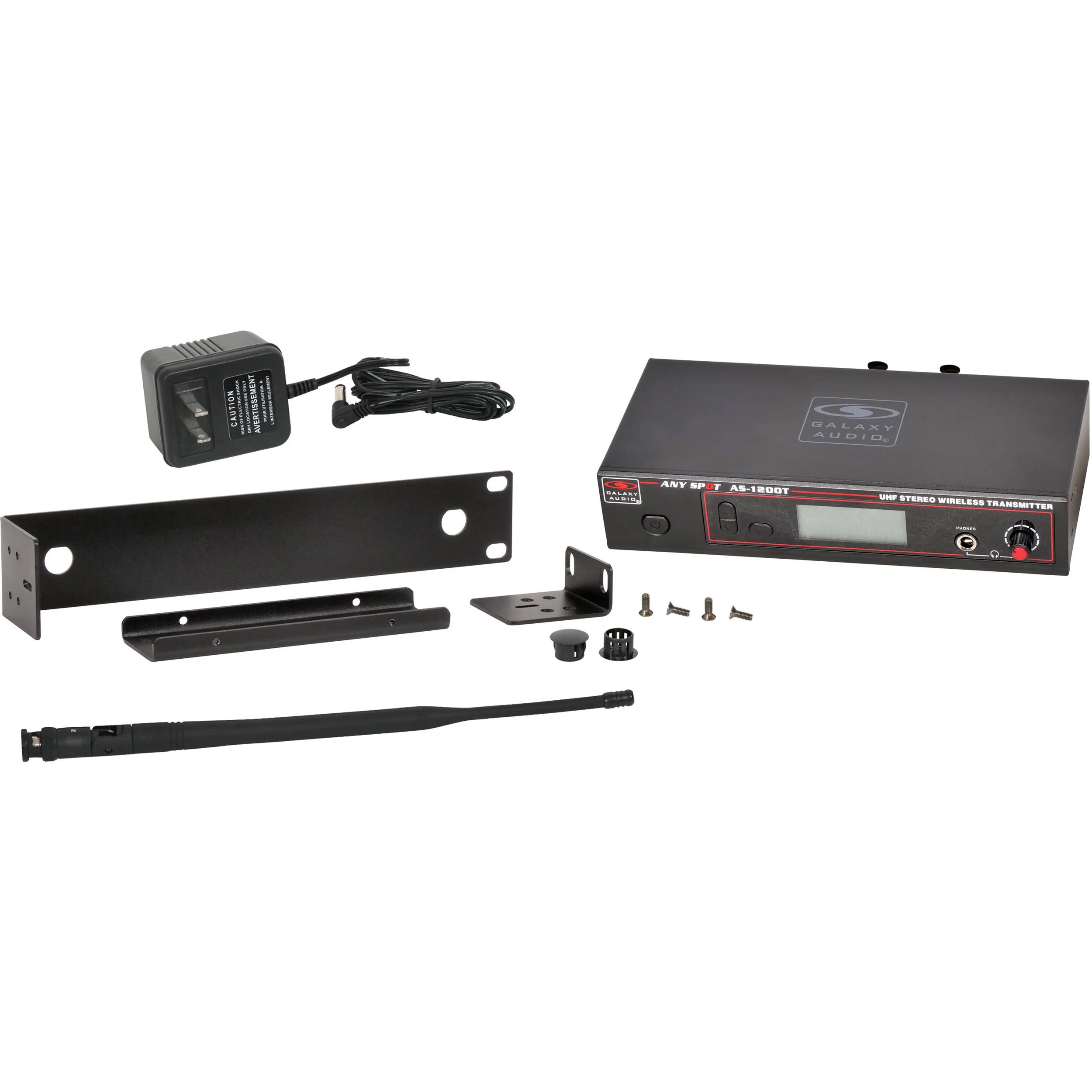

    Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

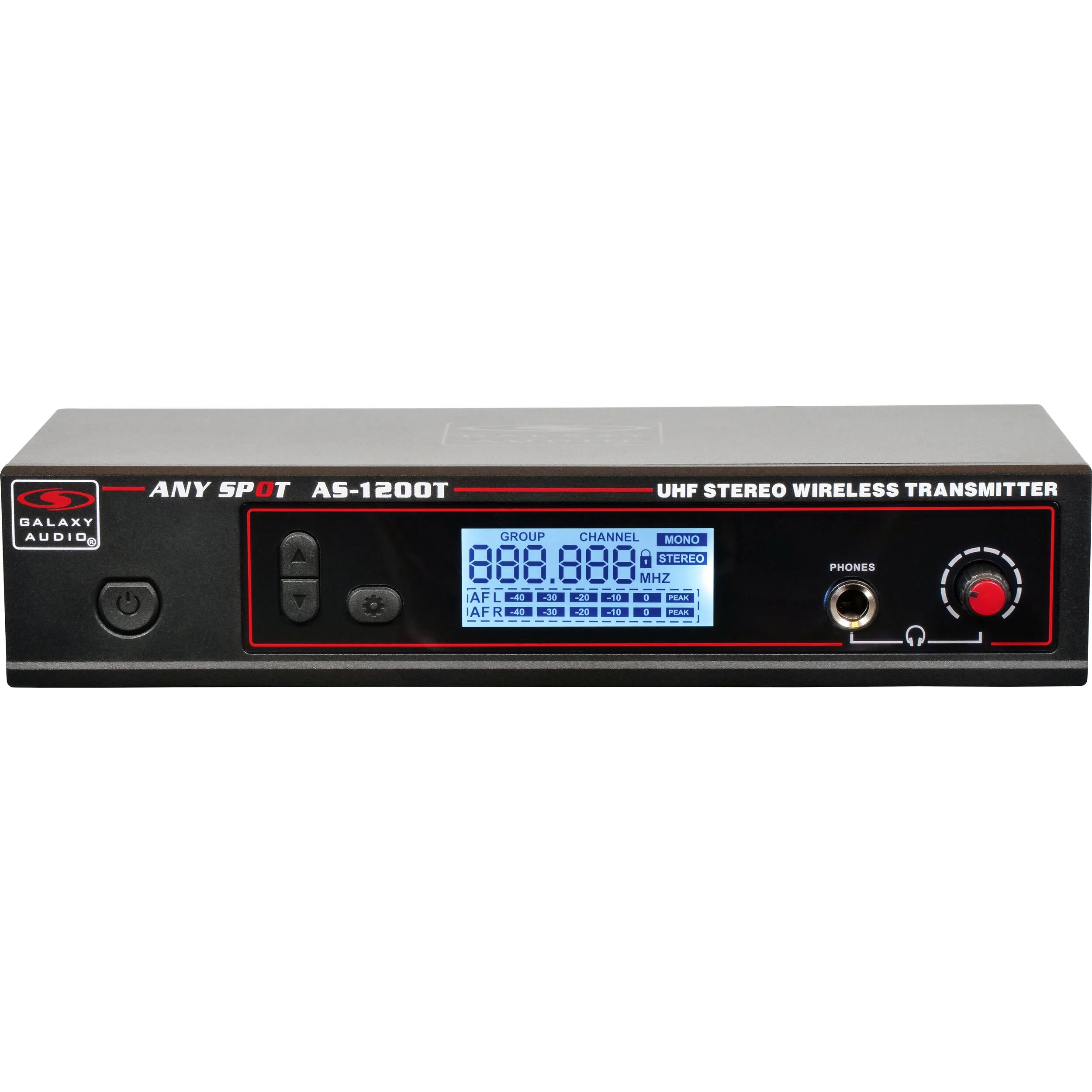

    Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

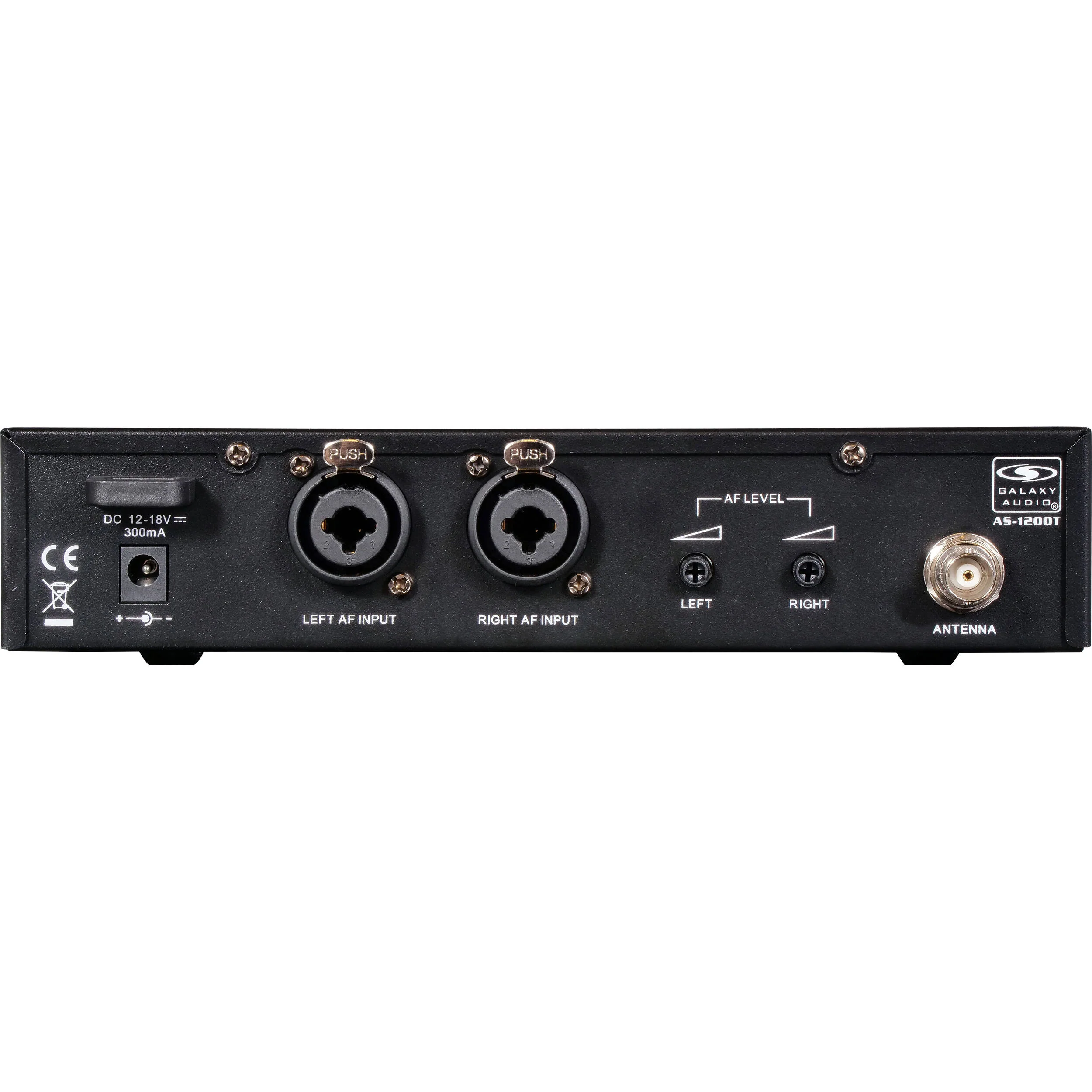

    Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (D: 584 to 607 MHz) - Image 4
