Galaxy Audio AS-1200 Overview
The Galaxy Audio AS-1200 Band Pack Wireless In-Ear Monitor System with 4 Receivers and EB4 Earbuds offers musicians and performers the freedom of wireless on-stage monitoring with easy-to-use components. The tabletop transmitter (rack ears are provided for rackmounting) sends wireless audio to the bodypack receivers at a maximum distance of 300'.
The AS-1200 provides 210 user-selectable UHF frequencies to choose from to create a clear, interference-free wireless transmission channel. Intuitive controls make it easy to set the transmitter and receivers to the same channel. Simply plug the EB4 earbuds into the 3.5mm jacks on the receivers, and you've got an in-ear monitoring system that reduces stage noise and helps to control feedback�giving players and performers more freedom of movement and adding extra energy and excitement to concerts and events.
Easy-to-read LEDs and backlit LCD screens on the components show the left and right audio levels, channel and frequency, stereo/mono mode, and lock status. The receiver's screen also displays the remaining battery life. Two AA alkaline batteries will power the receiver for up to 5 hours.
- Backlit LCD screen with 4-bar battery indicator
- Rubberized cover for slip-resistant use on belt or guitar strap
- Easy-to-set group and channel selection
- Built-in limiter
- Operates on 2 AA batteries (up to 5 hours on alkalines)
- Standard 3.5mm jack on receiver works with a wide variety of earbuds and in-ear monitors
- Lightweight EB4 earbuds with titanium drivers and 51" cable included
- Add as many additional receivers (available separately) as you need
- 210 selectable UHF frequencies
- Send a single stereo or mono mix to an unlimited number of receivers on stage
- Trouble-free wireless connectivity
- XLR-1/4" combo line-level input jacks with level control
- Easy-to-read LCD screen with metering
- 1/4" headphone output with volume control for easy monitoring
- Removable antenna
- Rackmount kit for single- or double-mounting included
In the Box
- Galaxy Audio AS-1200 Band Pack Wireless In-Ear Monitor System with 4 Receivers & EB4 Earbuds (P4: 470 to 494 MHz)

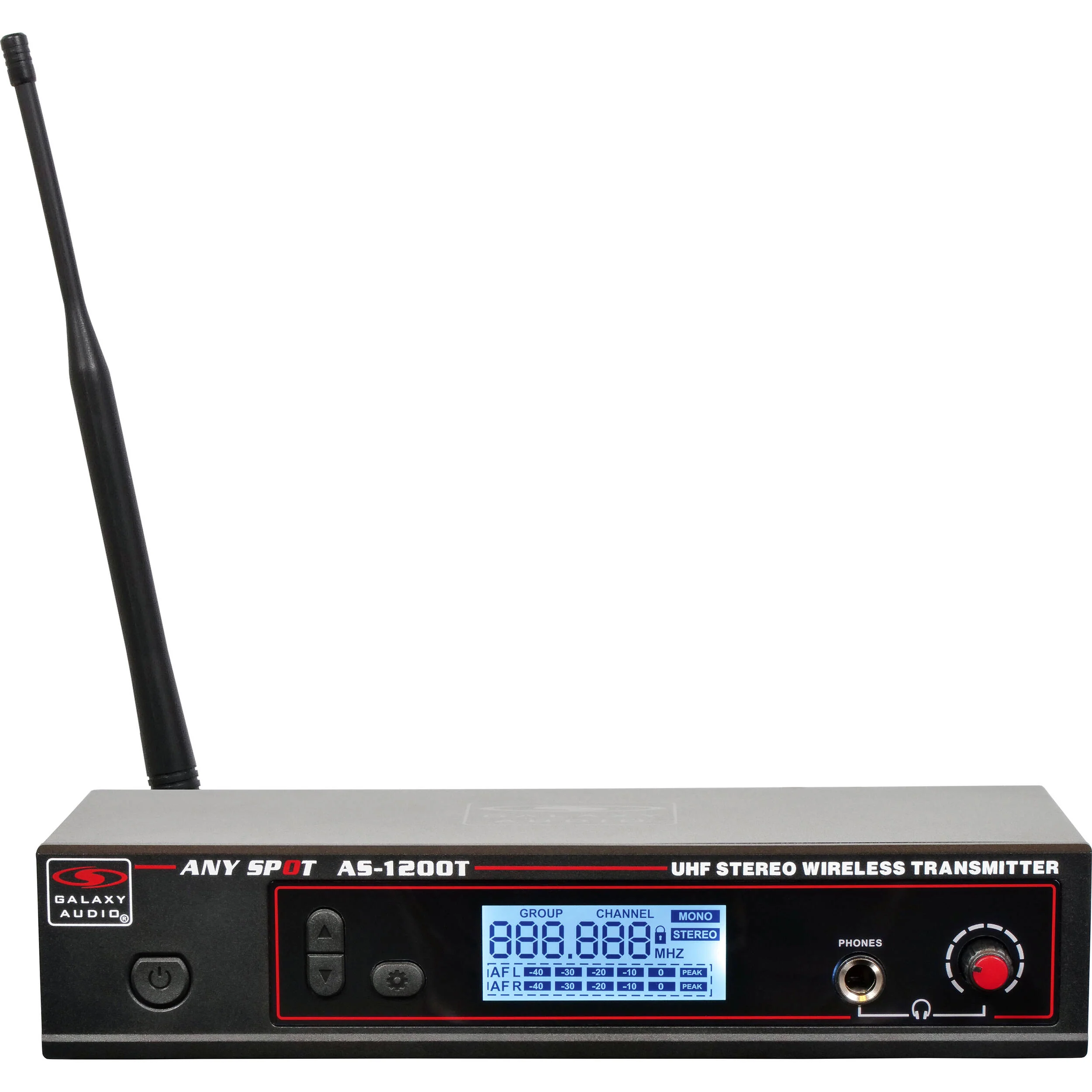

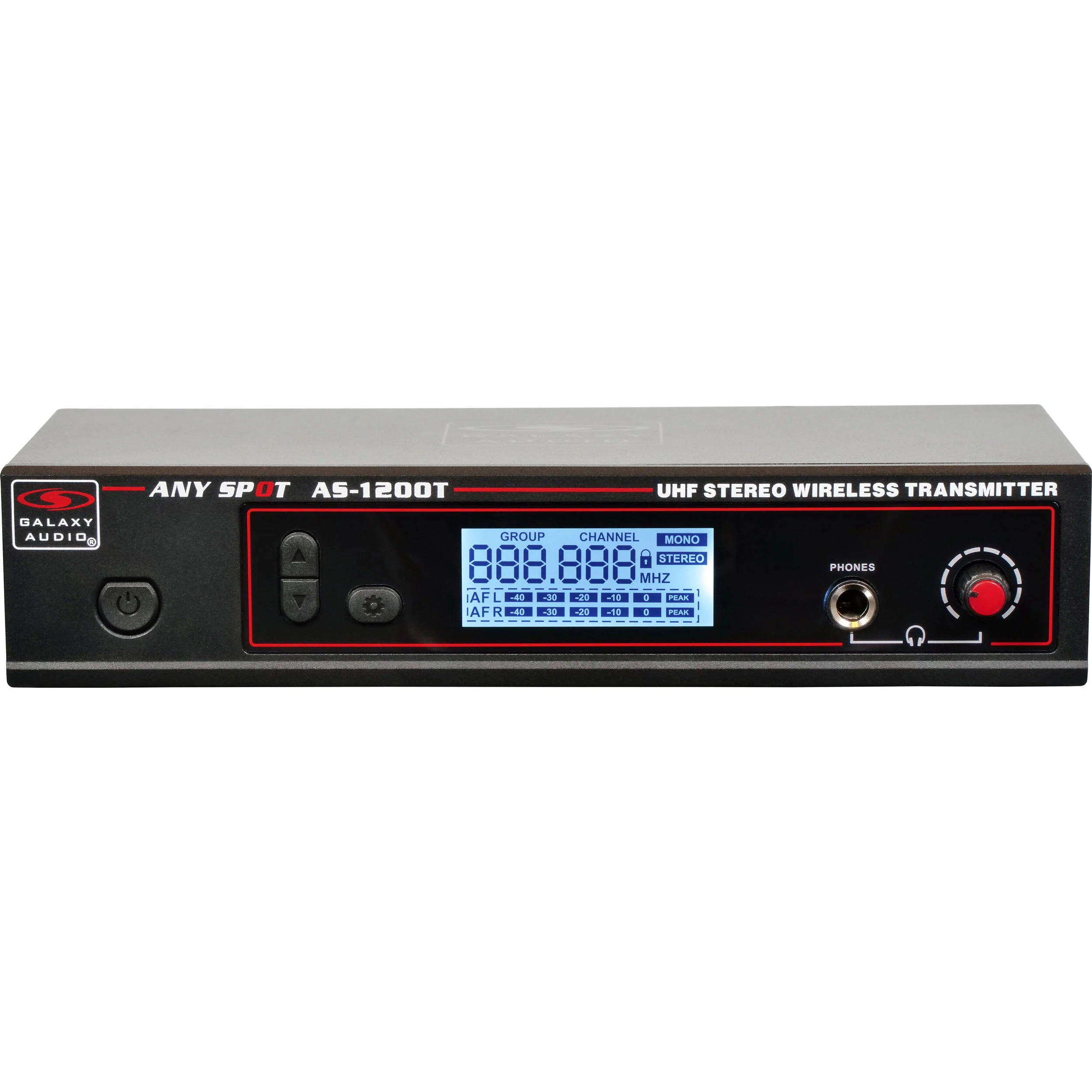

- Galaxy Audio AS-1200T Wireless Transmitter for In-Ear Monitor System (P4: 470 to 494 MHz)

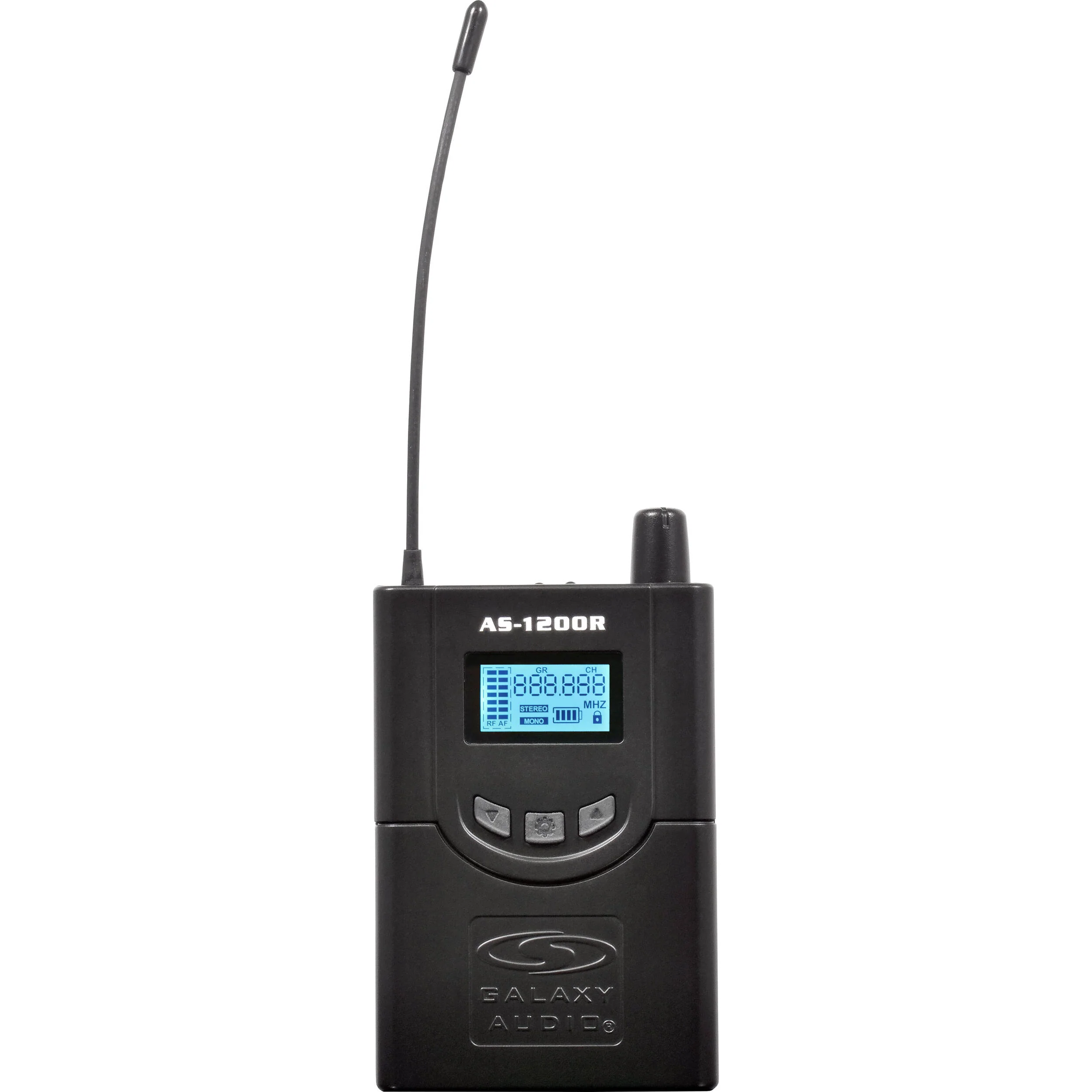

- 4 x Galaxy Audio AS-1200R Wireless Bodypack Receiver with EB4 Earbuds (P4: 470 to 494 MHz)
Galaxy Audio AS-1200 Specs
| Band | UHF |
| Frequencies | 210 User-Selectable Frequencies |
| RF Output Level | Transmitter: 10 mW |
| Range | 300' / 92 m (Under Ideal Conditions) |
| Frequency Response ± 3dB | 70 Hz to 13.5 kHz |
| Total Harmonic Distortion | <1% @ 1 kHz |
| Signal to Noise | > 80 dBA |
| Maximum Deviation Range | ±15 kHz |
| Dynamic Range | > 88 dB (A-Weighted) |
| Operating Temperature Range | 14 to 122 F° / -10 to +50 C° |
| Audio Output Level | >65 mW x 2 Earphone Out with Volume Control |
| Sensitivity | -92 dBm at 30 dB |
| Stereo Separation | 40 dB (at 1 kHz) |
| Output Connector | 1/8" / 3.5 mm |
| Indicators | LCD Display, Stereo LED, RF LED |
| Controls | Volume, Up, Down, Settings |
| Power | 2 x AA Alkaline or Rechargeable Batteries |
| Battery Life | Approximately 5 Hours (Alkaline) |
| Dimensions (H x W x D) | 3.73 x 2.54 x 1" / 95 x 65 x 25 mm |
| Weight | 3.2 oz / 90 g without Batteries |
| Modulation | FM Stereo Modulation |
| Max Audio Input Level | +6 dBV |
| Gain Adjustment Range | 40 dB |
| Input Impedance | 100 Kilohms |
| Controls | Headphone Volume, Up/Down, Settings, Power Button |

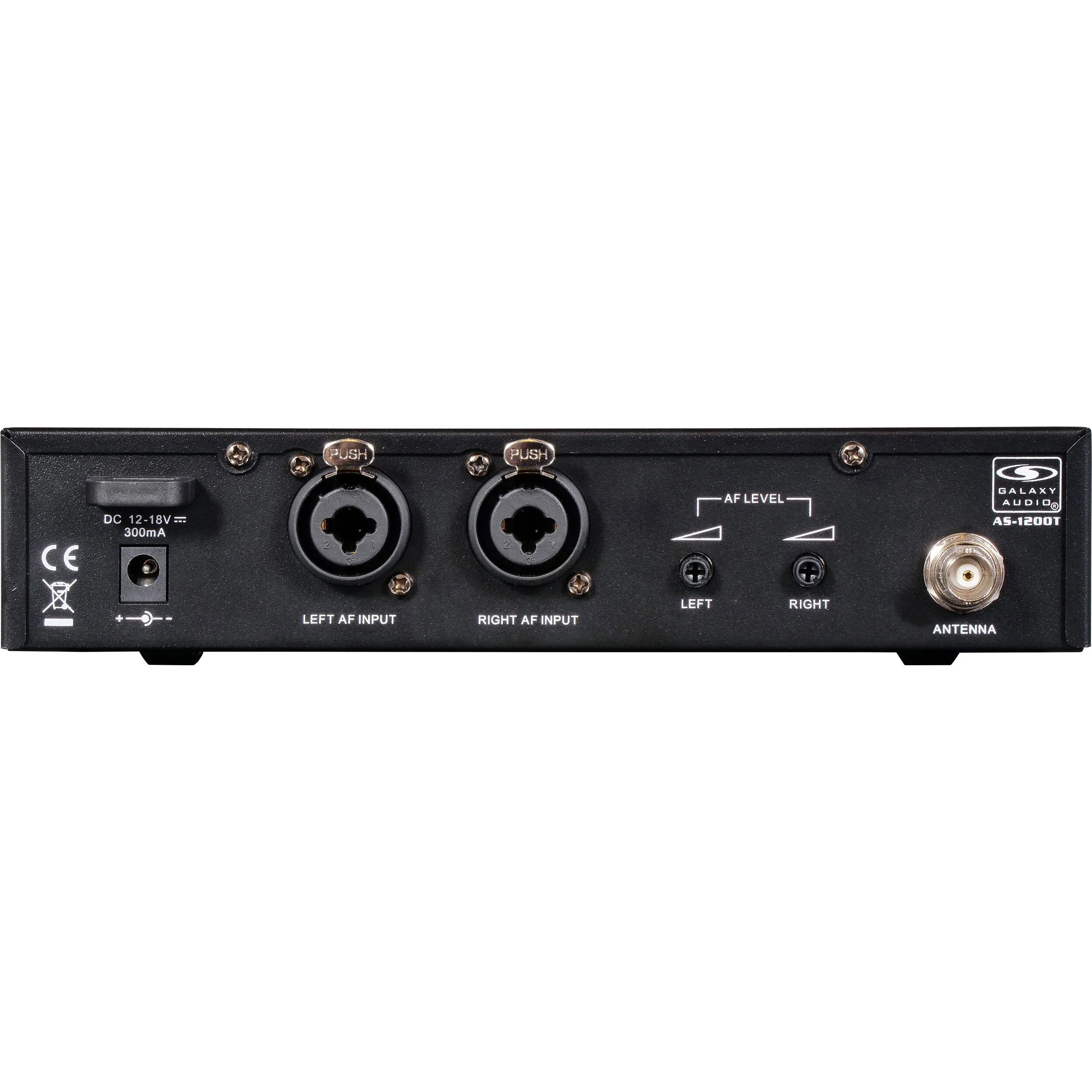

| Audio Input | 2 x XLR-1/4" Combo Jacks (Line Level) |
| Audio Output | 1/4" Headphone Out |
| XLR Inputs | Impedance Balanced Pin 1: Ground (Cable Shield) Pin 2: Audio + Pin 3: No Audio - |
| Antenna | Detachable 1/2 Wave BNC Antenna |
| Power Requirements | 2 to 18 VDC at 300 mA Supplied by External Power Supply |
| Dimensions (H x W x D) | 1.5 x 8.3 x 3.78" / 38 x 212 x 96 mm |
| Weight | 22 oz / 635 g |
Galaxy Audio AS-1200 Reviews
