Original: $329.98
-70%$329.98
$98.99The Story

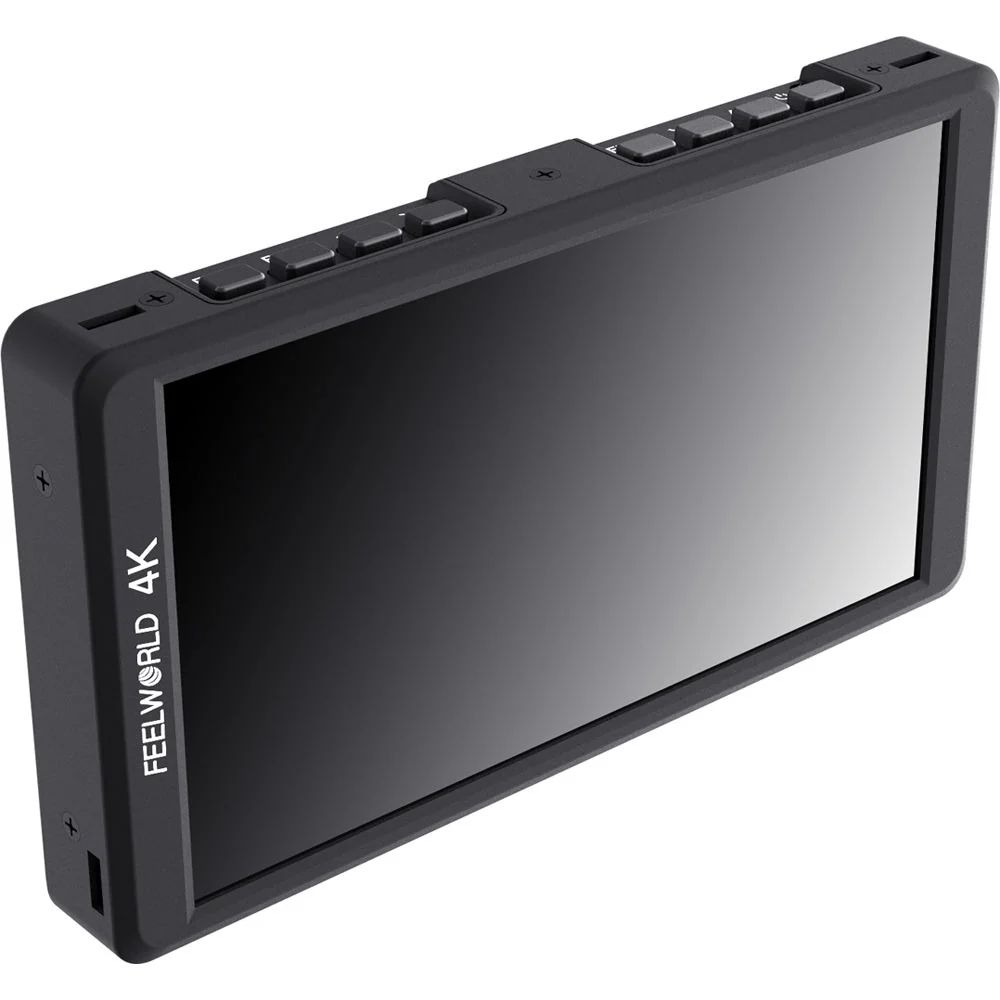

The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080. The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m 2 with a contrast ratio of 1400:1. The monitor incorporates an HDMI input with a loop-through HDMI out. The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate.
- Full HD 1920 x 1080 display resolution
- 170° wide-viewing angle IPS panel
- Histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- Camera mode
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment

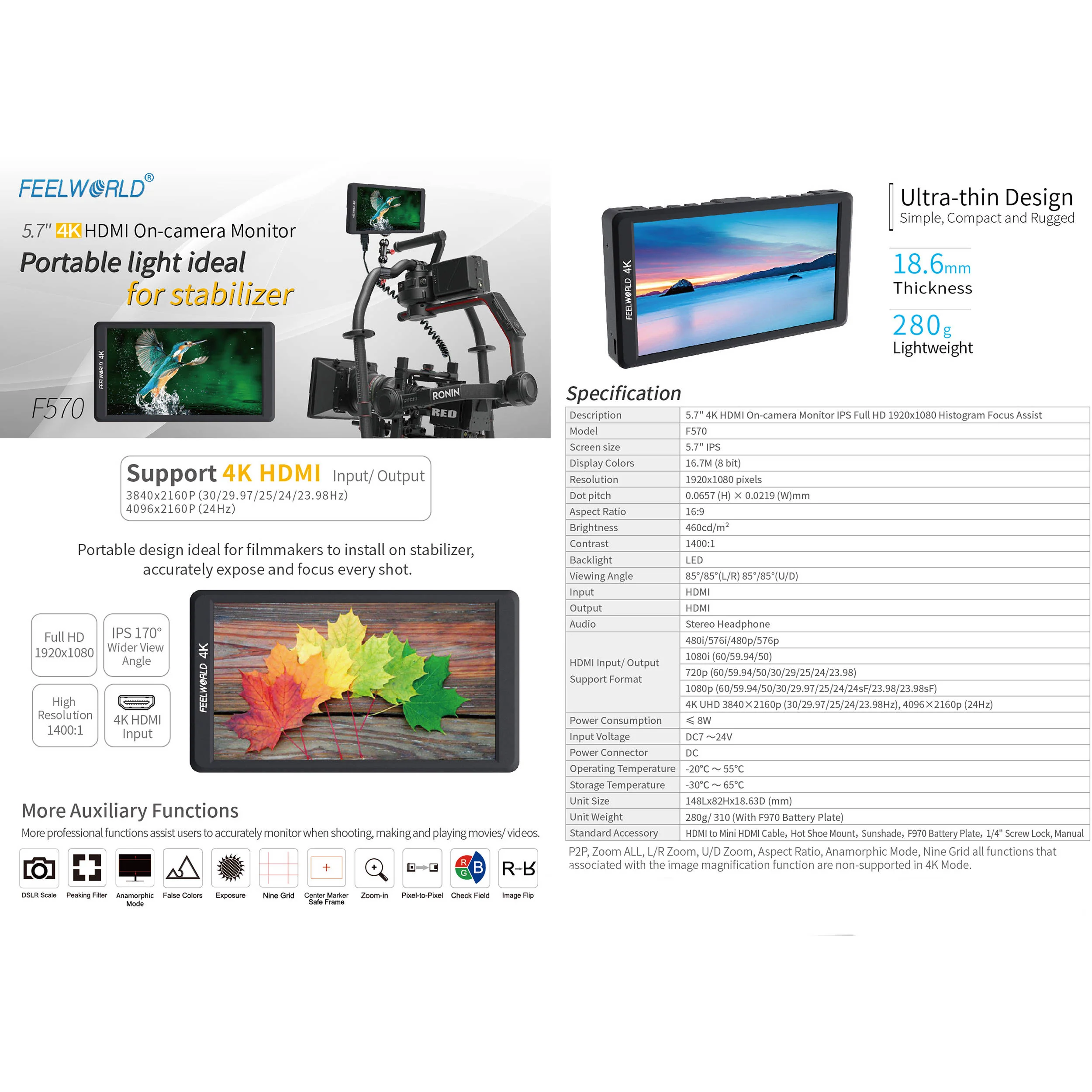

FeelWorld F570 specs
| Screen Size | 5.7" (14.5 cm) |
| Resolution | 1920 x 1080p |
| Pixel Pitch | 0.0657 x 0.0219 mm |
| Aspect Ratio | 16:9 |
| Brightness | 460 cd/m 2 |
| Contrast Ratio | 1400:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |

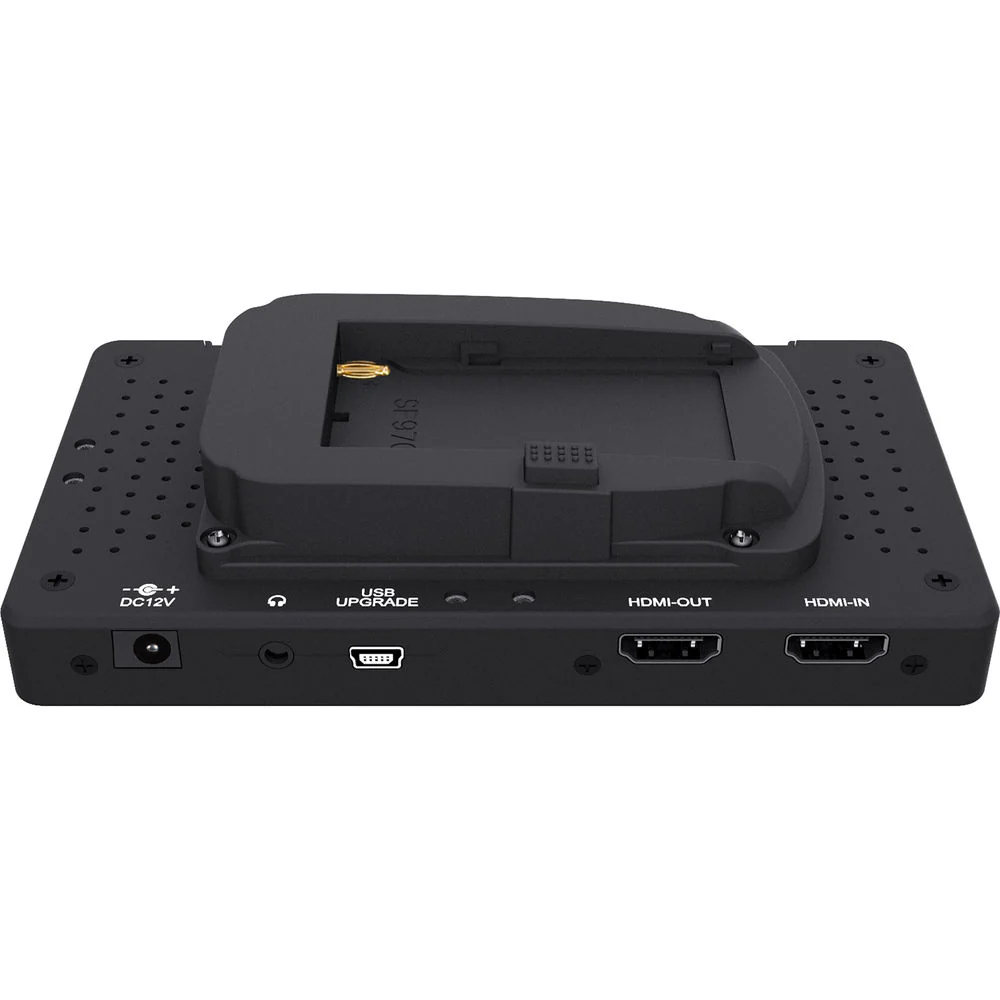

| Input | 1 x HDMI |
| Output | 1 x HDMI 1 x 3.5 mm, stereo headphone port |
| Additional Ports | 1 x Mini-USB, for firmware updates |
| Supported Video Formats | 4096 x 2160p 24 3840 x 2160p 30/29.97/25/24/23.98 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/ 23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576p / 576i 480p / 480i |
| Input Voltage | 7 to 24 VDC |
| Power Consumption | ?8 W |
| Working Temperature | -4 to 131°F (-20 to 55°C) |
| Storage Temperature | -22 to 149°F (-30 to 65°C) |
| Installation | 1/4"-20 thread socket |

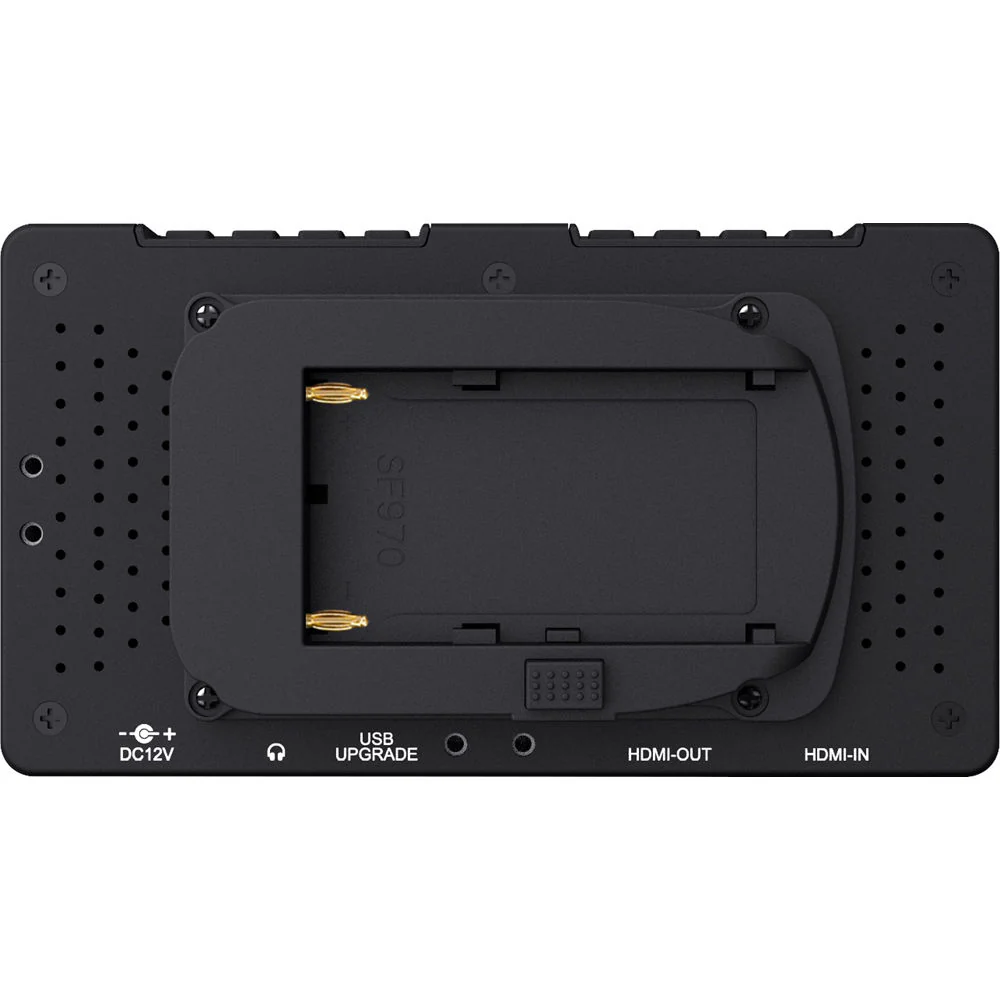

| Battery Plate | F970, L-Series type |
| Dimensions | 5.8 x 3.2 x 0.7" (14.8 x 8.2 x 1.9 cm) |
| Weight | 10.9 oz (310 g), with battery plate 9.8 oz (280 g), without plate |
| Packaging Info | |
|---|---|
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.2" |
- Mini HDMI Cable

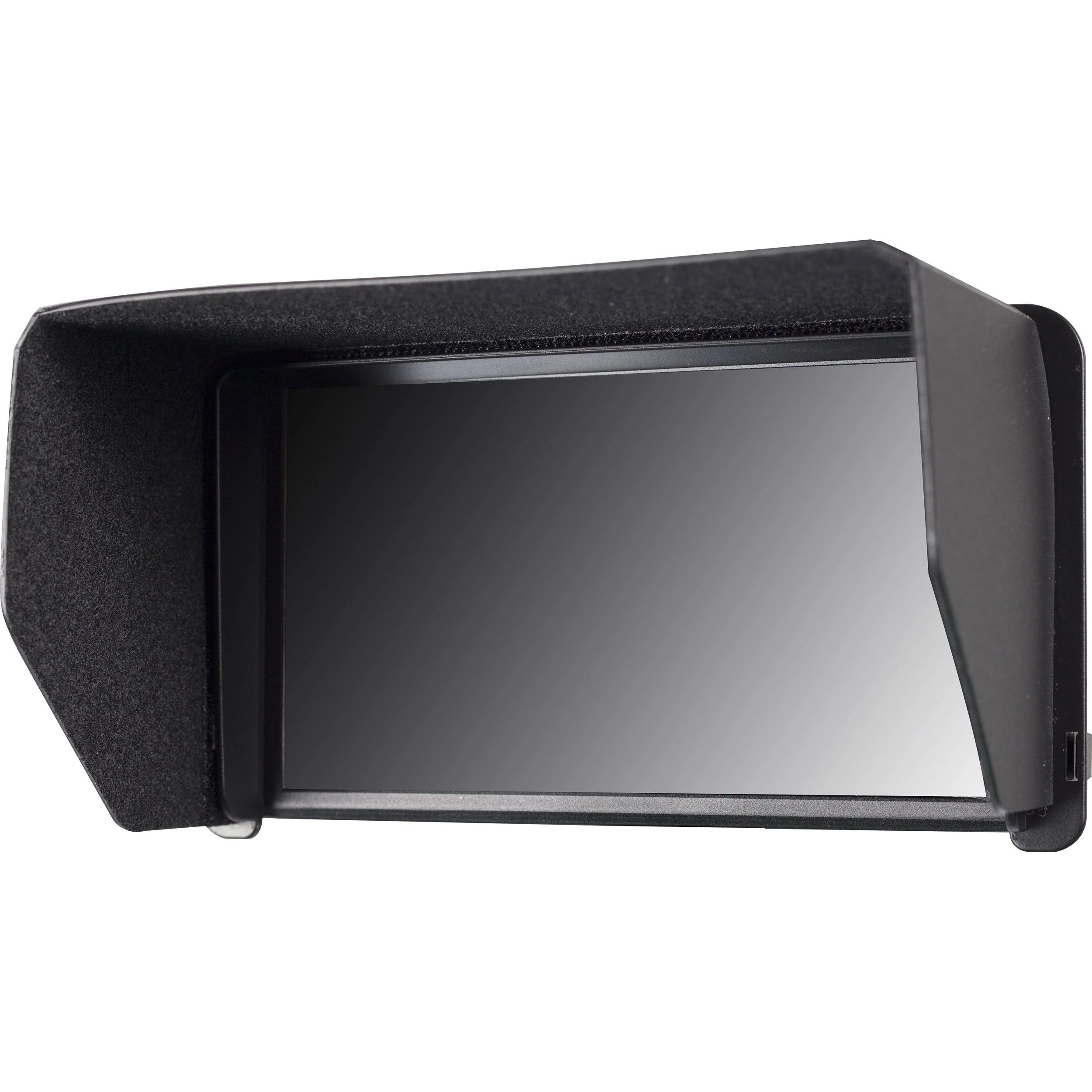

- Sunshade
- Cold Shoe Mount
- L-Series Type Battery Plate
- 1/4"-20 Screw Lock
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080. The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m 2 with a contrast ratio of 1400:1. The monitor incorporates an HDMI input with a loop-through HDMI out. The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate.
- Full HD 1920 x 1080 display resolution
- 170° wide-viewing angle IPS panel
- Histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- Camera mode
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment
FeelWorld F570 specs
| Screen Size | 5.7" (14.5 cm) |
| Resolution | 1920 x 1080p |
| Pixel Pitch | 0.0657 x 0.0219 mm |
| Aspect Ratio | 16:9 |
| Brightness | 460 cd/m 2 |
| Contrast Ratio | 1400:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| Input | 1 x HDMI |
| Output | 1 x HDMI 1 x 3.5 mm, stereo headphone port |
| Additional Ports | 1 x Mini-USB, for firmware updates |
| Supported Video Formats | 4096 x 2160p 24 3840 x 2160p 30/29.97/25/24/23.98 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/ 23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576p / 576i 480p / 480i |
| Input Voltage | 7 to 24 VDC |
| Power Consumption | ?8 W |
| Working Temperature | -4 to 131°F (-20 to 55°C) |
| Storage Temperature | -22 to 149°F (-30 to 65°C) |
| Installation | 1/4"-20 thread socket |
| Battery Plate | F970, L-Series type |
| Dimensions | 5.8 x 3.2 x 0.7" (14.8 x 8.2 x 1.9 cm) |
| Weight | 10.9 oz (310 g), with battery plate 9.8 oz (280 g), without plate |
| Packaging Info | |
|---|---|
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.2" |
- Mini HDMI Cable
- Sunshade
- Cold Shoe Mount
- L-Series Type Battery Plate
- 1/4"-20 Screw Lock
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
