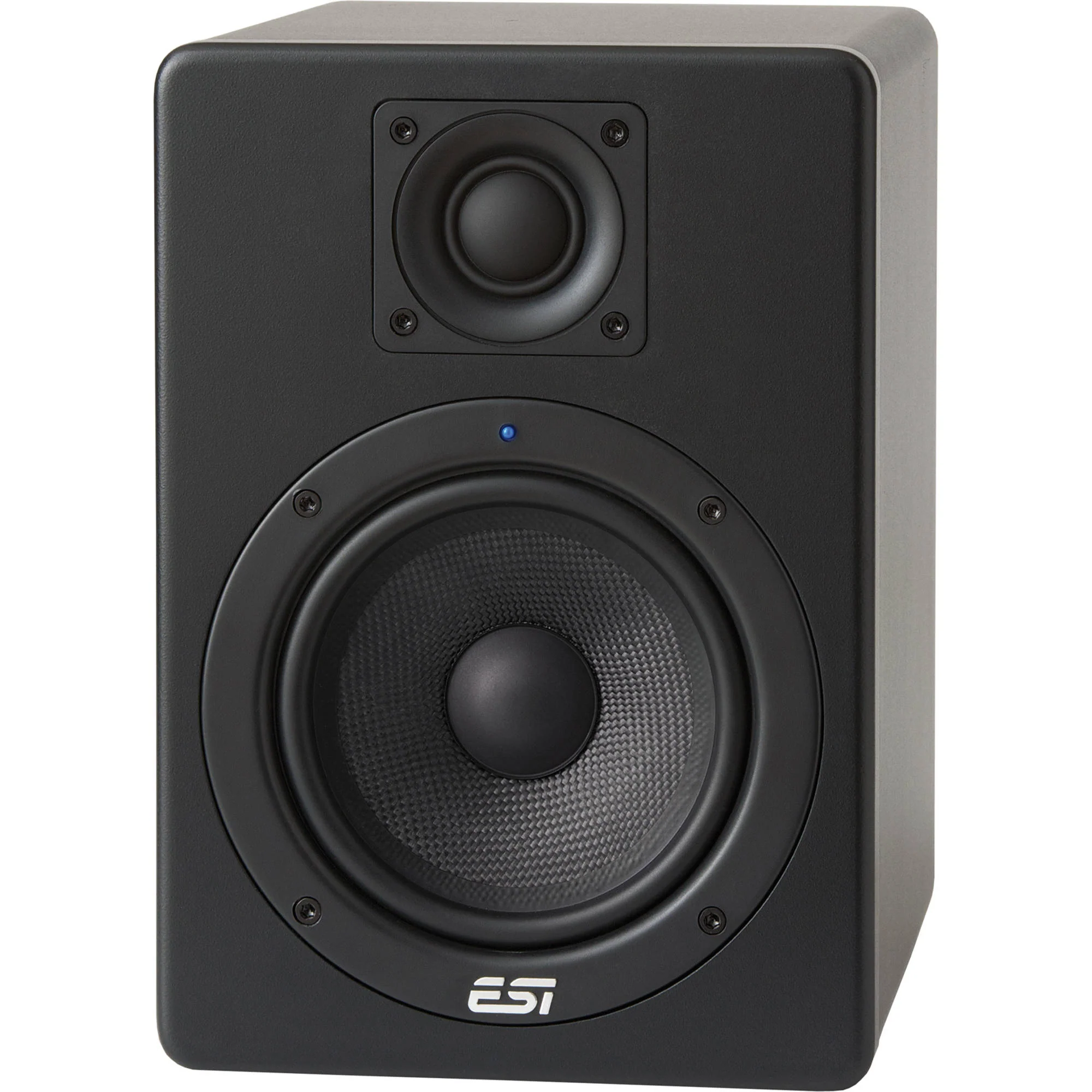

ESI aktiv 05 - 5" Studio Reference Monitor (Single)
HomeStore

ESI aktiv 05 - 5" Studio Reference Monitor (Single)

ESI aktiv 05 - 5" Studio Reference Monitor (Single)

$89.36

Original: $297.87

-70%
ESI aktiv 05 - 5" Studio Reference Monitor (Single)—

$297.87

$89.36

The Story

ESI aktiv 05 Overview

The single aktiv 05 from ESI is a high-quality 2-way powered monitor developed for audio engineers and producers looking for high-performance sound reproduction at an affordable price. The monitor utilizes a 1" silk dome tweeter and a 5" Kevlar curved-cone woofer, which combine to provide a flat frequency response of 50 Hz to 20 kHz with an SPL output of 88 dB (±3dB). Designed for use with balanced and unbalanced signals, the monitor offers a combo XLR-1/4" input connector. The built-in amplifier provides 30W to the tweeter and 30W to the woofer, while the universal power supply includes a switch for 115V/230V operation, allowing the speaker to be used anywhere in the world. The aktiv 05 ships with a standard IEC power cord.

  • 2-way powered speaker / active studio monitor speaker
  • LF Driver: 5" Kevlar curved cone (magnetic shielding type)
  • HF Driver: 1" silk dome tweeter
  • Output Power: 60W (HF 30W, LF 30W)
  • Magnetically shielded for desktop operation
  • Balanced / Unbalanced Connectors: combo XLR-1/4"
  • Frequency Response: 50 Hz - 20 kHz
  • Crossover Frequency: 2.5 kHz
  • SPL: 88 dB ±3 dB
  • Operating Voltage: 100-240 VAC, 50/60 Hz, with 115/230 VAC selection switch
  • Indicator: blue power LED on the front
  • Standby Function, can be turned on and off

In the Box

  • ESI aktiv 05 - 5" Studio Reference Monitor (Single)
  • Power Cord
  • Limited 1-Year Manufacturer Warranty

    ESI aktiv 05 Specs

    Monitor Type & Configuration Active 2-Way
    Number of Included Monitors Single Monitor
    Enclosure Bass-Reflex/Ported, Shielded
    Total Power Output 60 W
    Drivers
    Tweeter 1 x 1" / 25.4 mm Silk Dome
    Woofer 1 x 5" / 12.7 cm Kevlar Cone
    Amplifiers HF: 30 W
    LF: 30 W
    Performance
    Frequency Range 50 Hz to 20 kHz
    Maximum Sound Pressure Level (SPL) 88 dB
    Total Harmonic Distortion (THD) 1%
    Analog Input Sensitivity/Gain -5.4 dBu (Continuously Variable)
    Signal Processing
    Crossover Frequency 2.5 kHz
    Connectivity
    Audio I/O 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Input (23.3 Kilohms)
    Network I/O None
    USB None
    Wireless None
    Power
    AC Input Power 100 to 240 VAC, 50/60 Hz
    Power Consumption 85 W
    Physical
    Color Black
    Dimensions (W x H x D) 6.9 x 9.8 x 7.9" / 176 x 250 x 200 mm
    Weight 9.9 lb / 4.5 kg
    Packaging Info
    Package Weight 10.495 lb
    Box Dimensions (LxWxH) 13.2 x 10.2 x 9.8"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

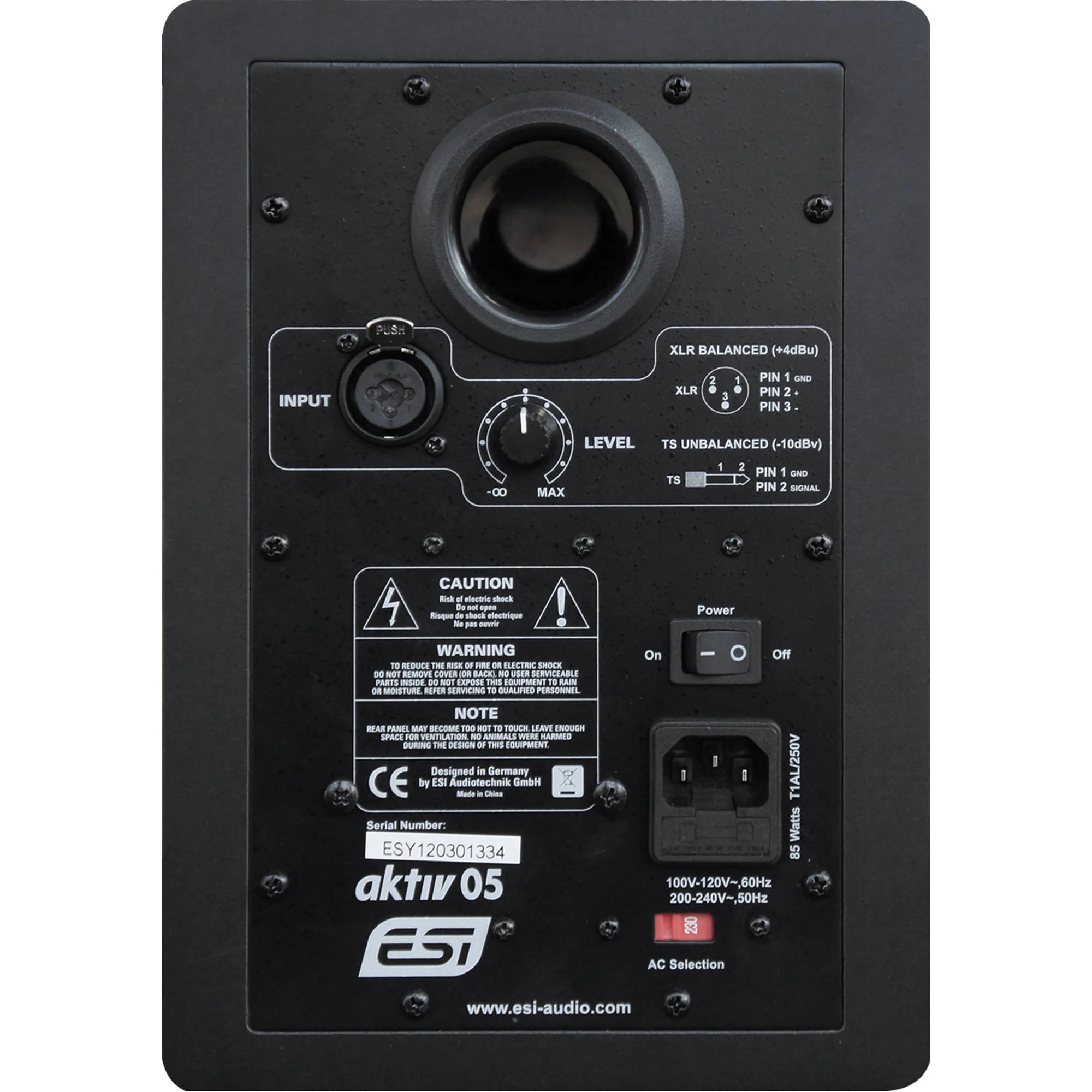

    ESI aktiv 05 - 5" Studio Reference Monitor (Single) - Image 2
