Original: $287.06
-70%$287.06
$86.12The Story
- 16 Automated & Sound Activated Programs
- 600W per Channel
- DMX and Analog Input/Output Connector
- 15 Amp Controller

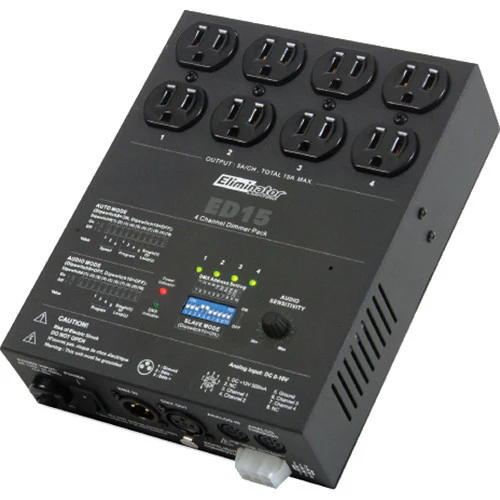

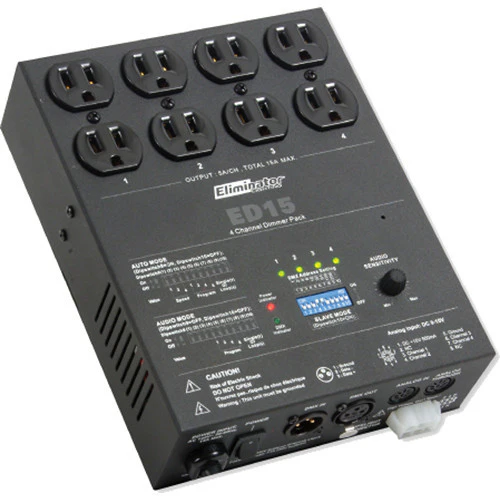

The ED-15 4-Channel Dimmer from Eliminator Lighting is designed to control your light fixtures movement. This 15A controller features 16 automatic and sound activated built-in programs. All four channels are user assignable between Dimmer and Switch modes while there are LED indicators for each channel. Among the ED-15's features are DMX and Analog input/output connection, Slave, Auto and Audio functions, a ropelight connection and an audio sensitivity knob. Four 6A fuses are provided for overload protection.
- 4-channel digital dimmer with dual Edison sockets per channel
- 16 built-in programs; supports single/loop programming
- Features various function modes like Slave, Auto, and Audio
- DMX and analog input/output connector
- All four channels are user assignable between Dimmer and Switch modes
- Features ropelight connection and audio sensitivity adjusting knob
- Supports DMX address setting
- On / Off power switch with power indicator
- LED-indicators for all channels
- Four 6A fuses for overloading protection
| Channels | 4 |
| Power Input | 120 VAC; 50/60 Hz, 15 A maximum |
| Power Output | 5 A per channel; total 15 A maximum |
| Fuse | Loading: 4x F6 A 250 V; 0.2 x 0.8" (0.5 x 2.0 cm) Electronic: F1 A 250 V; 0.2 x 0.8" (0.5 x 2.0 cm) |
| Dimensions | 10.3 x 6.8 x 2.4" (26.1 x 17.3 x 6.2 cm) |
| Weight | Approximately 3.7 lb (1.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.95 lb |
| Box Dimensions (LxWxH) | 11.0 x 9.4 x 3.4" |
- Hanging Bracket
- Limited 1-Year Warranty
