$28.51
Original: $95.04

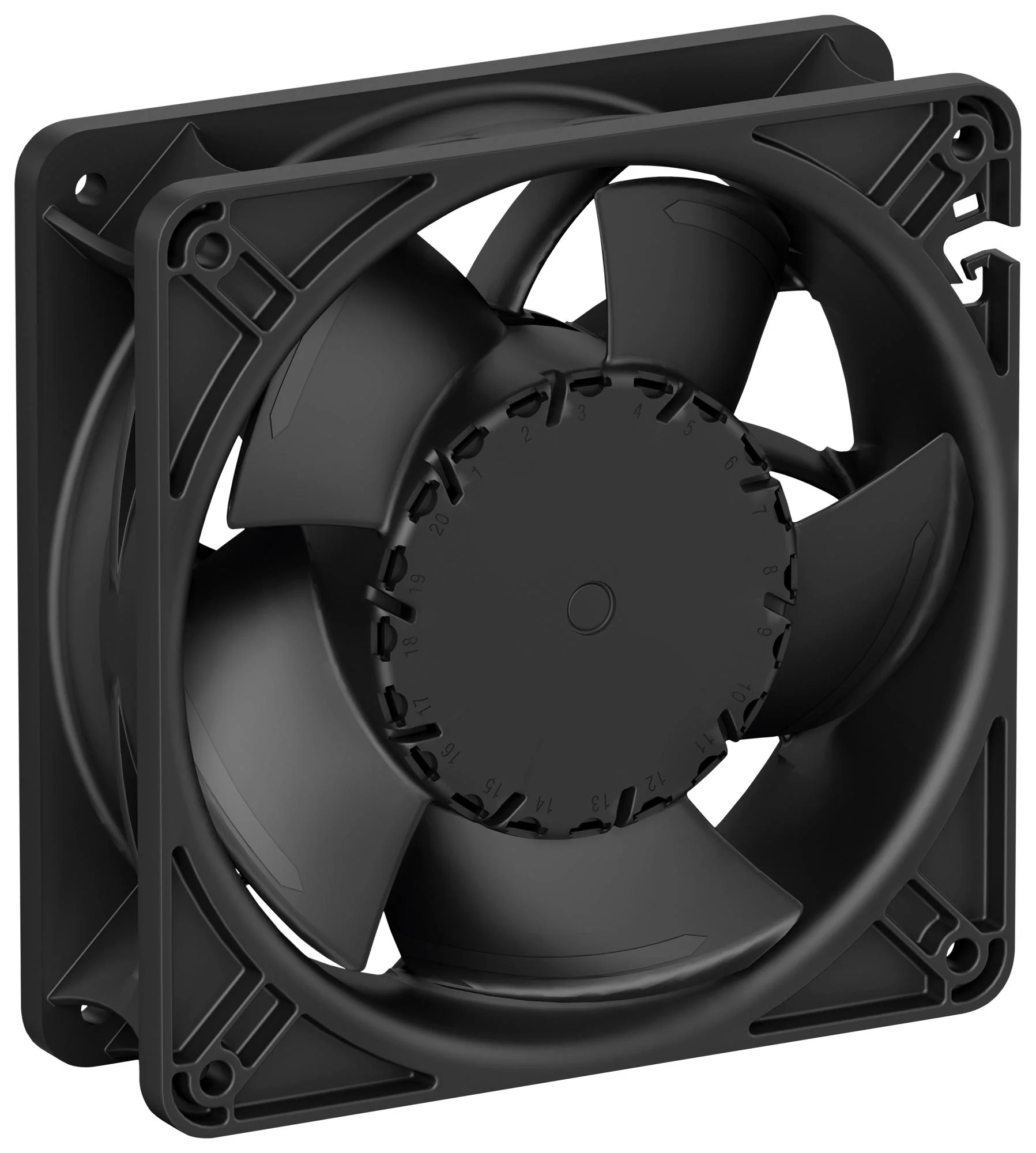

-70%EBM-PAPST AF120-00143 12V P/2 6.500 DC Axial Fan, 12 V, Square, 120 mm, 38.15 mm, Ball Bearing, 203 CFM AF120-00143 12V P/2 6.500ā
$95.04
$28.51The Story
AxiForce model allows the fan speed to be changed via a pulse-width-modulated supply and offer open-collector speed signal output. Suitable for variable frequency drives, automation equipment, LED displays, power modules for 5G mobile network infrastructure, video streaming servers or data centre equipment.
- Performance from 178mĀ³/h to a maximum of 650mĀ³/h, depending on model
- PWM control and speed signal (4 wire specification)
- Aerodynamic design offering quiet operation
- Powerful and efficient motor technology
- Long service life
Product details
| Supply Voltage VDC: 12V |
| Fan Frame Type: Square |
| Fan Frame Size: 120mm |
| External Depth: 38.15mm |
| Bearing Type: Ball Bearing |
| Air Flow - CFM: 203CFM |
| Noise Rating: 59dBA |
| Power Rating: 30W |
| Rated Speed: 6500rpm |
| Power Connection Type: 4 Lead Wires, PWM Control, Tachometer |
| Current Rating: - |
| IP Rating: IP68 |
| Air Flow - m3/min: 5.75mĀ³/min |
| Product Range: AxiForce Series |
Other details
| Brand | EBM-PAPST |
| Part Number | AF120-00143 12V P/2 6.500 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Description
AxiForce model allows the fan speed to be changed via a pulse-width-modulated supply and offer open-collector speed signal output. Suitable for variable frequency drives, automation equipment, LED displays, power modules for 5G mobile network infrastructure, video streaming servers or data centre equipment.
- Performance from 178mĀ³/h to a maximum of 650mĀ³/h, depending on model
- PWM control and speed signal (4 wire specification)
- Aerodynamic design offering quiet operation
- Powerful and efficient motor technology
- Long service life
Product details
| Supply Voltage VDC: 12V |
| Fan Frame Type: Square |
| Fan Frame Size: 120mm |
| External Depth: 38.15mm |
| Bearing Type: Ball Bearing |
| Air Flow - CFM: 203CFM |
| Noise Rating: 59dBA |
| Power Rating: 30W |
| Rated Speed: 6500rpm |
| Power Connection Type: 4 Lead Wires, PWM Control, Tachometer |
| Current Rating: - |
| IP Rating: IP68 |
| Air Flow - m3/min: 5.75mĀ³/min |
| Product Range: AxiForce Series |
Other details
| Brand | EBM-PAPST |
| Part Number | AF120-00143 12V P/2 6.500 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
