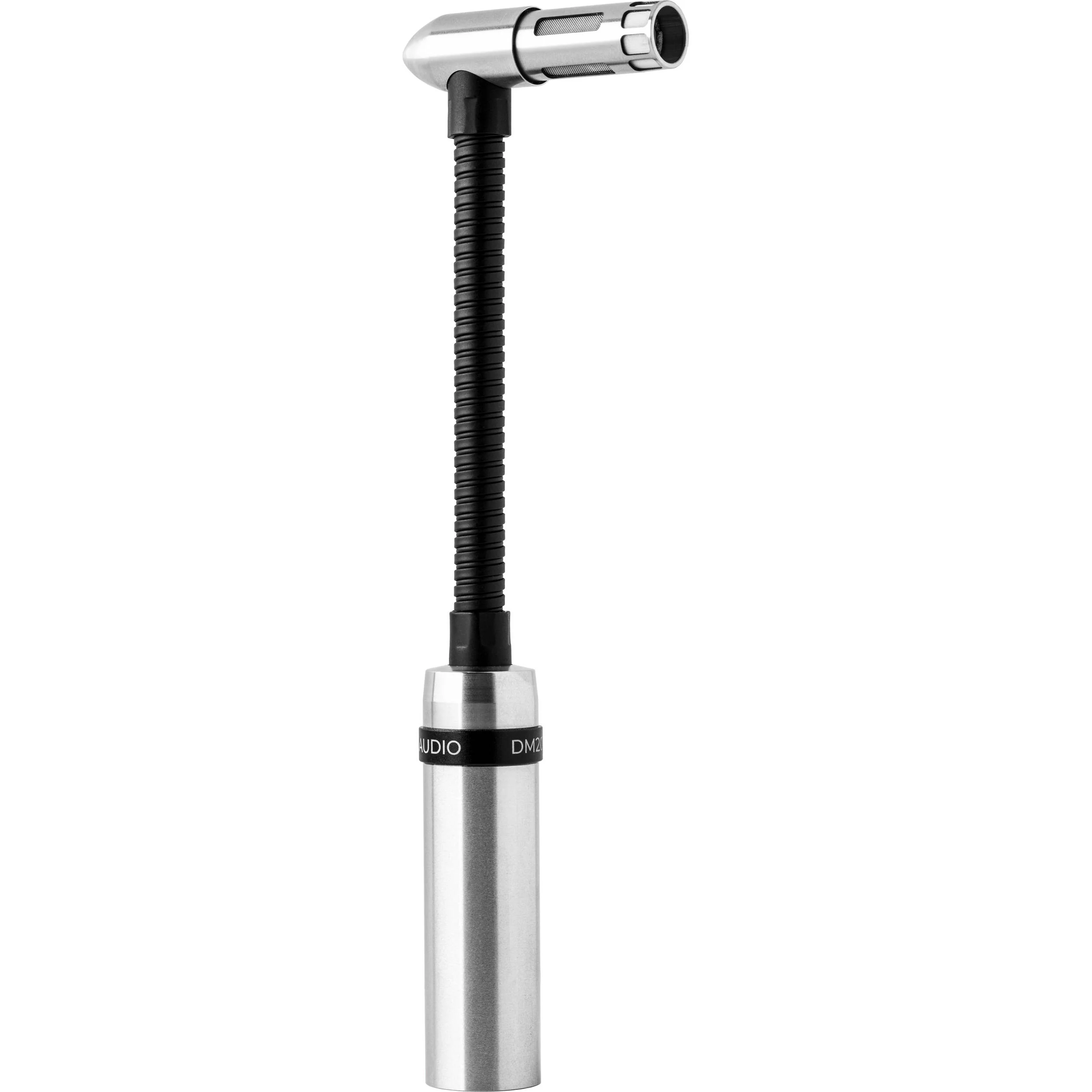

Earthworks DM20 2ND GEN Overview
The Earthworks DM20 Gen 2Â (3-Pack) updates the popular snare and tom drum microphone with improved active electronics, a revamped rim mount, and better overall performance. Each of the three included mics features a cardioid condenser capsule designed specifically for recording or amplifying live drums?specifically your snare or tom-toms. The microphone features a frequency response of 20 Hz to 20 kHz in order to capture the full tonal palette of the drum.
Earthworks is well-respected for their transparent sound, and the DM20 Gen 2 is no exception. The capsule picks up frequencies evenly around the cardioid polar pattern within 6", ensuring no frequency coloration due to off-axis capture. Furthermore, the microphone offers improved rear sound rejection, so when you need to make sure your high-hat won't bleed into your snare track, or your snare won't bleed into your tom channel, you can position the mic to cut out the offending sound without changing the tonal characteristic of the intended drum.
The DM20 Gen 2 can handle sound pressure levels of up to 157 dB, which makes it able to stand up to the hardest hitting drummers. Furthermore, the condenser capsule has been fashioned in such a way that the diaphragm's innate vibration has been kept to a minimum; after the transient hits, it settles into its resting state a lot quicker than comparable mics, and thus, does not blur further transients.
The capsule sits on a flexible gooseneck that remains secure no matter how hard the drummer thwacks away. It is fashioned out of stainless steel to better withstand the rigors of the road, and ships with three RM2 Rim Mounts for mounting the mics on your instrument.
- Built for tom and snare drums
- Designed for live stage performances, but works equally well for televised productions, worship, and studio recordings
- Gooseneck allows for ultra-fine positioning
- Increased rear rejection makes it far more ideal for snare than the DM20 Gen 1
- High SPL prevents clipping from even the loudest drummers
- Tuned to give a concentrated response to the natural range of the drum shells and to allow for more freedom to make musical decisions rather than taming the environment
- Designed for very high gain before feedback
- Tight cardioid polar pattern
- Excellent off-axis rejection

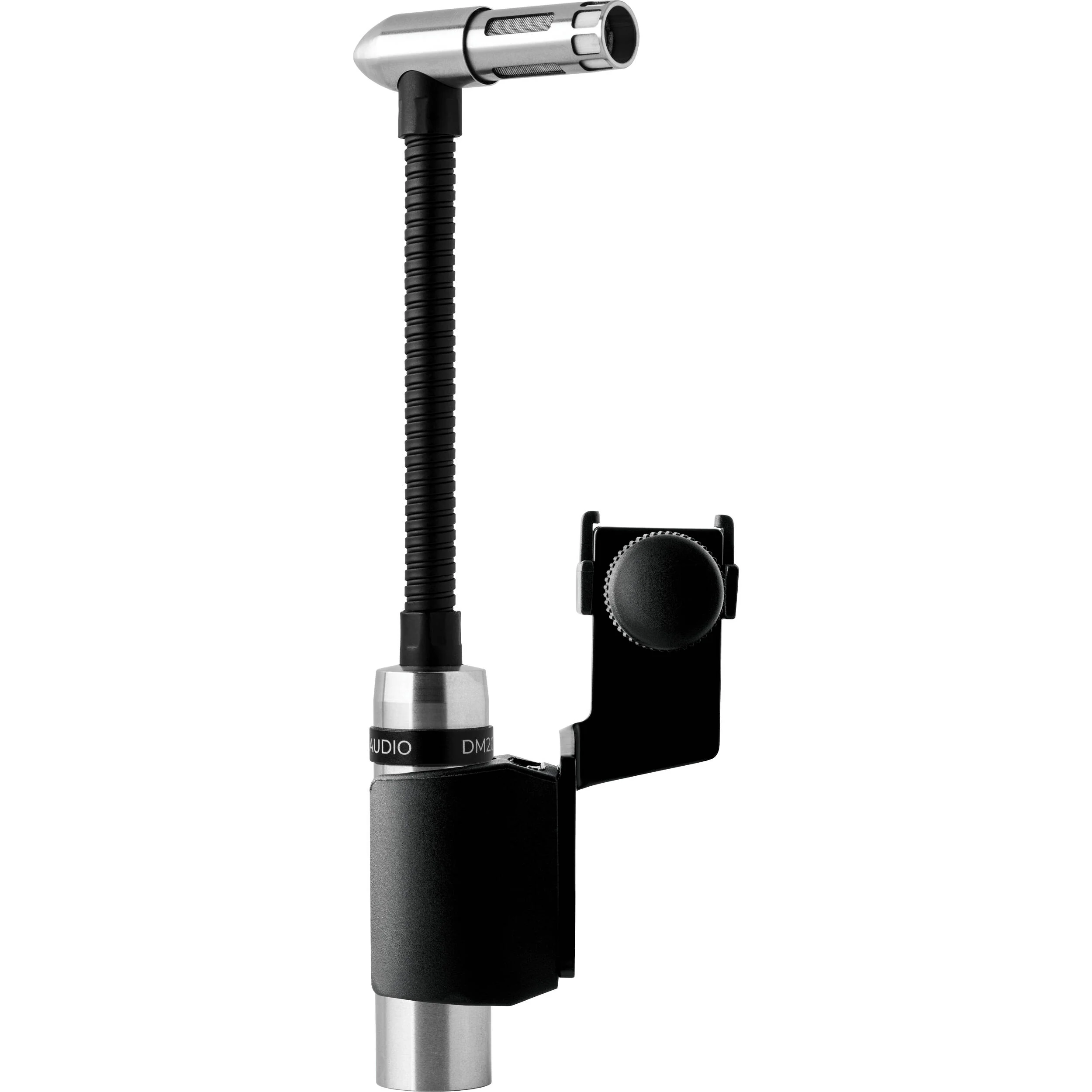

- Included RM2 Rim Mount provides secure placement onto the majority of drums on the market
- Balanced, vibrant, and natural sound right out of the box
- Frequency response from 20 Hz to 20 kHz
- Designed, tuned, and assembled in the USA
Items Included
- 3 x Earthworks DM20 Gen 2 Cardioid Condenser Microphone for Toms & Snares
- RM2 RimMount

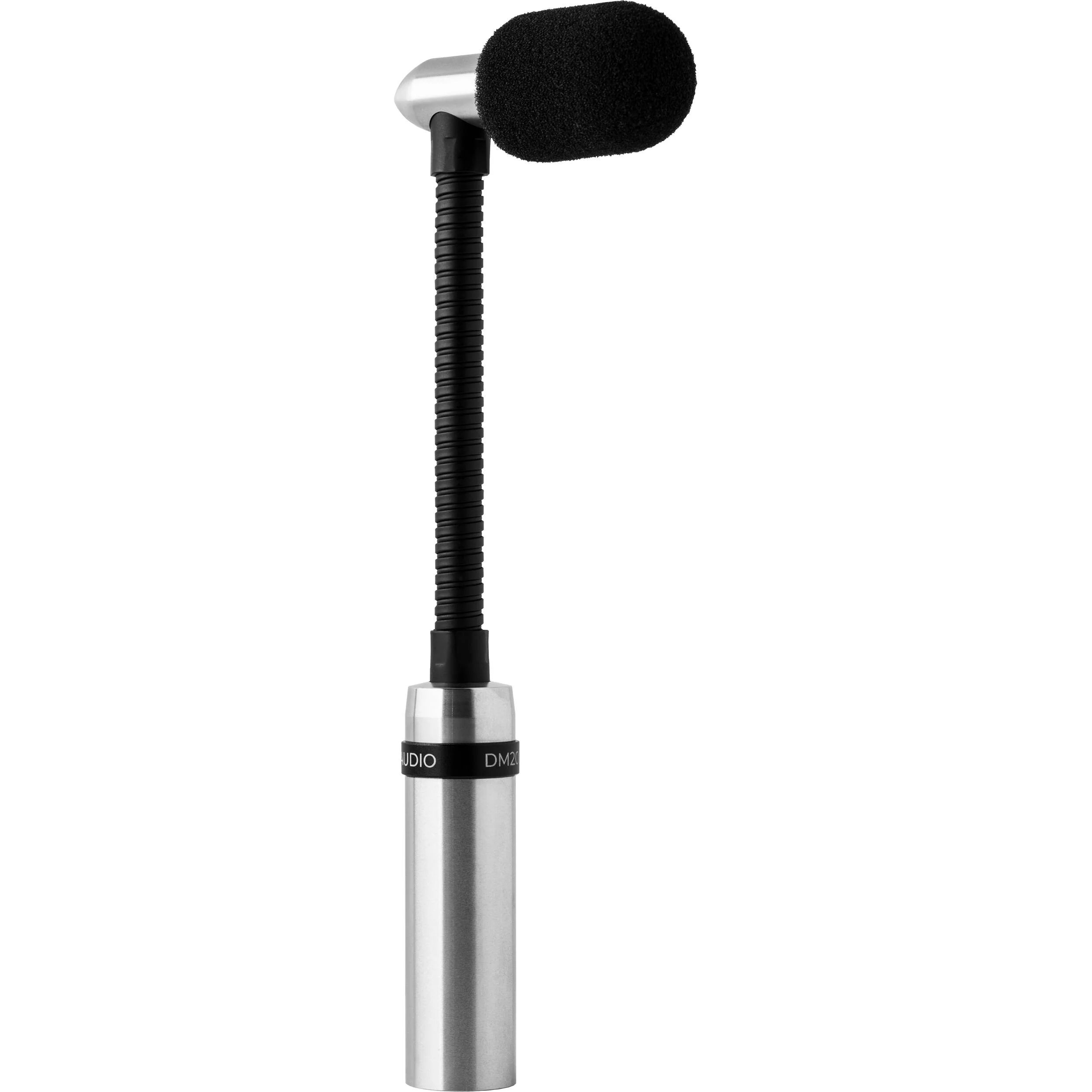

- Foam Windscreen
- Mic Bag
- Limited 2-Year Manufacturer Warranty
- RM2 RimMount
- Foam Windscreen
- Mic Bag
Not Included
-
XLR CablesEssential
Additional Resources
No additional resources available
Earthworks DM20 2ND GEN Specs
| Microphone Type |
Gooseneck (Speech/Non-Instrument)
|
| Polar Pattern |
Cardioid
|
| Element Type |
Condenser
|
| Controls |
No
|
| Frequency Response |
20 Hz to 20 kHz ?2 dB (at 6 " / 15 cm)
|
| Maximum SPL |
157 dB
|
| Analog Output |
1x XLR 3-Pin Male
|
| Power Sources |
Phantom Power
|
| Microphone Type |
Gooseneck (Speech/Non-Instrument)
|
| Polar Pattern |
Cardioid
|
| Element Type |
Condenser
|
| Sound Field |
Mono
|
| Orientation |
End Address
|
| Controls |
No
|
| Pad |
No
|
| Circuitry |
Solid-State
|
| Frequency Response |
20 Hz to 20 kHz ?2 dB (at 6 " / 15 cm)
|
| Maximum SPL |
157 dB
|
| Analog Output |
1x XLR 3-Pin Male
|
| Power Sources |
Phantom Power
|
| Operating Voltage |
48 V (Phantom Power)
|
| Color |
Silver
|
| Mounting Thread Size |
Included Mount Has No Threading
|
| Dimensions |
?: 0.86 x L: 8" / ?: 21.84 x L: 203.2Â mm (Microphone)
?: 0.38 x L: 3.5" / ?: 9.53 x L: 88.9Â mm (Gooseneck) |
| Weight |
0.4Â lb / 0.18Â kg
|
| Package Weight |
1.025 lb
|
| Box Dimensions (LxWxH) |
9.1 x 5.3 x 2.2"
|
