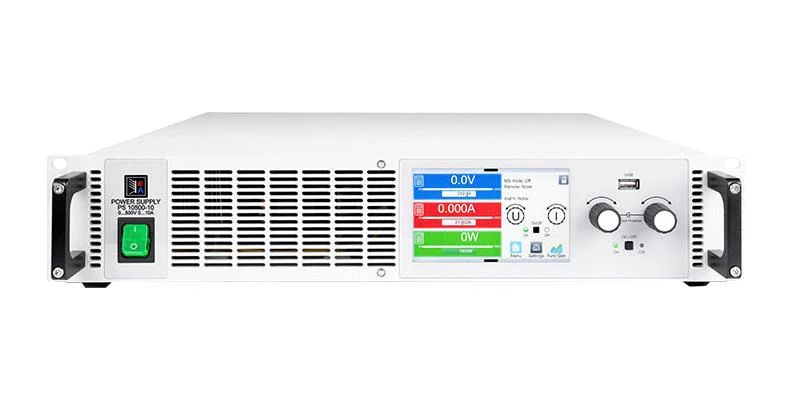

EA ELEKTRO-AUTOMATIK EA-PS 11000-10 2U Modular Power Supply, 1 Outputs, 3 kW, Programmable, 0 V, 1 kV, 10 A

EA-PS 11000-10 2U is a PS 10000 2U series DC laboratory power supply which converts the energy from the grid into a regulated DC voltage with a high efficiency. The DC supply operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

• Wide range input, 208VAC - 480VAC +10 % 3ph
• Active power factor correction, typical 0.99
• Power range from 0 - 3000W
• Voltage range from 0 to 1000VDC
• Current range from 0 to 10A
• Regulation mode CV, CC, CP with fast crossover
• Digital regulation, high resolution with 16bit ADC & DACs, selection of speed: normal, fast, slow
• Colour 5" TFT display with touch control and intuitive user interface
• Galvanically isolated share-bus for parallel operation of all power classes in the 10000 series
• Command languages and drivers: SCPI and Modbus, LabVIEW, IVI

Contents

1 x power supply, 2 x remote sensing plugs, 1 x 1.8m USB cable, 1 x set of DC terminal covers, 1 x sense terminal cover, 1 x USB stick with documentation and software, 1 x cable tie for strain relief.
