E-Image PM-500 Overview

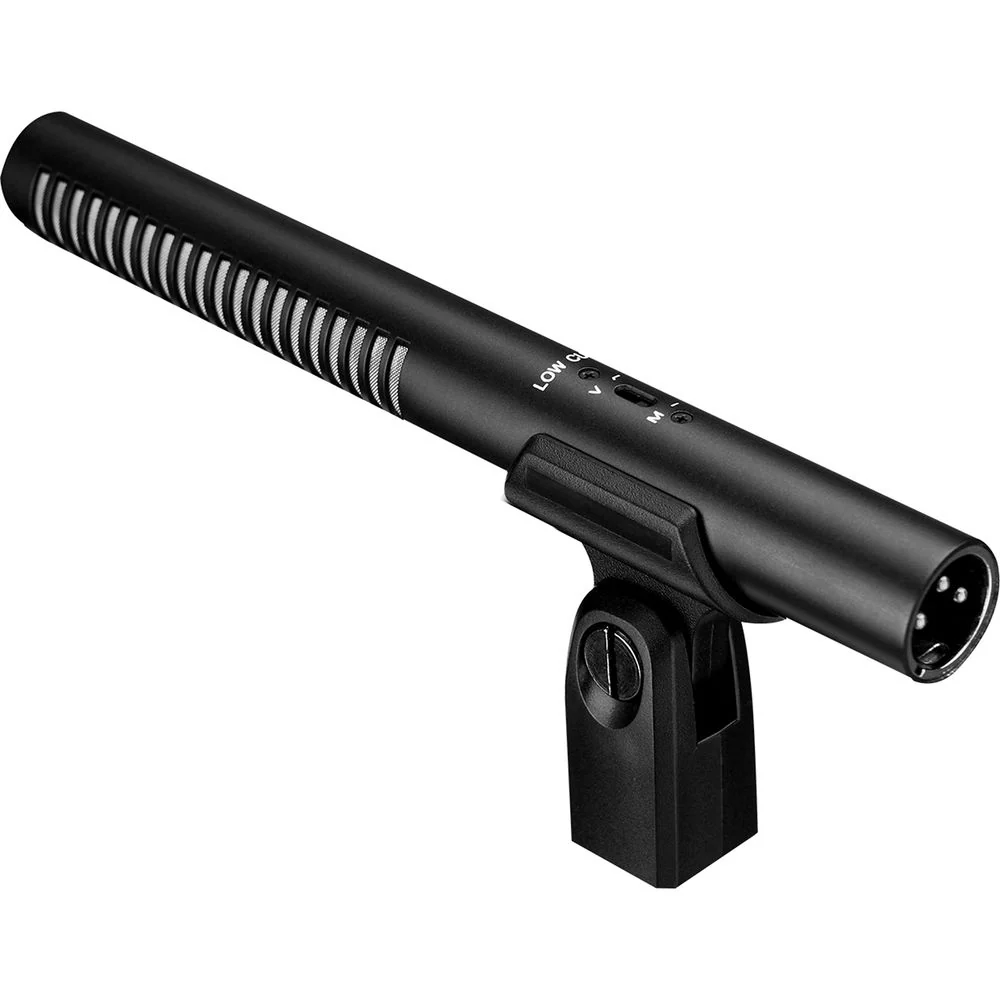

The PM-500 Hypercardioid Shotgun Microphone from E-Image is a back-electret condenser microphone that has a 40 Hz to 16 kHz frequency response, runs on 48V phantom power, and is built with a 3-pin XLR output connector. It can be used to capture broadcast-quality audio and deliver a natural sound in the studio or on location for video camera and boompole operators. In addition, the PM-500 Hypercardioid Shotgun Microphone is equipped with a switch for high-pass filtering and a bass roll-off attenuation switch to eliminate rumble on the low end.
In the Box
- E-Image PM-500 Hypercardioid Shotgun Microphone
- Limited 1-Year Manufacturer Warranty
E-Image PM-500 Specs
| Polar Pattern |
Hypercardioid
|
| Frequency Range |
40 Hz to 16 kHz
|
| Maximum SPL |
130 dB SPL Peak
|
| Output Connector |
1x XLR 3-Pin
|
| Power Sources |
Phantom Power
|
| Sound Field |
Mono
|
| Element Type |
Electret Condenser
|
| Polar Pattern |
Hypercardioid
|
| Frequency Range |
40 Hz to 16 kHz
|
| Maximum SPL |
130 dB SPL Peak
|
| Sensitivity |
35 dB
|
| Signal-to-Noise Ratio |
70 dB A-Weighted
|
| Output Connector |
1x XLR 3-Pin
|
| Power Sources |
Phantom Power
|
| Operating Voltage |
48 V
|
| Dimensions |
ø: 0.83 x L: 7.17" / ø: 21 x L: 182 mm
|
| Weight |
3.7Â oz / 105Â g
|
| Package Weight |
1.39 lb
|
| Box Dimensions (LxWxH) |
15 x 6.3 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
