Digigram ALP-DANTE-LE Multichannel PCIe Sound Card with 2 Ethernet Ports for Dante
HomeStore

Digigram ALP-DANTE-LE Multichannel PCIe Sound Card with 2 Ethernet Ports for Dante

Digigram ALP-DANTE-LE Multichannel PCIe Sound Card with 2 Ethernet Ports for Dante

$505.44

Original: $1,684.79

-70%
Digigram ALP-DANTE-LE Multichannel PCIe Sound Card with 2 Ethernet Ports for Dante—

$1,684.79

$505.44

The Story

Digigram VB2438A0201 Overview

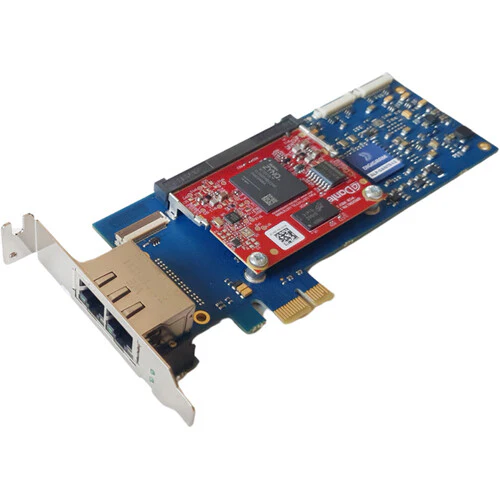

Part of the sturdy and reliable range of ALP-X professional sound cards, the Digigram ALP-DANTE-LE is a multichannel, PCIe sound card with two Ethernet ports designed for PC-based Dante audio systems running under Windows and Linux environments. ALP-DANTE-LE seamlessly integrates Dante networks, offering 64 playback channels and 64 recording channels (to/from a Dante network), with a maximum of 32-input / 32-output streams. The two Ethernet ports can be used in switch or redundant mode. For added versatility, the card is also compatible with AES67 and SMPTE 2110-30 protocols.

ALP-DANTE-LE features a low-profile form factor, great for applications where space is limited. The card's fanless design reduces power consumption, while increasing its durability and sustainability. With PCM 16-, 24-, and 32-bit / 192 kHz audio quality and low-latency drivers, ALP-DANTE-LE is a dependable and stable interface for mission-critical applications that require Dante recording, playback, and real-time processing, such as broadcast (24/7/365), public safety, medical, transportation, and industry markets.

At a Glance
  • For Dante audio systems
  • Low-profile PCIe sound card with two Ethernet ports
  • For Windows- and Linux-based Dante audio systems
  • PCI Express sound card compatible with x1 x2, x4, x8, and x16 slots
  • 64 playback channels, 64 recording channels (at 44.1 and 48 kHz)
  • Maximum 32 input and 32 output streams
  • Ethernet ports can be used in switch or redundant mode
  • Low-latency multicard drivers
  • Compatibility with AES67 and SMPTE ST2110-30
  • Sample format: PCM 16-, 24-, and 32-bit
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
  • Fanless design
  • Management via Dante Controller and Dante Device Manager
UPC: 641094607210

Items Included

  • Digigram ALP-DANTE-LE Multichannel PCIe Sound Card with 2 Ethernet Ports for Dante
  • Standard-Height Bracket
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Digigram VB2438A0201 Specs

    Key Specs
    Channels of I/O
    64 Inputs / 64 Outputs at 44.1/48 kHz
    32 Inputs / 32 Outputs at 88.2/96 kHz
    16 Inputs / 16 Outputs at 176.4/192 kHz
    Maximum Sampling Rate
    192 kHz / 32-Bit
    Number of Microphone Inputs
    No
    Analog Audio I/O
    No
    Digital Audio I/O
    No
    Host Connection
    No
    Power Requirements
    PCIe
    General
    Display
    No
    Channels of I/O
    64 Inputs / 64 Outputs at 44.1/48 kHz
    32 Inputs / 32 Outputs at 88.2/96 kHz
    16 Inputs / 16 Outputs at 176.4/192 kHz
    Built-In DSP
    Yes
    Maximum Sampling Rate
    192 kHz / 32-Bit
    Number of Microphone Inputs
    No
    Built-In Microphone
    No
    Signal Processing
    Pad
    No
    High-Pass Filter
    No
    Solo/Mute
    No
    Connectivity
    Analog Audio I/O
    No
    Phantom Power
    No
    Digital Audio I/O
    No
    Host Connection
    No
    Host Connection Protocol
    No
    USB (Non-Host)
    No
    Sync I/O
    No
    Network I/O
    2x RJ45 Dante (Gigabit)
    MIDI I/O
    No
    Expansion Slots
    No
    Wireless
    No
    Digital Audio
    Sample Rates
    44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
    Sample Rate Conversion
    No
    Bit Depths
    16 / 24 / 32-Bit (PCM)
    Sync Sources
    Dante, Ethernet, Internal
    Audio Storage & Playback
    Media/Memory Card Slot
    No
    Compatibility
    OS Compatibility
    Windows / Linux
    Mobile Device Compatibility
    No
    Power
    Power Requirements
    PCIe
    Physical
    Operating Conditions
    Up to 122°F / 50°C up to 90% Humidity
    Storage Conditions
    Up to 158°F / 70°C up to 95% Humidity
    Dimensions
    6.6 x 2.7 x 0.8" / 168 x 69 x 20 mm
    Packaging Info
    Package Weight
    0.32 lb
    Box Dimensions (LxWxH)
    9.1 x 3.4 x 1.3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
