Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal
HomeStore

Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal

Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal

$333.77

Original: $1,112.57

-70%
Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal—

$1,112.57

$333.77

The Story

Darkglass Electronics DAAOPH Overview

Placing the iconic distortion circuit into a new paradigm, the Alpha·Omega Photon from Darkglass Electronics features two distortion types (Alpha and Omega) with 6-band graphic EQ via touch-sensitive sliders. With three rotary footswitch encoders, you can select between Compression, Distortion, and Cabinet Simulation and easily tweak your tone.

The Photon features knob controls for Compression, Drive, Mod (mixture of Alpha and Omega engines), Blend (wet/dry mix), and Level for total output volume. Plenty of I/O options are available, including balanced 1/4" and XLR outputs for pro audio gear, and 3.5mm aux in, MIDI in, and headphone out connections. The headphone output has a dedicated level control knob. You can send and receive MIDI data, customize cabinet IRs, and precisely customize your pedal settings with the Darkglass Suite app over USB-C.

Compressor
This control allows setting the input gain of the compressor that will translate into how much the signal is compressed while our intelligent make-up gain algorithm keeps the output of the compressor at usable levels. The compressor has 5 ratios available:

  • 4:1
  • 8:1
  • 12:1
  • 20:1
  • ALL IN
Distortion
At the heart of the distortion circuit is an accurate model of the Alpha·Omega distortion. Carefully developed in collaboration with Jon Stockman, the Alpha·Omega offers two distinct distortions that can be blended for even further versatility. The familiar Growl and Bite boost functions are available for adding more low-end and/or high-end sparkle.
Cabinet Simulation
The Alpha·Omega Photon supports impulse response (IR) cabinet simulations and has 5 cabinet slots on board. The default IRs have been selected by the Darkglass Team. New IRs can be assigned to the 5 slots using the Darkglass Suite (desktop or mobile).
EQ Control
Each slider has a -12 to 12 dB range. From left to right, the frequency bands for each slider correspond to a low shelf, 250 Hz, 500 Hz, 1.5 kHz, 3 kHz, and a high shelf.
Darkglass Suite
Utilizing the desktop or mobile version of the Darkglass Suite allows you to customize the settings of each preset to your liking. The signal-chain options are available with the embedded noise gate. Use the available impulse responses from the Darkglass library or use custom third-party impulses in the available slots. Custom routing options for each output are available and you can MIDI map to control the extra preset slots with program-change and control-change commands for the specific available controls of your choice.

Items Included

  • Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal
  • Limited 2-Year Manufacturer Warranty

Not Included

Additional Resources

    Darkglass Electronics DAAOPH Specs

    General
    Input Impedance
    1 Megohm
    Output Impedance
    220 Ohms (XLR DI Out)
    Inputs/Outputs
    USB I/O
    1 x USB-C Female Input/Output
    Audio I/O
    1x 1/4" TS Hi-Z/Instrument Input
    1x 1/8" / 3.5 mm TRS Aux Input
    1x 1/8" / 3.5 mm TRS MIDI Input
    1x XLR 3-Pin Line Output (Balanced)
    2x 1/4" TRS Line Output (Balanced)
    1x 1/8" / 3.5 mm TRS Headphone Output
    Power
    Power Source
    AC Adapter with Power Brick
    DC Input Power
    9 VDC
    Operating Current
    500 mA (Typical)
    Physical
    Color
    Blue
    Material of Construction
    Metal
    Dimensions
    Not Specified by Manufacturer
    Weight
    Not Specified by Manufacturer

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

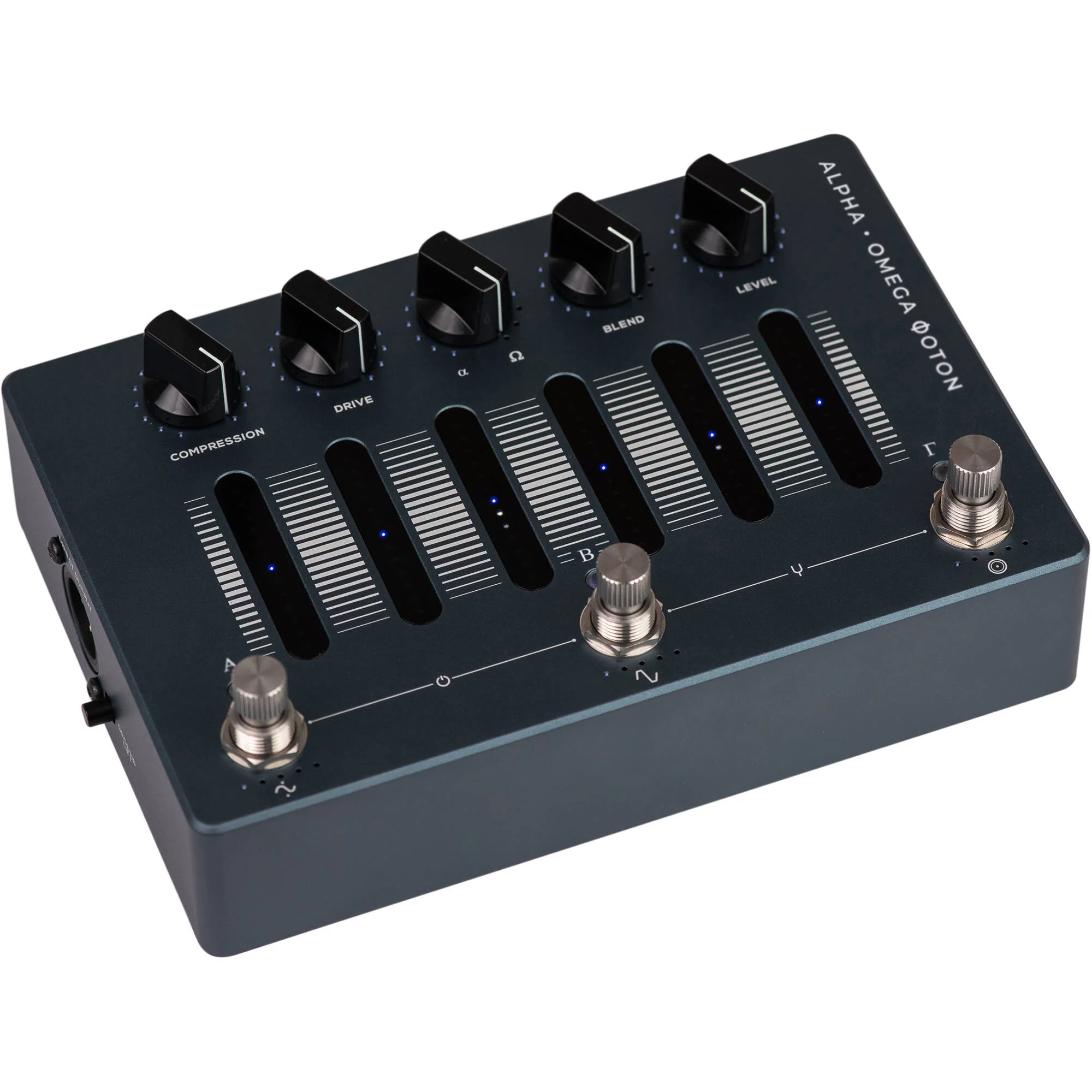

    Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

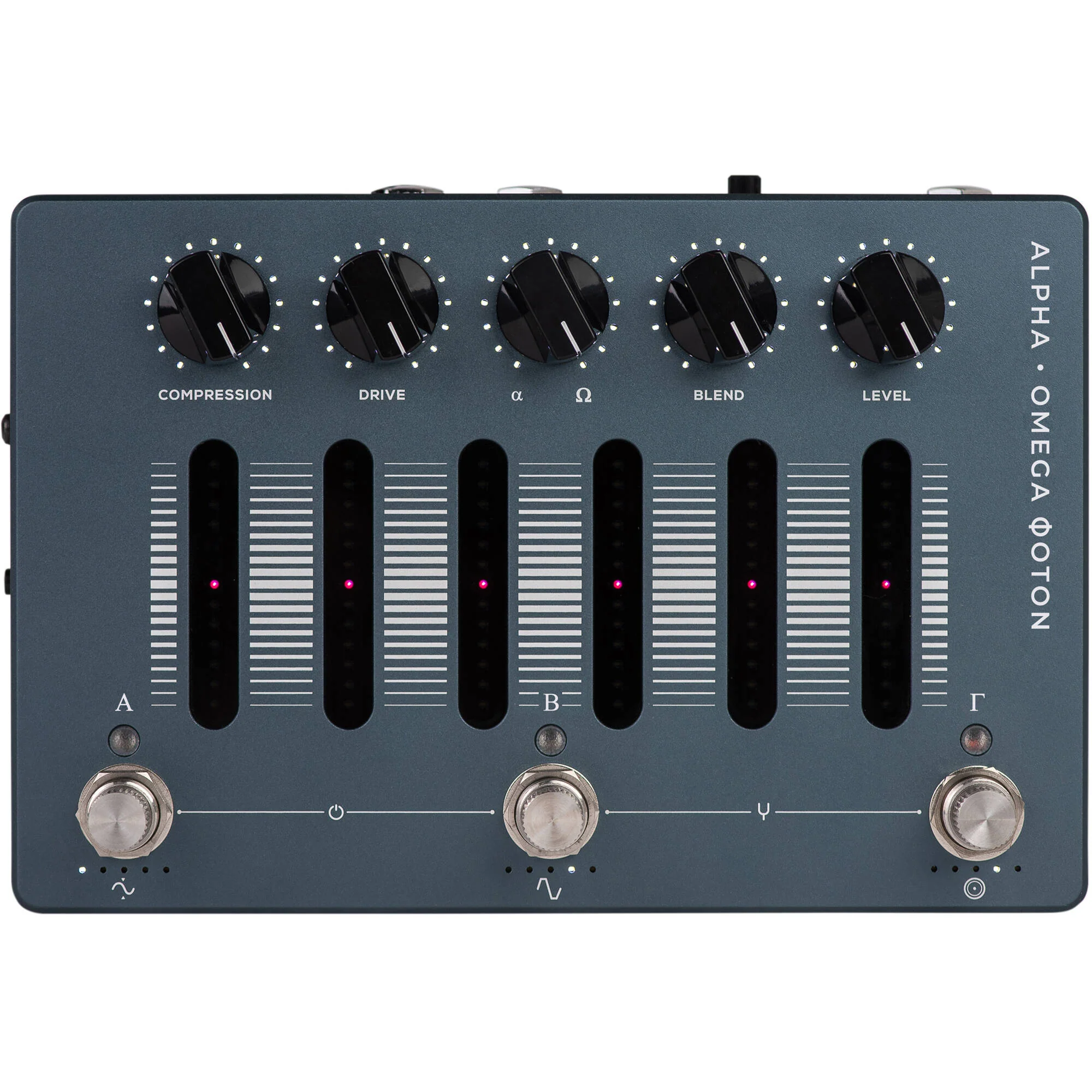

    Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

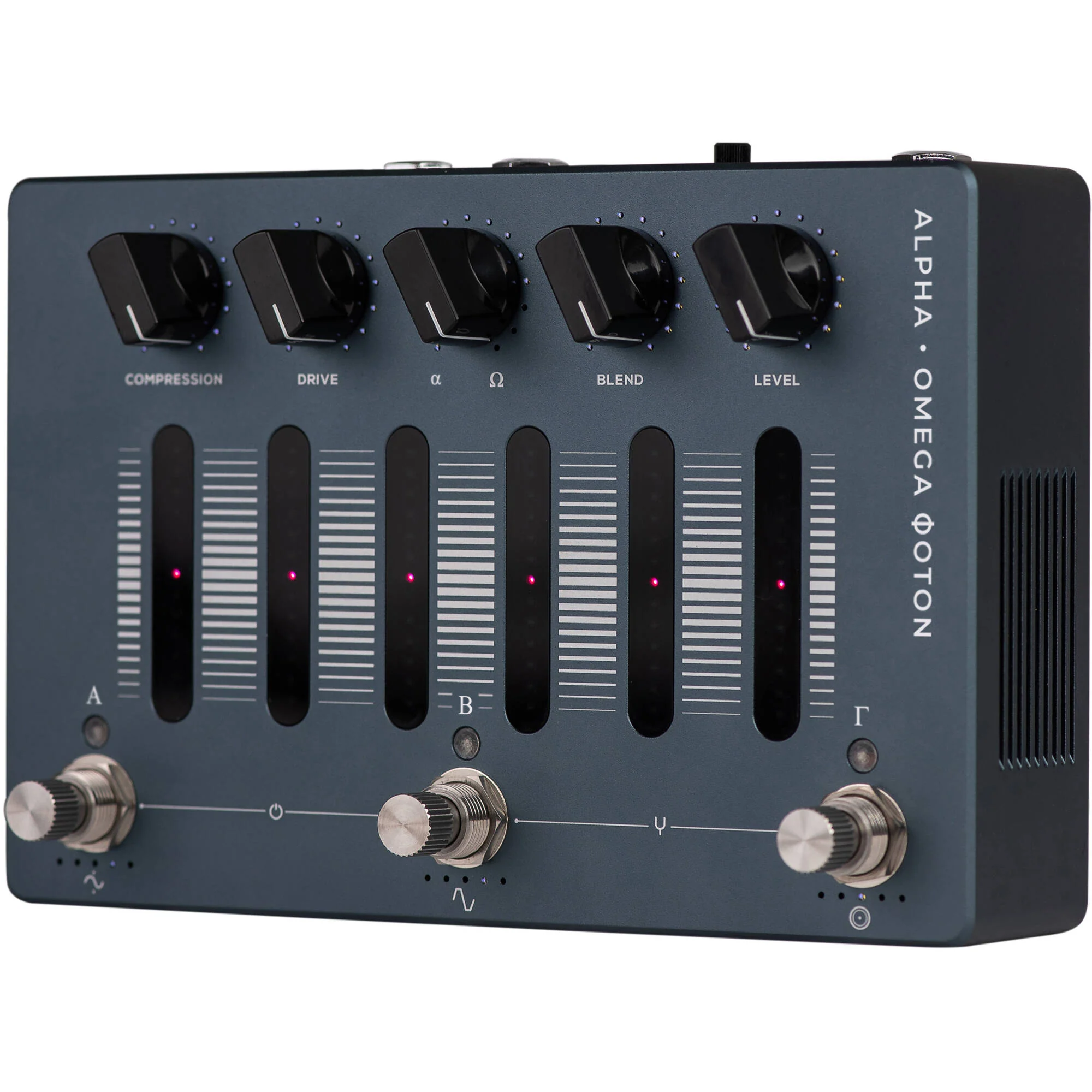

    Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

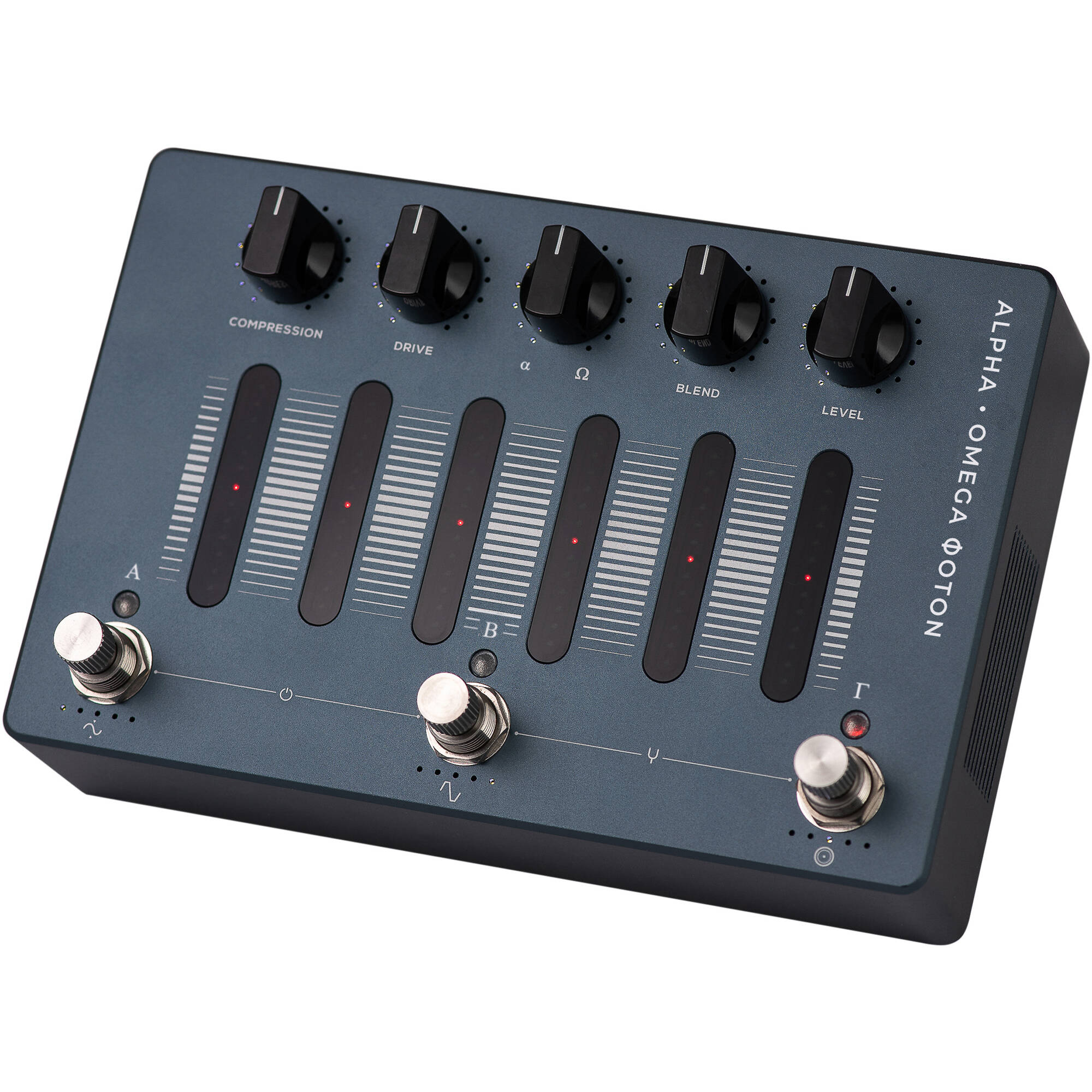

    Darkglass Electronics Alpha·Omega Photon Bass Distortion Pedal - Image 5
