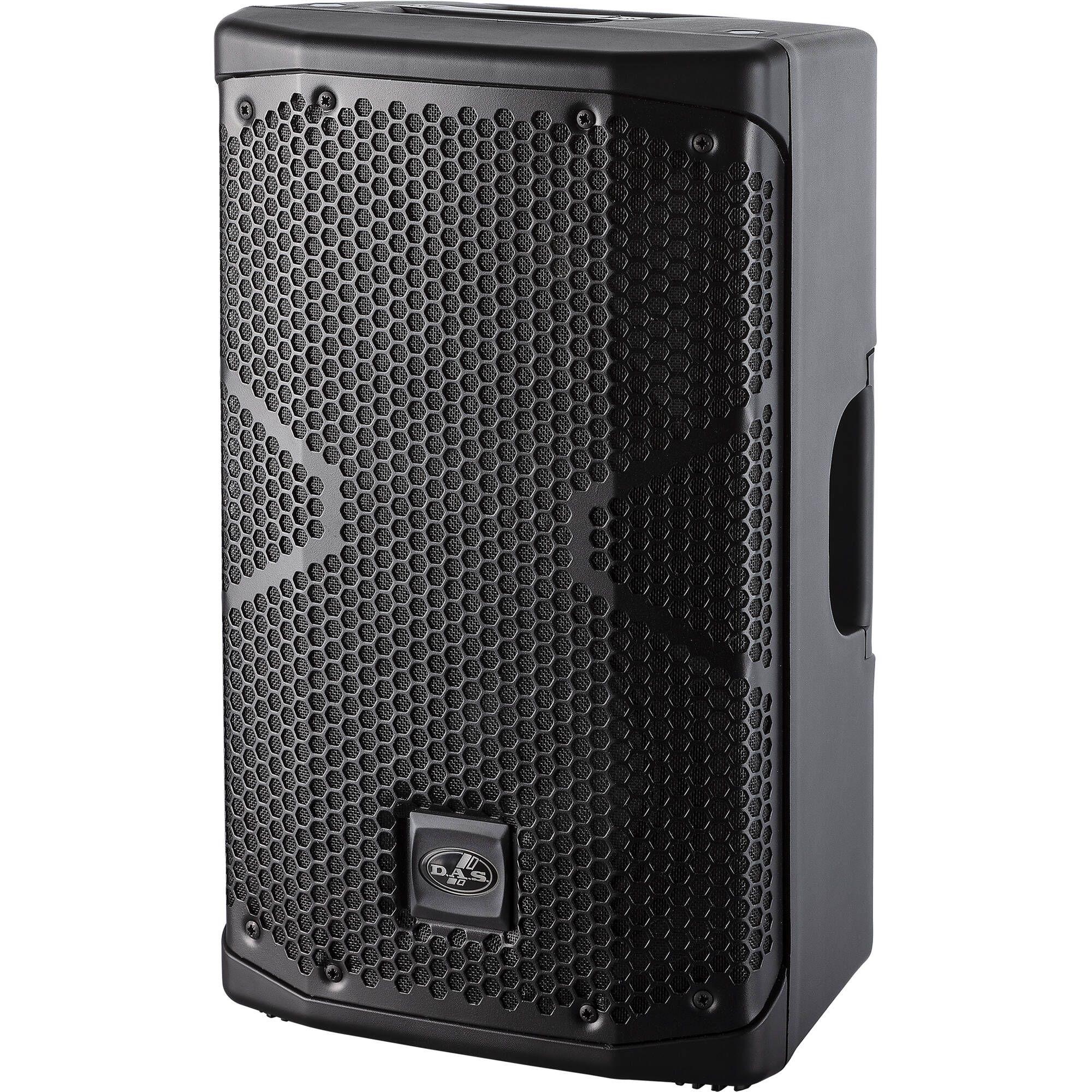

D.A.S. Audio ALTEA-408A Overview
Ideal for use as a stage monitor or as part of a PA system, the D.A.S. Audio ALTEA-408A is an active portable loudspeaker sporting a 2-way design with an 8" low-mid driver, a 1" HF compression driver, and a 400W RMS Class-D amplifier. With 24-bit DSP built in and an intuitive LCD screen with a simple rotary knob, you can access adjustable voicing, filter, and 3-band EQ control.

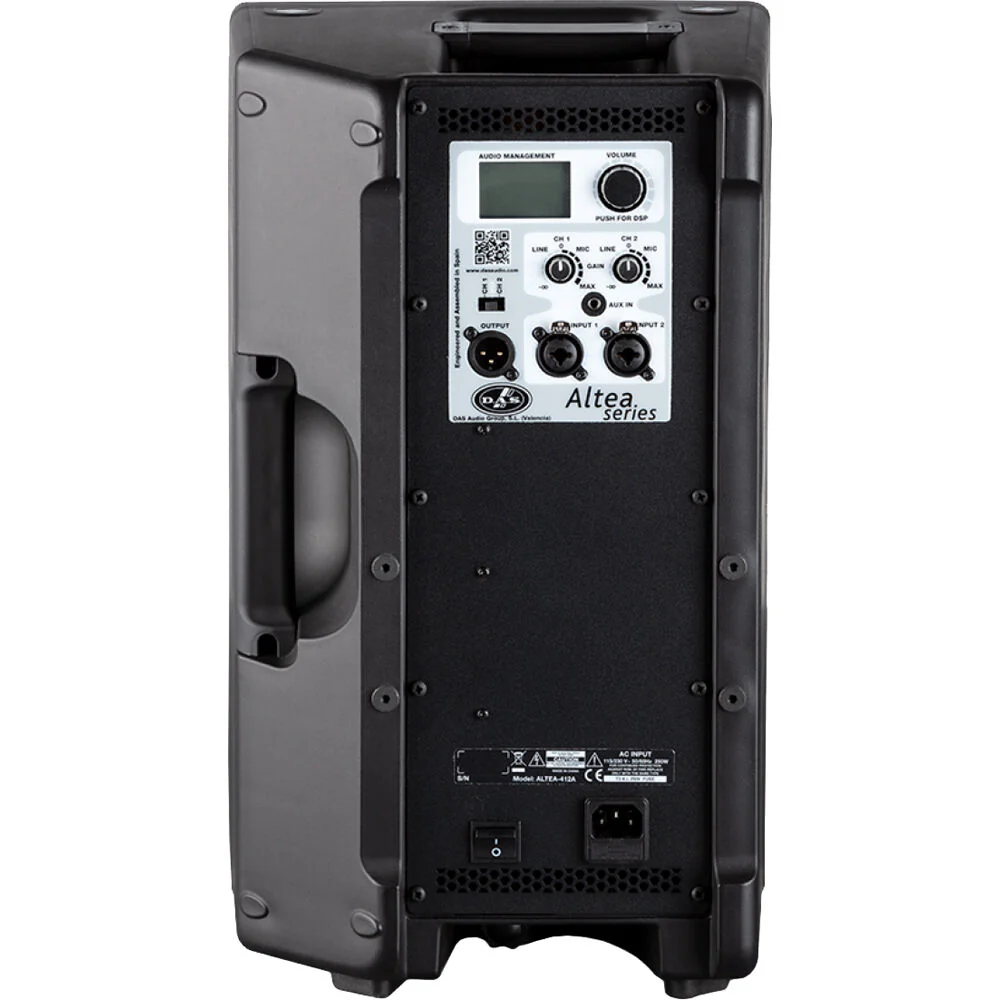

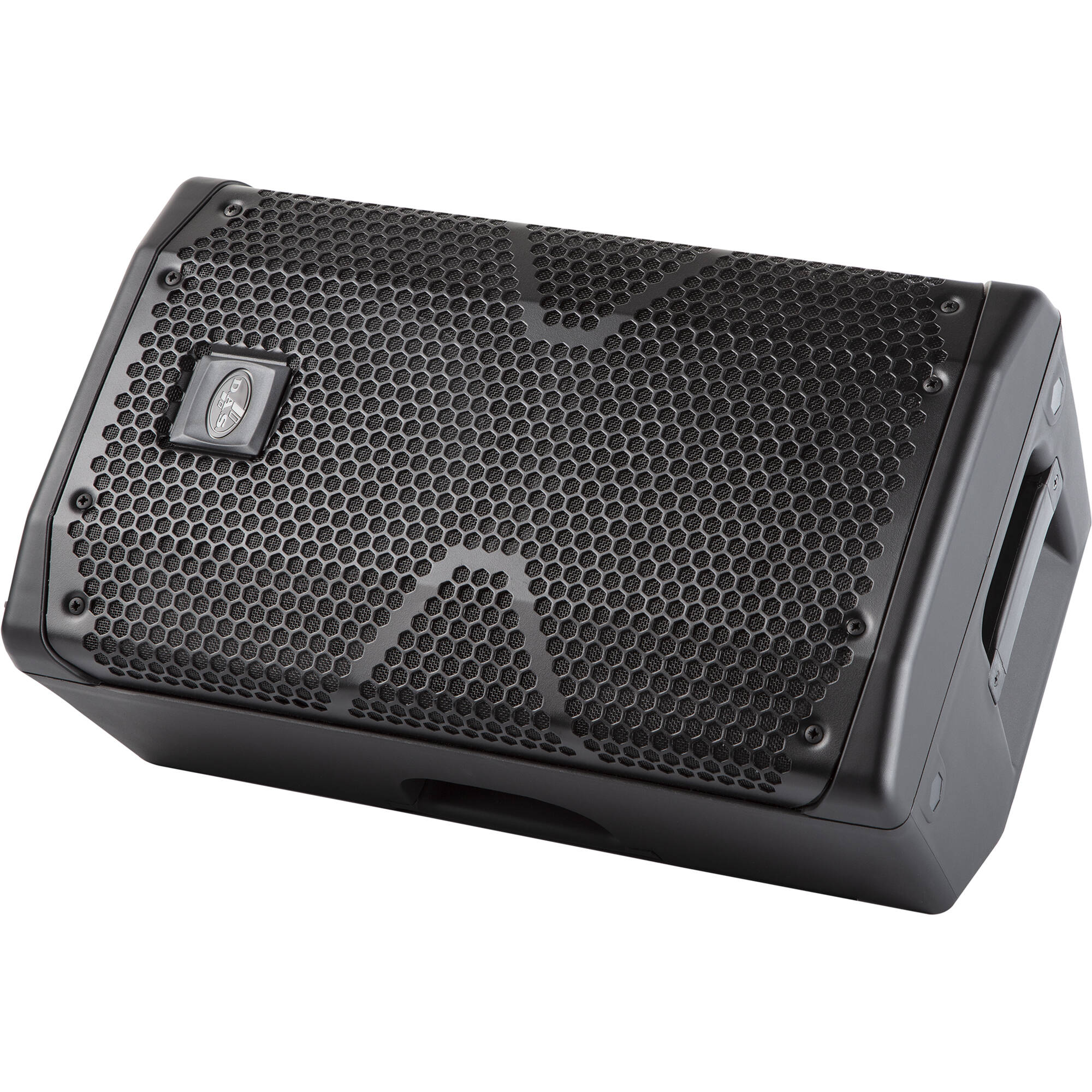

The ALTEA-408A provides a balanced 90 x 90? coverage. Two XLR-1/4" combo input jacks are provided, along with an XLR 3-pin thru jack and a stereo 3.5mm aux input. Each of the two channels gets a dedicated volume control, and the main rotary knob can be used for master volume or pushed for access to DSP settings. The lightweight polypropylene enclosure is easy to carry thanks to the integrated handle, and the trapezoidal shape makes it ideal for laying flat on a stage. The enclosure also sports M8 rigging points for mounting. The ALTEA-408A features a universal switching internal power supply for global compatibility.
Items Included
- D.A.S. Audio ALTEA-408A Active 8" Two-Way 400W Loudspeaker
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
D.A.S. Audio ALTEA-408A Specs
| Speaker Type |
Active Loudspeaker/Stage Monitor
|
| Configuration |
2-Way
|
| Total Output Power |
400 W Continuous / 800 W Peak
|
| LF Driver |
1x 8" / 20.3 cm Cone
Voice Coil: 1.5" / 3.8 cm Magnet: Ferrite |
| HF Driver |
1x 1" / 2.5 cm Compression Driver
Throat: 1" / 2.5 cm Voice Coil: 1" / 2.5 cm Magnet: Ferrite |
| Frequency Range/Response |
70 Hz to 20 kHz
|
| Configuration |
2-Way
|
| Enclosure Type |
Sealed
|
| Total Output Power |
400 W Continuous / 800 W Peak
|
| Amplifier Power Rating |
Low Frequency (LF)
300 W High Frequency (HF) 100 W |
| Amplifier Class |
Class-D
|
| LF Driver |
1x 8" / 20.3 cm Cone
Voice Coil: 1.5" / 3.8 cm Magnet: Ferrite |
| HF Driver |
1x 1" / 2.5 cm Compression Driver
Throat: 1" / 2.5 cm Voice Coil: 1" / 2.5 cm Magnet: Ferrite |
| Frequency Range/Response |
70 Hz to 20 kHz
|
| Maximum SPL |
123 dB SPL (at 3.2')
|
| Coverage Angle |
90? H x 90? V
|
| EQ & Filters |
3-Band EQ
|
| Alignment Delay |
No
|
| Digital Signal Processing |
24-Bit DSP
|
| Audio I/O |
2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Aux Input 1x XLR 3-Pin Line Thru |
| Network I/O |
No
|
| USB I/O |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz
|
| AC Power I/O |
1x IEC Input
|
| Current Consumption |
0.8 to 1.6 A
|
| Color |
Black
|
| Mounting |
M8 Integrated Rigging
|
| Handles |
1x Side
|
| Construction Material |
Polypropylene
|
| Environmental Resistance |
No
|
| Dimensions |
18.9 to 11 x 10.2" / 48 to 27.9 x 25.9 cm
|
| Weight |
20.9 lb / 9.5 kg
|
| Package Weight |
27.725 lb
|
| Box Dimensions (LxWxH) |
21.5 x 14 x 13.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
