Cranborne Audio Carnaby HE2 Two-Channel 3-Band HarmonicEQ (2 RU)

Whether being used for stereo, dual mono, or mid-side processing, Carnaby HE2 features 3 bypassable, interactive bands of HarmonicEQ per channel. Each band has 10 dB of boost/cut and its own sweepable and overlapping frequency controls. As with Carnaby 500, each of Carnaby HE2s bands has a unique blend of harmonic content suited to its frequency band to achieve maximum musicality.

HI Band

• The HI band has a frequency range from 5 to 25 kHz and uses smooth saturation to naturally extend high frequencies beyond the audio band for ultimate air and breath on vocals and acoustic instruments.

LO Band

• The LO band has a frequency range of 420 down to 20 Hz and uses hard-clipping saturation to extend sub-harmonic frequencies into the audible low-end�perfect for subtle low-end warming or extreme sub-harmonic saturation.

MID Band

• The MID band is a peaking filter with a fixed Q and a wide sweepable frequency range from 200 Hz up to 6.2 kHz. It uses saturation to add harmonic emphasis to the source anywhere in the frequency range.

Dynamic Response

• Carnaby HE2 has a dynamic response that increases in total boost/cut and harmonics as the circuits are driven harder. An Input and Output level control on each band allows for ±20 dB of level adjustment, enabling you to drive Carnaby HE2 harder with the input control for more saturation and distortion effects, or back it off for a cleaner EQ when needed.

• Carnaby HE2 takes control to a whole new level allowing all buttons and controls of the unit to be adjusted remotely via USB or an Ethernet network.

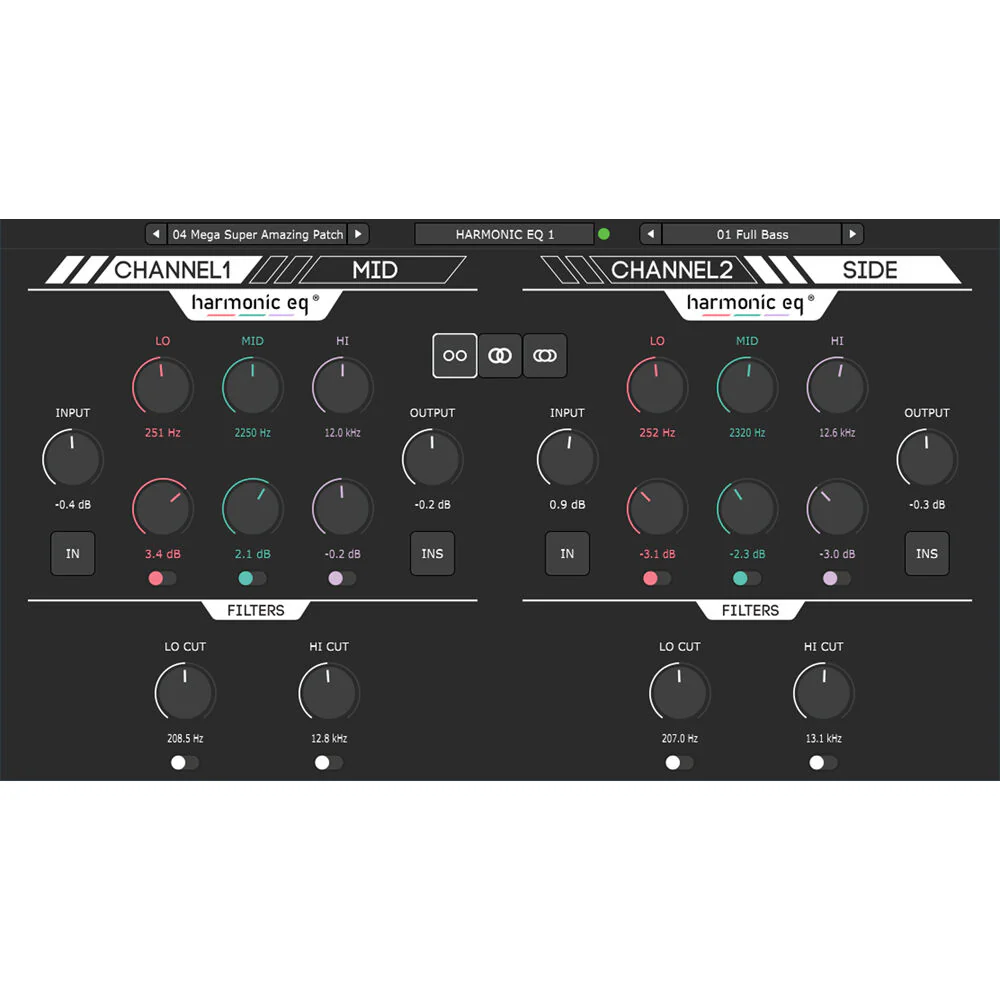

• The company's Control Plug-in seamlessly integrates with the Carnaby HE2 hardware via the USB or NET ports, allowing for convenient real-time control and recall from within your DAW. It also facilitates the independent saving and loading of presets.

• Especially valuable for mastering, mixing, and sound-design applications, Carnaby HE2's mid/side processing allows you to apply HarmonicEQ to the separate mid (center) and side (stereo width) components of your stereo signal. No additional hardware is needed, Carnaby HE2 takes care of all the necessary encoding and decoding.

• Carnaby HE2 features a bypassable TRS Insert on each of its two channels. The inserts are post mid/side encoding and pre mid/side decoding allowing you to use each of these Inserts to connect outboard hardware before your signal hits the HarmonicEQ processing.

• 3-Band HarmonicEQ: custom analog EQ circuit and unique �saturation-core� technology for harmonically enriched EQ effects.
• Versatile operation: Carnaby HE2 supports stereo & dual-mono configurations as well as mid-side encoding for enhanced control over stereo imaging.
• 2 RU rackmountable chassis.

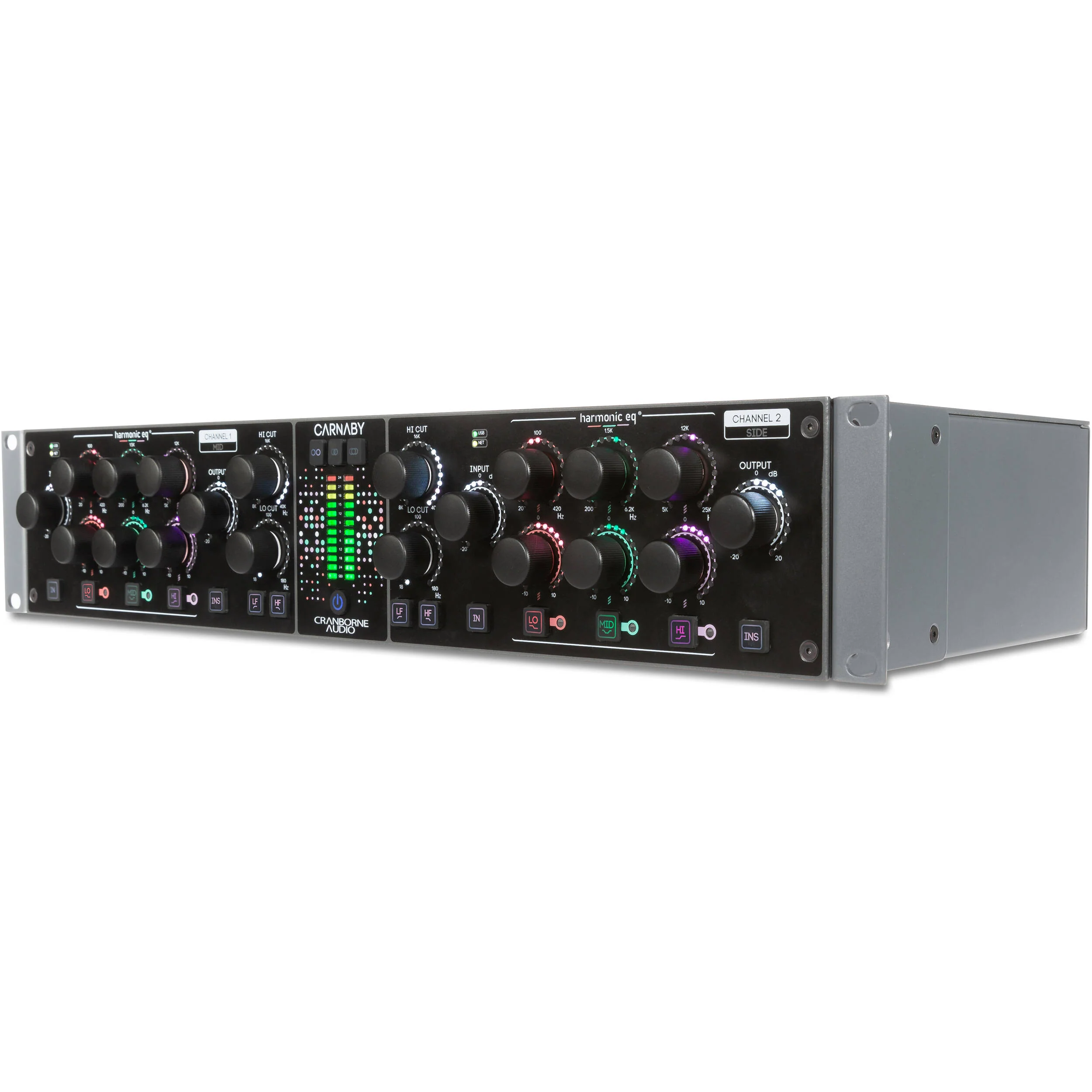

• Intuitive interface: equipped with LED rings and digital encoders, the Carnaby HE2 ensures a user-friendly and visually intuitive experience that ensures any remote control operation is reflected on the Carnaby HE2�s front panel.
• Remote control & Recall: utilize USB and network control and recall via the included plugin to seamlessly retrieve your preferred settings, recall previous settings, and control your Carnaby HE2 remotely right from your DAW, providing a streamlined workflow in various studio environments.
• Per-band bypass: achieve precise tonal sculpting by independently bypassing each of the 3 frequency bands, allowing you to audition and fine-tune your settings.
• Extended HF & LF shaping: facilitating further sound-sculpting, precise HF and LF cut controls with individual bypass controls help further tame and shape your audio.
• Outboard processing integration: Carnaby HE2 caters to your creativity with per-channel inserts for outboard processing, empowering you to easily expand your workflow.
• Internal PSU: Carnaby HE2 features an internal switchable mains power supply for 100-240V operation.

Cranborne Audio Carnaby HE2Specs

Mode	Mid/Side Type: Encoder/Decoder Matrix: Sum-Difference Matrix
Filter	Hi-Cut Filter Type: Progressive-Slope Low-Pass Filter Slope: 1st Order/3 dB per Octave, 2nd Order/6 dB per Octave, 3rd Order/12 dB per Octave Frequency Range: -3 dB, 8 to 40 kHz Lo-Cut Filter Type: Progressive-Slope High-Pass Filter Slope: 1st Order/6 dB per Order, 2nd Order/12 dB per Octave, 3rd Order/18 dB per Octave Frequency Range: -3 dB, 18 to 180 Hz
EQ Section	Hi Band Filter Type: High Shelf Filter Frequency Range: 5 to 25 kHz Boost/Cut: ±12 dB, at -6 dBu, +13 dB /- 18 dB, at +14 dBu Harmonics: 8% THD+N (100 Hz, +4 dBu), 12% THD+N (100 Hz, +14 dBu) Mid Band Filter Type: Peak Filter Frequency Range: 200 Hz to 6.2 kHz Boost/Cut: ±5 dB at -6 dBu, +10 dB / -18 dB at +14 dBu Harmonics: 8% THD+N (100 Hz, +4 dBu), 12% THD+N (100 Hz, +14 dBu) Lo Band Filter Type: Low Shelf Filter Frequency Range: 20 to 420 Hz Boost/Cut: ±8.5 dB at -6 dBu, ±12 dB at +14 dBu Harmonics: 8% THD+N (100 Hz, +4 dBu), 12% THD+N (100 Hz, +14 dBu)
Specifications	Max Input Level: +26.0 dBu (<0.003% THD) Max Output Level: +26.0 dBu (<0.003% THD) Noise Floor: <-93 dBu All Bands Bypassed Input Impedance Line: 10 Kilohms Output Impedance Line: 150 Ohms PSU Type Internal Mains

USB I/O	1 x USB-C Female Input

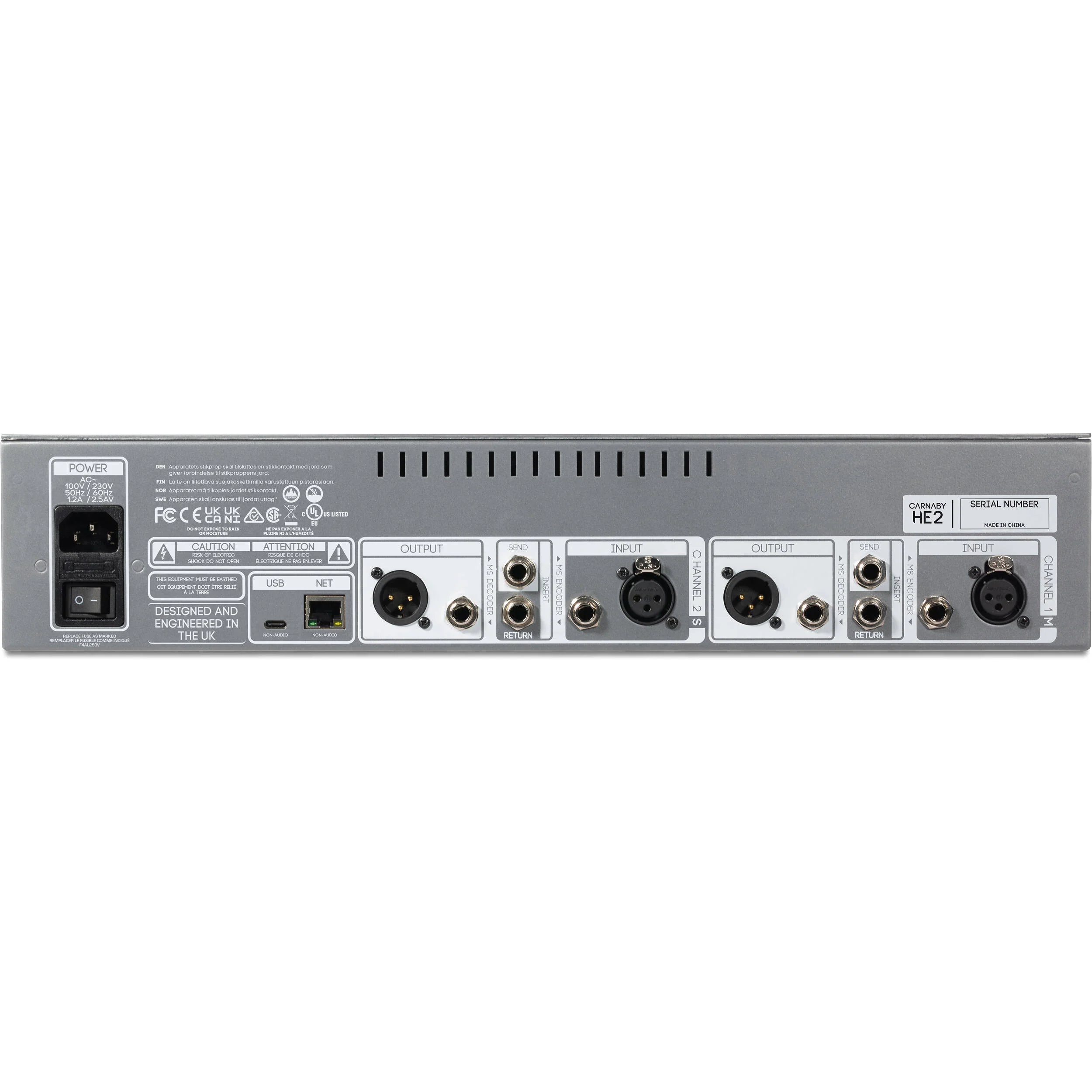

Audio I/O	2x XLR 3-Pin Line Input 2x 1/4" TRS Line Input 2x XLR 3-Pin Line Output 2x 1/4" TRS Line Output 2x 1/4" TRS Line Output (Sends) 2x 1/4" TRS Line Input (Returns)

Power Source	AC Input
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Operating Current	140 mA (Standby) 160 mA (Maximum)

Mounting	Front: 1x Rackmount
Color	Black
Environmental Resistance	No
Operating Conditions	33 to 95°F / 1 to 35°C
Storage Conditions	-4 to 122°F / -20 to 50°C
Dimensions	19 x 9.3 x 3.5" / 48.3 x 23.6 x 8.9 cm
Weight	13.2 lb / 6 kg

Package Weight	12.06 lb
Box Dimensions (LxWxH)	23 x 13.6 x 6.8"
