Original: $5,994.79
-70%$5,994.79
$1,798.44The Story

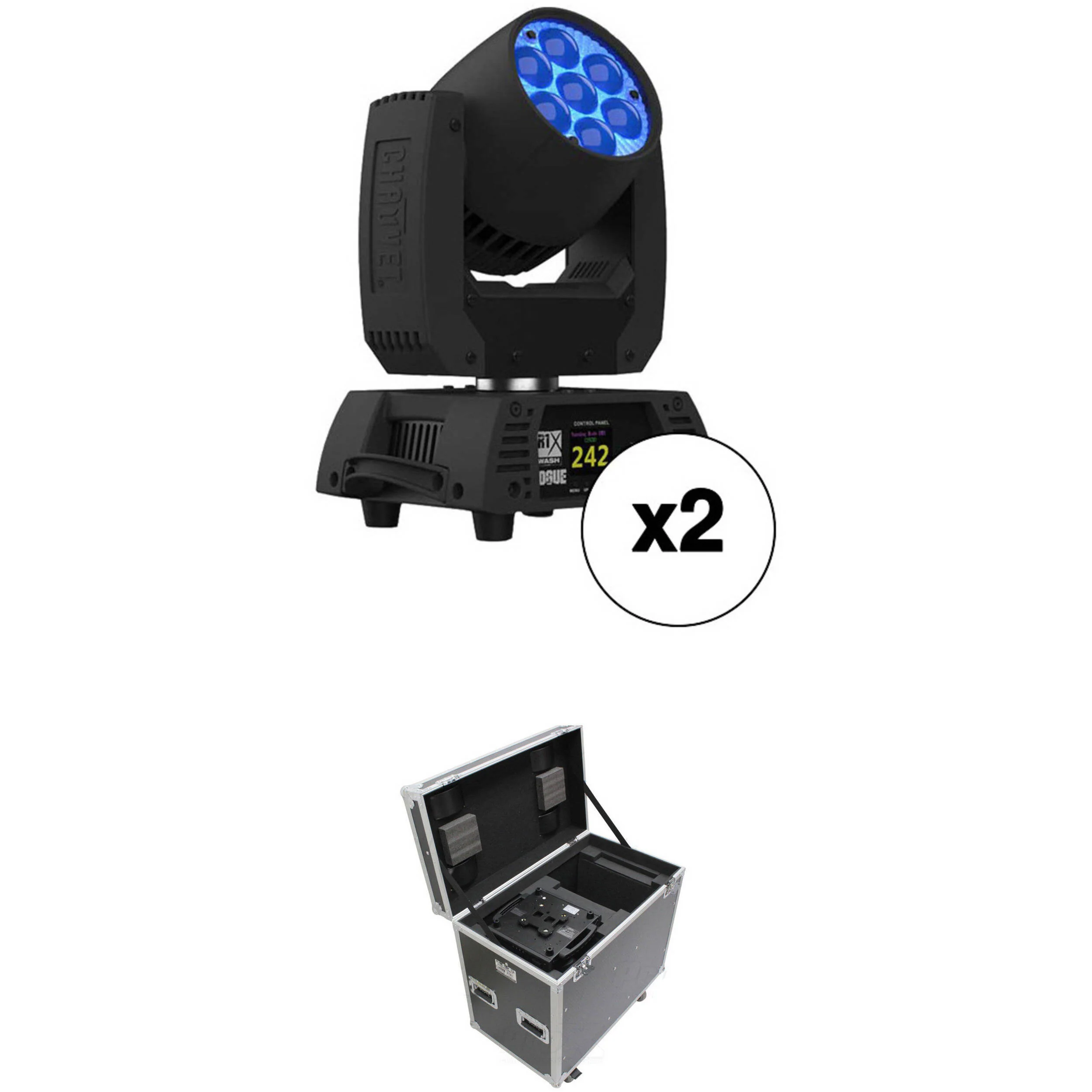

Add dynamic visual effects with protection from on-the-road wear and tear with this Kit which combines a pair of CHAUVET PROFESSIONAL Rogue R1X Wash Lights and an ATA-300 style flight case.

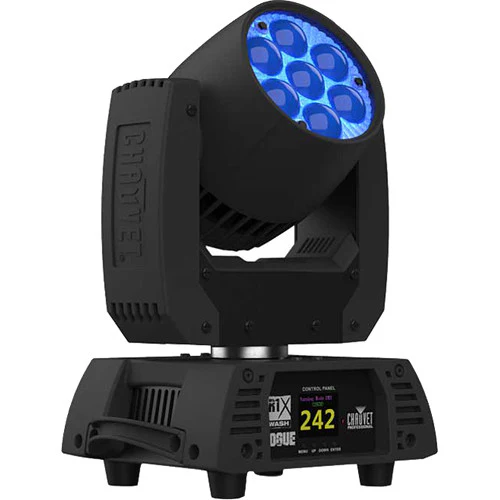

The CHAUVET PROFESSIONAL Rogue R1X Wash is an LED moving-head wash light with a bubble lens design for accurate color rendering and dynamic visual effects. Featuring wide, 8 to 30? beam angles and 11 to 48? field angles with a motorized zoom, fast and precise pan/tilt movements with movement macros, and a variable strobe, it is an ideal addition to any touring rig or permanent installation for energizing dance floors, event spaces, and more.
The Rogue R1X Wash is powered by seven, 25W quad-color RGBW LEDs (red, green, blue, white), which allow for smooth color mixing with six distinct dimming modes. The unit can be controlled using the built-in OLED display or, for programming versatility, via simple and complex DMX channel profiles.
In addition to DMX daisy-chaining, the Rogue R1X Wash supports power linking via its pass-through powerCON power connectors, minimizing time spent on cable runs and finding power outlets. You can daisy-chain up to 10 fixtures in a 120V environment, or up to 20 fixtures in a 230V environment. Included is an Omega bracket with mounting hardware and a Neutrik powerCON power cord.

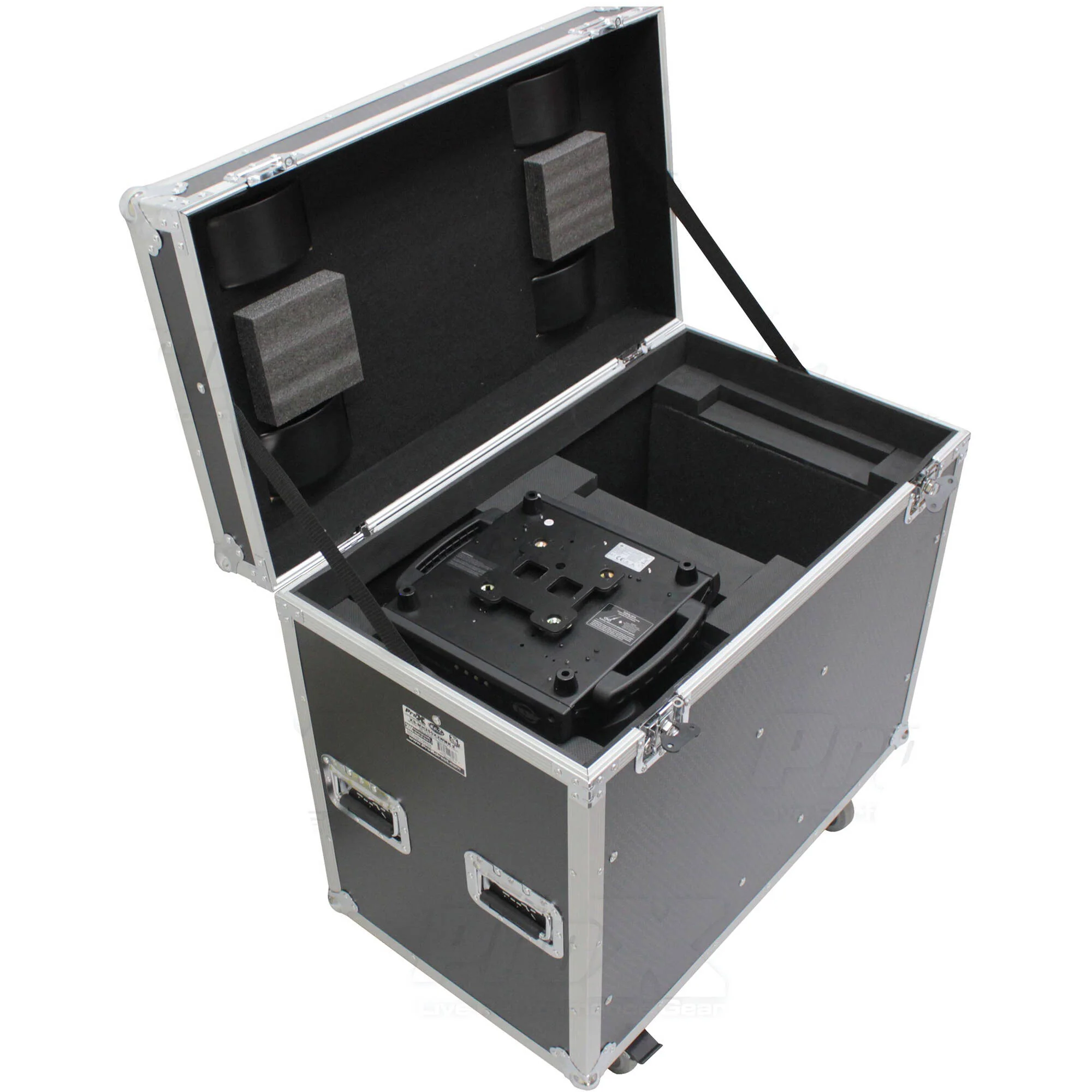

This ProX MK2 Flight Case is designed to hold two 250-style or other similar-sized moving heads. This case is constructed from 3/8" plywood with reinforced steel ball corners for protection and easy stacking. The rubber grip steel handles and butterfly twist latches are recessed to protect them from damage during transport.
The case has a honeycomb digital protective finish on laminated 3/8" plywood. The super-sleek look of honeycomb hexagon grids on all shell surfaces sets ProX apart from other manufacturers. The honeycomb digital design helps prevent minor to mild scratches. The durable interior foam contains 85% recycled content.
- Accu Spot 150
- Accu Spot 250
- Accu Spot 300
- Hydro Beam X2
- Vizi Beam 5R
- Vizi Beam 5RX
- Vizi BSW 300
- Vizi CMY 16RX
- Vizi CMY 300
- Vizi Hybrid 16RX
- Vizi Spot 5R
- Vizi Wash Pro
- Intimidator Spot 455Z
- Intimidator Spot 475Z
- Pro Rogue R1 Beam
- Pro Rogue R1 Spot
- Pro Rogue R1 Wash
- Pro Rogue R2 Beam
- Pro Rogue R2 Spot
- Pro Rogue R3 Spot
- Pro Rogue RH1 Hybrid
- Pro Rogue Rx1 Spot
- Pro Rogue Rx2 Spot
- Artiste DaVinci
- Platinum Beam 5R Extreme
- Platinum Spot 15R PRO
- Platinum Spot 5R Beam
- Platinum Spot II
- Platinum Spot III
- Smarty Hybrid
- River Pilot 150
Items Included
- 2 x CHAUVET Professional Rogue R1X Wash RGBW LED Moving Head Wash Light
- Neutrik powerCON Power Cord
- Omega Bracket with Mounting Hardware
- Limited 2-Year Manufacturer Warranty
- ProX MK2 Flight Case for 2 250-Style 5R 200/7R 230 Moving Head Light Units
- Limited Lifetime Warranty
Additional Resources
CHAUVET Professional Rogue R1X Wash RGBW LED Moving Head Wash Light
| Fixture Type |
Moving Head
|
| Light Source |
7x Color LED - 25 W / 1.5 A
|
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
7.9 to 35.5?
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 157 W / 1.33 A
208 VAC, 60 Hz: 152 W / 208 A 230 VAC, 50 Hz: 153 W / 0.66 A |
| Mounting |
Floor Base, Omega Bracket
|
| Fixture Type |
Moving Head
|
| Light Source |
7x Color LED - 25 W / 1.5 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
11?:
267 fc / 2872 Lux at 16.4' / 5 m 50?: 26 fc / 279 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 10,000K
|
| Lumen Output |
4000 Lumens (Source)
2800 Lumens (Output) |
| Beam Angle |
7.9 to 35.5?
|
| Field Angle |
11.5 to 50.8?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Motorized
|
| Zoom Adjustment |
Motorized, 8 to 63?
|
| Dimming |
16-Bit Electronic with 6 Dimmer Modes
|
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Tilt Ranges |
230? / 180? / 90?
|
| Pan Ranges |
540? / 360? / 180?
|
| Pan/Tilt Inversion |
Yes
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
4 Mode(s):
14 / 15 / 19 / 21-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Fuse |
3 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 157 W / 1.33 A
208 VAC, 60 Hz: 152 W / 208 A 230 VAC, 50 Hz: 153 W / 0.66 A |
| Power Linking |
10 Units at 120 VAC
18 Units at 208 VAC 20 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection, Fan
|
| Certifications |
CE, FCC, MET
|
| Dimensions |
13.9 x 10.4 x 7.4" / 353.1 x 264.2 x 188 mm
|
| Weight |
13.6 lb / 6.2 kg
|
| Package Weight |
16.915 lb
|
| Box Dimensions (LxWxH) |
16.7 x 14.2 x 10"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
