Original: $462.94
-70%$462.94
$138.88The Story

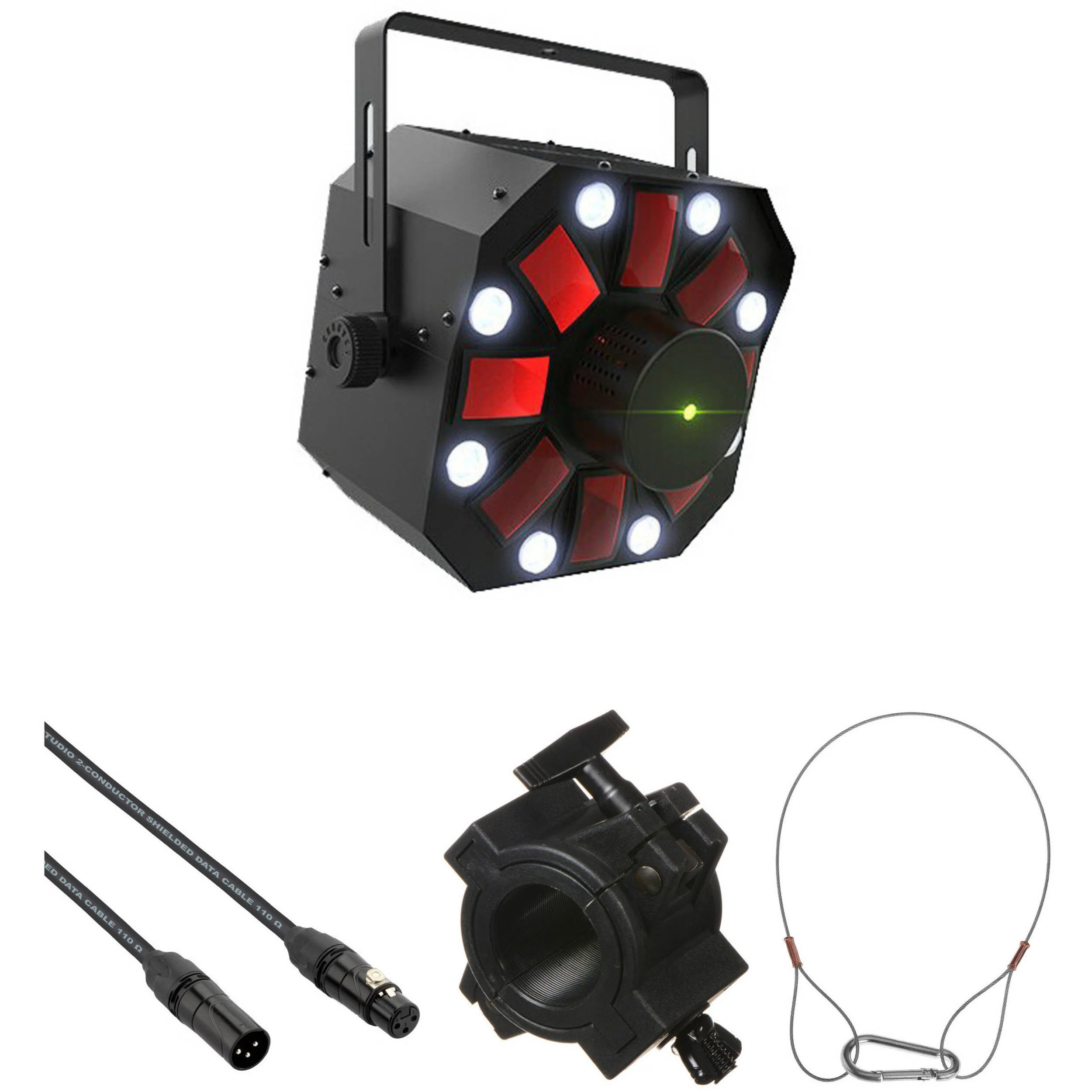

Add pizzazz to your next party with this Kit which combines the CHAUVET DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with a premium DMX cable, an O-Clamp that's compatible with 1.5 and 2" trussing, and a braided stainless steel safety cable.

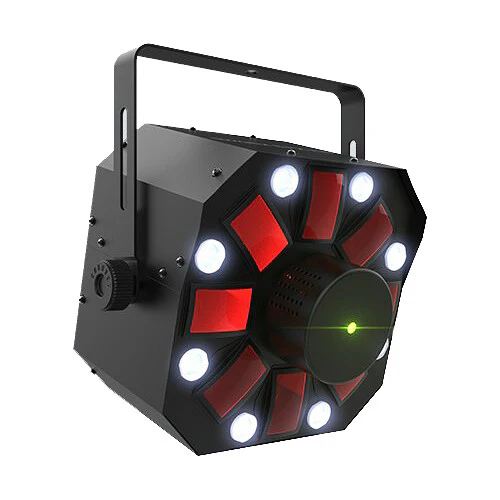

Lighting designers and mobile entertainers in search of a multi-effect lighting fixture will be impressed with the Chauvet Swarm 5 FX ILS, a 3-in-1 fixture, well suited for lighting installations and live performance applications such as DJing at parties and in clubs. The fixture includes an RGBAW rotating derby, a red and green laser, and a white strobe effect to create a complex dynamic lighting display.
The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly. The Swarm 5 FX ILS provides separate control over both color and programs?use built-in automated programs, sound-activated programs via built-in microphone, master/slave mode, or DMX512 control mode over XLR connectors. Multiple units can be power-linked together to save on cabling.
- 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- D-Fi USB compatibility for wireless master/slave or DMX control
- Laser projects thousands of red and green laser beams
- Operation allows for separate color and program control
- Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
- Save time running cables and extension cords by power linking multiple units
- Fits best inside the CHS-40 VIP gear bag

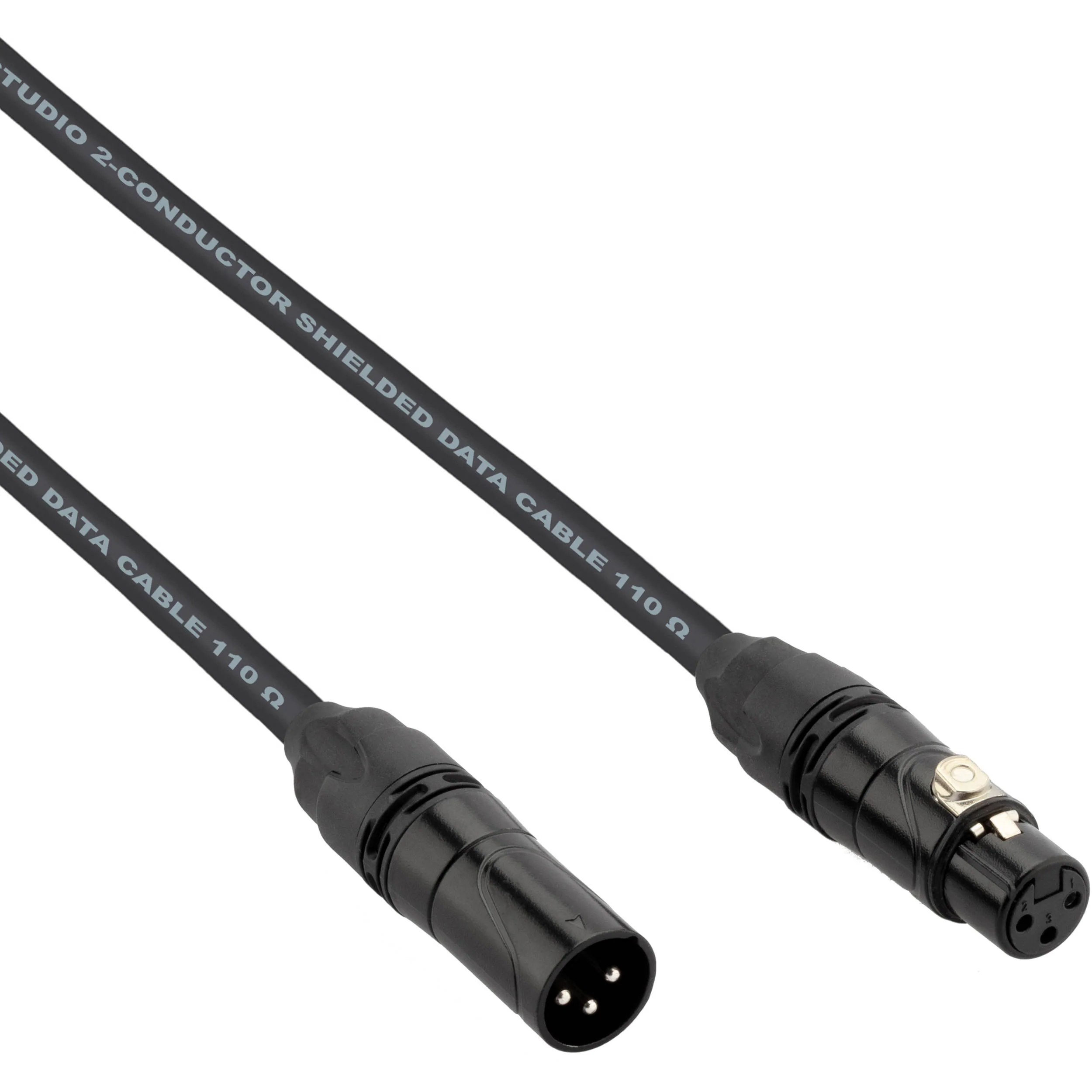

The 25' DMX33P-025-S Studio Series 3-Pin DMX Cable from Kopul is engineered for accurate and trouble-free DMX data transfer for stage, theater, live concerts, or DJ applications. The cable features nickel-plated 3-pin XLR connectors with chuck-style strain relief. The 24 AWG oxygen-free copper, spiral and foil shielding, and PE insulation result in a cable with professional conductivity and interference rejection. It assures a pure transfer of DMX and other digital signals. A PVC jacket provides durability while maintaining flexibility.

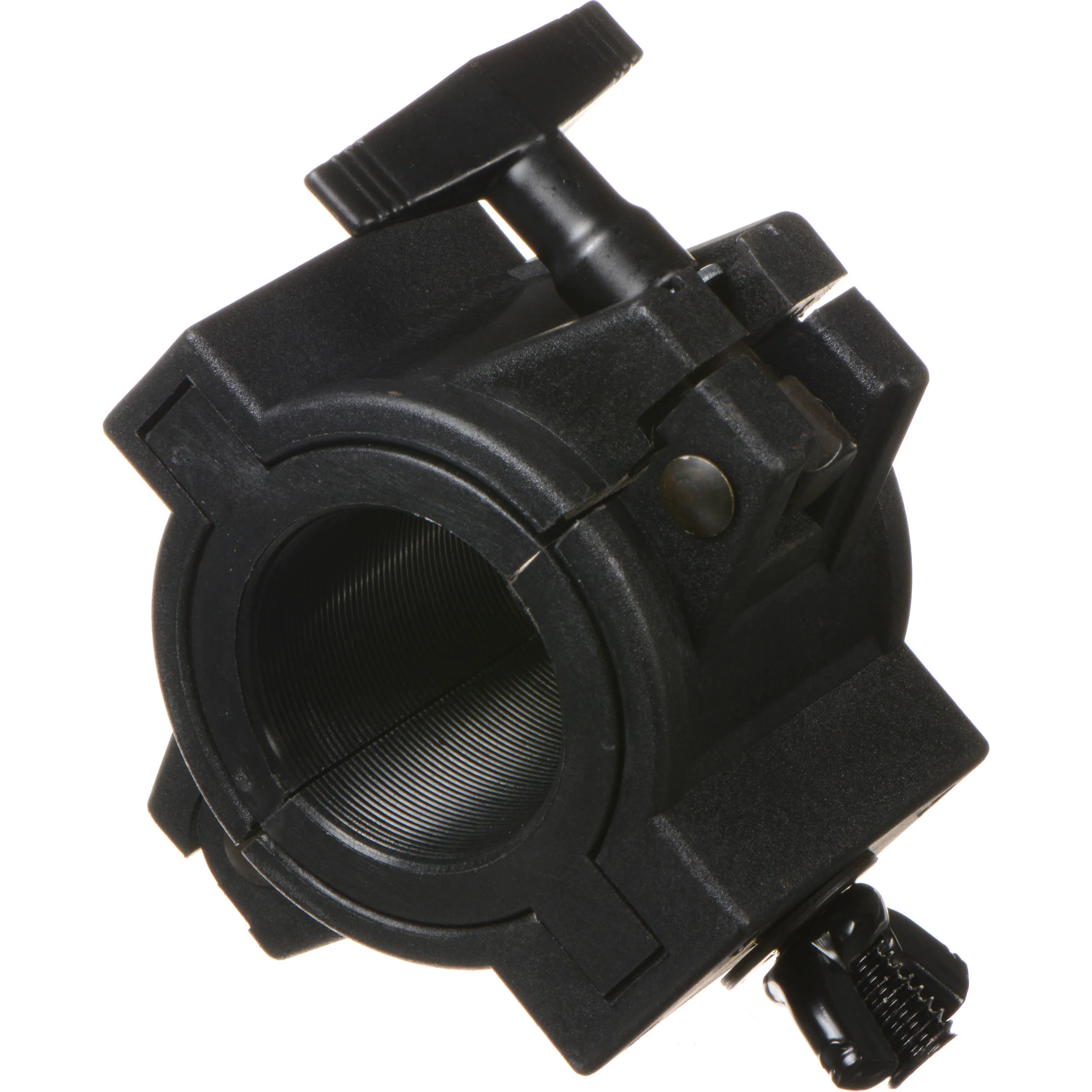

The American DJ O-Clamp 1.5 fits a 1.5" truss when used with the supplied adapter. It also fits a 2" truss when the adapter is removed. The clamp has a non-abrasive interior, offers compatibility with ADJ LTS-1, LTS-2, and LTS-30 lighting stands, and rotates 360 degrees around truss tubing. Load capacity is 28 lb.

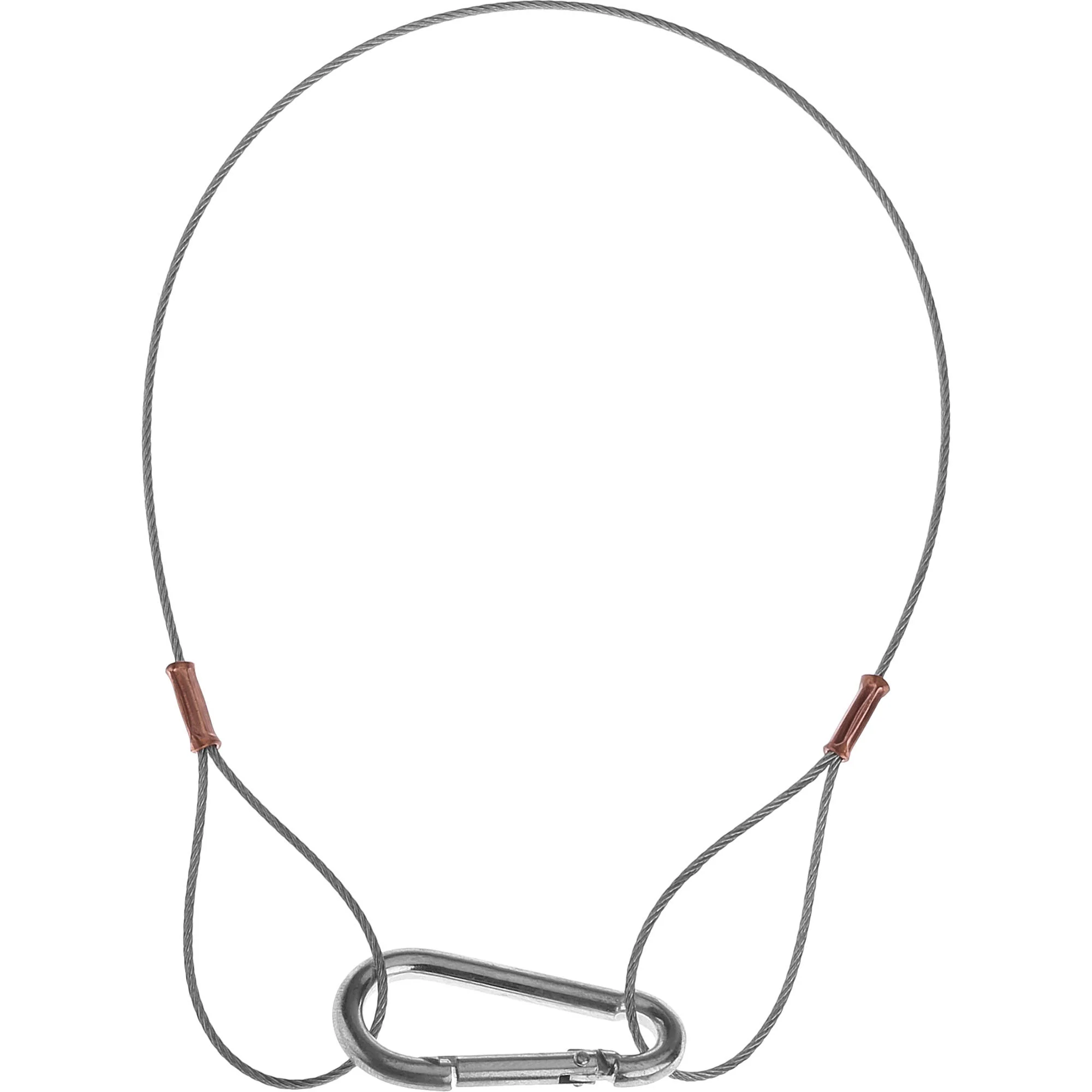

Made of braided stainless steel, this 18" x 1.5mm Impact Safety Cable provides extra security for lights mounted on overhead pipes, dropped ceilings and grids.
Items Included
- CHAUVET DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe
- Power Cord
- Limited 2-Year Manufacturer Warranty
- Kopul DMX33P-025-S Studio Series 3-Pin DMX Cable (25')
- Limited 2-Year Manufacturer Warranty
- American DJ O-Clamp 1.5 for 1.5 or 2" Truss
- Limited 1-Year Manufacturer Warranty
- Impact Safety Cable (18")
- Limited 1-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe
| Fixture Type |
Special Design
|
| Light Source |
5x Color LED - 3 W / 300 mA
8x White LED - 1 W / 300 mA 1x Laser Diode - 100 mW 1x Laser Diode - 30 mW |
| Colors |
Amber, Blue, Green, Red, White
|
| Laser |
Green: 520 nm / 30 mW
Red: 650 nm / 100 mW |
| Beam Angle |
17? (Strobe)
|
| Control Protocols |
DMX512, ILS
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 62 W / 0.5 A
230 VAC, 50 Hz: 66 W / 0.3 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Special Design
|
| Light Source |
5x Color LED - 3 W / 300 mA
8x White LED - 1 W / 300 mA 1x Laser Diode - 100 mW 1x Laser Diode - 30 mW |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Red, White
|
| Laser |
Green: 520 nm / 30 mW
Red: 650 nm / 100 mW |
| Photometrics |
77Â fc / 823Â Lux at 6.5' / 2Â m
|
| Coverage Angle |
100? (Laser)
65? (Swarm) |
| Beam Angle |
17? (Strobe)
|
| Field Angle |
35? (Strobe)
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Operating Modes |
DMX, Primary/Secondary, Sound-Active, Standalone
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, ILS
|
| DMX Channel Modes |
1 Mode(s):
9-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
Proprietary Wireless
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x Edison |
| Power / Current Consumption |
120 VAC, 60 Hz: 62 W / 0.5 A
230 VAC, 50 Hz: 66 W / 0.3 A |
| Power Linking |
15 Units at 120Â VAC
26 Units at 230Â VAC |
| Environmental Resistance |
No
|
| Mounting |
Single Yoke Only
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
