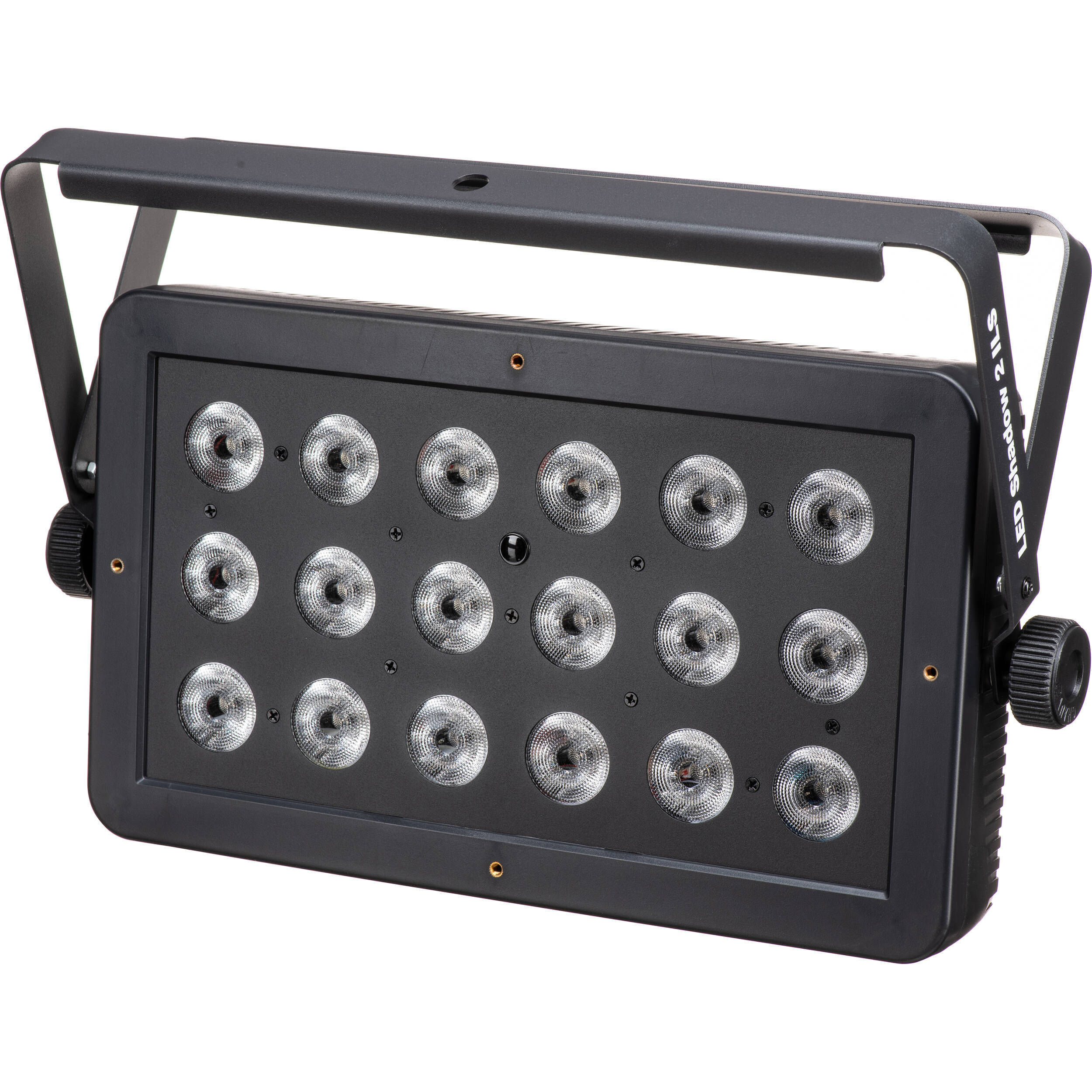

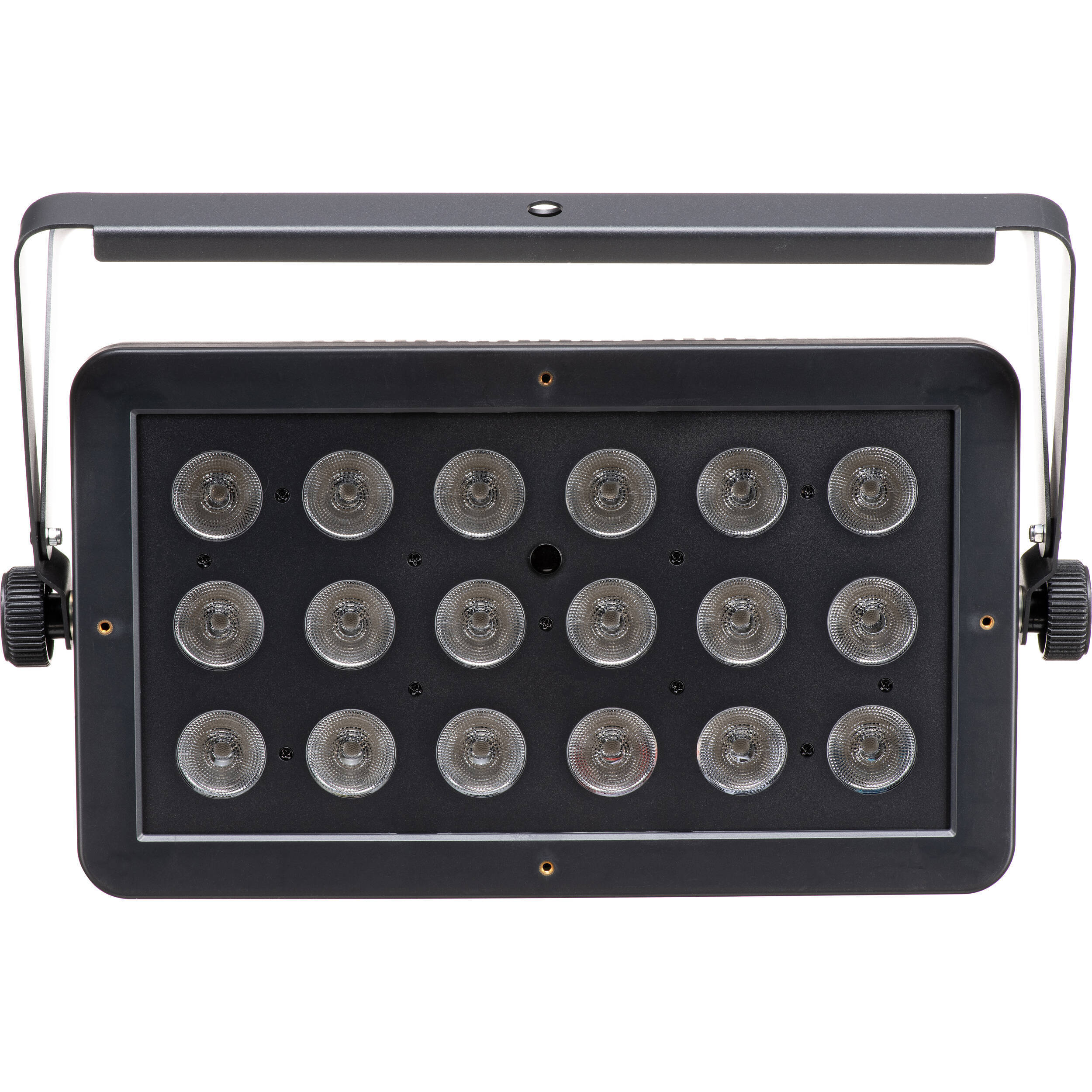

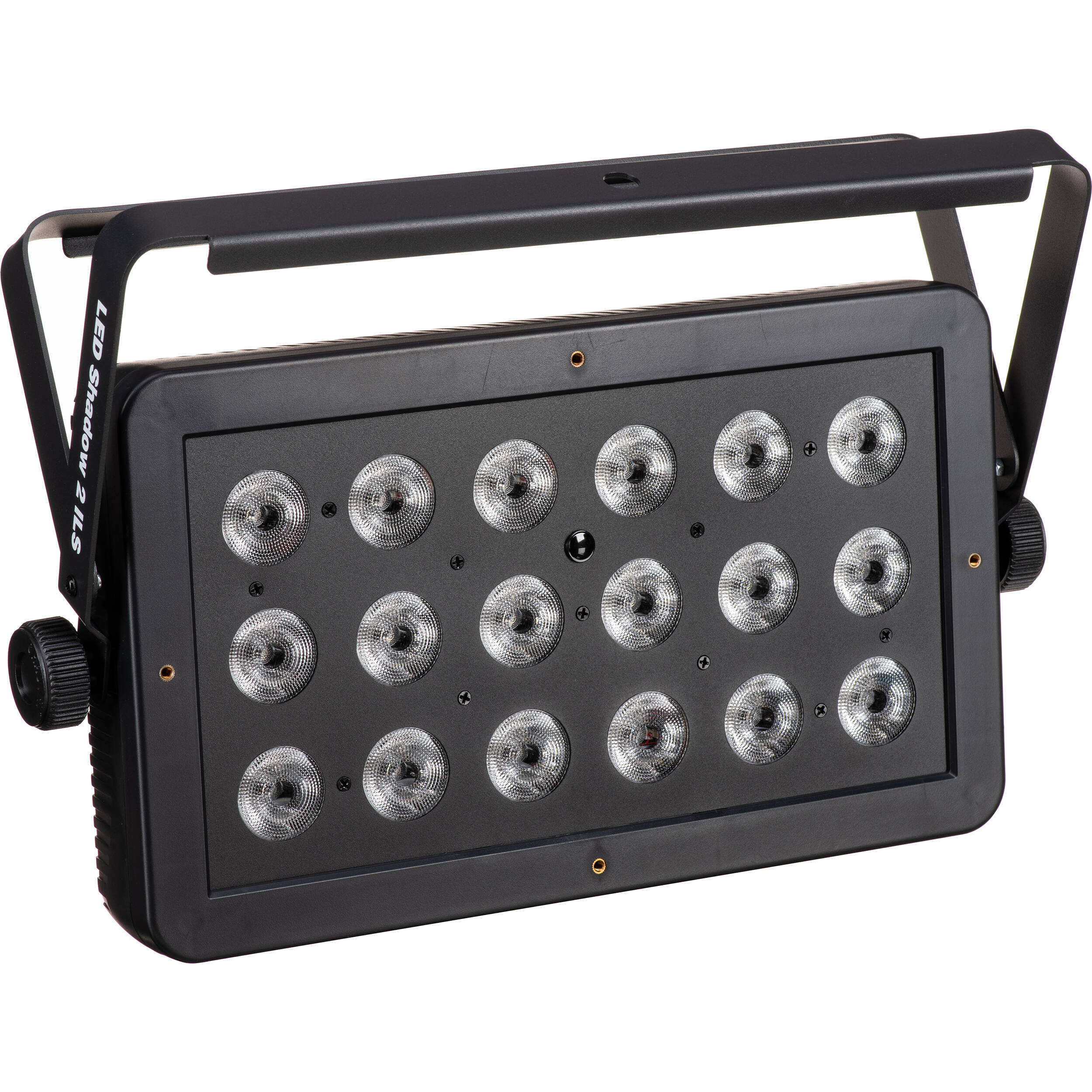

CHAUVET DJ LED Shadow 2 ILS Overview
Lighting designers and mobile entertainers in search of a quality UV wash fixture should check out this Kit which combines two black CHAUVET DJ LED Shadow 2 ILS high-powered ultraviolet LED fixtures designed to produce UV-infused washes, well suited for clubs, bars, mobile entertainers, rental houses, touring companies, and more. Each fixture features 18 x 3W UV LEDs that produce a 32? coverage angle.
The LED Shadow 2 ILS is equipped with a USB port that accepts the D-Fi USB transceiver (available separately), enabling wireless DMX control and eliminates the need for DMX cables. The unit can also be wirelessly controlled via the IRC-6 remote (available separately). Easy to operate, the LED Shadow 2 offers a standalone mode with automated programs such as sound-active, strobe, and pulse effects as well as 3-zone chases. You can daisy-chain power for up to 11 units at 120V, or 20 units at 230V. The LED Shadow 2 comes equipped with a dual-yoke bracket, which can be used for conventional mounting to a truss or lighting stand, or used to create a variable-angle floor stand. The fixture ships with a power cord.
- Versatile black light with brilliant eye-candy effects
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Control any ILS-enabled fixture wired or wirelessly (sold separately)
- D-Fi USB compatibility for wireless Master/Slave, or DMX control
- Generate complex looks easily with built-in, eye-catching auto programs with sectional control
- Access built-in automated programs via IRC6 remote, Master/Slave, or DMX
- Achieve smooth LED fading with built-in dimming curves
- Ideal for sound-sensitive environments due to the radiant cooling design
- Save time running extension cords by power linking multiple units
Items Included
- 2 x CHAUVET DJ LED Shadow 2 ILS Black Light (Black)
- Power Cord
- Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ LED Shadow 2 ILS Specs
| Fixture Type |
LED Panel
|
| Light Source |
18x Ultraviolet LED - 3 W
|
| Colors |
Ultraviolet
|
| Pixel Configuration |
3x Zone
|
| UV Wavelength |
405 to 405 nm
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 49 W / 0.7 A
230 VAC, 50 Hz: 49 W / 0.4 A |
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
LED Panel
|
| Light Source |
18x Ultraviolet LED - 3 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Ultraviolet
|
| Pixel Configuration |
3x Zone
|
| UV Wavelength |
405 to 405 nm
|
| Coverage Angle |
32?
|
| Shutter / Strobe |
Electronic
|
| Dimming |
Electronic, 0 to 100%
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active
|
| Macros / Programs |
6x Auto-Program
|
| Effects |
Strobe
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
4 / 8-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
D-Fi USB, IR Remote (with Optional Equipment)
|
| Inputs/Outputs |
2 x XLR 3-Pin DMX Input/Output
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x Edison Plug Type: NEMA 5-15 |
| Power / Current Consumption |
120 VAC, 60 Hz: 49 W / 0.7 A
230 VAC, 50 Hz: 49 W / 0.4 A |
| Power Linking |
11 Units at 120 VAC
20 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
No
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, RoHS,
|
| Dimensions |
14 x 8.2 x 2.2" / 35.6 x 20.8 x 5.6 cm
|
| Weight |
6 lb / 2.7 kg
|
| Package Weight |
7.215 lb
|
| Box Dimensions (LxWxH) |
19.4 x 13.3 x 4.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
