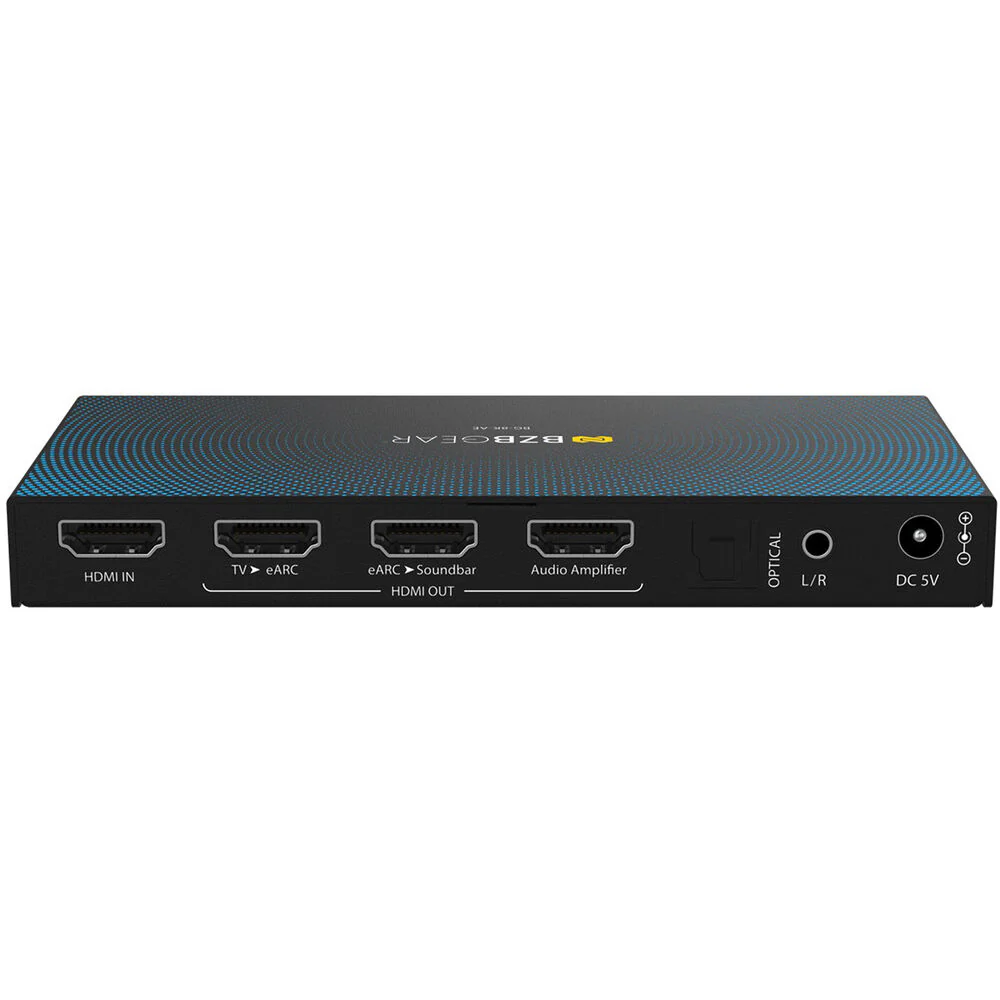

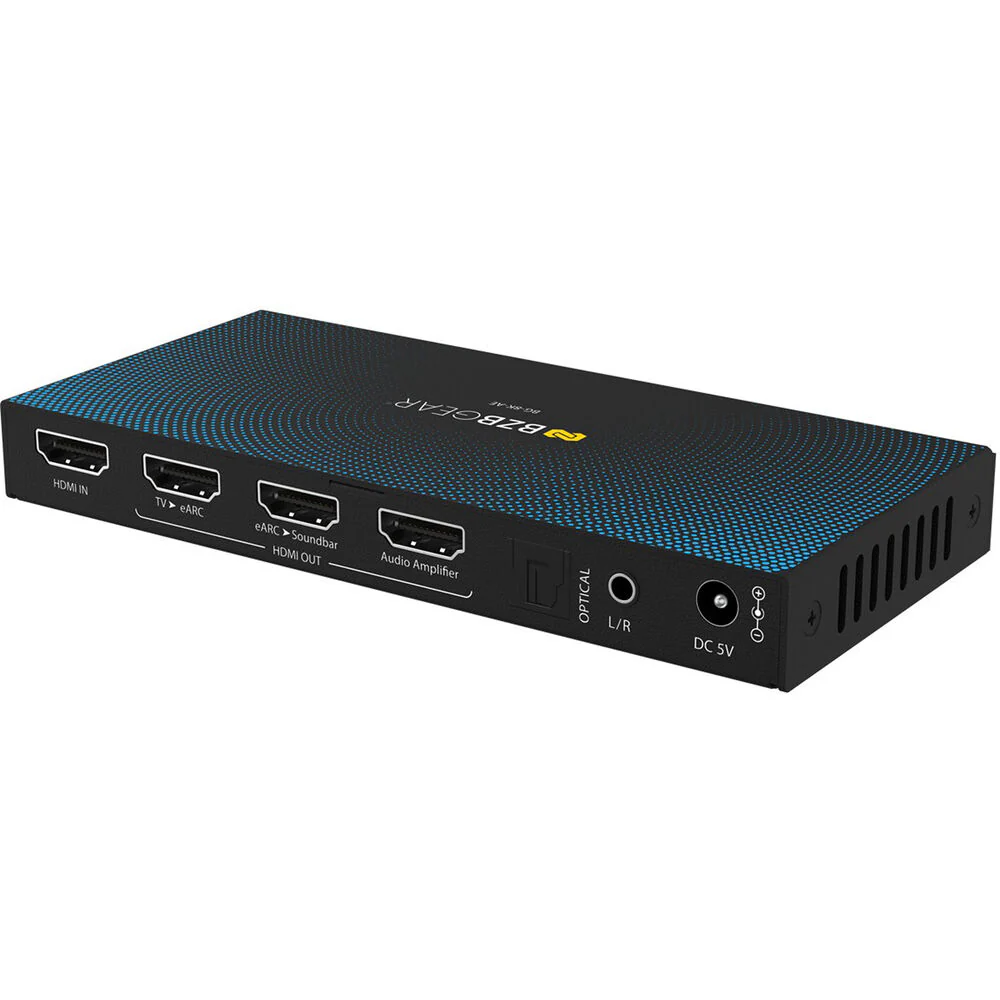

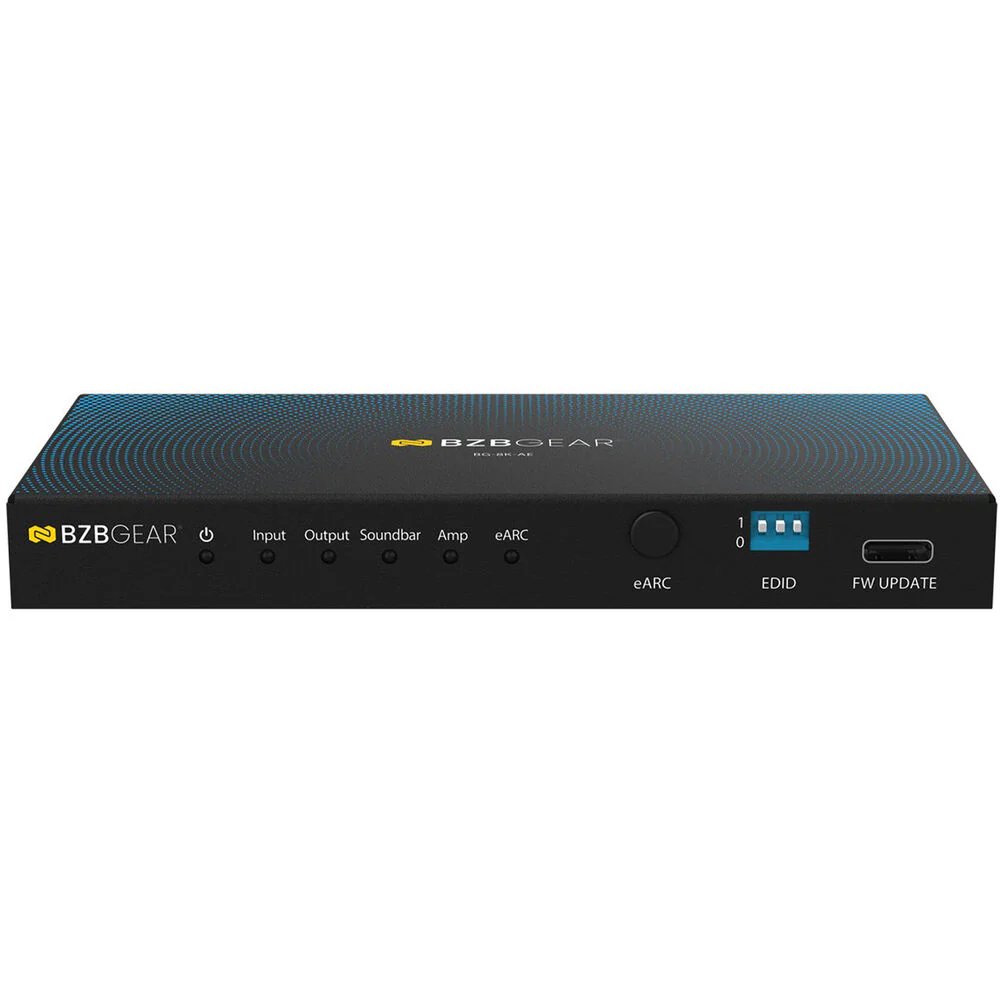

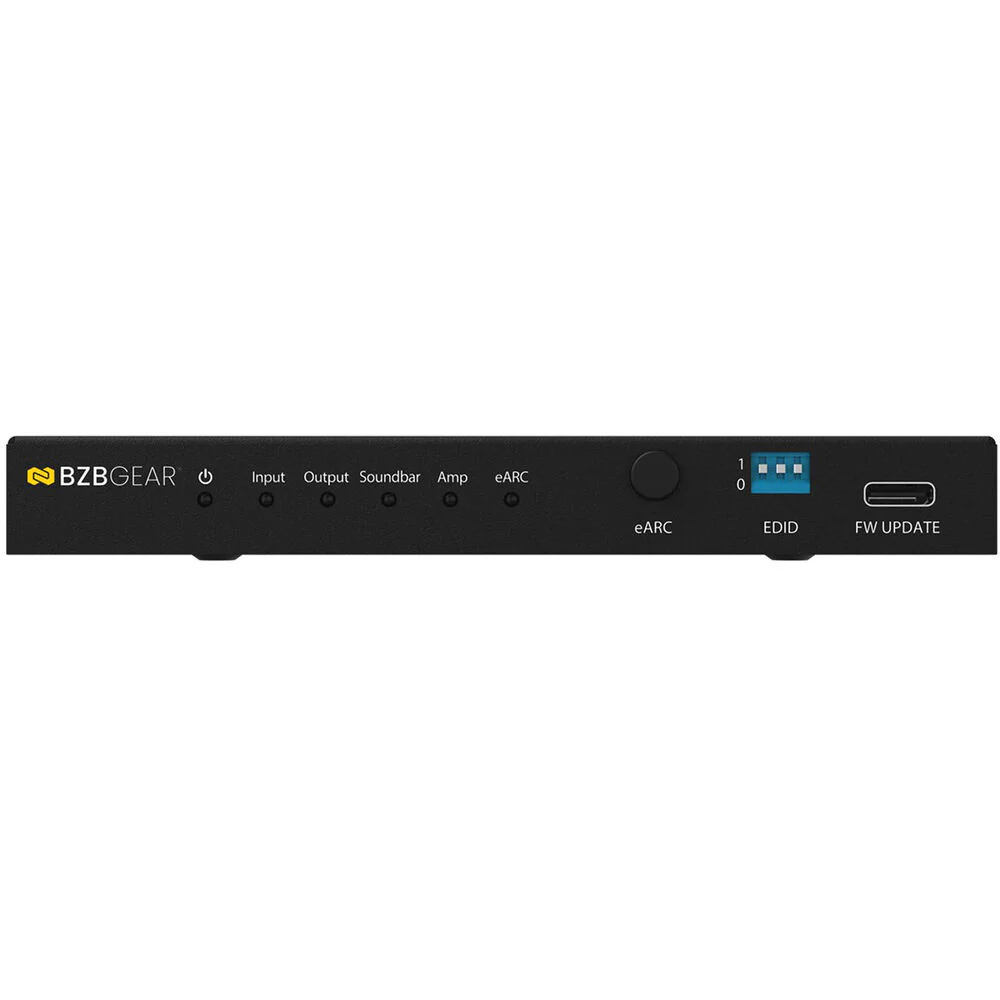

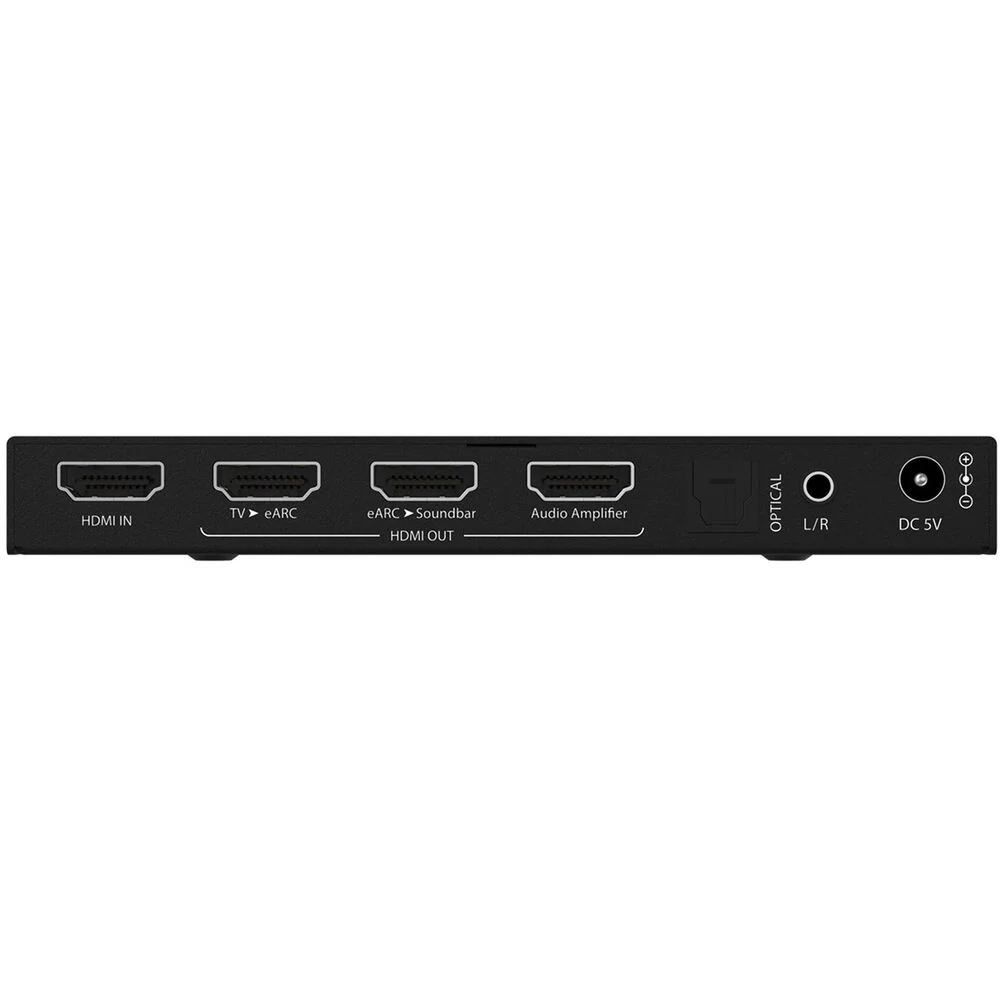

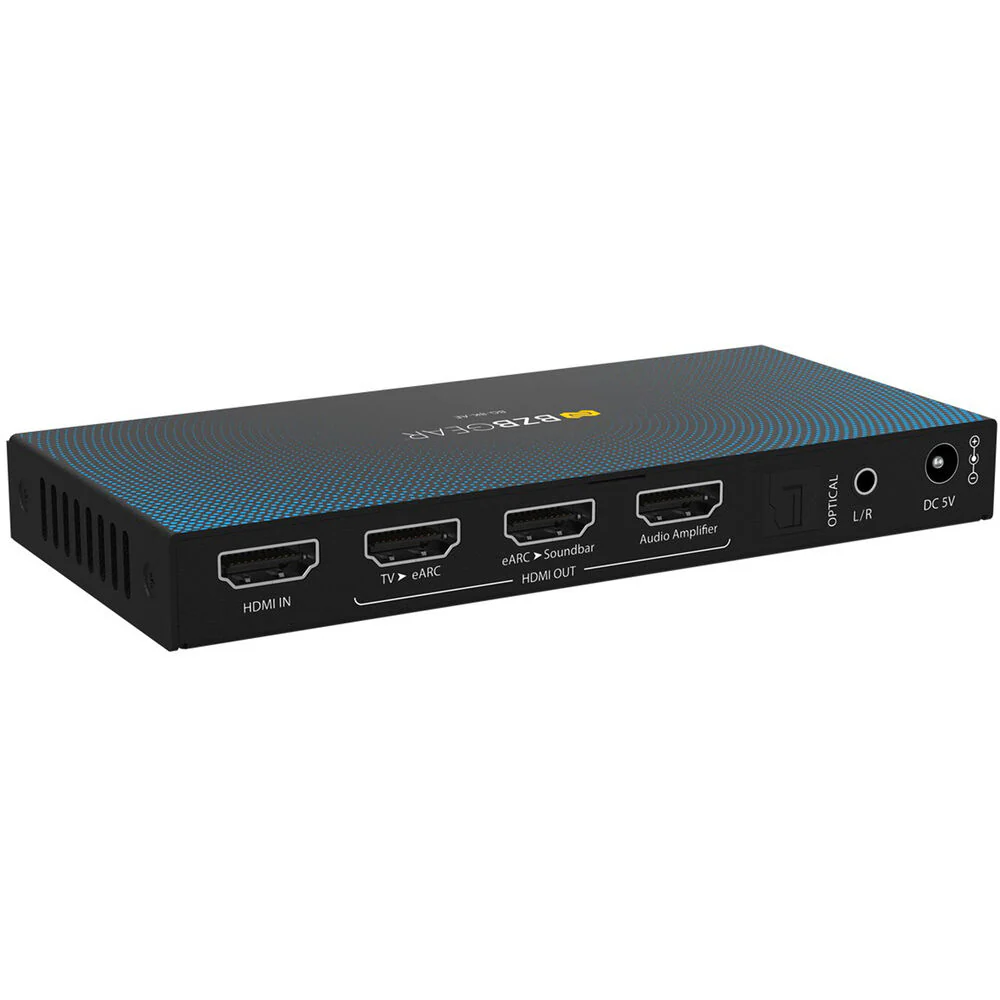

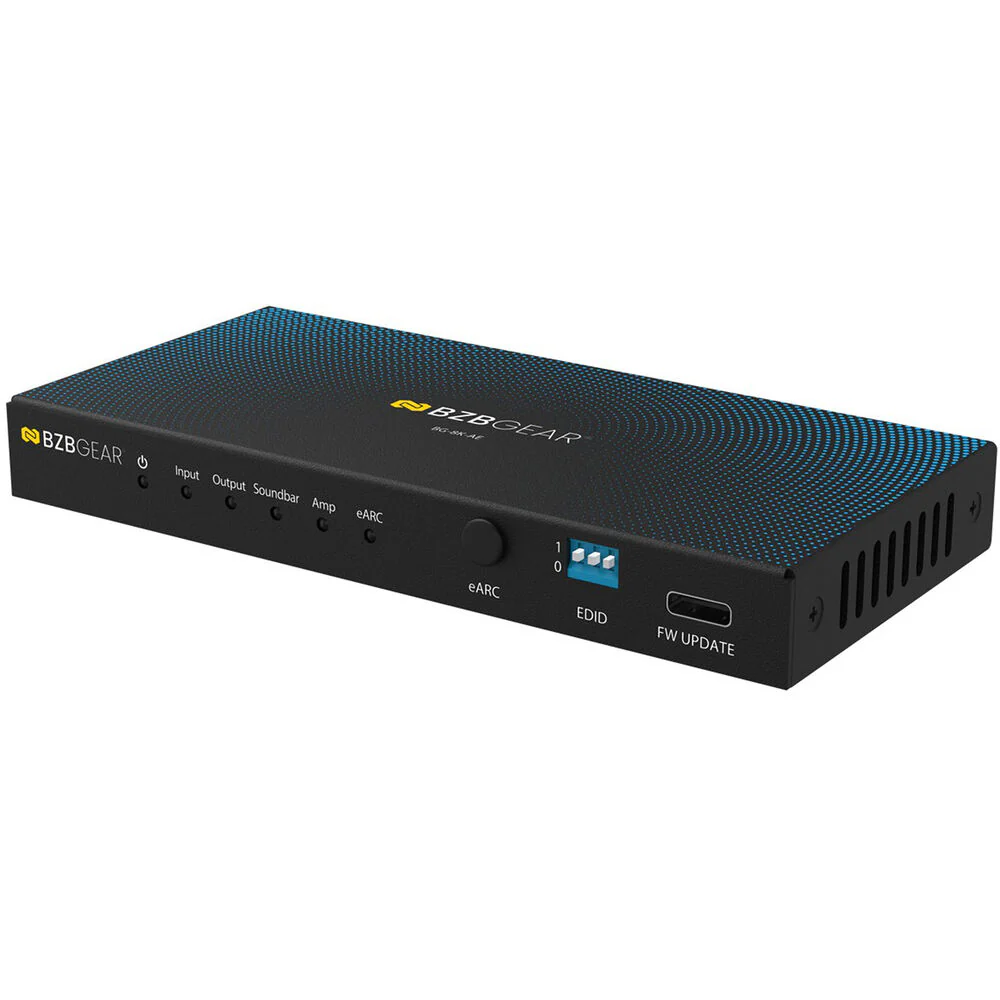

BZBGEAR 8K60 HDMI eARC Audio Adapter Overview
Engineered for uncompromised signal distribution across, the BZBGEAR 8K60 HDMI eARC Audio Adapter is a professional audio adapter designed to extract audio from an HDMI source or a TV with ARC/eARC and route it to an AV receiver, soundbar, or stereo system. Supporting video passthrough up to 8K60 (4:2:0, 12-bit) and 4K120 (4:4:4, 12-bit), the unit delivers full HDMI 2.1 bandwidth at 48 Gb/s, with rich dynamic range via HDR, HDR10+, Dolby Vision, and HLG support. The adapter is fully HDCP 2.3 compliant, ensuring secure playback from modern 8K and 4K HDR sources, including gaming consoles, media players, and AV processors.
Designed for professional AV environments and next-generation home theater setups, the audio adapter incorporates advanced EDID management and features HDMI audio de-embedding to HDMI, digital S/PDIF, or analog L/R outputs, with full support for 7.1-channel LPCM, Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio. With gaming-oriented technologies such as VRR, ALLM, QMS, and QFT, it maintains ultra-smooth, low-latency motion performance. LED indicators for power, input, and output status simplify operation, while the included 12 VDC locking power supply ensures reliability.
- One HDMI 2.1 AV input supports up to 8K60 or 4K120 resolutions
- One HDMI 2.1 video passthrough with eARC/ARC support
- Two HDMI 2.1 audio outputs (one with eARC/ARC support)
- One optical fiber audio output (S/PDIF)
- One analog L/R audio output (3.5mm stereo jack)
- Supports 7.1-channel LPCM, Dolby Atmos, and DTS-HD Master Audio
- HDR, HDR10, HDR10+, Dolby Vision, and HLG passthrough
- Advanced EDID management and CEC control support
- HDCP 2.3 compliance for secure content transmission
- LED indicators for power, input, and output monitoring
- High-bandwidth 48 Gb/s transmission with ESD protection
- 5 VDC, 2A input via included power supply
Items Included
- BZBGEAR 8K60 HDMI eARC Audio Adapter with EDID Support
- 5 VDC International Power Supply
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
BZBGEAR 8K60 HDMI eARC Audio Adapter Specs
| USB I/O |
1 x USB-C Female Input
|
| Video I/O |
1x HDMI 2.1 Input
1x HDMI 2.1 Output |
| Audio I/O |
2x HDMI Output
1x TOSLINK Optical S/PDIF Output 1x 1/8" / 3.5 mm Output |
| Video Format |
8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC
8K up to 60 fps 4K up to 120 fps |
| Power Source |
DC Input (Built-In), AC Adapter with Power Brick (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
5 VDC at 2 A
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Dimensions |
5.7 x 2.7 x 0.7" / 14.5 x 6.8 x 1.8Â cm
|
| Weight |
9.2Â oz / 262Â g
|
| Package Weight |
1.055 lb
|
| Box Dimensions (LxWxH) |
8.1 x 5.3 x 2.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
