BZBGEAR 4x1 8K UHD HDMI/USB-C 2.1 Switcher Overview

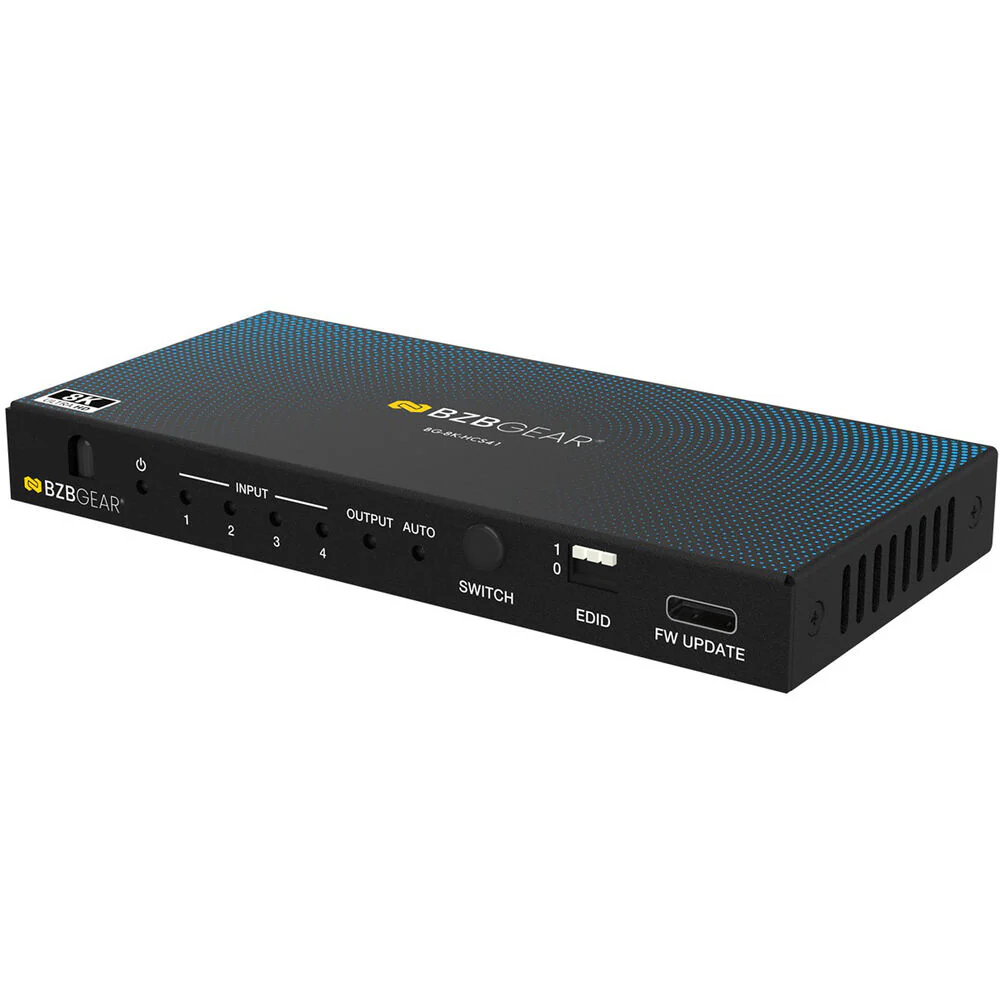

The 4x1 UHD 8K HDMI/USB-C 2.1 Switcher from BZBGEAR features three HDMI 2.1 inputs, one USB-C input, and one HDMI 2.1 output to facilitate HDR video content display. Suitable for residential and commercial applications, the unit's HDR10, HLG, and Dolby Vision compatibility enables you to view your HDR content in rich, full detail. The HDMI supports up to 8K60 and 4K120 resolutions and the USB-C supports up to 8K30 and 4K120 resolutions.

Additional Details
  • Three HDMI inputs and one USB-C input, routed to a single HDMI output
  • USB-C supports resolutions up to 8K30 (4:2:2, 10-bit) and 4K120 (4:2:2, 10-bit)
  • HDMI supports resolutions up to 8K60 (4:2:0, 12-bit), 8K30 (4:4:4, 12-bit), and 4K120 (4:4:4, 12-bit)
  • Automatic and manual input switching, controllable via front panel buttons and IR remote
  • CEC passthrough control from the display (output) to the source device (input)
  • Supports LPCM 7.1 Ch, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio passthrough formats
  • Passes HDR formats, including HDR, HDR10, HDR10+, Dolby Vision, and HLG through
  • Advanced HDMI 2.1 features include VRR (Variable Refresh Rate), ALLM (Auto Low-Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping)
  • Customizable advanced EDID settings for flexible compatibility with various displays and sources
  • Compliant with DisplayPort 1.4 and HDCP 2.3 standards
UPC: 850050134954

Items Included

  • BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher
  • IR Remote
  • 5V, 1A Power Supply
  • Limited 5-Year Manufacturer Warranty

Additional Resources

    BZBGEAR 4x1 8K UHD HDMI/USB-C 2.1 Switcher Specs

    Processing
    Switching Type
    IR Remote, Pushbutton, Software
    Processing Resolution
    8K at 60
    Color Processing
    8-Bit 4:4:4 YUV
    8-Bit 4:2:2 YUV
    8-Bit 4:2:0 YUV
    8-Bit 4:4:4 RGB
    8-Bit 4:2:2 RGB
    8-Bit 4:2:0 RGB
    10-Bit 4:4:4 YUV
    10-Bit 4:2:2 YUV
    10-Bit 4:2:0 YUV
    10-Bit 4:4:4 RGB
    10-Bit 4:2:2 RGB
    10-Bit 4:2:0 RGB
    12-Bit 4:4:4 YUV
    12-Bit 4:2:2 YUV
    12-Bit 4:2:0 YUV
    12-Bit 4:4:4 RGB
    12-Bit 4:2:2 RGB
    12-Bit 4:2:0 RGB
    Input
    Video Inputs
    3x HDMI (2.1) Female
    1x USB-C Female
    Input Video Format
    HDMI (8/10/12-Bit 4:2:0 RGB, YUV)
    8K up to 30/60 fps
    DCI 4K up to 24/60/120 fps
    UHD 4K up to 24/60/120 fps
    1080p up to 60 fps
    HDMI (8/10/12-Bit 4:4:4 RGB, YUV)
    DCI 4K up to 24/60/120 fps
    USB-C (8/10-Bit 4:2:2 RGB, YUV)
    DCI 4K up to 24/60/120 fps
    USB-C (8/10-Bit 4:2:2 RGB, YUV)
    8K up to 30 fps
    DCI 4K up to 24/60/120 fps
    UHD 4K up to 24/60/120 fps
    1080p up to 60 fps
    Embedded Audio Input
    HDMI
    Output
    Video Outputs
    1x HDMI (2.1) Female
    Output Video Format
    HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
    8K up to 30/60 fps
    DCI 4K up to 24/60/120 fps
    UHD 4K up to 60/120 fps
    1080p up to 60 fps
    Embedded Audio Output
    HDMI
    Multiview Output
    4-Way Multiview via HDMI
    Connectivity
    Other I/O
    1x USB-C Firmware Input
    Digital Audio Decoding
    LPCM, Dolby Atmos, Dolby Digital / AC3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
    HDCP Support
    Yes: Version 2.3
    Hardware
    Wireless
    No
    Power
    Power I/O
    1x Barrel (5 VDC at 1 A) Input
    Power Consumption
    Device: 100 to 240 VAC (2.25 W)
    General
    Operating Conditions
    32 to 104?F / 0 to 40?C at 20 to 90% Humidity
    Storage Conditions
    -4 to 140?F / -20 to 60?C at 20 to 90% Humidity
    Dimensions
    5.7 x 2.7 x 0.7" / 14.5 x 6.9 x 1.8 cm
    Weight
    0.6 lb / 258 g
    Packaging Info
    Package Weight
    1.045 lb
    Box Dimensions (LxWxH)
    8 x 5.2 x 2.9"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

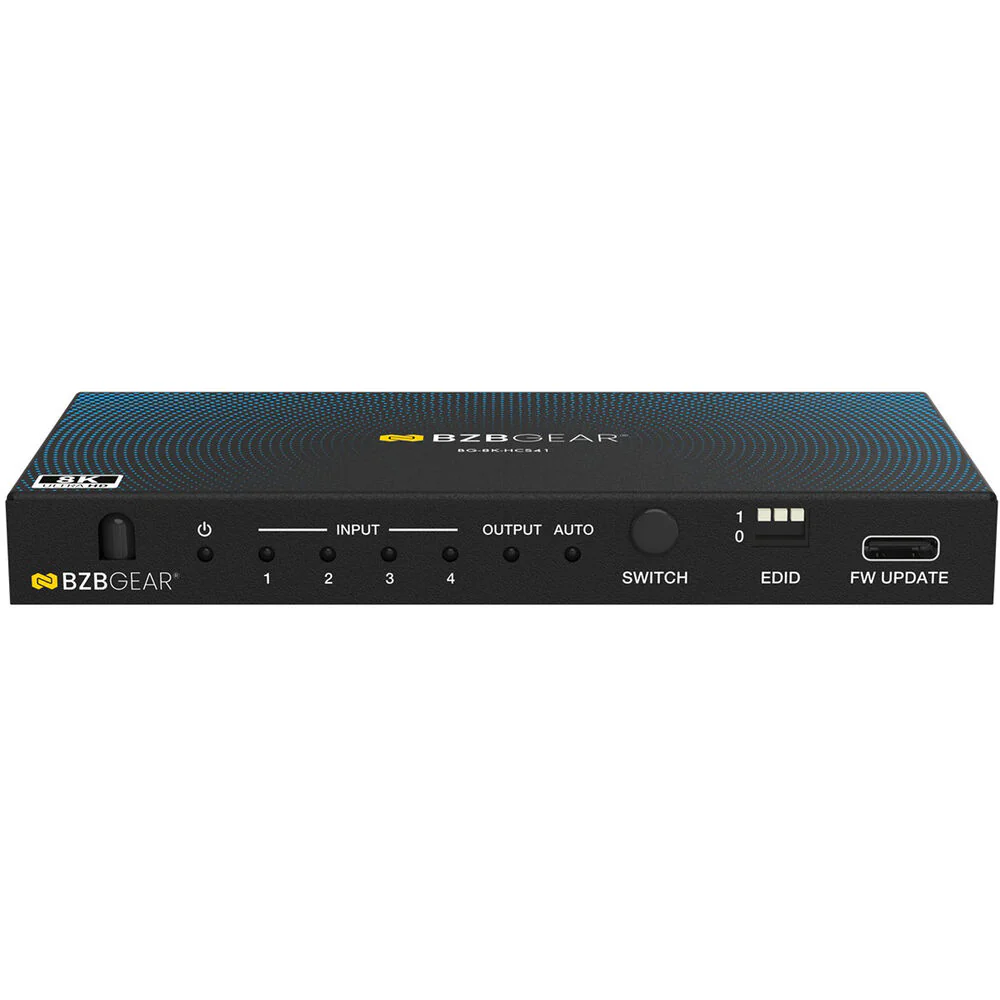

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

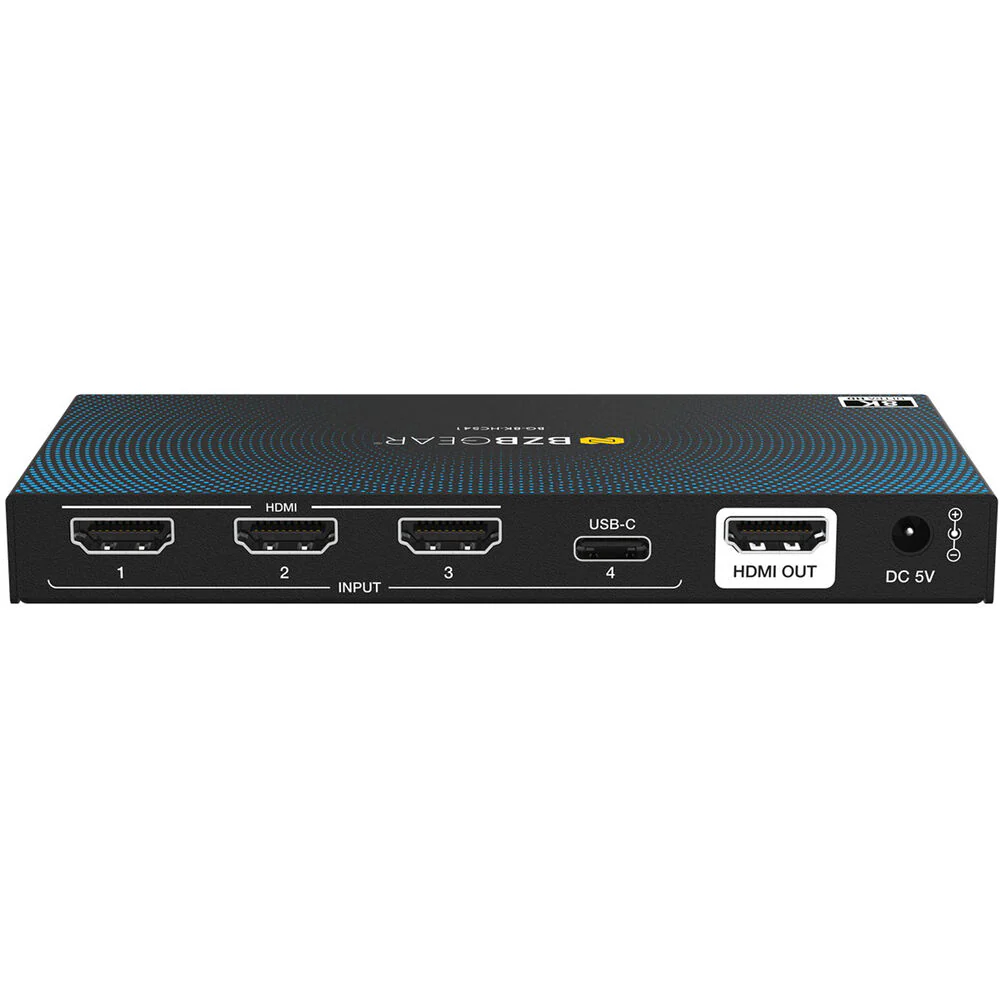

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

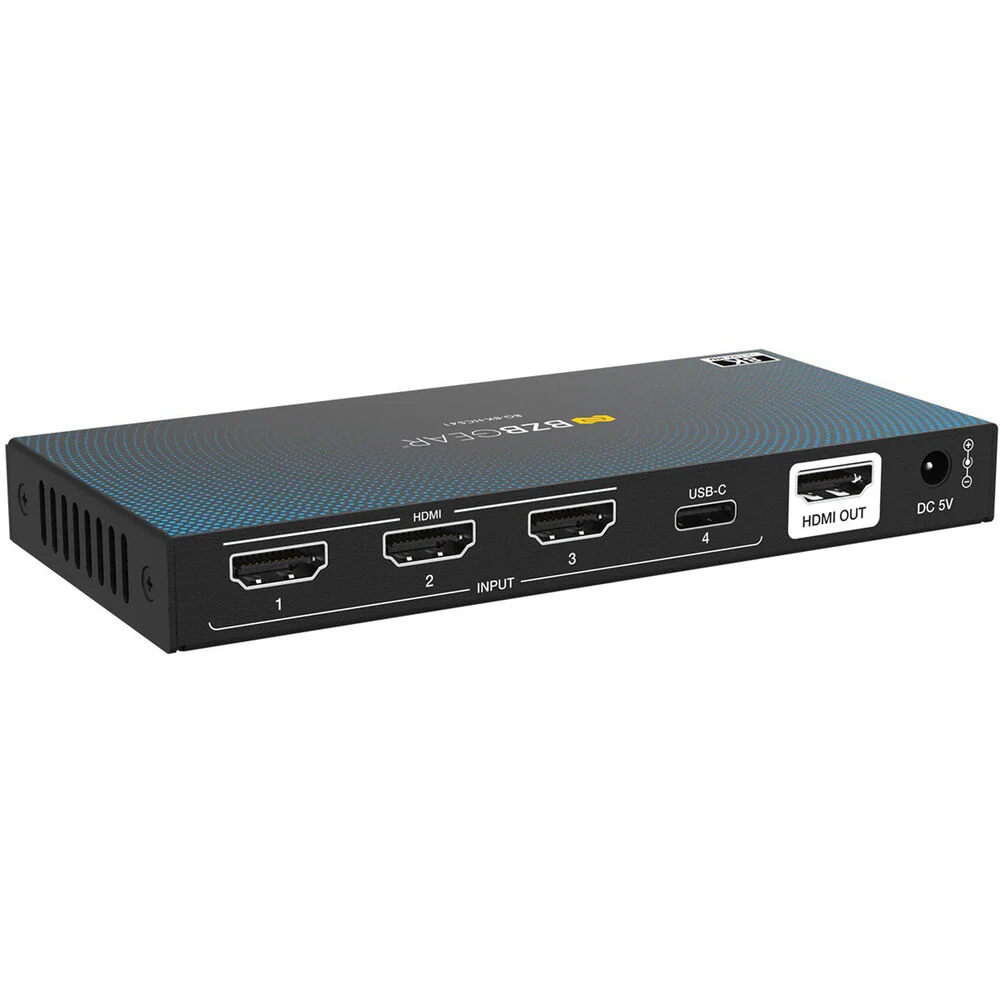

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

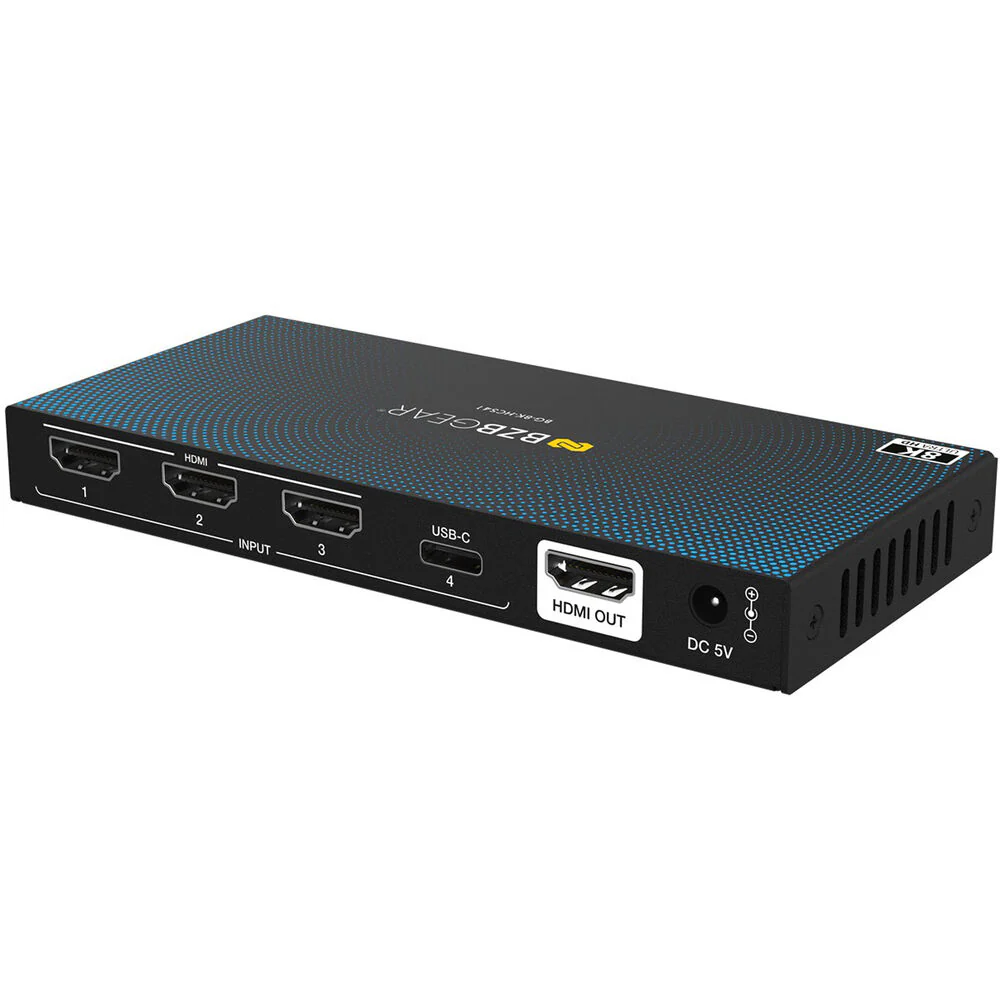

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

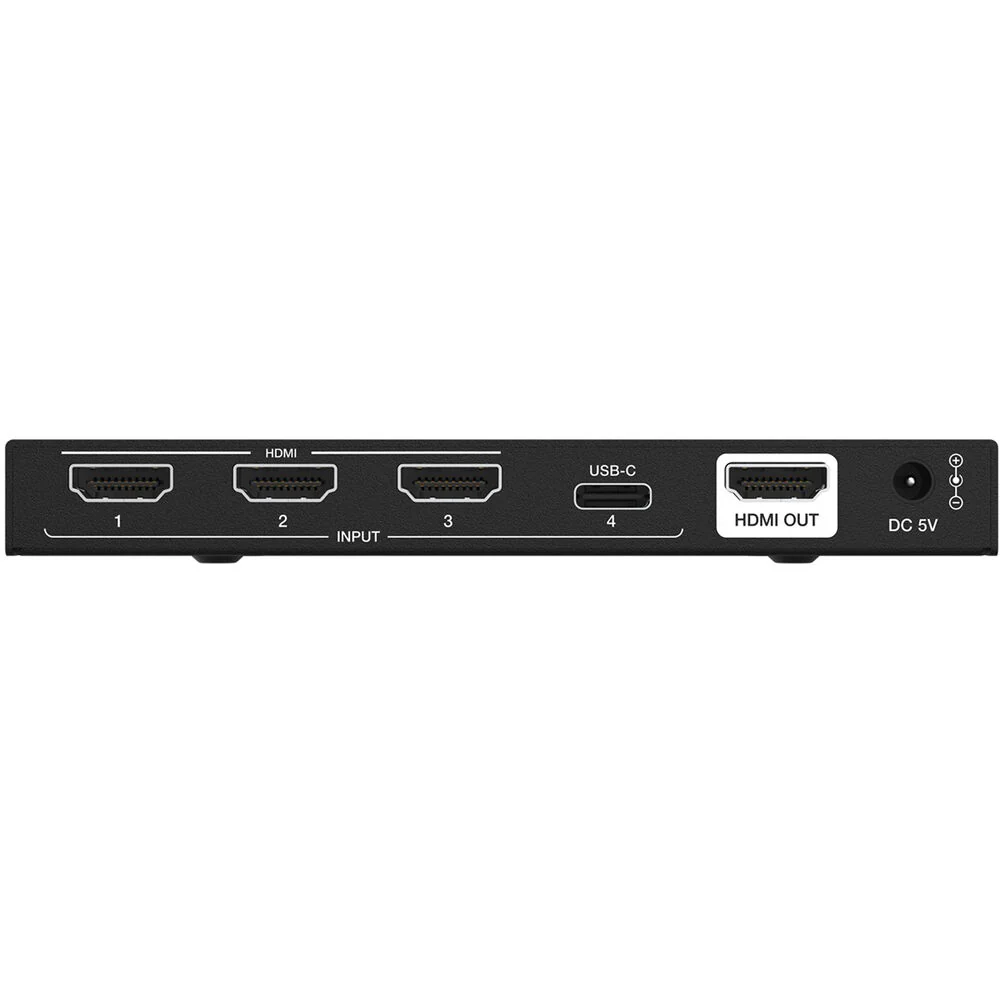

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

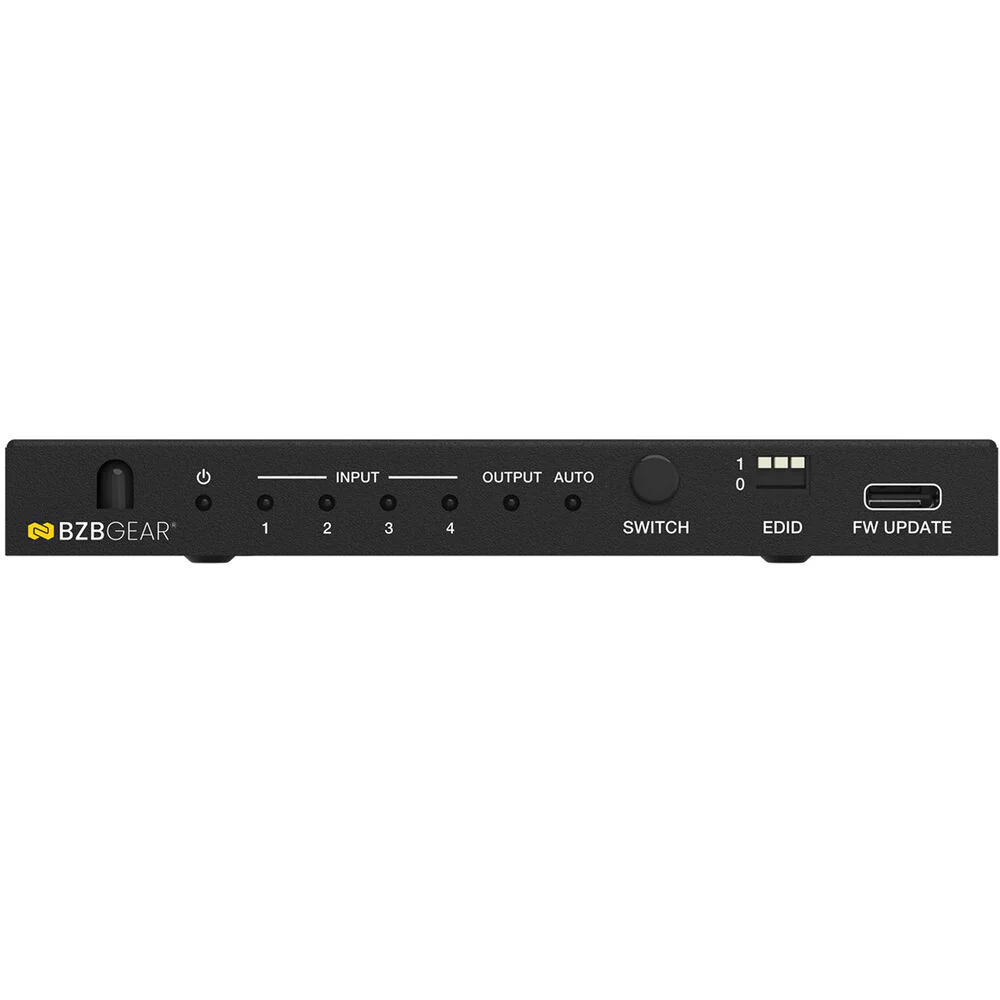

    BZBGEAR 4x1 UHD 8K HDMI/USB-C 2.1 Switcher - Image 7
