$28.69
Original: $95.62

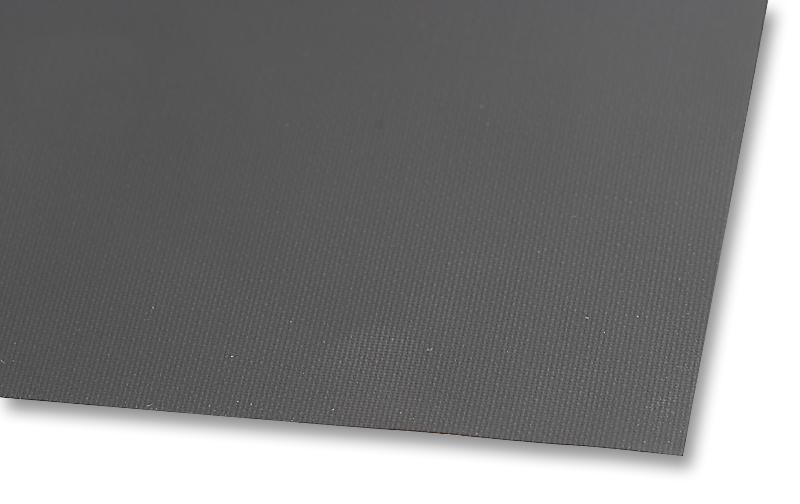

-70%Bergquist Q3AC 300MMX300MM SHEET Thermal Insulator Q-Pad 3 .005" 12" x Sheet Polymer Elastomer Graphite Loaded 2 W/m.K—
$95.62
$28.69The Story
The Q3AC 300MMX300MM SHEET is a 0.005 x 12 x 12-inch glass-reinforced grease replacement thermal interface Q-Pad 3 Material which eliminates problems associated with thermal grease such as contamination of electronic assemblies and reflow solder baths. Q-Pad 3 may be installed prior to soldering and cleaning without worry. When cexposed to modest heat and pressure, the elastomer conforms to surface textures thereby creating an air-free interface between heat-generating components and heat sinks. Fibreglass reinforcement enables Q-Pad 3 to withstand processing stresses without losing physical integrity. It also provides ease of handling during application.
- UL94V-0 Flammability rating
- Eliminates processing constraints typically associated with grease
- Conforms to surface textures
- Easy to handle
- May be installed prior to soldering and cleaning without worry
Safety, Industrial
Product details
| Insulator Body Material | Polymer Elastomer, Graphite Loaded |
| Thermal Conductivity | 2W/m.K |
| Breakdown Voltage Vbr | - |
| Thickness | 0.127mm |
| Volume Resistivity | 10ohm-m |
| Thermal Impedance | 0.65°C/W |
| Dielectric Strength | - |
| Product Range | - |
Other details
| Brand | BERGQUIST |
| Part Number | Q3AC 300MMX300MM SHEET |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Safety Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
