Original: $3,159.42
-70%$3,159.42
$947.83The Story

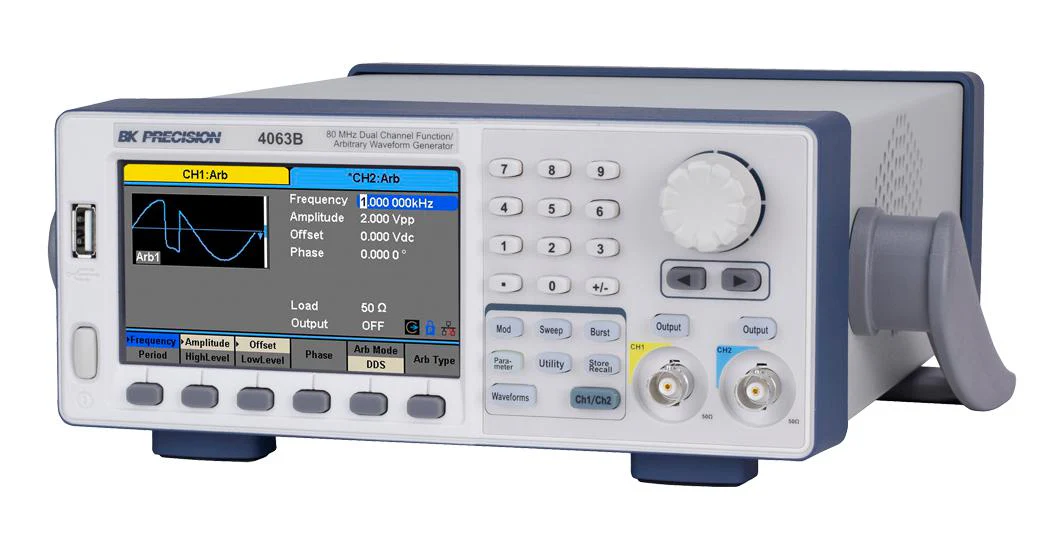

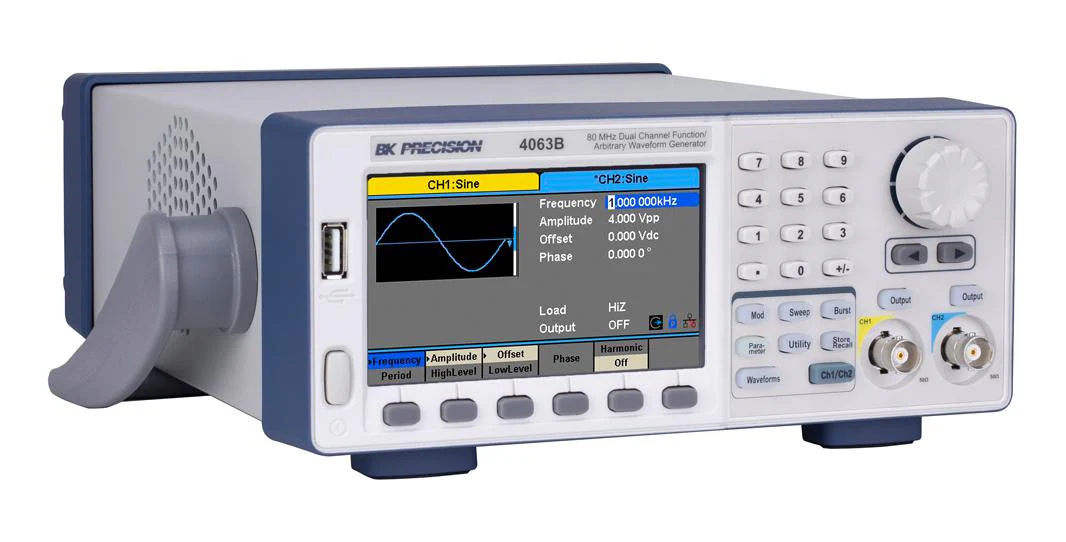

- 4060B series dual channel function/arbitrary waveform generator
- 16bit resolution, 8Mpts, 300MSa/s (DDS), 75MSa/s (true point-by-point) arbitrary waveform generator
- Up to 1.2GSa/s sample rate for sine, square, triangle and pulse waveforms
- Two independent channels with one-button phase synchronization
- Channel copy, track and waveform combine functions
- Generate sine waves up to 120MHz, linear sweep, logarithmic sweep and burst functions
- Precise pulse width and rise/fall time adjustments, AM/DSB-AM/FM//PM/PSK/FSK/ASK/PWM modulation
- 196 built-in predefined arbitrary waveforms, store/recall up to 10 instrument settings
- LAN and USB device port
- GPIB connectivity, front-panel USB host port
Dual channel function/arbitrary waveform generator, AC power cord, User manual (downloadable), USB type A-to-B cable, BNC coaxial cable, certificate of calibration.
Other details
| Brand | B&K PRECISION |
| Part Number | BK4063B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- 4060B series dual channel function/arbitrary waveform generator
- 16bit resolution, 8Mpts, 300MSa/s (DDS), 75MSa/s (true point-by-point) arbitrary waveform generator
- Up to 1.2GSa/s sample rate for sine, square, triangle and pulse waveforms
- Two independent channels with one-button phase synchronization
- Channel copy, track and waveform combine functions
- Generate sine waves up to 120MHz, linear sweep, logarithmic sweep and burst functions
- Precise pulse width and rise/fall time adjustments, AM/DSB-AM/FM//PM/PSK/FSK/ASK/PWM modulation
- 196 built-in predefined arbitrary waveforms, store/recall up to 10 instrument settings
- LAN and USB device port
- GPIB connectivity, front-panel USB host port
Dual channel function/arbitrary waveform generator, AC power cord, User manual (downloadable), USB type A-to-B cable, BNC coaxial cable, certificate of calibration.
Other details
| Brand | B&K PRECISION |
| Part Number | BK4063B |
| Quantity | Each |
| Technical Data Sheet EN | |
| Operating Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
