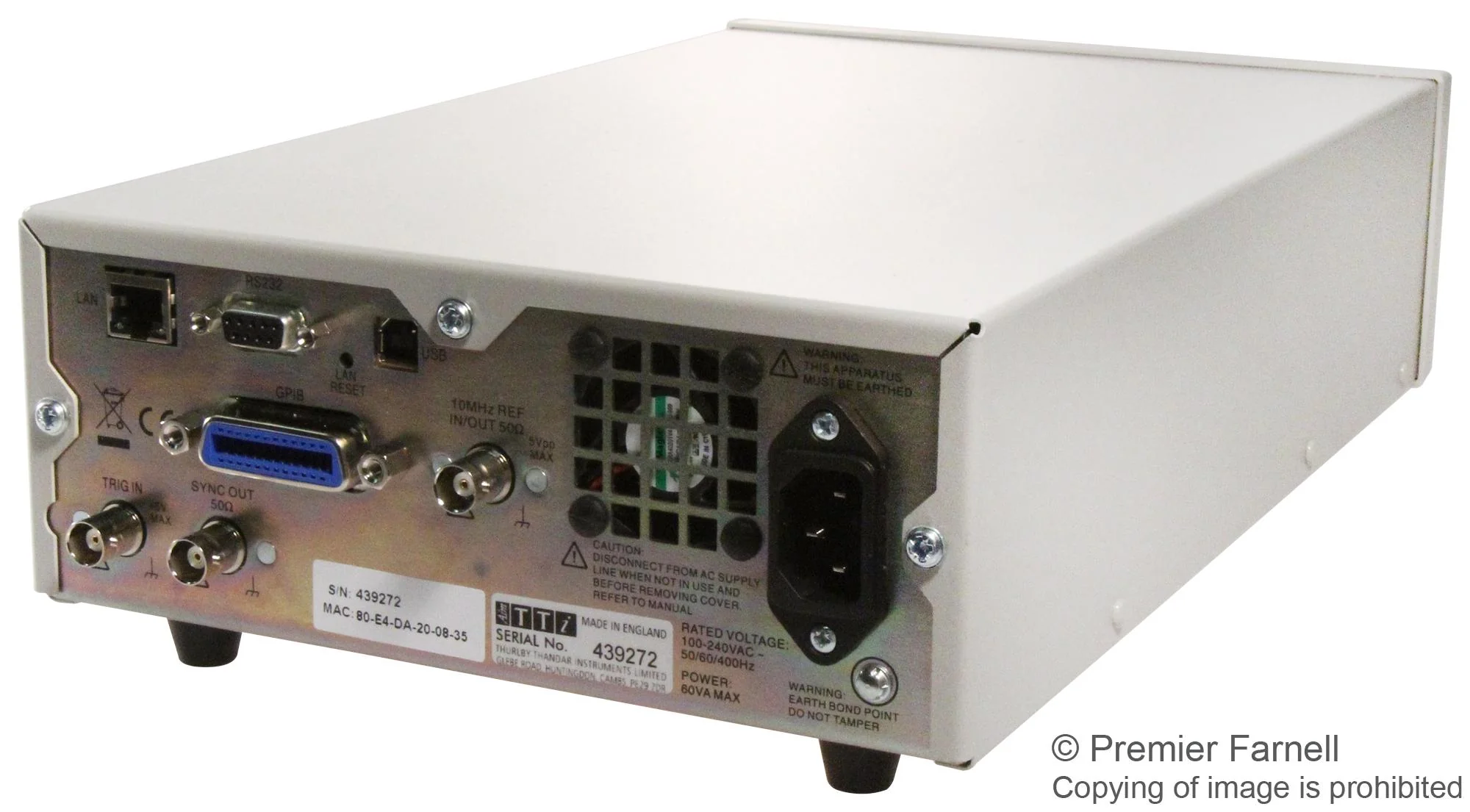

AIM-TTI Instruments TGR6000 TGR6000 RF Signal Generator 6 GHz 1 Channel FM 3 Years

The TGR6000 is a low-cost RF signal generator with a maximum frequency of 6GHz. It is intended for CW (carrier wave) applications where modulation is not required, and avoids the costs associated with adding modulations. Low phase noise is matched by low leakage, low residual FM and spurii. The internal timebase has a 1ppm stability, and an external frequency reference can be used for higher precision.

• 10MHz to 6000MHz frequency range
• Accuracy better than 1ppm over 15°C to 30°C
• Ageing better than 1 ppm over one year
• External frequency reference input
• Low phase noise and low leakage
• -110dBm to +7dBm amplitude, 0.1dB steps
• Amplitude entry in dBm, µV / mV, or dBµV
• User compensation tables for specific test set-ups
• Fast stepping sweep with dwell times down to 10ms
• Internal or externally triggered sweep, lin or log, up or down

• List sweep of up to 1000 points of amplitude vs frequency
• Storage for 12 generator set-ups and 16 sweep lists
• Compact half-rack 2U casing uses minimum bench space
• Full remote control through RS232, USB, LAN or GPIB
• Significantly lower cost than other 6GHz generators

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement

Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Other details

Brand	AIM-TTI INSTRUMENTS
Part Number	TGR6000
Quantity	Each
Technical Data Sheet EN
