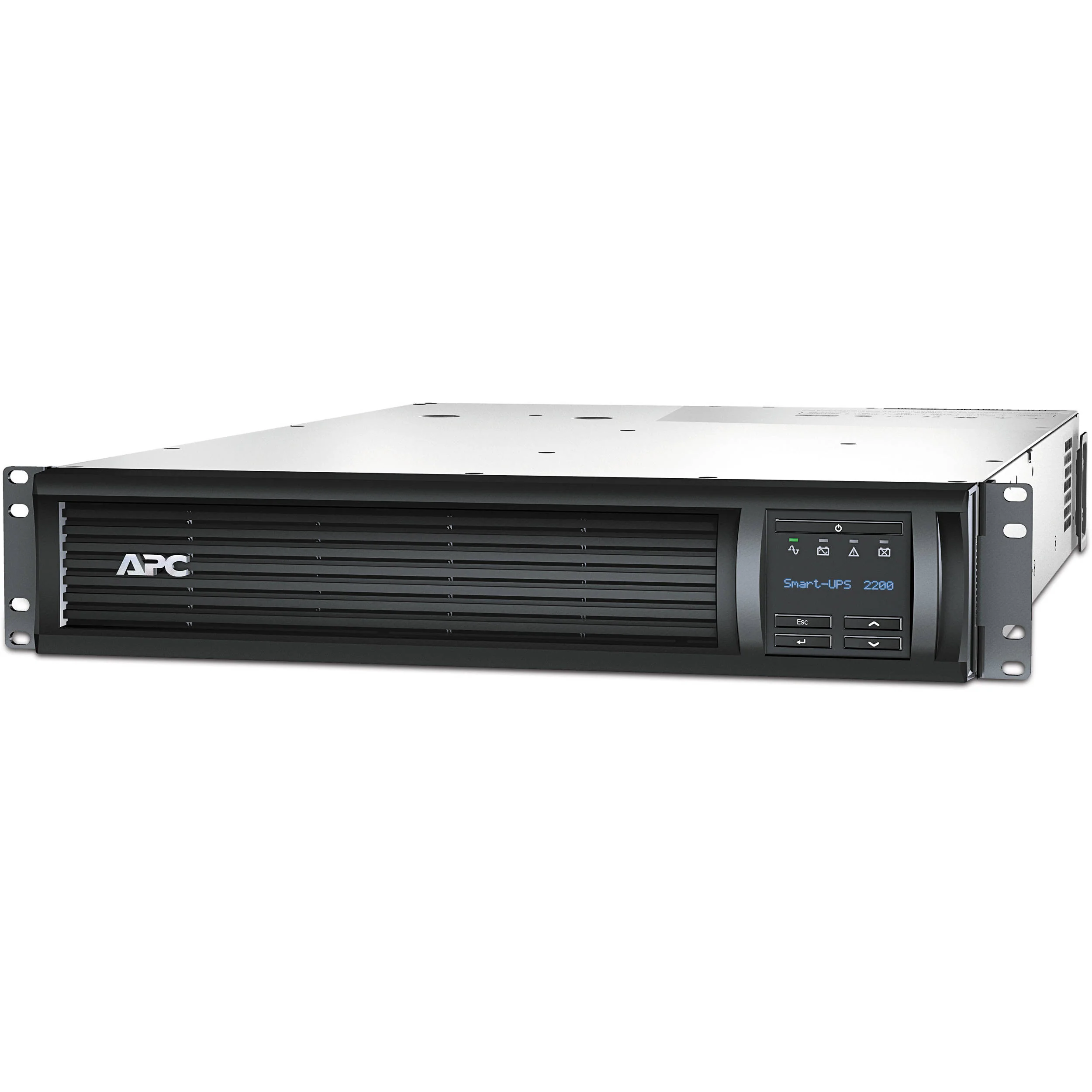

-70%APC SMT2200R2X106 1980 Watt Smart Uninterruptible Power Supply—
$3,652.97
$1,095.89The Story
APC 2200VA Overview
- 1Description
- 2Main Features
- 3Availability
- 4Manageability
- 5Serviceability
SMT Series - Smart Ups
The SMT2200R2X106 Smart Uninterruptible Power Supply from APC features six NEMA 5-15R and two NEMA 5-20R output connections along with an output power capacity of 1980 watts. Integrated line interactive technology found within this UPS redirects the battery's DC current path from the normal charging mode to supplying current when power is lost.
Along with enhanced output capacity found in this UPS, you also benefit from a 120 V nominal input voltage and a 50/60 Hz ± 3 Hz auto sensing input frequency. Input connectivity is provided via an integrated NEMA L5-20P connector with a cord length of 8 ft (2.44 m). Input voltage ranges from 82 to 143 V for main operations along with an adjustable range of 75 to 154 V. Additionally, this Smart UPS comes equipped with a maintenance-free sealed lead-acid battery with typical recharge time of 3 hours.
Main Features

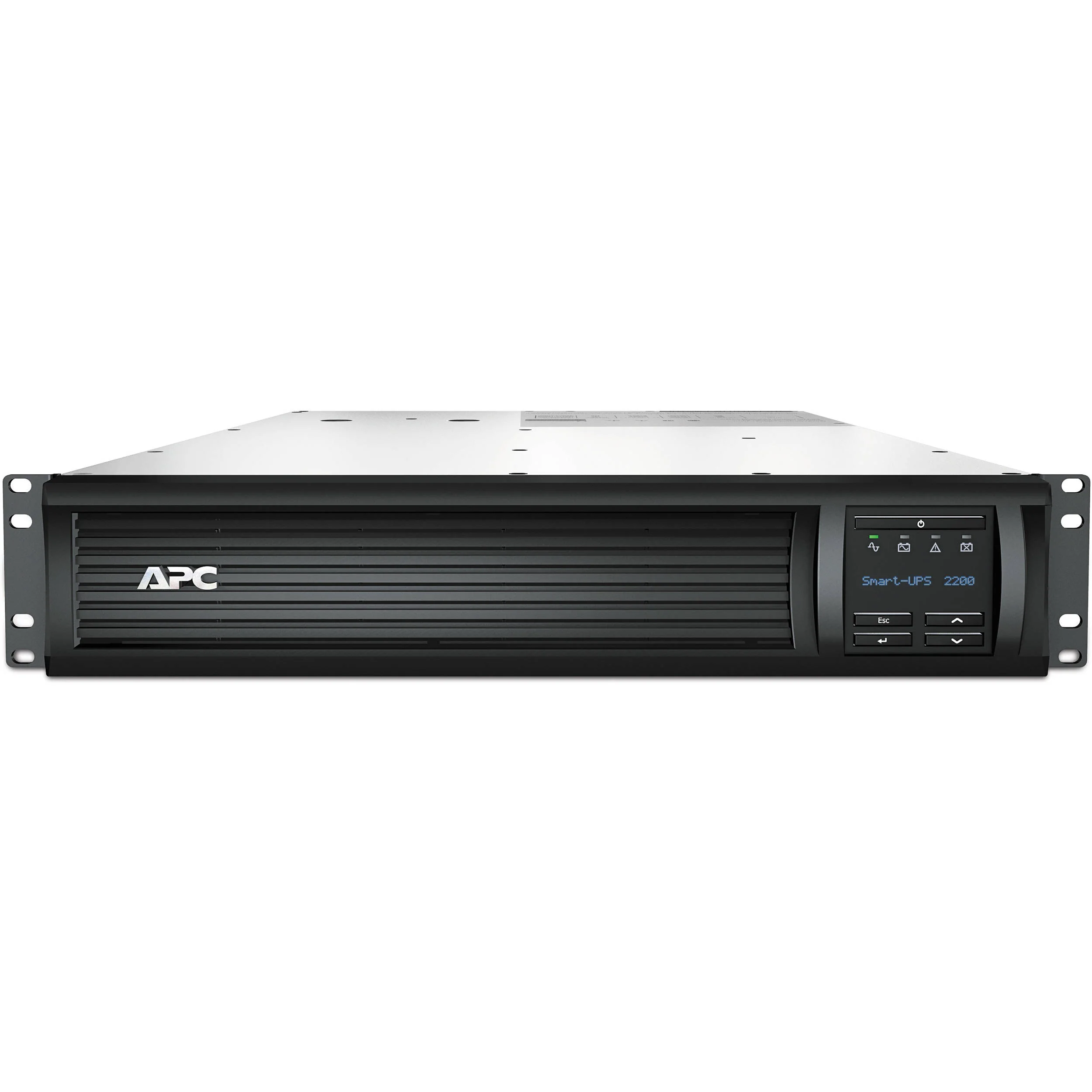

Intuitive LCD Interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive Replace Battery Date
Dynamically provides month and year when battery replacement is recommended to aide in long term maintenance planning.
Green Mode
Patent-pending operating mode that bypasses unused electrical components in good power condition to achieve very high operating efficiency without sacrificing any protection.
Energy Meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure Sine Wave Output On Battery
Simulates utility power to provide an enhanced degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single Switched Outlet Group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
StruxureWare Central Compatible
Enables centralized management via StruxureWare Central.
High Online Efficiency
Reduces utility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Sequenced Network Shutdown and Reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Availability
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Power Conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Pure Sine Wave Output On Battery
Simulates utility power to provide an enhanced degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Serial Connectivity
Provides management of the UPS via a serial port.
SmartSlot
Customize UPS capabilities with management cards.
Serviceability
Easy to Install
Innovative design allows for fast, easy installation.
How-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
UPC: 731304294085
In the Box
- APC SMT2200R2X106 1980 Watt Smart Uninterruptible Power Supply
- Rack Mounting Brackets
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Limited 2-Year Manufacturer Warranty for Battery
- Limited 3-Year Warranty
Table of Contents
- Description
- Main Features
- Availability
- Manageability
- Serviceability
APC 2200VA Specs
General

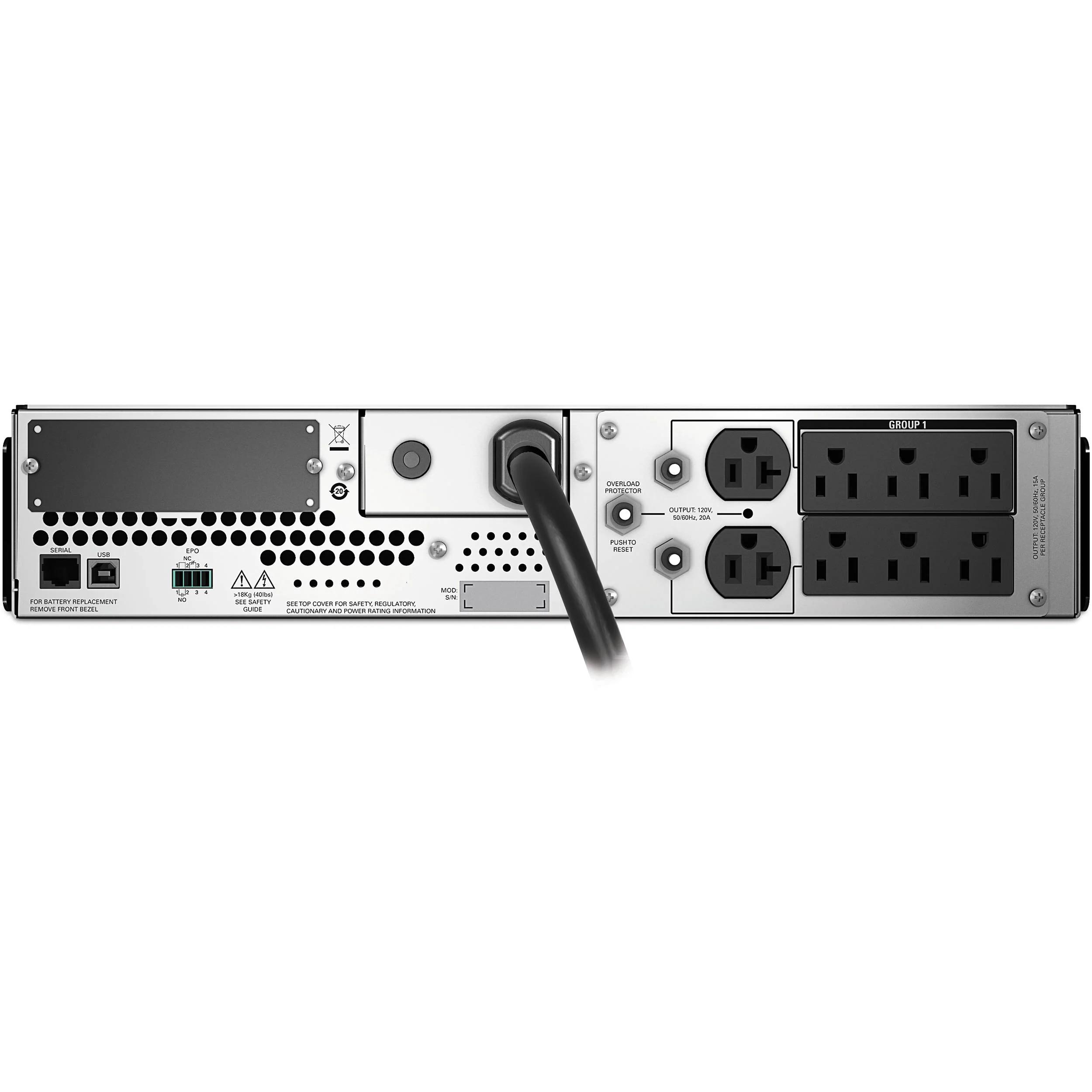

| Total Outlets | 6 x NEMA 5-15R 2 x NEMA 5-20R |
| Plug Type | NEMA L5-20P |
| SmartSlot Interface | 1 |
| Communications | Serial via RJ45 USB via Type-B |
| Emergency Power Off (EPO) Support | Yes |
| Topology | Line Interactive |
Power
| Surge Energy Rating | 530 Joules |
| Maximum Wattage | 1980 W |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Adjustable Range | 75 to 154 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Load Capacity | 2200 VA |
| Thermal Dissipation | 215 BTU/Hour |
| Waveform | Sine Wave |
Battery
| Chemistry | Lead-Acid |
| Charging Time | 3 Hours |
| Replacement Battery | RBC43 |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 10,000' / 3000 m |
| Storage Altitude | 50,000' / 15,000 m |
| Noise Level | 55 dBA |
| Certifications | REACH, RoHS, as per Manufacturer |
Physical
| Cable Length | 8' / 2.4 m |
| Rackmount Size | 2 RU (with Included Hardware) |
| Dimensions (W x H x D) | 3.4 x 18.9 x 26.9" / 86 x 480 x 683 mm |
| Weight | 93.3 lb / 42.3 kg |
Packaging Info
| Package Weight | 114 lb |
| Box Dimensions (LxWxH) | 38 x 24 x 10" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
