Product Overview
LT6012 op amp combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. Typical applications include thermocouple amplifiers, precision photo diode amplifiers, instrumentation amplifiers, battery-powered precision systems and low voltage precision systems.
- 2.7V to ±18V supply voltage operation
- Rail-to-rail output swing
- Gain-bandwidth product: 330KHz typ at f = 10KHz
- Slew rate: 0.09V/µs typ at AV = �10, RF = 50K, RG = 5K
- Supply current per amplifier: 135µA typ
- 75µV max input offset voltage, 900nA max input offset current and ±900pA max input bias current
- 14nV/?Hz typ input noise voltage density and 0.1pA/?Hz input noise current density at f = 1KHz
- 135dB typ CMRR at VCM = 1V to 3.8V and 135dB typ PSRR at VS = 2.7V to 36V, VCM = 1/2VS

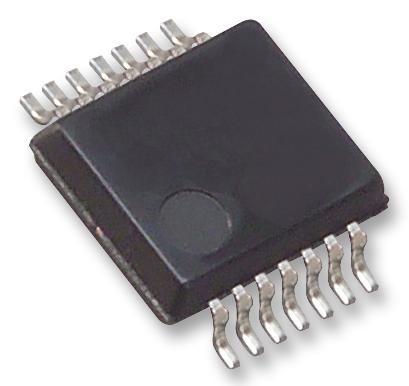

- 14 lead SOIC package
- Operating temperature range from 0 to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT6012CS#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
