Original: $18.61
-70%$18.61
$5.58The Story
Product Overview

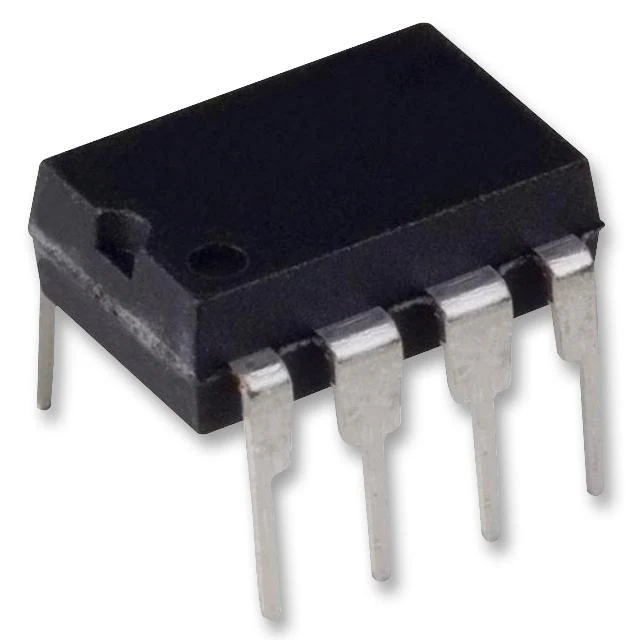

LT1303CN8-5#PBF is a micropower, high-efficiency step-up DC/DC converter utilizing Burst Modeļæ½ operation. It is particularly suited for small, low-voltage battery-operated systems. The LT1303 is an adjustable version capable of supplying an output voltage of up to 25V. Its quiescent current is only 120ĀµA from the battery, and the shutdown pin further reduces the current draw to 10ĀµA. Additionally, the low-battery detector provides an open-collector output that goes low when the input voltage drops below a preset level. The on-chip NPN power switch exhibits a low 170mV saturation voltage at a switch current of 1A. It is used in applications such as EL panel drivers, 2-cell and 3-cell to 5V conversion, palmtop computers, portable instruments, bar-code scanners, PDAs, wireless systems.
- Quiescent current is 120ĀµA typical at (VSHDN = 0.5V, VSEL = 5V, VSENSE = 5.5V)
- Input voltage is 1.55V typical at (TA = 25Ā°C, VIN = 2.0V)
- Oscillator frequency is 155KHz typical at (current limit not asserted, TA = 25Ā°C, VIN = 2.0V)
- Switch leakage current is 10ĀµA maximum at (VSW = 5V, switch off)
- Peak switch current is 1A typical at (VIN = 2V)
- Output sense voltage is 5V typical
- Output hysteresis is 22mV typical
- Switch saturation voltage is 130mV typical at (ISW = 700mA)
- 95% maximum duty cycle
- Operating temperature range from 0Ā°C to 70Ā°C, 8-lead PDIP package
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT1303CN8-5#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
