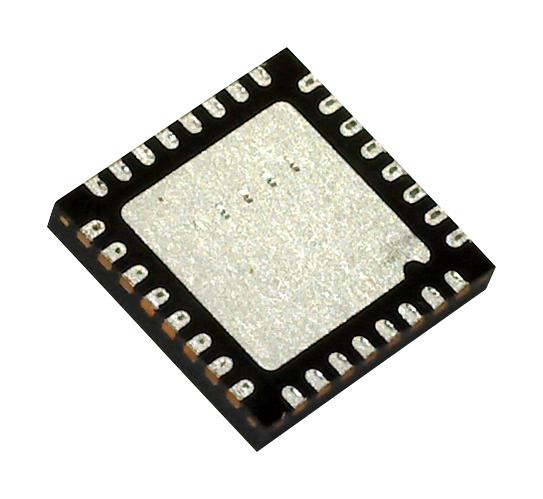

ANALOG DEVICES ADPA9007ACGZN RF Amplifier, 12 dB Gain, 4.5 dB Noise, 50 MHz to 28 GHz, 10 to 15 V, -40 to 85 °C, LFCSP-EP-32

ADPA9007ACGZN is a 2W, RF power amplifier that operates from DC to 28GHz. The RF input and output are internally-matched and DC-coupled. It includes an integrated temperature-compensated RF power detector and an integrated temperature sensor. The ADPA9007 amplifier provides a gain of 12.5dB, an output power for 1dB compression (OP1dB) of 33dBm, and an output third-order intercept (OIP3) of 45dBm from 2GHz to 16GHz. The amplifier operates from a typical supply voltage of 15V and has a 500mA typical quiescent bias current, which is adjustable. It is fabricated on a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT) process. It is used in applications such as electronic warfare, radar, test and measurement equipment.

• Wideband, internally-matched, RF power amplifier
• DC-coupled input and output, integrated RF power detector, integrated temperature sensor
• Frequency range from 0.05 to 2GHz
• Gain is 13dB typical at (TCASE = 25°C)
• Gain flatness is ±1.05dB typical at (TCASE = 25°C)
• Gain variation over temperature is 0.02dB/°C typical at (TCASE = 25°C)
• OP1dB is 31dBm typical at (TCASE = 25°C), saturated output power is 34dBm typical
• IDQ is 500mA typical at (TCASE = 25°C), VDD range from 10V to 15V
• Input return loss is 14dB typical at (TCASE = 25°C)
• Operating temperature range from -40°C to +85°C, 32-lead LFCSP package
