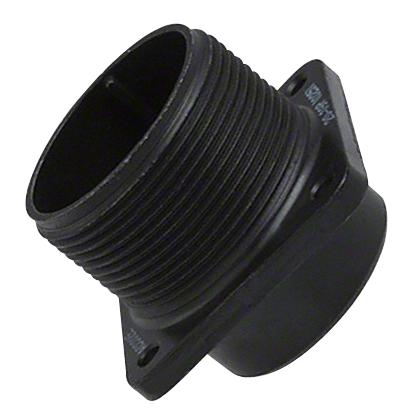

Amphenol Industrial ACC02A24-28SB-025 ACC02A24-28SB-025 Circular Connector AC-B Box Mount Receptacle 24 Contacts Crimp Socket Reverse Bayonet 24-28
Amphenol Industrial ACC02A24-28SB-025 ACC02A24-28SB-025 Circular Connector AC-B Box Mount Receptacle 24 Contacts Crimp Socket Reverse Bayonet 24-28
$22.04
Original: $73.47
-70%Amphenol Industrial ACC02A24-28SB-025 ACC02A24-28SB-025 Circular Connector AC-B Box Mount Receptacle 24 Contacts Crimp Socket Reverse Bayonet 24-28—
$73.47
$22.04The Story
The ACC02A24-28SB-025 from Amphenol is AC-B series, MIL-DTL-5015 series equivalent box mount receptacle with 24 contacts. The AC-B series cylindrical reverse bayonet coupling connectors are environmentally rugged for power and signal applications. These highly reliable and low cost connectors has a unique reverse bayonet coupling system that allows for mating and unmating with a simple 120Ă‹ďż˝ rotation without compromising shock, vibration or moisture resistance. AC-B series positive mating connectors are high shock and vibration resistant. They are manufactured in accordance with MIL-DTL-5015 and VG95234 standards. These are intermateable with VG95234 and other reverse bayonet connectors.
- No lockwiring necessary
- UL approved (file number E115497)
- 500+ mating cycles, IP67 and NEMA 4P rated
- Audible, tactile and visual indication of positive coupling
- Operating temperature range from -55°C to +125°C
- Insulation resistance is greater than 5000Mohm at 25°C
- Salt spray exposure of 48hours to 200hour
- Neoprene insulator and silicone, neoprene or viton seals
- Aluminium alloy body material with black zinc cobalt plating
- Copper alloy crimp socket contacts with silver plating
Commercial, Industrial
Other details
| Brand | AMPHENOL INDUSTRIAL |
| Part Number | ACC02A24-28SB-025 |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The ACC02A24-28SB-025 from Amphenol is AC-B series, MIL-DTL-5015 series equivalent box mount receptacle with 24 contacts. The AC-B series cylindrical reverse bayonet coupling connectors are environmentally rugged for power and signal applications. These highly reliable and low cost connectors has a unique reverse bayonet coupling system that allows for mating and unmating with a simple 120Ă‹ďż˝ rotation without compromising shock, vibration or moisture resistance. AC-B series positive mating connectors are high shock and vibration resistant. They are manufactured in accordance with MIL-DTL-5015 and VG95234 standards. These are intermateable with VG95234 and other reverse bayonet connectors.
- No lockwiring necessary
- UL approved (file number E115497)
- 500+ mating cycles, IP67 and NEMA 4P rated
- Audible, tactile and visual indication of positive coupling
- Operating temperature range from -55°C to +125°C
- Insulation resistance is greater than 5000Mohm at 25°C
- Salt spray exposure of 48hours to 200hour
- Neoprene insulator and silicone, neoprene or viton seals
- Aluminium alloy body material with black zinc cobalt plating
- Copper alloy crimp socket contacts with silver plating
Commercial, Industrial
Other details
| Brand | AMPHENOL INDUSTRIAL |
| Part Number | ACC02A24-28SB-025 |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
